360 controller RT signal alternative point?

Discussion in 'Repair, Restoration, Conservation and Preservation' started by Banjo, Sep 15, 2013.

Watch Thread
  1. Banjo

    Banjo <B>Site Supporter 2014</B>

    Joined:
    Oct 11, 2012
    Messages:
    606
    Likes Received:
    10
    I've just replaced both analog sticks in my 360 controller as they were a bit worse for wear. Put everything back together however I've managed to lift the solder pad for the Right Trigger signal point. So now when I play COD for example, it's trigger happy.

    Is there an alternative point I could run a wire to? Or any way to repair that point?

    [​IMG]

    Last edited: Sep 15, 2013
    Banjo, Sep 15, 2013 Report
    #1 + Quote Reply
  2. Banjo

    Banjo <B>Site Supporter 2014</B>

    Joined:
    Oct 11, 2012
    Messages:
    606
    Likes Received:
    10

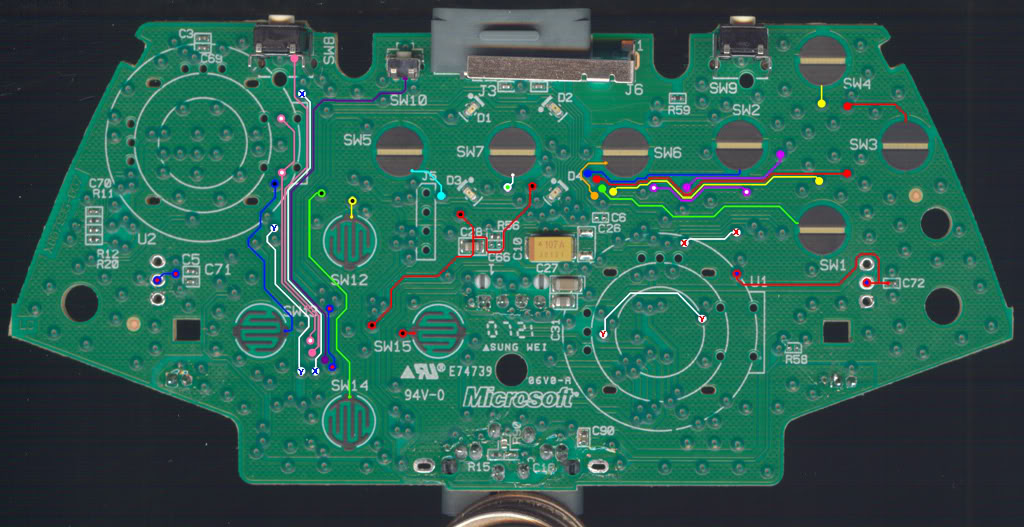

    Managed to sort it thanks to this diagram


    Ran a wire between the signal and the point next to "U1" and it's working fine. Happy days :victorious:

    Banjo, Sep 15, 2013 Report
    #2 + Quote Reply
    l_oliveira likes this.
