alternative spot for mayumi board on a broken ps1 trace?

Discussion in 'Repair, Restoration, Conservation and Preservation' started by snobgamergr, Oct 21, 2016.

  1. snobgamergr

    snobgamergr Spirited Member

    Joined:
    Aug 29, 2015
    Messages:
    138
    Likes Received:
    8
    I was modding a 7502 psx console with a mayumi board, but managed to brake the trace for pin 6 :mad:
    Is there an alternative spot that I can use? If I solder one of the nearby components, the cd-drive spins like crazy.
    Luckily, the console still operates (and reads original discs), if I remove the chip completely

  2. master991

    master991 Enthusiastic Member

    Joined:
    Jun 4, 2012
    Messages:
    597
    Likes Received:
    28

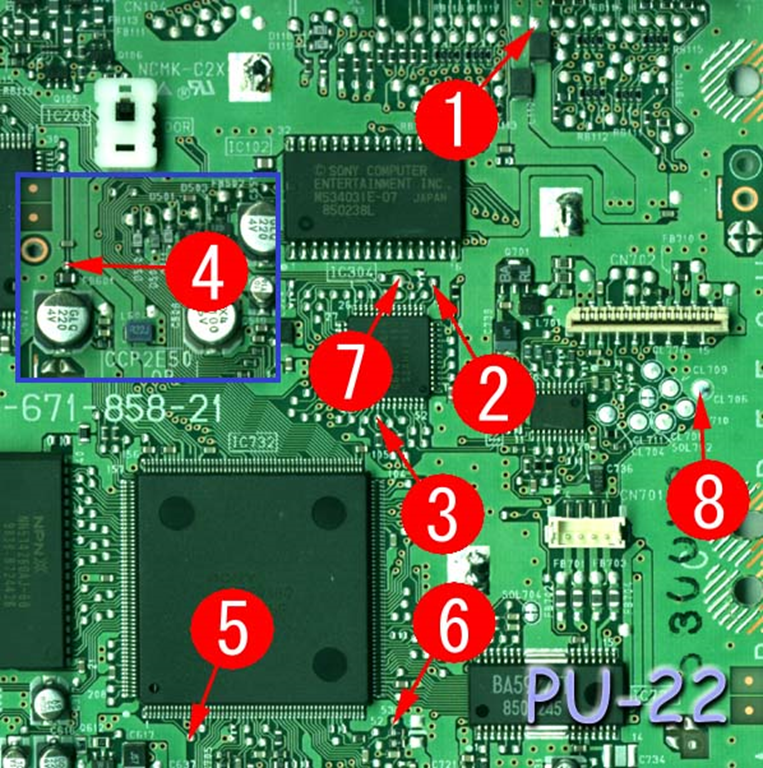

    The resistor under the arrow point n°6, and don't solder on other component randomly without any knowledge, you can damage your psx permanently...

  3. snobgamergr

    snobgamergr Spirited Member

    Joined:
    Aug 29, 2015
    Messages:
    138
    Likes Received:
    8
    I think I tried this spot. This is where the CD ROM spins like crazy. I'll give it one more try though, with new cables. The ones I used maybe are too thin. Too them from a broken serial cable

  4. snobgamergr

    snobgamergr Spirited Member

    Joined:
    Aug 29, 2015
    Messages:
    138
    Likes Received:
    8
    Fixed the broken trace,and used thicker wires. Now cds boot up normaly :cool:
