Best tool for surface mount soldering?

Discussion in 'Repair, Restoration, Conservation and Preservation' started by Segata Sanshiro, Oct 10, 2011.

Watch Thread
  1. Segata Sanshiro

    Segata Sanshiro speedlolita

    Joined:
    Aug 5, 2009
    Messages:
    1,279
    Likes Received:
    11
    I'm currently using a combination of a soldering iron, a sewing pin to pry legs up and a knife to carefully lift them further. Something that could do more than one at a time would be preferable.

    Heard about a hot air pencil, is this a good tool? Cheers.

    Segata Sanshiro, Oct 10, 2011 Report
    #1 + Quote Reply
  2. H360

    H360 Familiar Face

    Joined:
    Mar 5, 2011
    Messages:
    1,474
    Likes Received:
    1
    Last edited: Oct 10, 2011
    H360, Oct 10, 2011 Report
    #2 + Quote Reply
  3. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,308
    ChipQuik is still crap.

    Get a hot air rework station

    Bad_Ad84, Oct 10, 2011 Report
    #3 + Quote Reply
  4. Segata Sanshiro

    Segata Sanshiro speedlolita

    Joined:
    Aug 5, 2009
    Messages:
    1,279
    Likes Received:
    11
    Well, that and stuff like BIOS replacement.

    Any recommendations?

    Last edited: Oct 10, 2011
    Segata Sanshiro, Oct 10, 2011 Report
    #4 + Quote Reply
  5. H360

    H360 Familiar Face

    Joined:
    Mar 5, 2011
    Messages:
    1,474
    Likes Received:
    1
    Do you have 100 or so odd dollars, just to remove a chip?

    ChipQuick is fine :banghead:

    Last edited: Oct 10, 2011
    H360, Oct 10, 2011 Report
    #5 + Quote Reply
  6. Segata Sanshiro

    Segata Sanshiro speedlolita

    Joined:
    Aug 5, 2009
    Messages:
    1,279
    Likes Received:
    11
    I'd consider it a long term investment really.

    Segata Sanshiro, Oct 10, 2011 Report
    #6 + Quote Reply
  7. H360

    H360 Familiar Face

    Joined:
    Mar 5, 2011
    Messages:
    1,474
    Likes Received:
    1
    lol. Alright go for it if you see it that way ^_^

    H360, Oct 10, 2011 Report
    #7 + Quote Reply
  8. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,308
    $2200 BGA rework station
    $200 or so hot air rework station
    $1500 universal programmer


    In short, yes.

    Bad_Ad84, Oct 10, 2011 Report
    #8 + Quote Reply
  9. H360

    H360 Familiar Face

    Joined:
    Mar 5, 2011
    Messages:
    1,474
    Likes Received:
    1
    You forgot FPGA $165

    :p

    H360, Oct 10, 2011 Report
    #9 + Quote Reply
  10. CRTGAMER

    CRTGAMER Robust Member

    Joined:
    Jul 19, 2010
    Messages:
    276
    Likes Received:
    16
    Stick with one pin at a time to avoid melting two pads together. Pencil Iron, Desolder Suction Tool and Desolder Braid. There is no need to bend the legs up, just suck out the solder and confirm clearance by moving each chip leg with a small pick or tiny jewelers screwdriver. After all the legs wiggle free, lift the entire chip out without the risk of damaging the PCB.

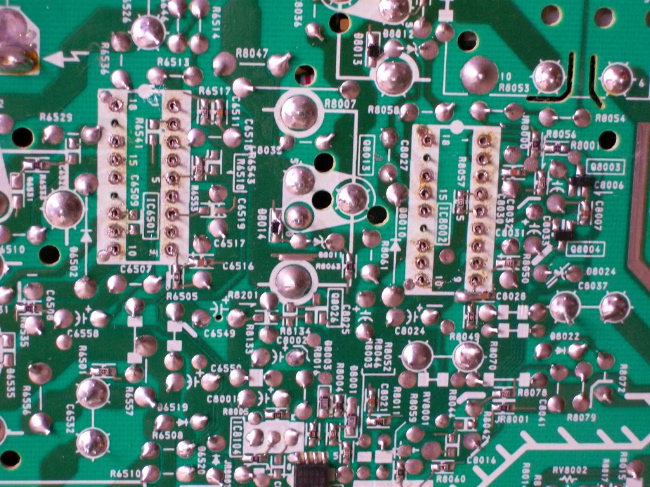

    [​IMG]

    Sony Trinitron WEGA RLOD Twenty Dollar Repair Guide

    Last edited: Oct 10, 2011
    CRTGAMER, Oct 10, 2011 Report
    #10 + Quote Reply
  11. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,308
    Except the thread is about surface mount, not through hole like everything you are talking about.

    Bad_Ad84, Oct 10, 2011 Report
    #11 + Quote Reply
  12. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    Through hole is never hard. Ever. If it is you need more practice. And whoever did the soldering work on the through hole guide is HORRENDOUS. Those joints look terrible. I can understand the removal looking like it did but the DIP header installation? He should be very grateful it works and didn't end up with a few cold joints.

    And ChipQuik is crap. Stuff completely ruined one of my soldering iron tips and had to replace it; couldn't get any solder to stick to it. Cleaning it off of boards is a PITA as well as none of my desoldering braid would actually wick it up. Cleaned up most of it but was forced to leave some on the solder resist.

    Do it right or don't bother doing it as you'll often find you'll either drop the money on the proper tools or pay someone to fix your mistakes who has the proper tools.

    No I don't own any rework stations but I plan to sooner than later.
