Beta of GBA catwoman on a dev card, how to dump/replace with something cooler?

Discussion in 'Nintendo Game Development' started by Jax184, Sep 28, 2011.

  1. Jax184

    Jax184 Active Member

    Joined:
    Jul 9, 2011
    Messages:
    33
    Likes Received:
    2
    I recently ended up with a Gameboy Advance dev cartridge with a very unfinished version of Catwoman on it. I'm wondering how best to go about dumping it. And once I have a copy of its current contents, would it be possible to reflash this card with something more interesting?

    [​IMG]

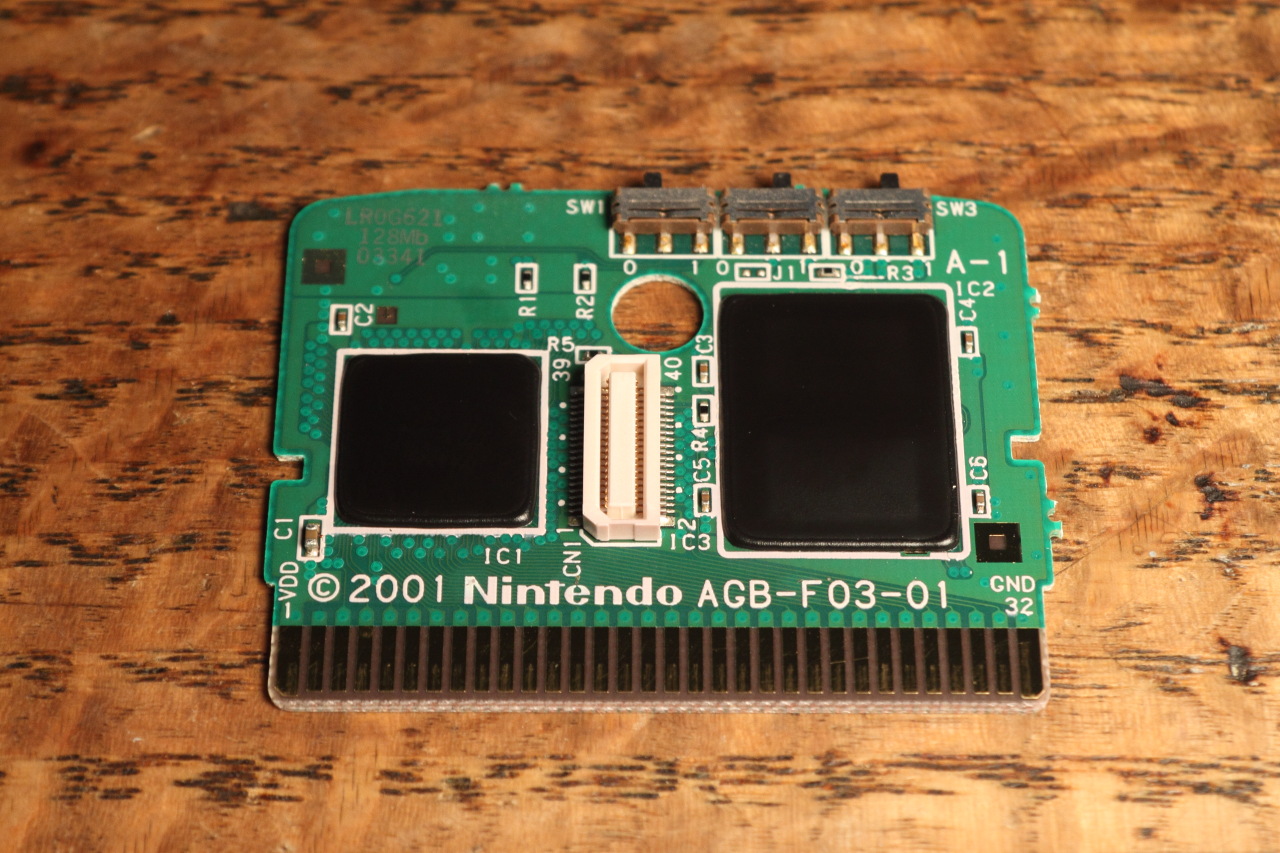

    Note that it's currently set to 128mbit. Can anyone read the Japanese below?

    [​IMG]

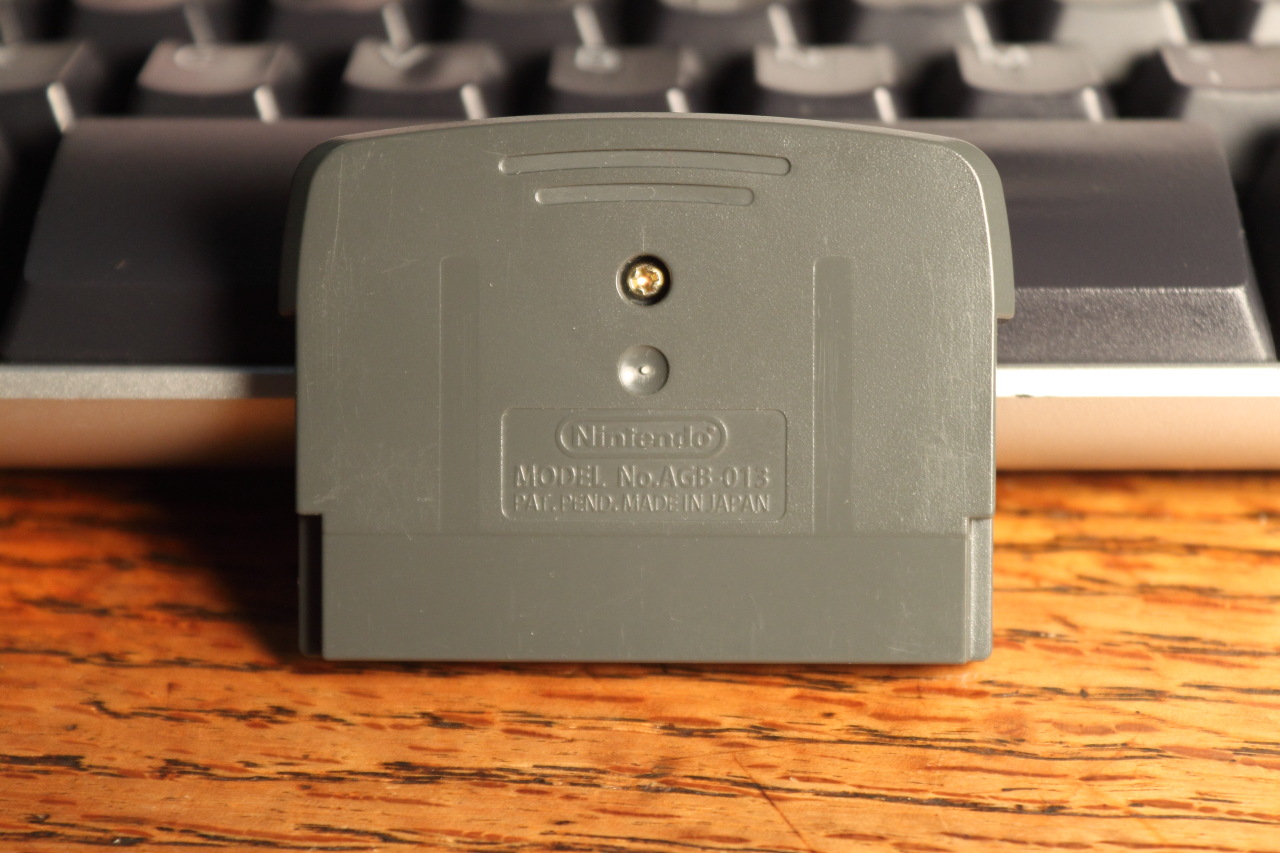

    Part number AGB-013 is a GBA game that features the tilt sensor. I guess they reused the case plastic.

    [​IMG]

    I suspect I'd need to plug a special cable into that white port to reprogram the card.

    [​IMG]

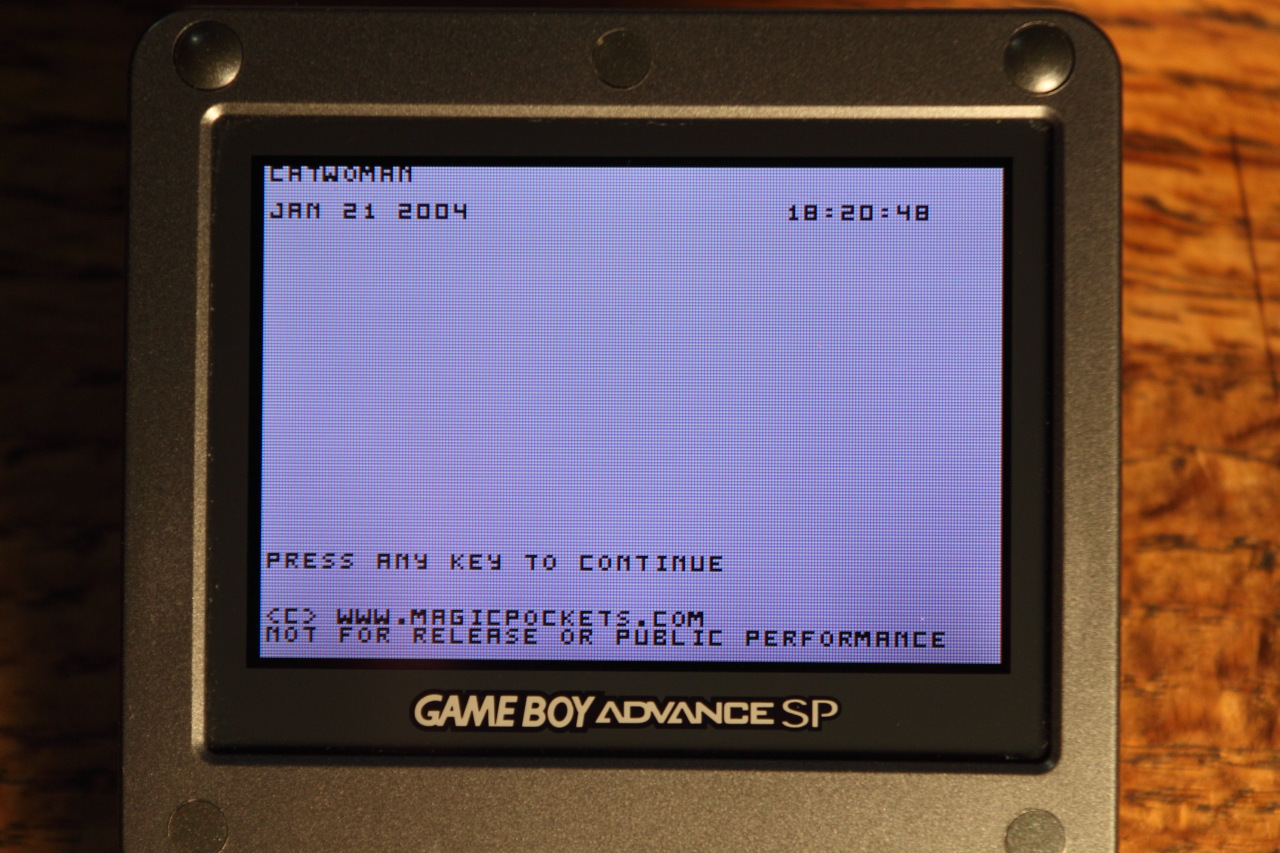

    And here we are booted up.

    [​IMG]

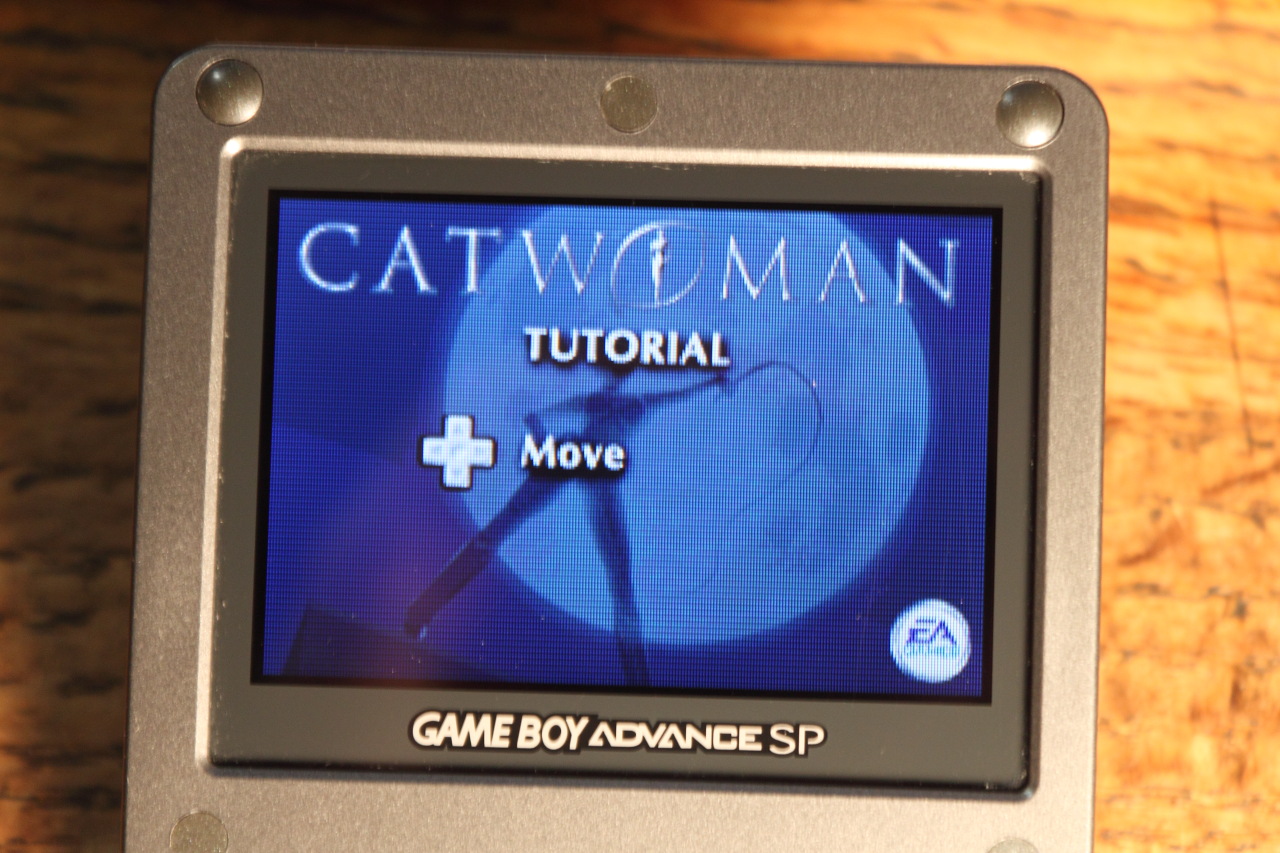

    The game is very unfinished. No intros, no sound, etc.

    [​IMG]

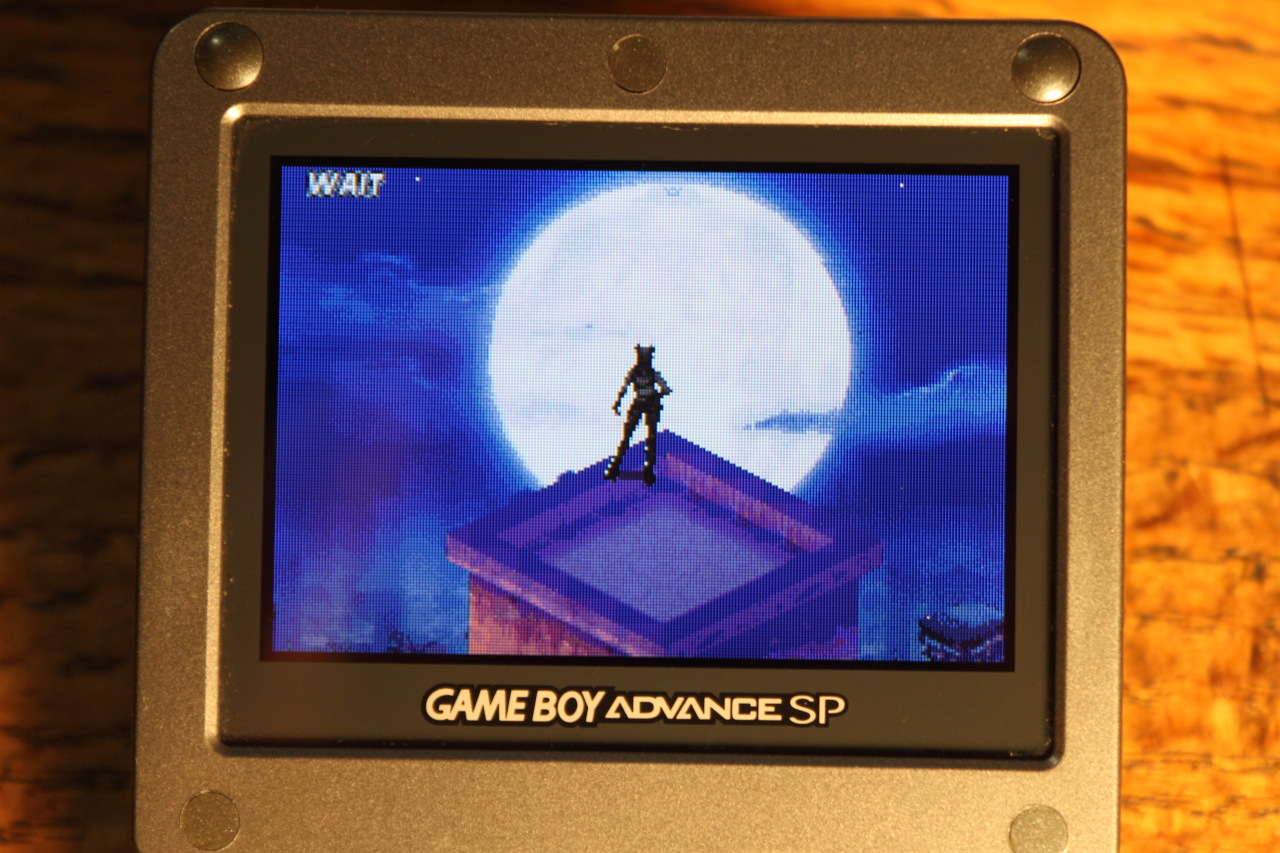

    It says WAIT in the top corner because that's what the character is doing. It changes to say RUN, JMP, FALL, etc.

    [​IMG]

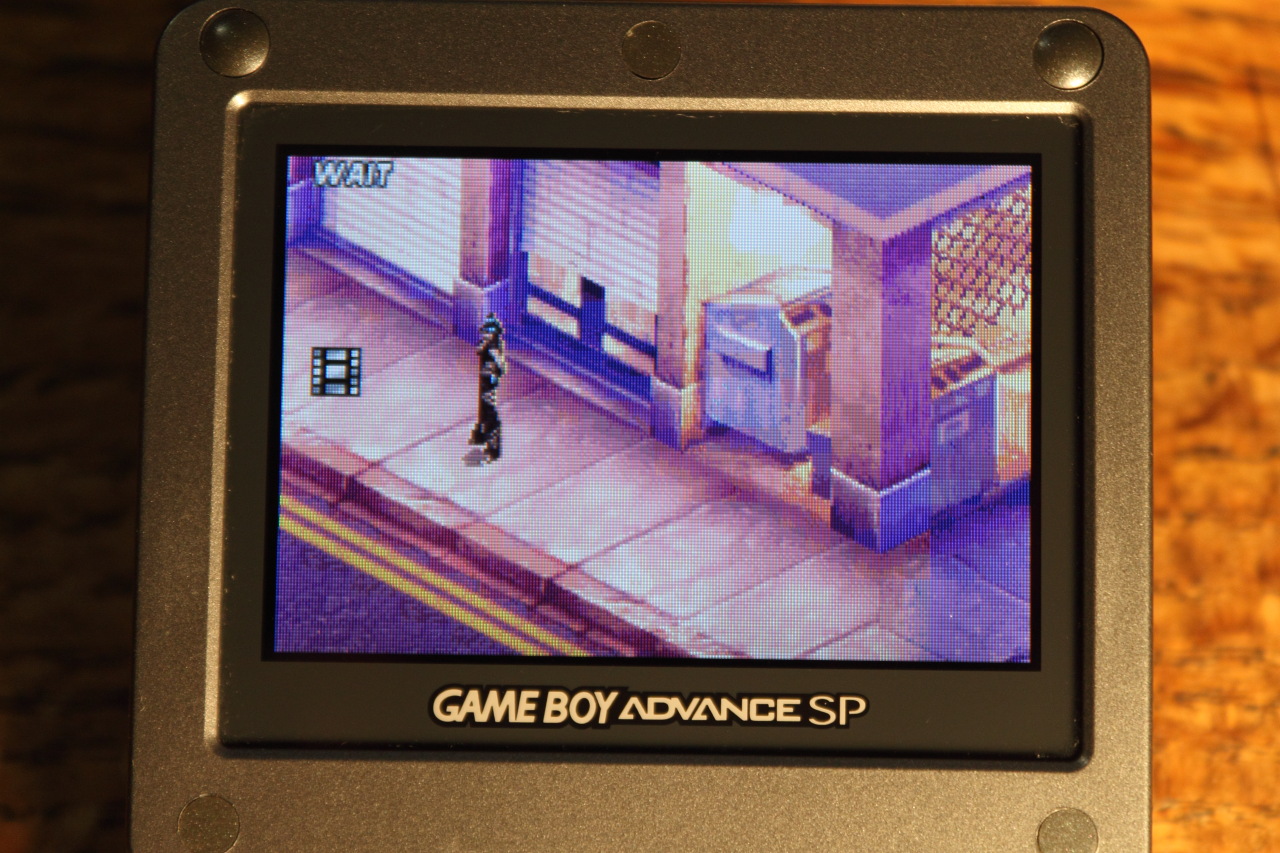

    And all over the place are little icons like this, which seem to suggest the developers planned to put something there later. I've never played the finished game so I don't know.

    So what do you guys think?

    Last edited: Sep 28, 2011
  2. splith

    splith Resolute Member

    Joined:
    May 2, 2010
    Messages:
    997
    Likes Received:
    4
    You'd need an official programmer which no-one seems to have, or a modified MBv2 cable which I've asked for a lot of times and no-one has.

  3. Jax184

    Jax184 Active Member

    Joined:
    Jul 9, 2011
    Messages:
    33
    Likes Received:
    2
    In what way does it need to be modified?

  4. nesworld

    nesworld Gutsy Member

    Joined:
    Jan 1, 2008
    Messages:
    426
    Likes Received:
    4
    Do NOT use an old Flash Advance copier to back this up, you may end up ruining the cart for good.

  5. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    And then sell it one ebay and make deh moniezzzz?

    Please don't do this.

  6. splith

    splith Resolute Member

    Joined:
    May 2, 2010
    Messages:
    997
    Likes Received:
    4
    Tbh I want to put lockjaw on mine but it'll never happen :/

  7. DarthCloud

    DarthCloud Fiery Member

    Joined:
    Dec 26, 2007
    Messages:
    874
    Likes Received:
    14
    Last edited: Sep 28, 2011
  8. Jax184

    Jax184 Active Member

    Joined:
    Jul 9, 2011
    Messages:
    33
    Likes Received:
    2
    Was that addressed to me? I'm not looking to sell it. I've just got this cool rare piece of hardware with a particularly dull version of the most boring GBA game I can think of on it.

    So far I haven't tried anything, as I've never done any sort of GBA dev. What sort of interface does it use?

  9. DarthCloud

    DarthCloud Fiery Member

    Joined:
    Dec 26, 2007
    Messages:
    874
    Likes Received:
    14
    You just plug the game in your Nintendo DS and start that DS program from a DS flash card and it will dump the game on the microSD card of you DS flash card.

  10. Jax184

    Jax184 Active Member

    Joined:
    Jul 9, 2011
    Messages:
    33
    Likes Received:
    2
    Ahh. I sold my DS and its flash cart because I realized I had only ever used it for Scribblenauts. I'll have to borrow a friend's and give it a try.

  11. Demo

    Demo Robust Member

    Joined:
    Jan 19, 2008
    Messages:
    214
    Likes Received:
    6
    Yes, this definitely works. I dumped some of my dev cards as well using this tool. :thumbsup:

  12. nesworld

    nesworld Gutsy Member

    Joined:
    Jan 1, 2008
    Messages:
    426
    Likes Received:
    4
    awesome info regarding dumping, thanks! :)

  13. Kiddcade

    Kiddcade Active Member

    Joined:
    Nov 23, 2009
    Messages:
    32
    Likes Received:
    0
    Kind of REALLY want to play with this rom....

  14. Jax184

    Jax184 Active Member

    Joined:
    Jul 9, 2011
    Messages:
    33
    Likes Received:
    2
    I'll borrow a friend's DS within the week and make a dump of it then.

  15. cypherpunk

    cypherpunk Active Member

    Joined:
    Jan 2, 2012
    Messages:
    43
    Likes Received:
    2
    I will translate this for you, but it's a lot less profound then you think. ;-)

    Japanese:
    AGBカートリッジ 128MフラッシュS
    ディップスイッチの設定

    SW3はライトプロテクト用切替えスイッチです。ライターでの書込み時のみOFF、それ意外はONにして使用してください。
    スライドスイッチの故障を防ぐ為、ピンセットなどで切替えてください。

    Translation:

    AGB Cartridge, 128M Flash S
    Dip switch settings

    SW3 is the write protection switch. Please only switch it to OFF for writing, otherwise keep it in the ON setting.  In order to prevent failures, please switch the slide switch using tweezers.

    Last edited: Jan 28, 2012
  16. Jax184

    Jax184 Active Member

    Joined:
    Jul 9, 2011
    Messages:
    33
    Likes Received:
    2
    Profound or not, I'm glad to know what it says. Thanks for the help.

    I've been delayed in dumping this ROM for a few more days because my friend doesn't have a flash cart in his DS right now. But I'll be able to turn something up soon. I hope...
