Blown power circuit in a PC 9821 NA9

Discussion in 'Repair, Restoration, Conservation and Preservation' started by Tokimemofan, Dec 6, 2018.

  1. Tokimemofan

    Tokimemofan Dauntless Member

    Joined:
    Feb 8, 2012
    Messages:
    740
    Likes Received:
    77
    Just got this off eBay, a prior owner did a capacitor replacement. There is a short circuit somewhere that is causing it to smoke when you press the power button. Any ideas?


    Attached Files:

  2. awbacon

    awbacon Robust Member

    Joined:
    Jan 2, 2010
    Messages:
    222
    Likes Received:
    102
    I'd pull the caps and start over. Make sure there aren't any bridged solder points from his solder job. If there is a short, I'd be looking for bridged pads first. Then I'd redo the sellers work second

  3. Tokimemofan

    Tokimemofan Dauntless Member

    Joined:
    Feb 8, 2012
    Messages:
    740
    Likes Received:
    77

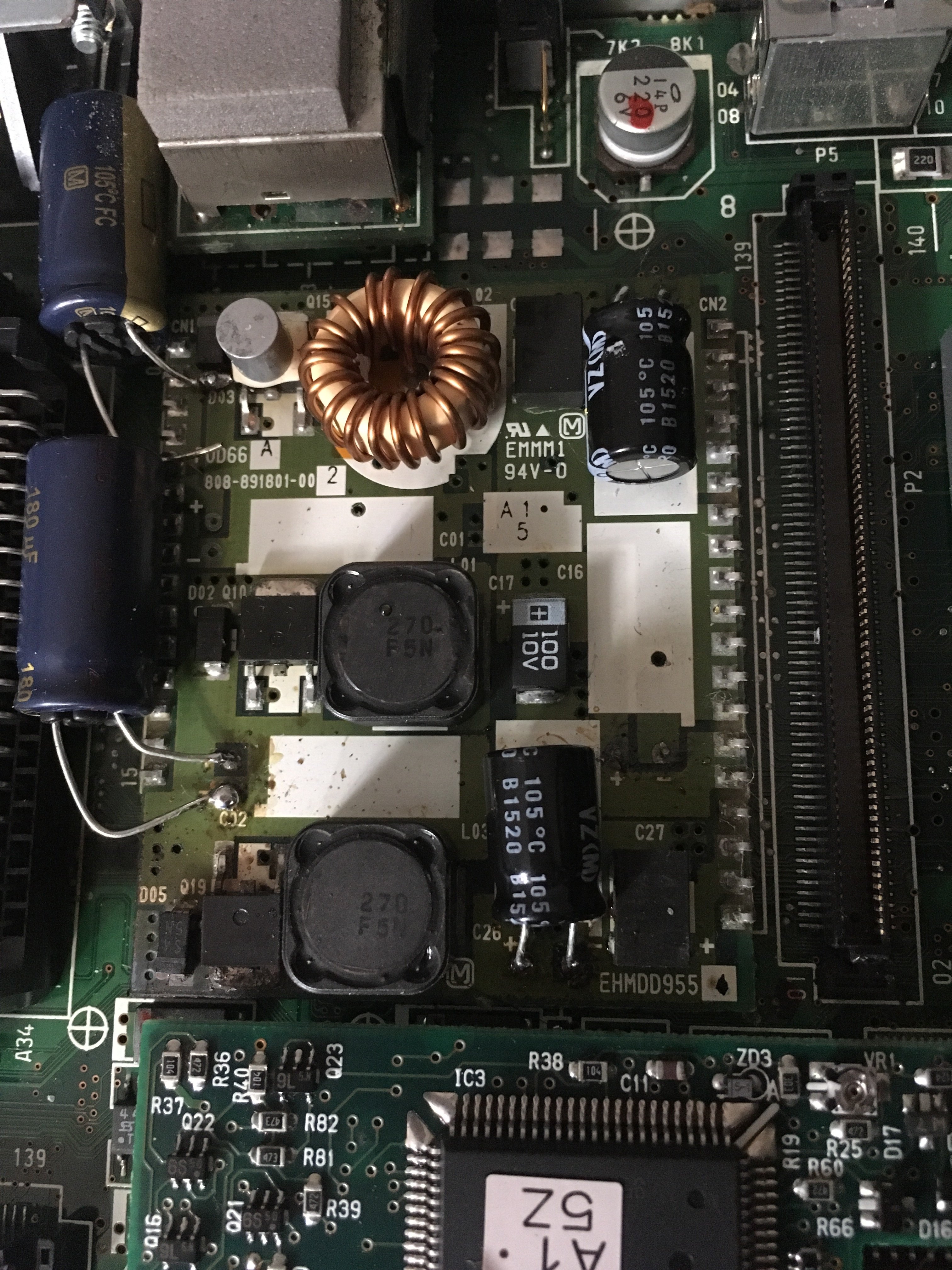

    The circuit seems to be a buck converter used to power the cpu. On closer inspection I see black ooze. The mosfet may not have failed but more likely some thing on the other side. I won’t get to a soldering iron until Monday. That board needs to come off...

  4. Tokimemofan

    Tokimemofan Dauntless Member

    Joined:
    Feb 8, 2012
    Messages:
    740
    Likes Received:
    77

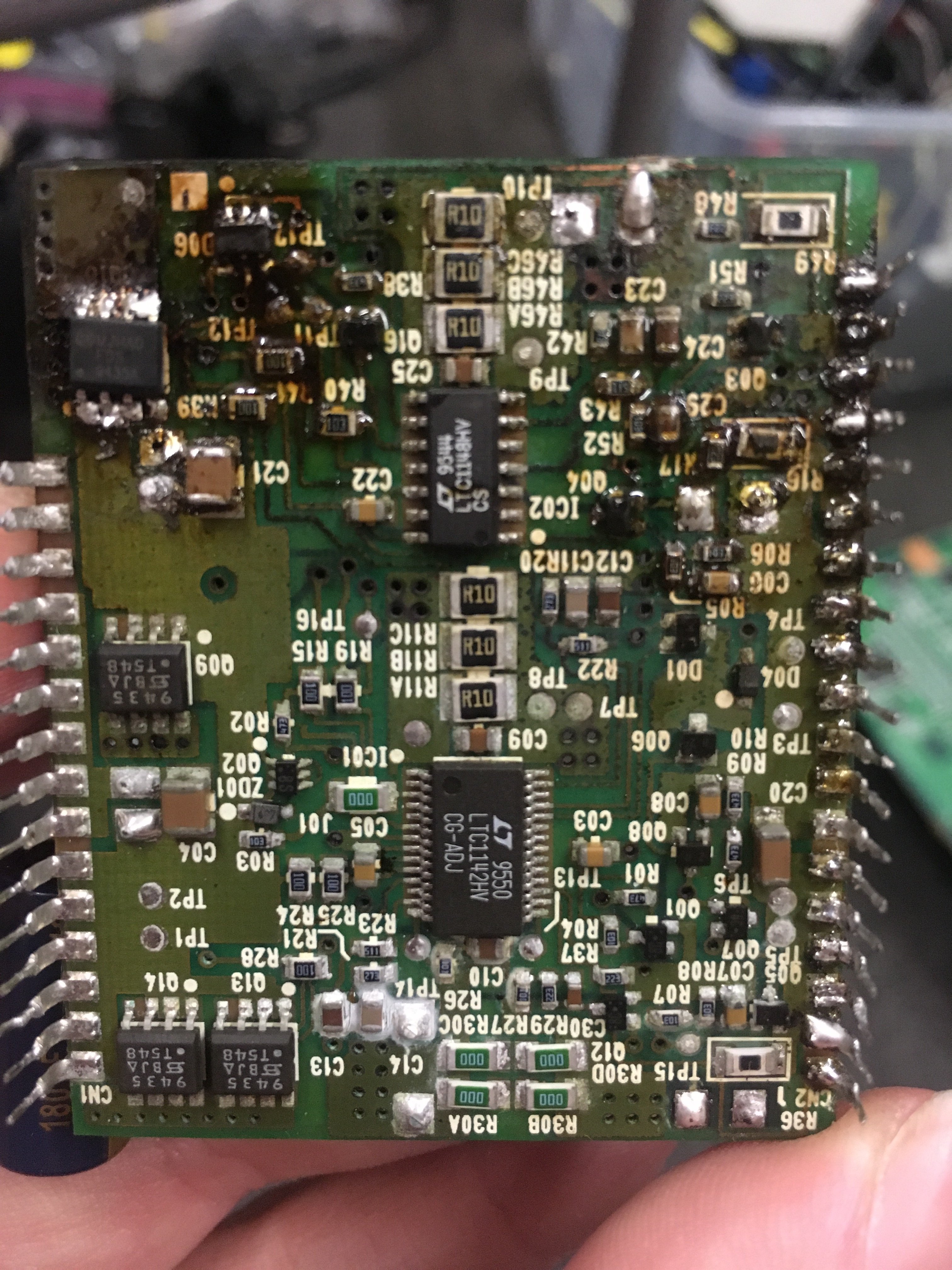

    Photo of the other side, the 9435 mosfet (Q18) was shorted source to drain as is the FS30 mosfet (Q19)
    The soldering job didn’t damage anything, replacing Q18 and Q19 resulted in them blowing again. The diodes are good and the other mosfet pair (Q09, Q10) is good. Any suggestions?


    Attached Files:
