Hey Im looking at getting a Naomi 1 system which comes with wiring harness etc, does anyone know if this wiring etc will work with a Lindbergh jvs board?
Yes but depending upon the game, may not have wiring for the later I/O boards that require more analog functions than the standard JAMMA JVS I/O has.
You can plug that right in, for driving games you might need to rewire some buttons etc. Virtua Tennis and Virtua Fighter 5 works directly with 3 button setup. Including all Test/Service buttons. That's why it's JVS standard.
Also for drivers it's mostly plug n' play, except for some driving games with additional buttons. those don' t work right away.. but a simple rewire gives R-Tuned & Race TV boost on a designated button. i can supply a small diagram if needed. Offcourse FFB is anotha story; Lind needs the rs323/422 serial servo board instead of midi, which looks almost the same but takes a different signal and has a completely different price tag..
ive got the serial servo board at great expense from sega, ive only got the race tv manual at the moment to try wire it up once i get the jvs wiring etc any diagram would be great really for help

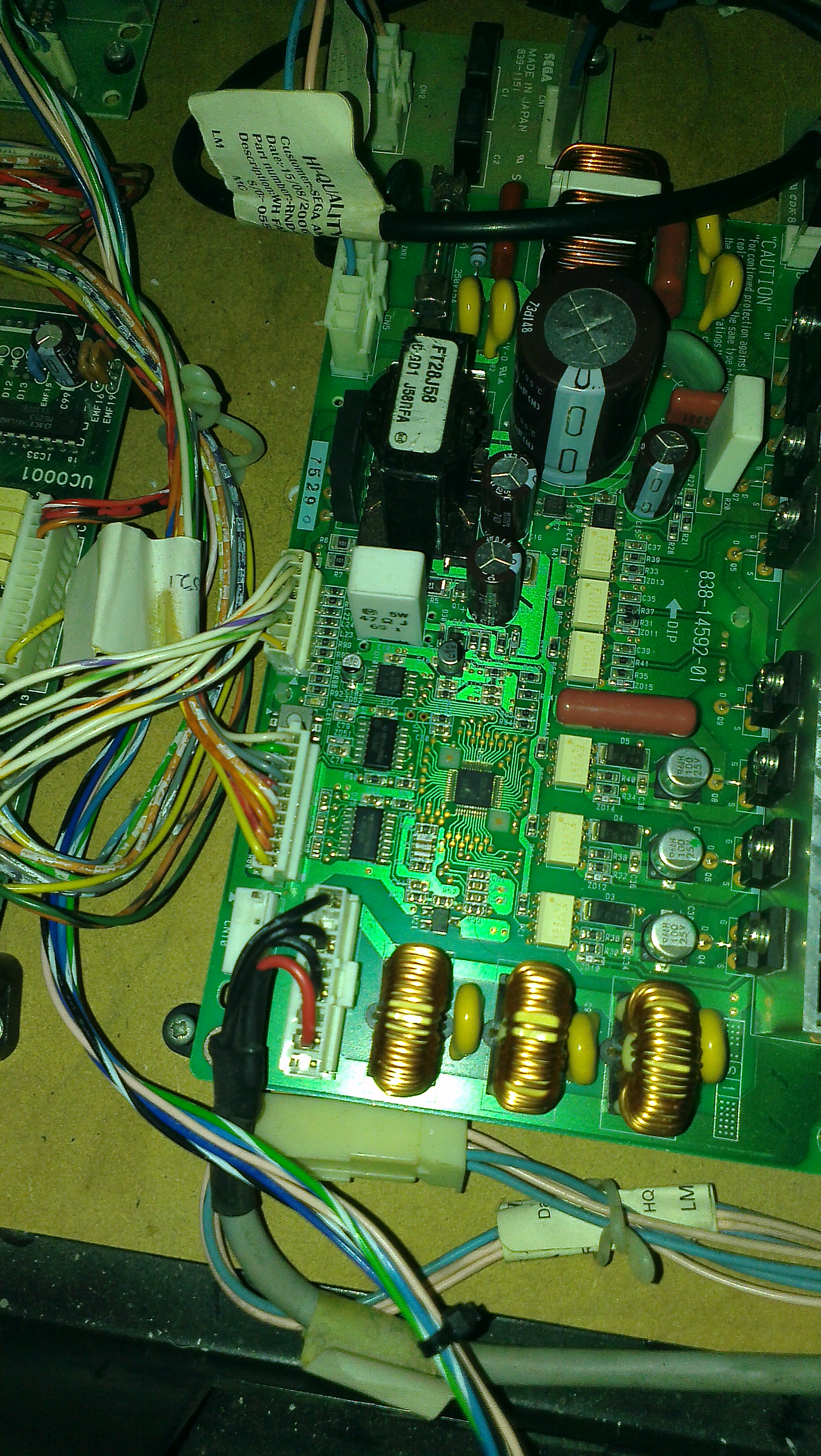

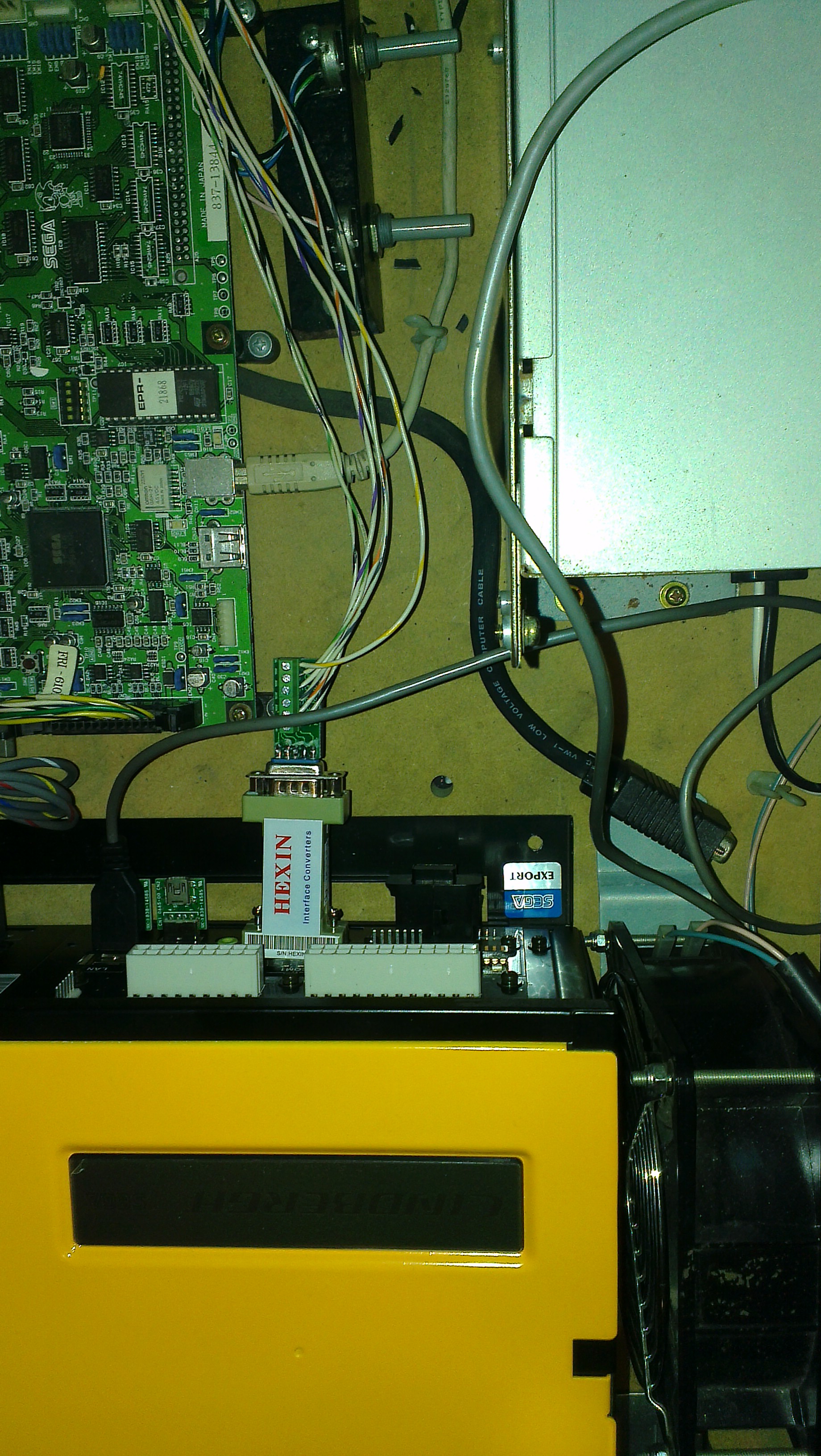

ok first of all, if you have the serial servo board (and a jvs racing cabinet offcourse) you dont really need anything special anymore, other than a regular rs-232 to 422 converter and a simple jst connector with 6 cables: View attachment 5934 for the Boost button just pin it to a button of choice, in this diagram i have set it on Start button: View attachment 5937
