COMPLETE 12.30.2010 core grafx into a USB hard disc

COMPLETE 12.30.2010 turning core grafx case into a USB hdd

I've just finished this simple project and it only took about 24 hours to do,so here's a copy of my project from gamesX

Some poor pictures

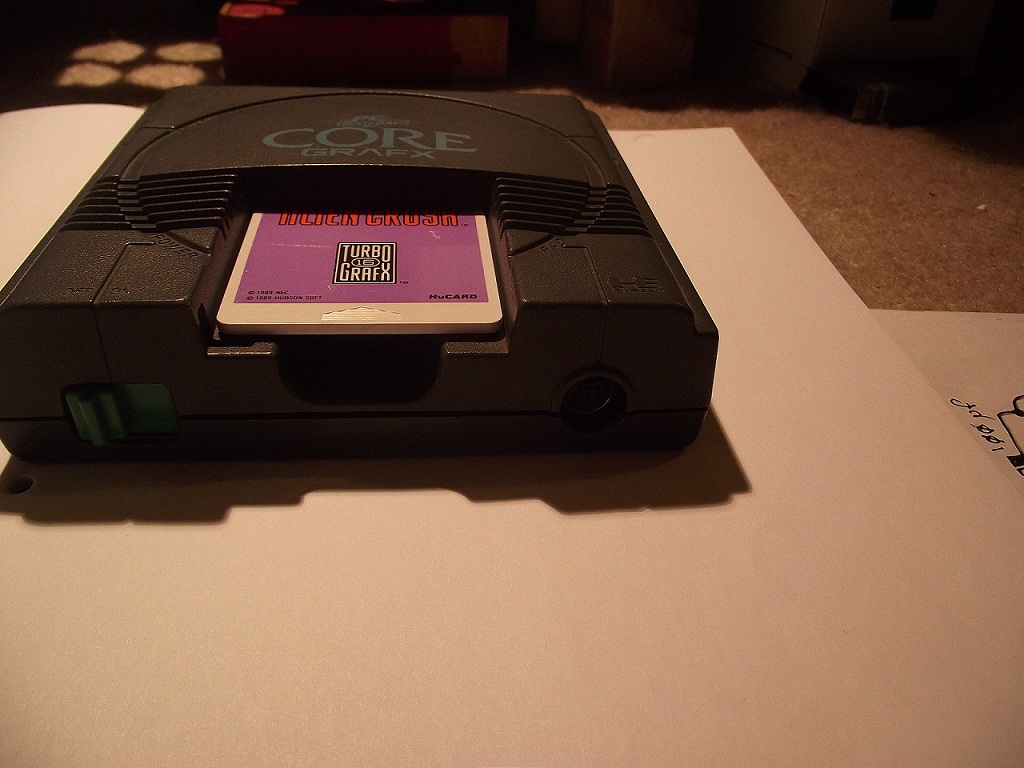

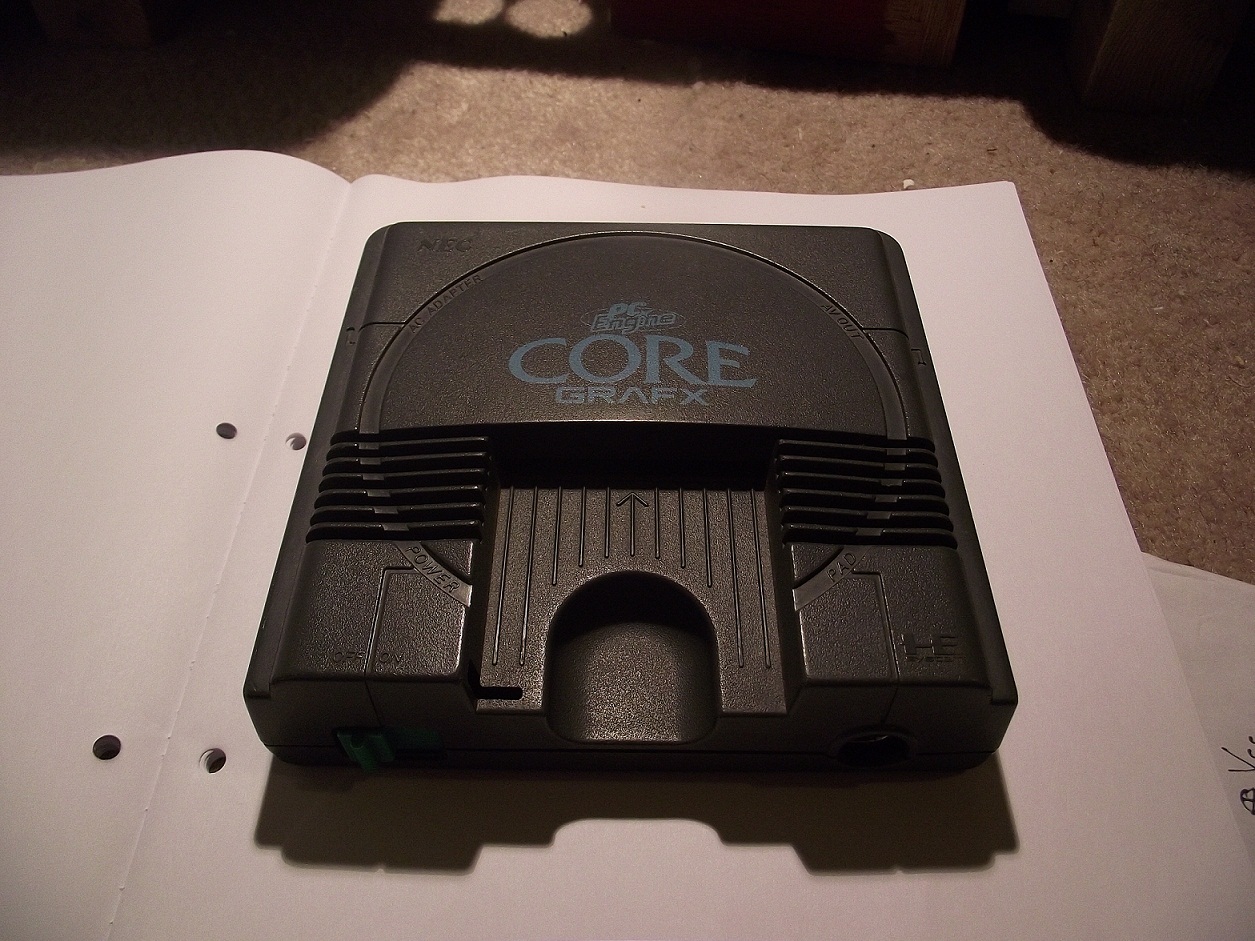

Joypad port and green on/off switch cover still intact

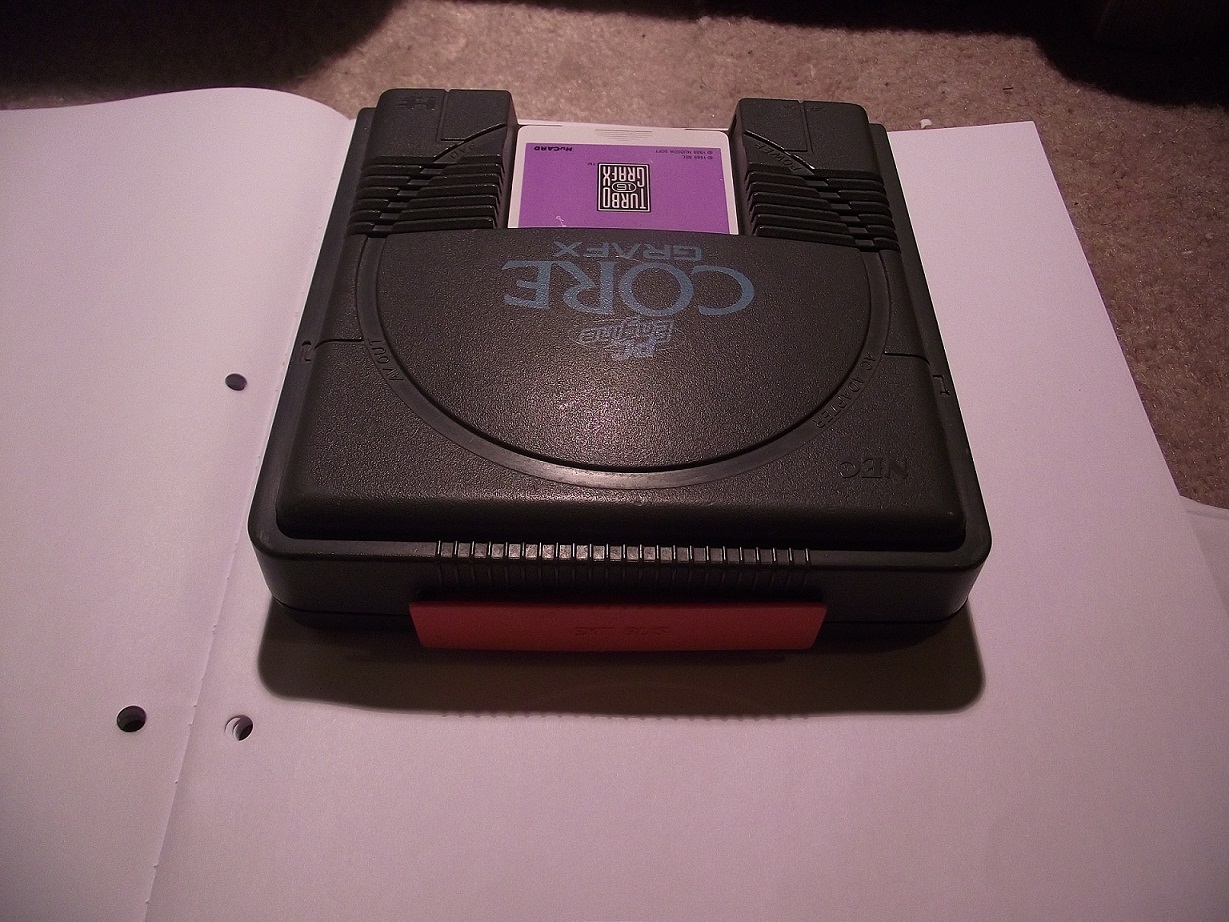

Expansion port cover(pc engine one).

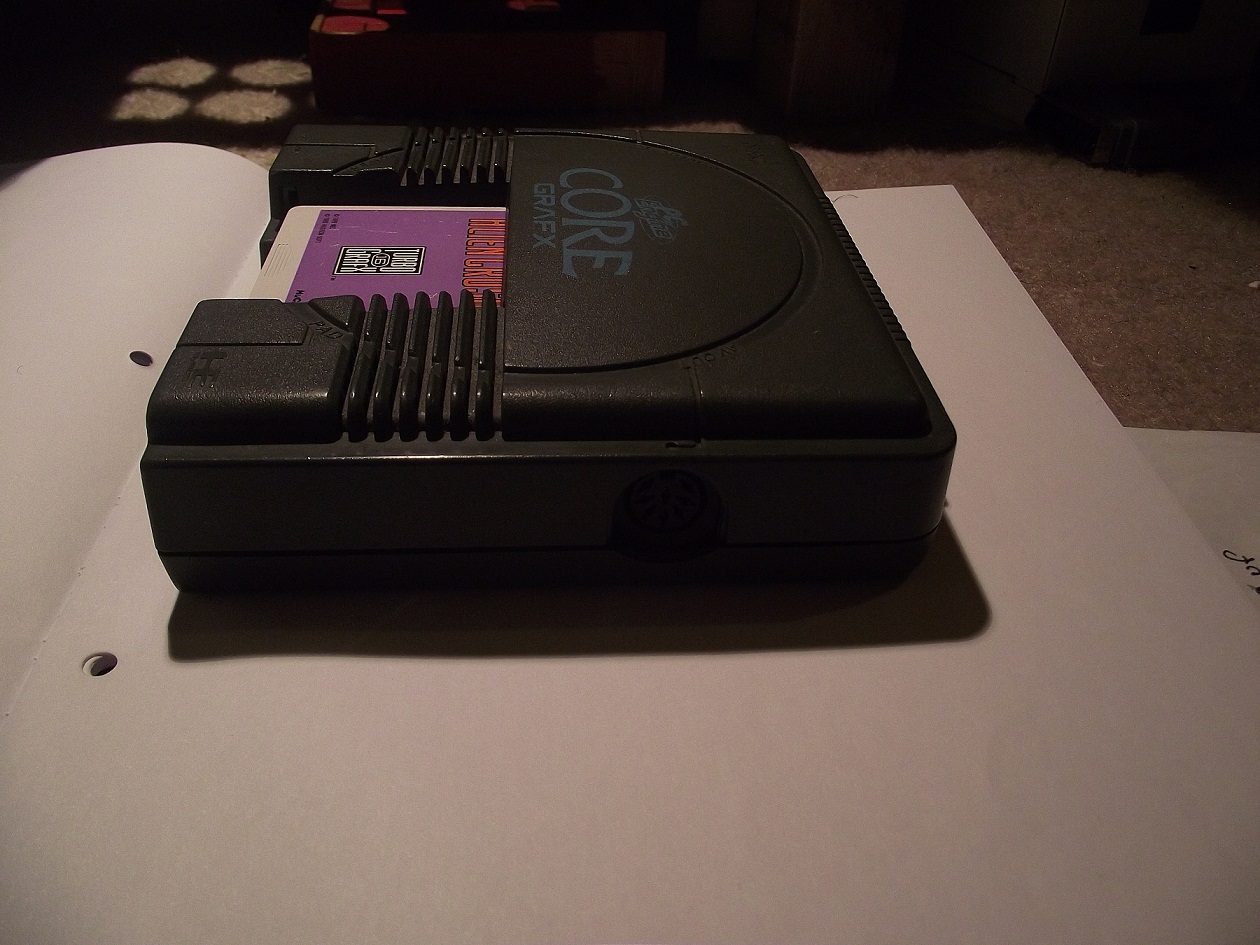

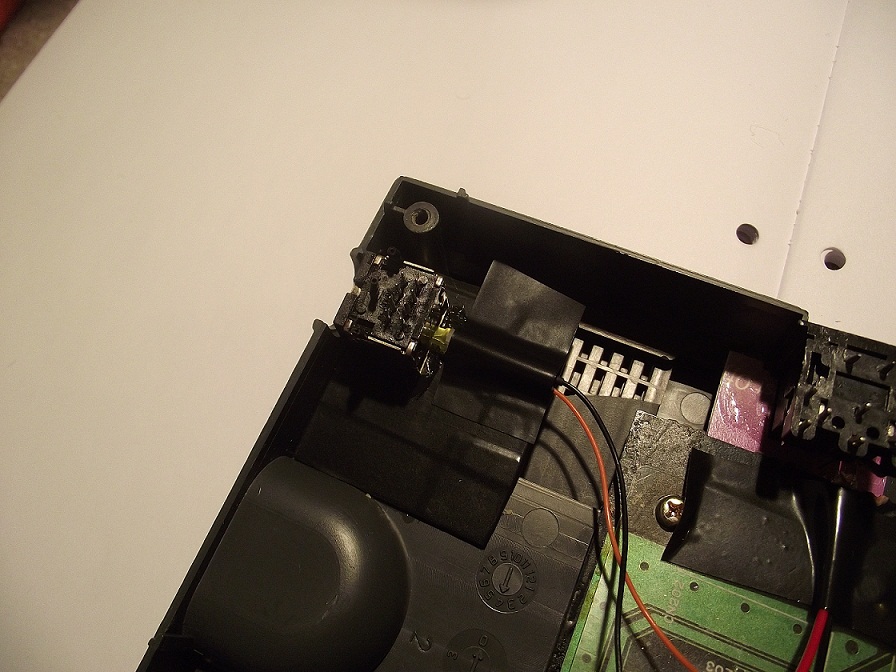

Av din socket in place

HU card connector also in place.

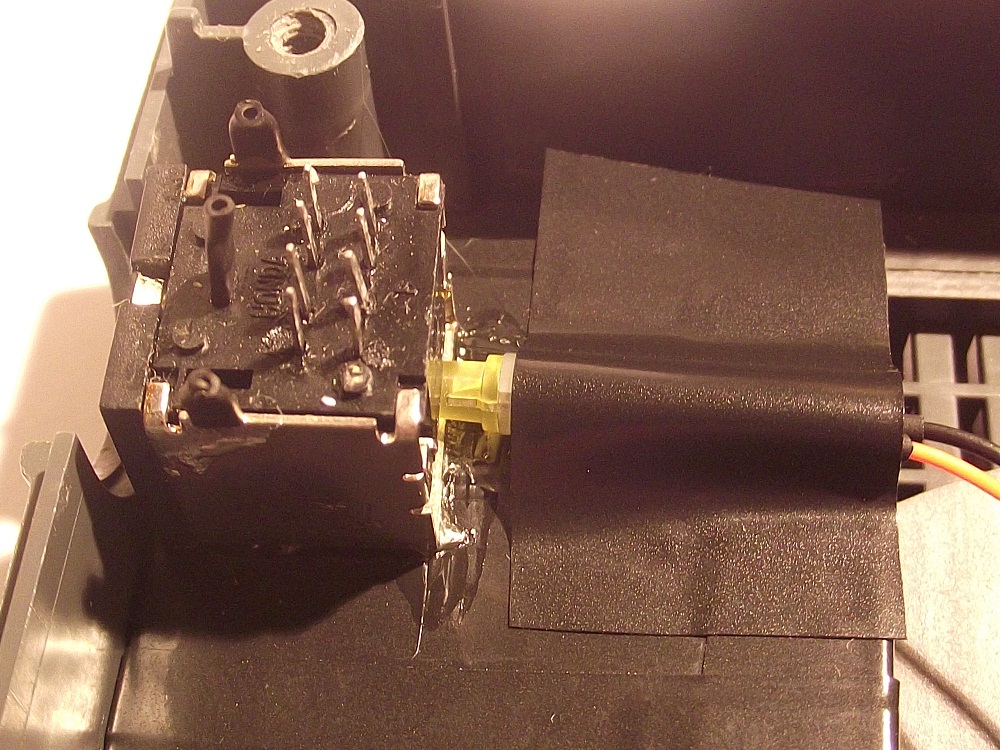

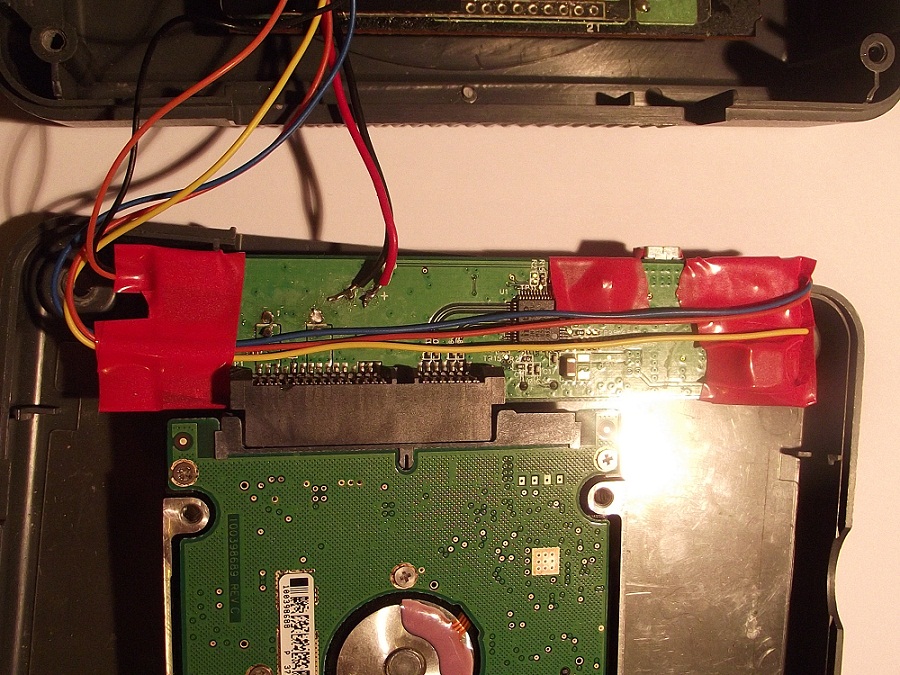

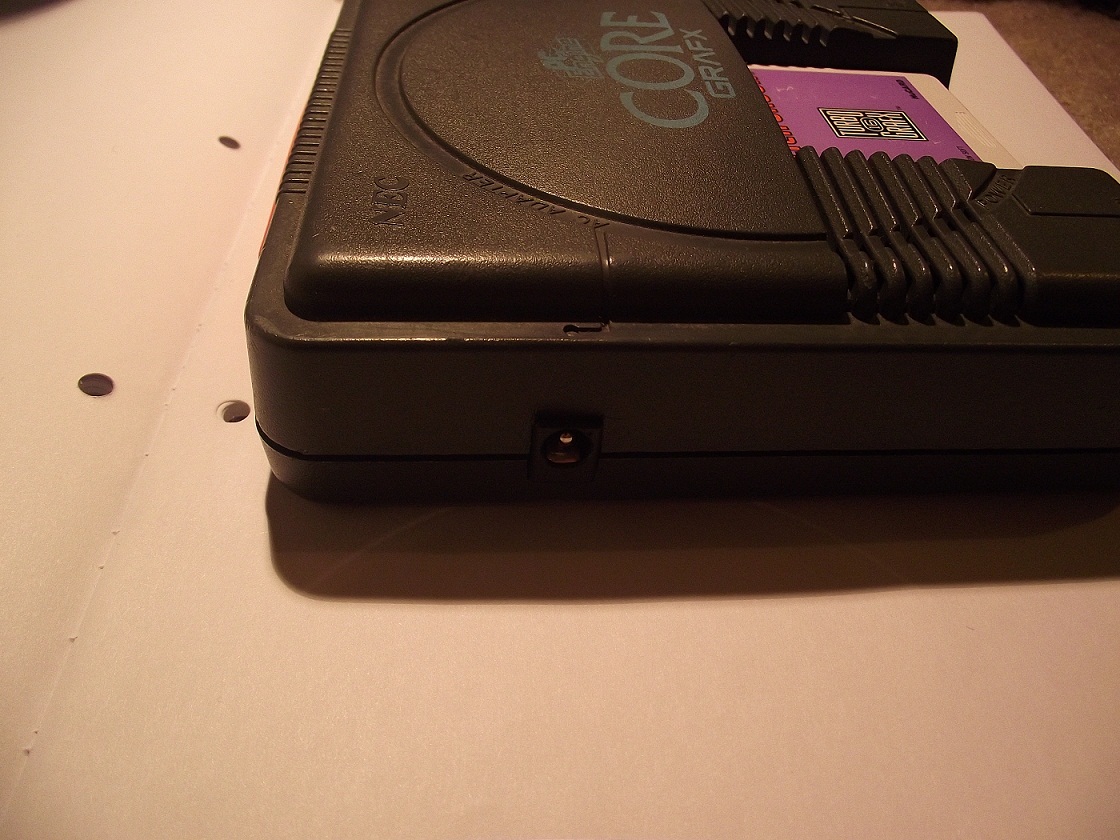

Ac adapter jack moved from original place on the usb sata pcb ,to where it would normally be found on the core grafx.

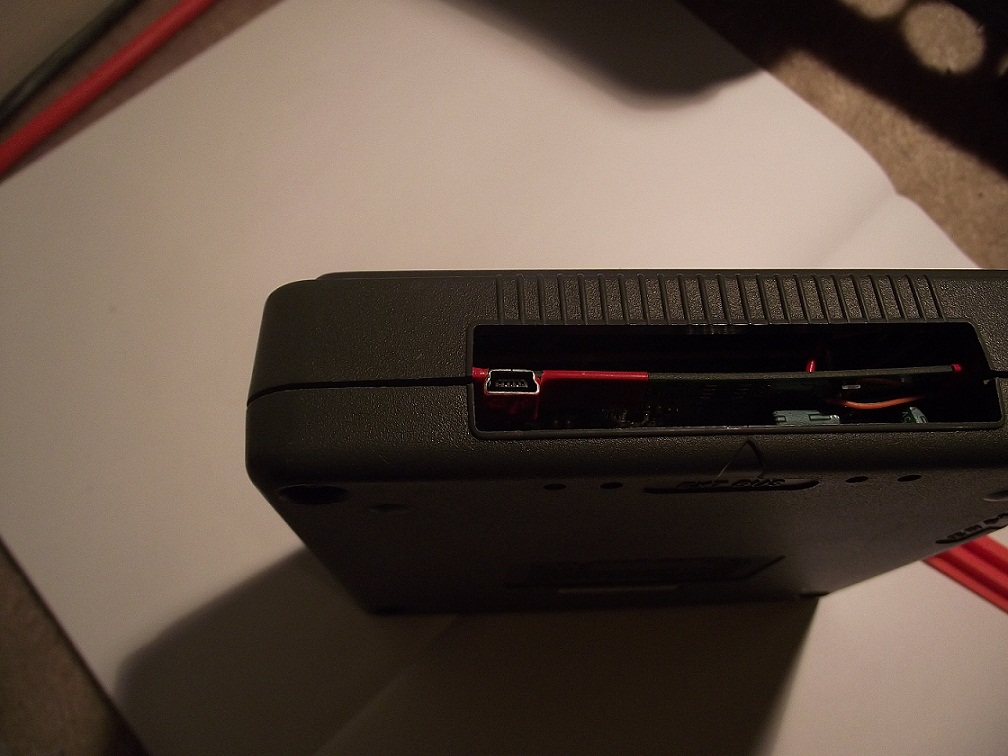

Mini usb access point now showing.

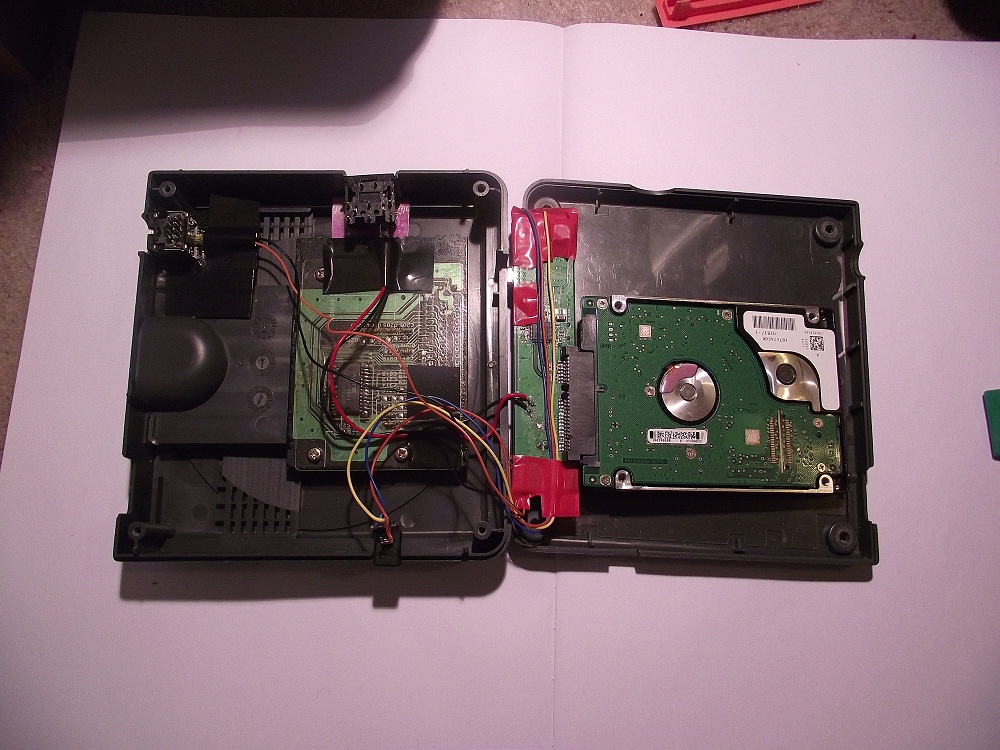

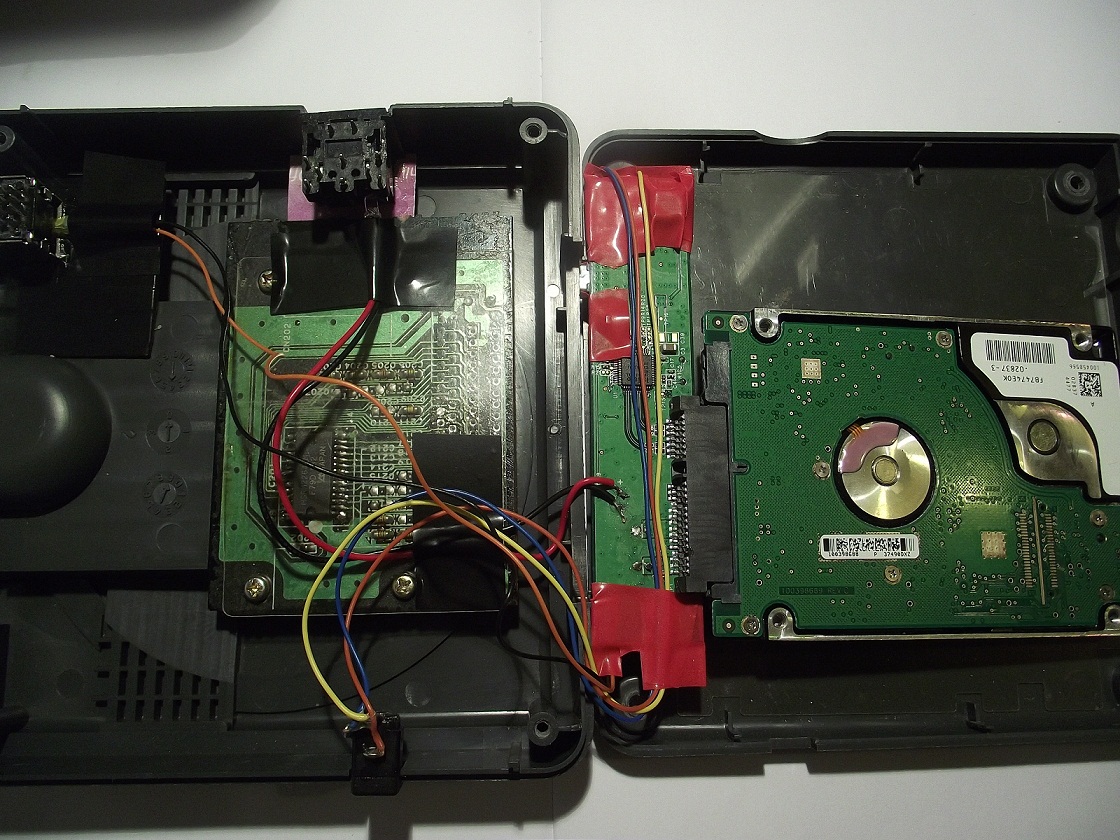

With the case closed,the pcb does not have any room to move around inside,so there was no need to fix anything down.

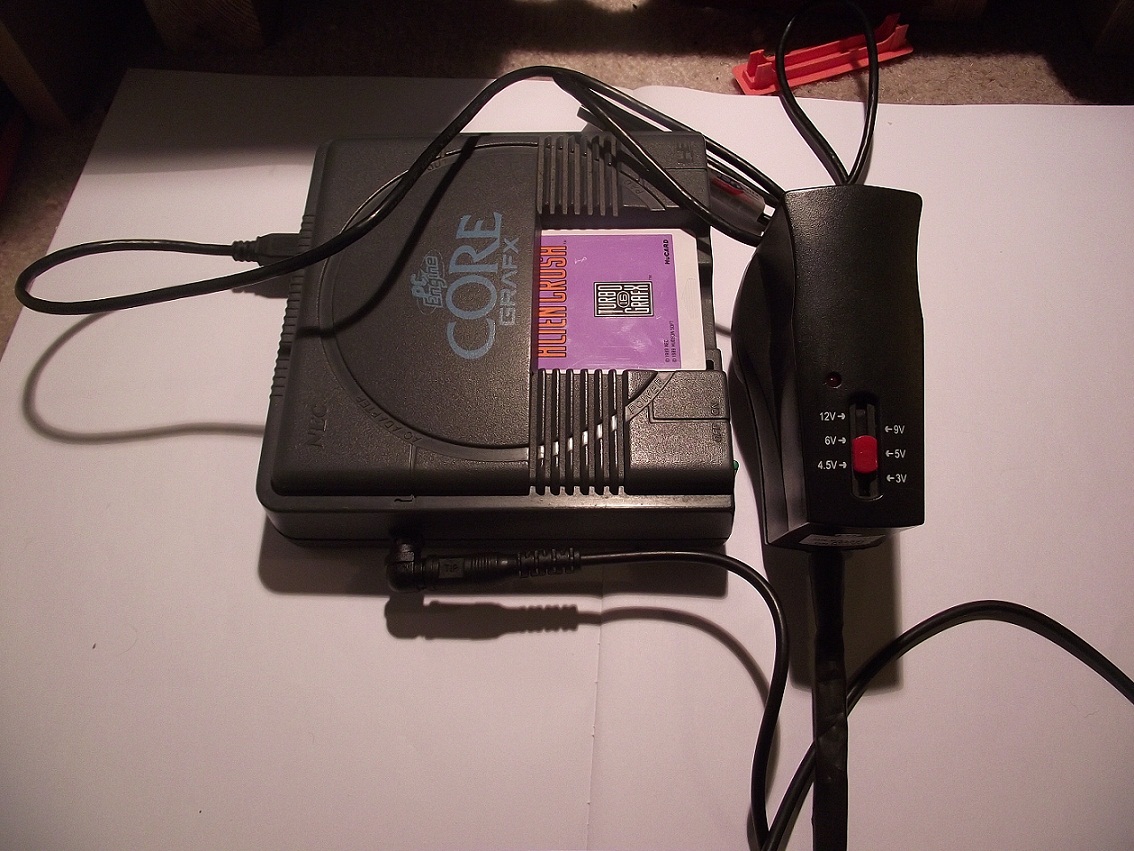

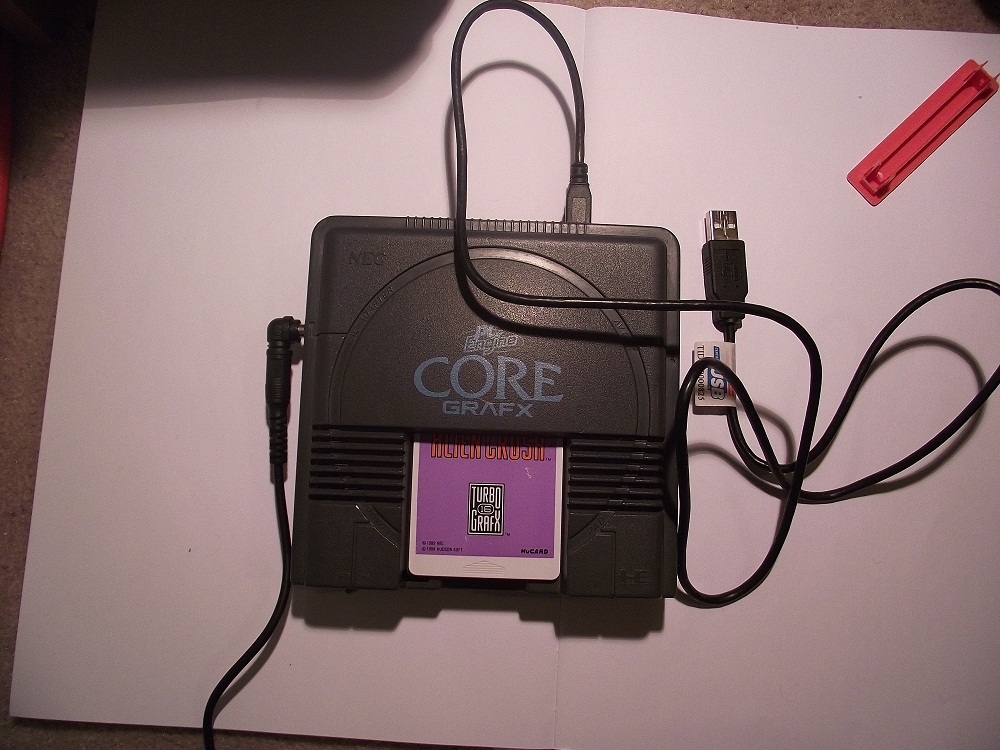

Finished project ,with usb cable and a 5 Vcc switched power supply attached.A joypad and scart cable can also be plugged in just for show.




I should really put something between the HU card connector and the hdd,but the transparent plastic HU card connector cover might be enough:shrug:

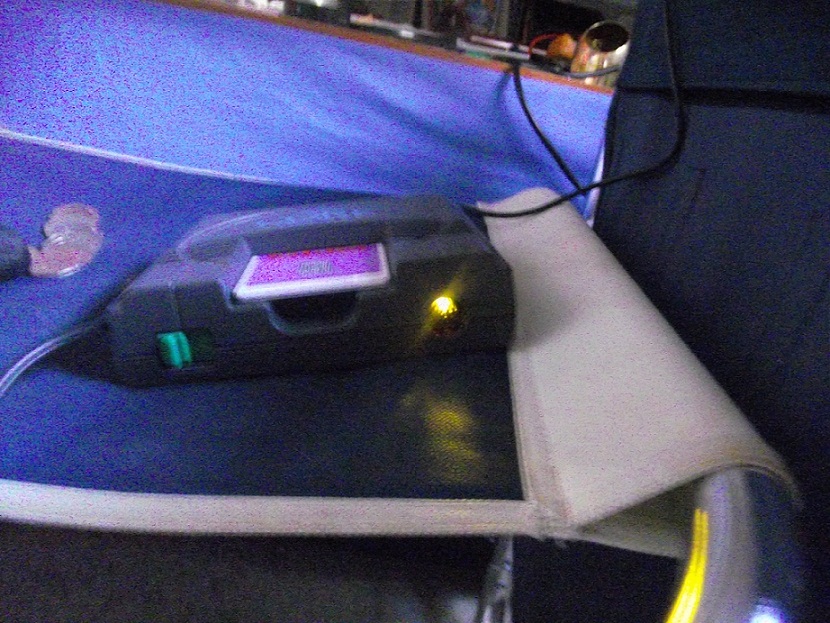

Room lights turned off ,iso increased to show the disc access light working .this is the led behind the joypad port .



Rather clean looking mod, a nice departure from most mods which tend to leave some cables hanging around or an open port showing it clearly isn't a console (like those PC in a console shell "mods").

Kudos.
