CrystalDiskInfo and HDD , is it ok to use ?

Discussion in 'Repair, Restoration, Conservation and Preservation' started by s8n, Mar 8, 2019.

  1. s8n

    s8n Enthusiastic Member

    Joined:
    Dec 10, 2011
    Messages:
    524
    Likes Received:
    74

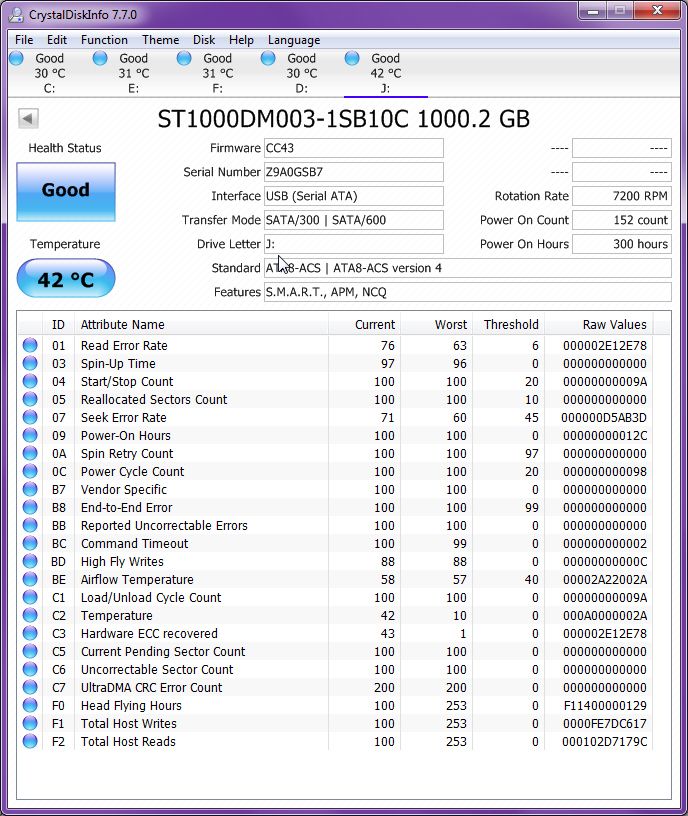

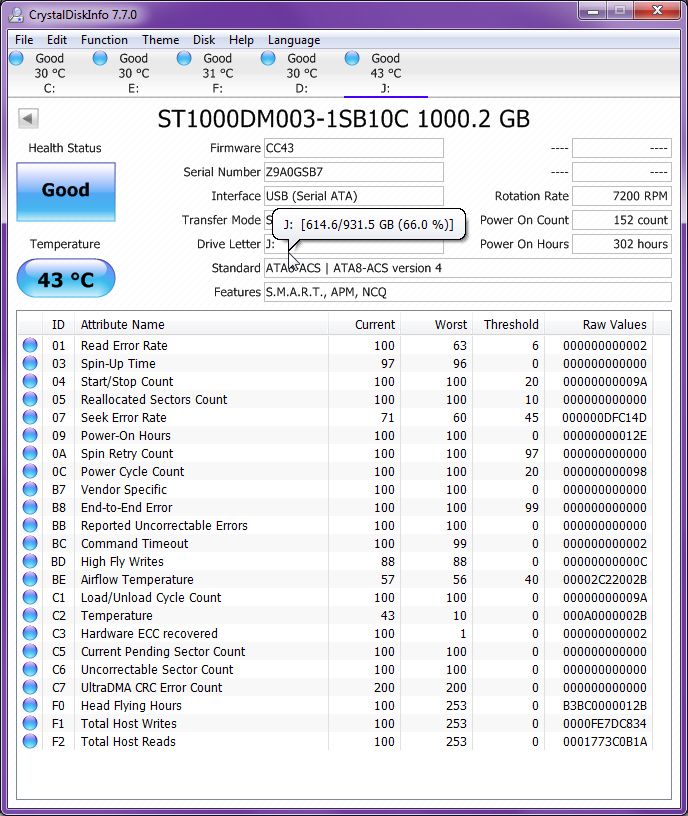

    hi guys , i have a Seagate 1TB 3.5 Hard Drive and it was acting weird (slow transfers) so i ran CrystalDiskInfo and found the below. I then changed the USB 3.0 cable to my USB Enclosure and transfers hit around 130 megabytes a second. I did a full error check in HD Tune Pro and no read errors , after that i ran CrystalDiskInfo again and the 'Read Error Rate and Hardware ECC recovered' improved dramatically.

    i was wondering if the dead USB 3.0 cable caused the bad stats in CrystalDiskInfo and the HDD is safe to use ?

    chat soon

    [​IMG]

    [​IMG]

  2. linglang

    linglang Rising Member

    Joined:
    Oct 21, 2014
    Messages:
    51
    Likes Received:
    34
    Yes, "good quality" USB cables, can influence data transfer speeds VERY much.
    https://en.wikipedia.org/wiki/USB_3.0#Data_transfer_and_synchronization
    https://en.wikipedia.org/wiki/Low-voltage_differential_signaling

    Throw useless cables away, don't use those "bad" cables to charge a device, even that can be influenced by a bad cable.
    Some 3rd party "Iphone" cables can only charge at a low amperage, so it takes very long to charge.
    And a fire caused by a fake "good quality" charger, cable, or battery .......
    Well you do not need that for a few bucks more or less.
    A nice thick rubber cable "shielding" does nothing, the internal copper cables need to be "thick", twisted and RF shielded.
    So the errors you had were probably caused because of a bad fitting, low quality cable or (internal) connector.
    Harddisk S.M.A.R.T. status should give you a warning before hand.(hopefully)

    BUT it is always better to have a backup !

    s8n likes this.
  3. Tokimemofan

    Tokimemofan Dauntless Member

    Joined:
    Feb 8, 2012
    Messages:
    740
    Likes Received:
    77
    I would agree, I have seen some horrible quality cables come with even name brand drives and enclosures and this was a typical result

    s8n likes this.
  4. s8n

    s8n Enthusiastic Member

    Joined:
    Dec 10, 2011
    Messages:
    524
    Likes Received:
    74
    thanks guys , the cable i used was a very popular one on Amazon with many great reviews and few 1-2 star complaints. Even though i have purchased another brand and waiting for delivery from a local PC shop.

  5. Flash

    Flash Dauntless Member

    Joined:
    Oct 18, 2011
    Messages:
    739
    Likes Received:
    67
    Raw Read Error Rate/Seek Error Rate/Hardware ECC Recovered on Seagate drives work like a counter - when drive is working there will be some errors, always, but drives have error correction mechanism. Seagate drives report even corrected errors to SMART, some Samsung drives do that too. While WD/Hitachi/Toshiba report only errors that weren't corrected. For Seagate SV series Command timeout is another "counter". Just ignore those on Seagate drives.
