Dreamcast Widescreen Hacks

Tennis 2K2 v1.009 (2001)(Sega)(NTSC)(US)(M5)

track03

Code:

find
23D520C7 08F504E0

replace
25D520C7 08F504E0

Code:

find
47F430E0 38F358F2

replace
47F430E0 38F3ECF2



4X4 JAM

FIND

Code:

 00 00 80 3F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80 BF

REPLACE

Code:

 00 00 40 3F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80 BF

FIND

Code:

40 31 1A 8C 02 88 39 89 51 51 18 21 F3 8B 0B 00 FF E0 09 00 09 00 09 00 09 00 09 00 09 00 09 00 09 00 09 00 01 2A 4F 91

REPLACE

Code:

44 31 1A 8C 02 88 39 89 51 51 18 21 F3 8B 0B 00 FF E0 09 00 09 00 09 00 09 00 09 00 09 00 09 00 09 00 09 00 01 2A 4F 91



Great !



Code:

find
30744AF4 04745AF4 04746AF4 C8744362

replace
38746AF4 5BF44BF4 10D1D074 12244362

Code:

find
9DF11471 1AF4D874 1AF13C72 1AF41AF2

replace
9DF11471 1AF4D874 1AF13C72 09001AF2

Code:

find
1AF4F074 1AF40B00 09000900 09000900 09000900 09000900

replace
1AF4F074 1AF40B00 09000900 0000403F 09000900 09000900

This code also works for Internet Game Pack.

Same studio, same engine, same hack it seems.



Resident Evil Code Veronica NTSC and Ready 2 Rumble Boxing Round 2 NTSC same patches as for PAL versions



I second that!



Here, I did a gdi of this version :
https://mega.nz/#!1vZ1nAiB!c9TWN_b9deWPBLIBwg42pFl8W0M8T2Zj8igNk19JSHs

Thanks to Espirral



@megavolt85 : Same patch too for resident evil code veronica kazenban JAP version ?



don't test



Hey guys, I recently played Under Defeat HD on PS3 in the widescreen mode, and realized how amazing it would be to have full widescreen aspect ratio in game on Dreamcast. Is it possible at all to fully render the game in widescreen? I always felt like it was the one thing this great shooter was lacking. I love how Zero Gunner 2 was full screen, and this is a similar game. I just don't know how feasible it would be to render the off screen things?



What do you mean, fully render? Good widescreen hacks already increase the FOV and render objects that would normally be clipped at 4:3. Widescreen hacks that crop the bottom of the screen are making the game worse, not better, but whether a game will work with a good widescreen hack depends on how the game's perspective function was designed.

Anamorphic widescreen is the best you can do on DC, since it always renders at a fixed 640x480 resolution at best. When you cram 853 pixels' worth of image into 640 pixels, you sacrifice resolution (i.e. the graphics get slightly worse) for an increased view. Modern games render at actual widescreen resolutions with square pixels (non-anamorphic widescreen), so you don't sacrifice visual quality to get a wider FOV. That approach will never work on DC games.



That is exactly what I mean, anamorphic widescreen just like every other code for the games in this thread. The game actually allows you to move around the area some, and as we have already seen with Shenmue and other games the off screen rendered problems would be ironed out like with other games. That is all I was asking was if it was possible to make this game which displays in a very small image as it was made for Tate mode use the rest of the screen akin to how the similar game Zero Gunner 2 does.

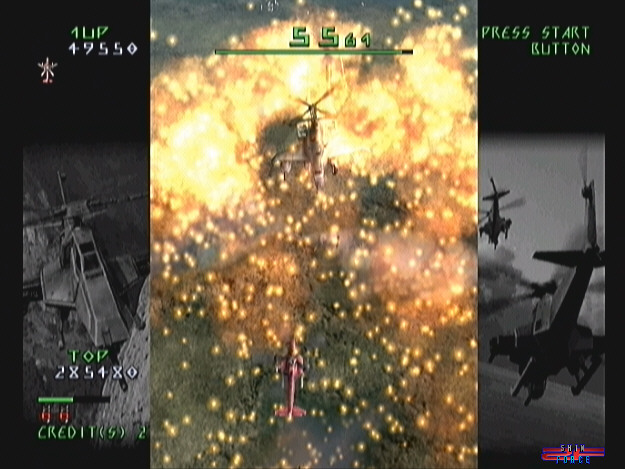

Right now the game looks like this.

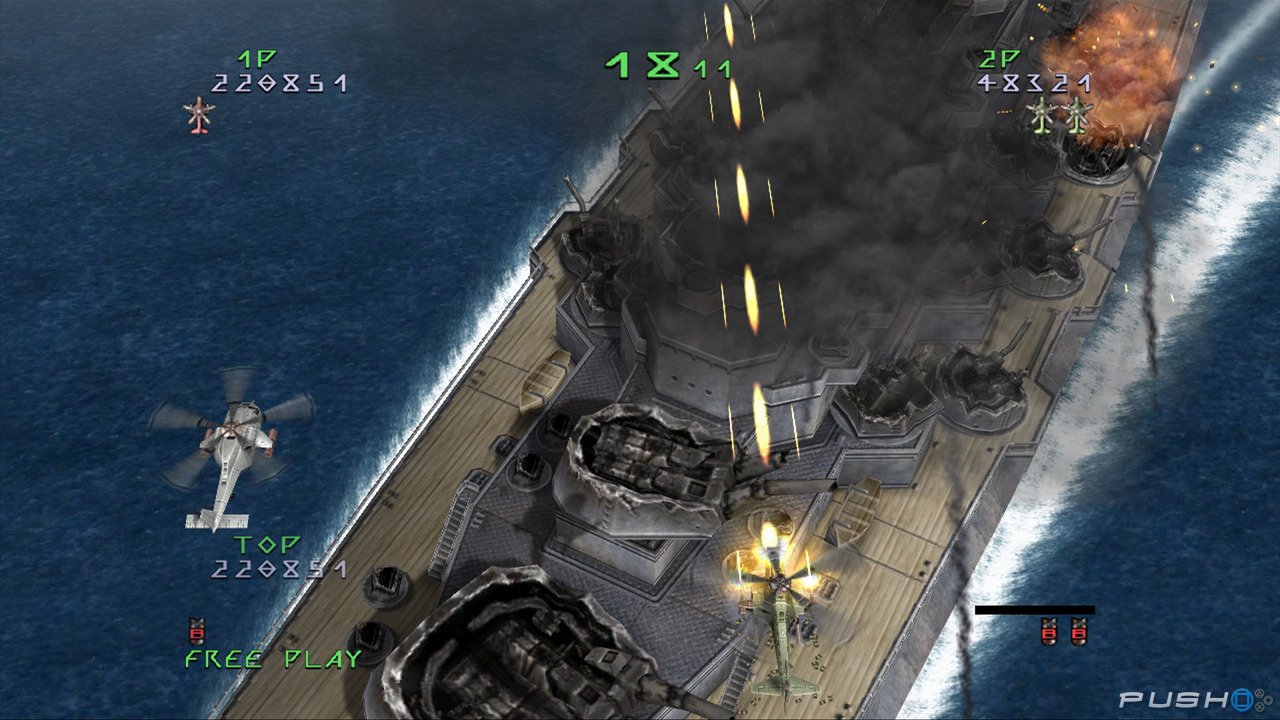

I was asking if it was possible to make it look like this on the Dreamcast sans the HD resolution using all of the screen to render the game. Surely one could expand the view area just like has been done with almost every other game in this thread.



There is an alternative screen mode, to fill the whole screen



Yes, but you have to rotate the whole screen to use it correctly. I was wanting to see it fill the screen horizontally without reversing the controls. When you do this, the D-pad controls feel changed because the game expects the screen to be rotated. I also have a 42 inch Plasma TV that doesn't rotate, so that screen mode isn't optimal.



You can also change the way the controls behave, so you can reverse them in orther to play the game correctly while displauing it horitontally



Well, that is still not quite exactly what I was asking for as that would still make the screen oriented sideways. I simply wanted to know if somebody could please make a widescreen hack for the normal mode to extend the view area.

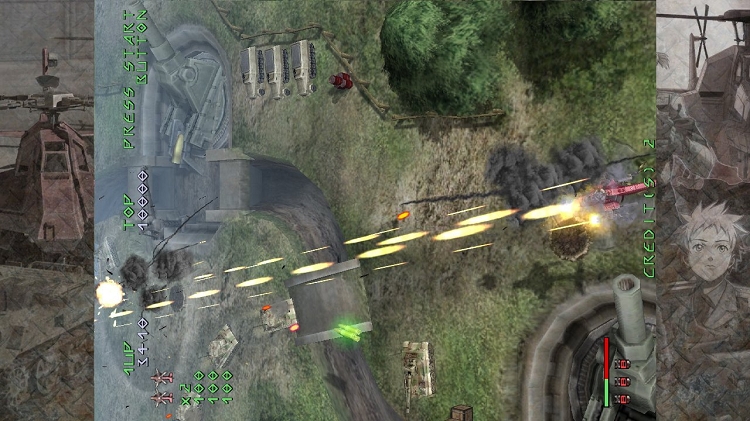

The way you are saying would make it appear more or less like this.



The way I am talking about would look more like this.



Is there any method of converting the Cheat Engine values into permanent patches for the .bin files?. I would like to use some of these widescreen hacks in Reicast for Android, but the Cheat Engine method isn't applicable in Android, just the image patching method. Thanks!



http://assemblergames.com/l/threads/widescreen-hacks.58620/page-27#post-900119

If you find new patches please share here.



https://assemblergames.com/threads/dreamcast-widescreen-hacks.58620/page-64#post-976091



Hi megavolt, could you post the patch for

Rayman 2 - The Great Escape v1.002 (2000)(Ubi Soft)(PAL)(M5)

020C52E0
3FAAAAAB

Thanks!
