Even more RGB AV Famicom screenshots...

I got a few messages asking for more screenshot comparisons from my RGB Famicom, so here they are. I did these ones a little differently:

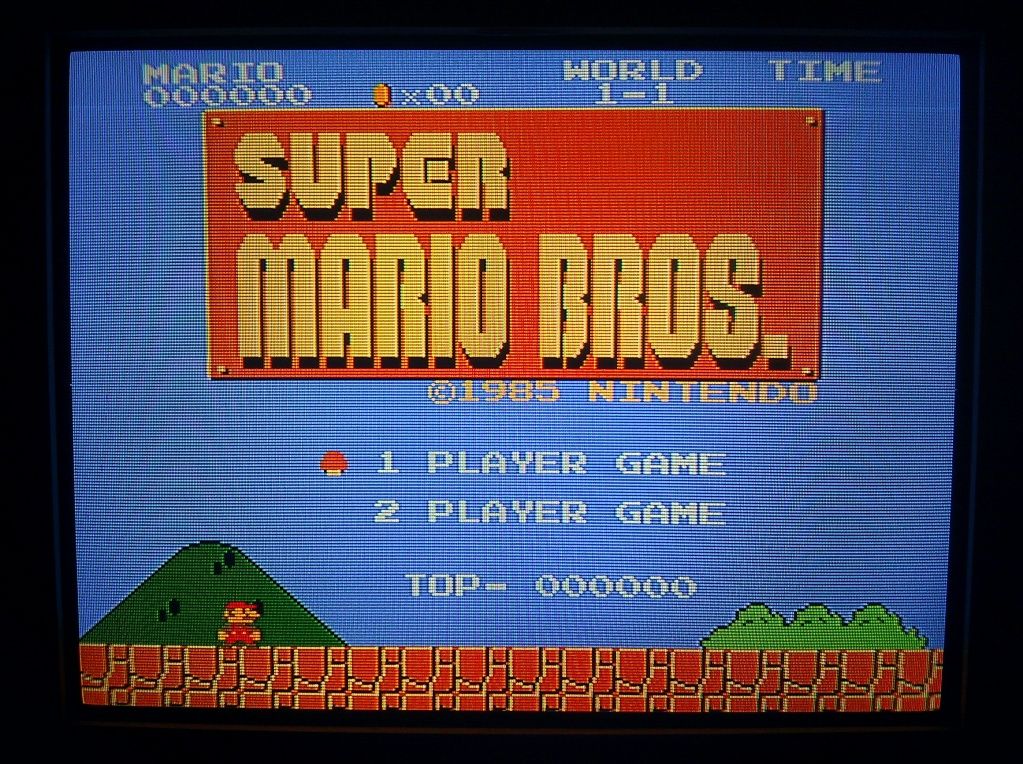

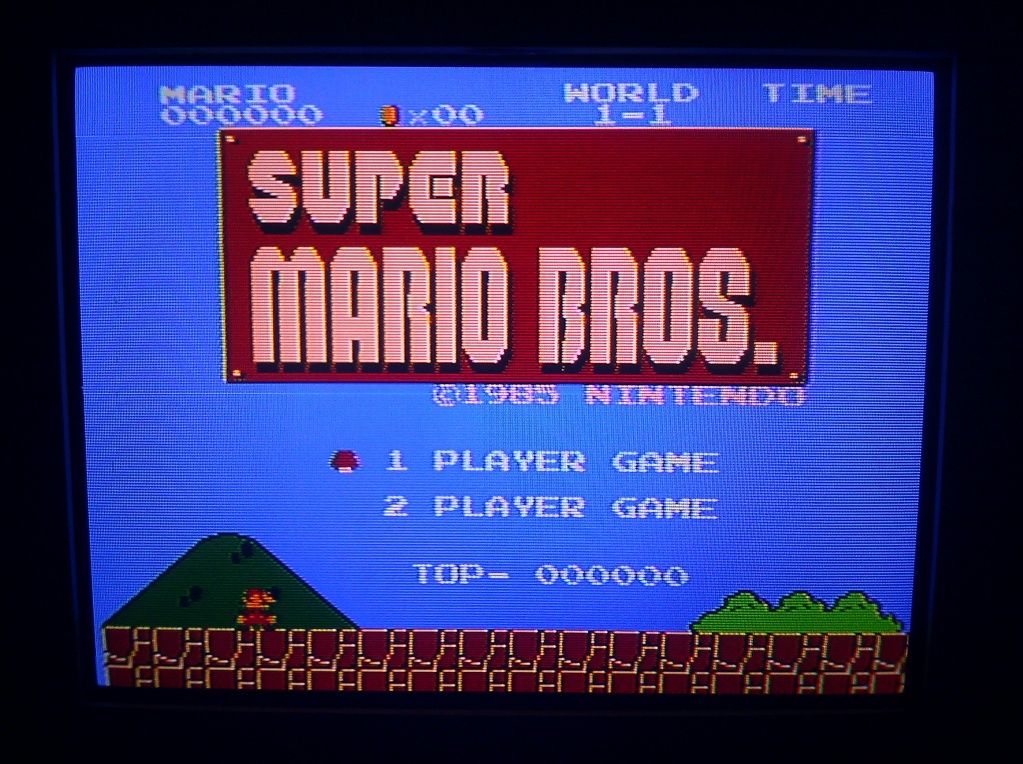

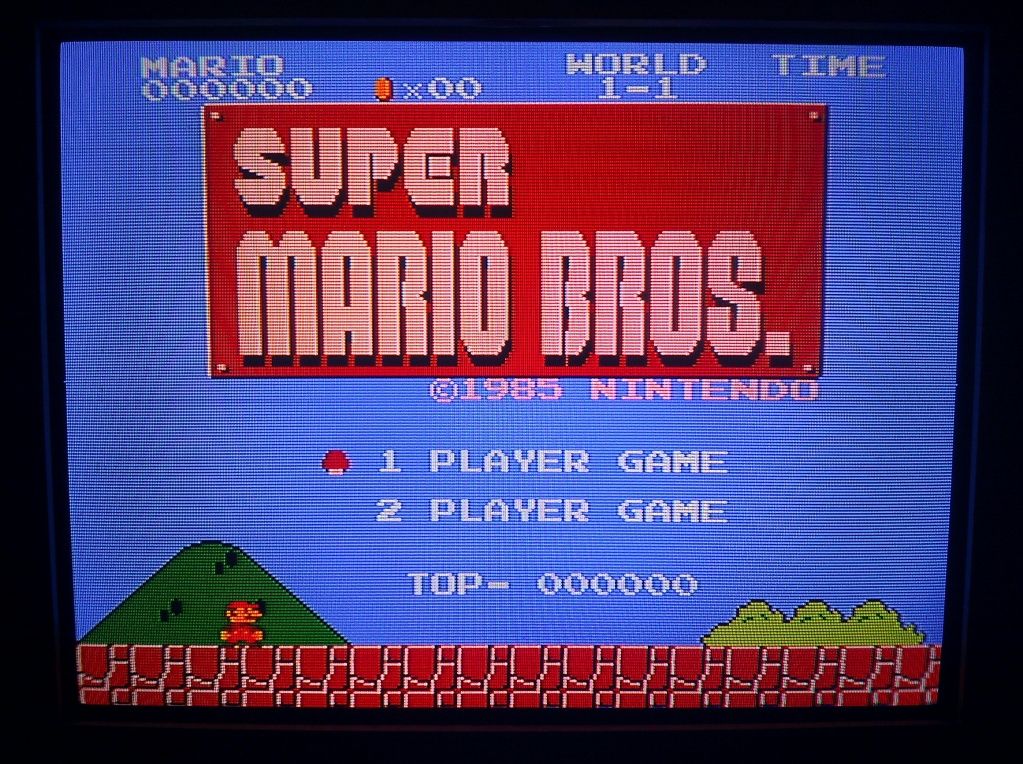

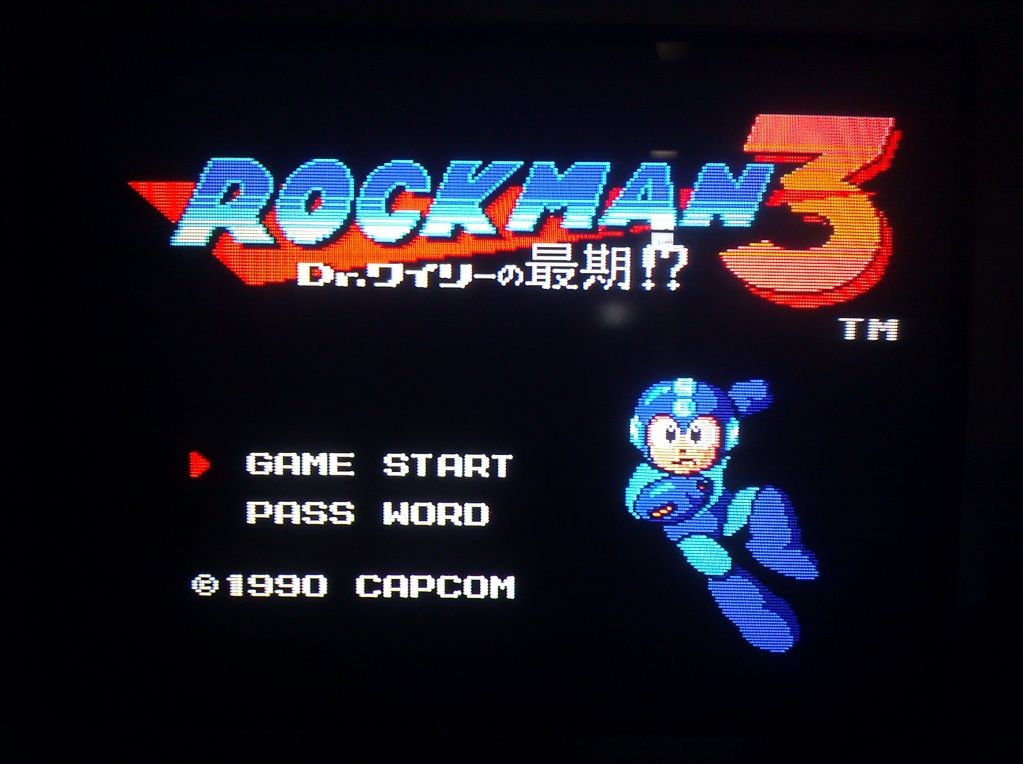

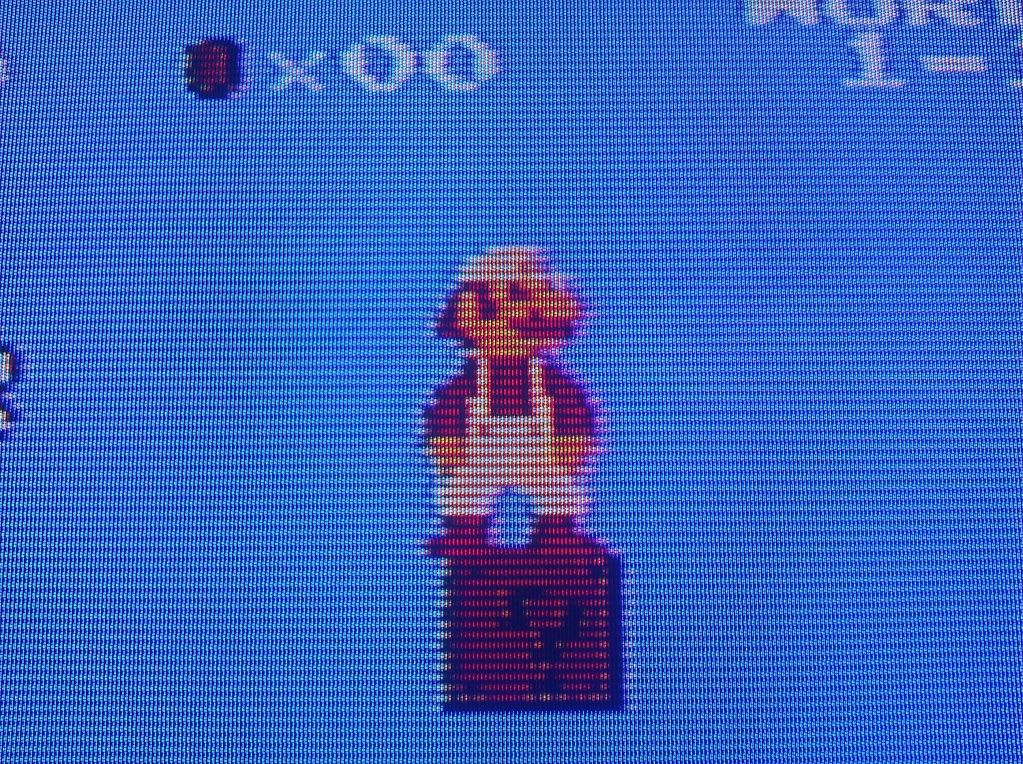

Pic 1 in each set is stock AV famicom's composite video

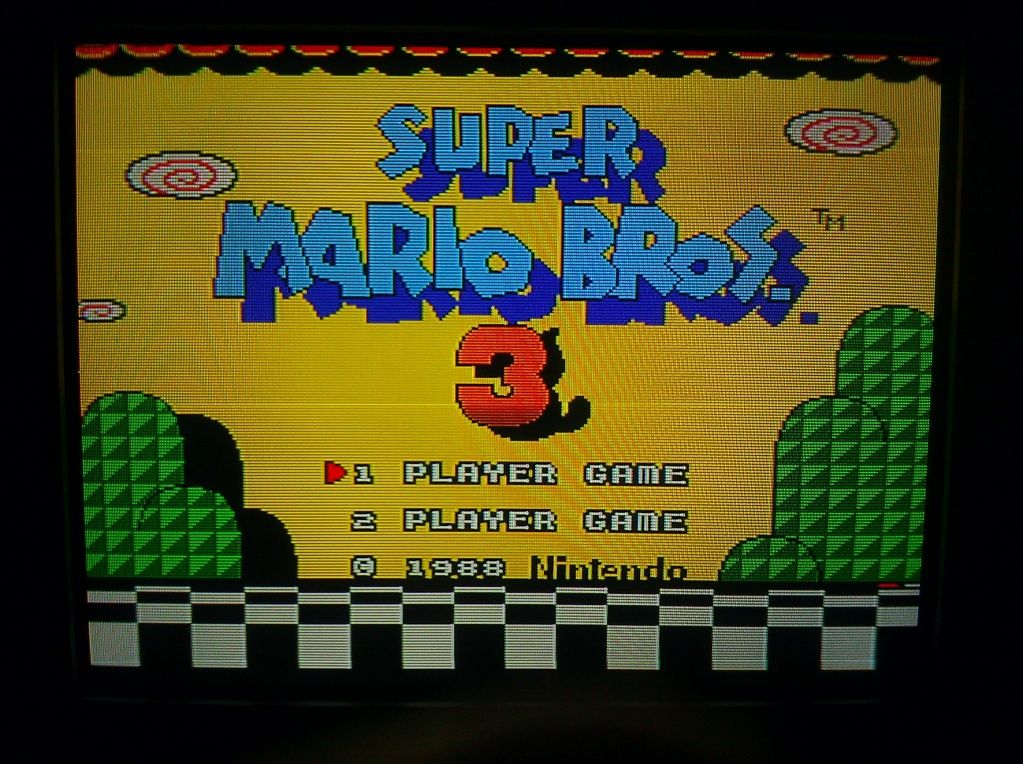

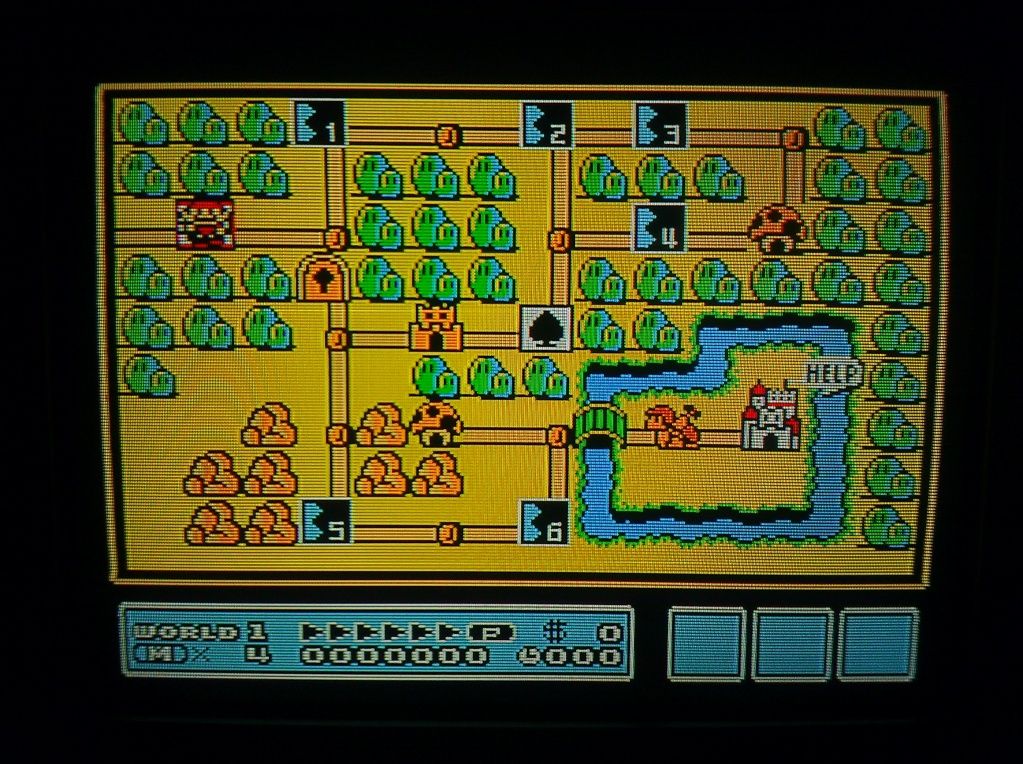

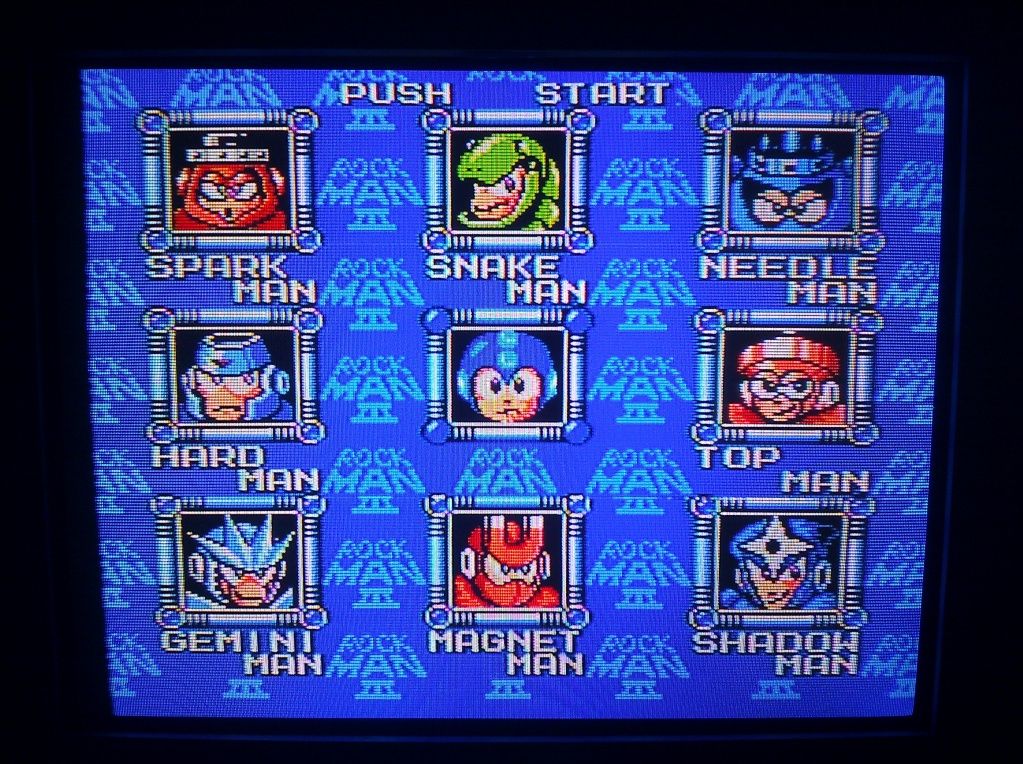

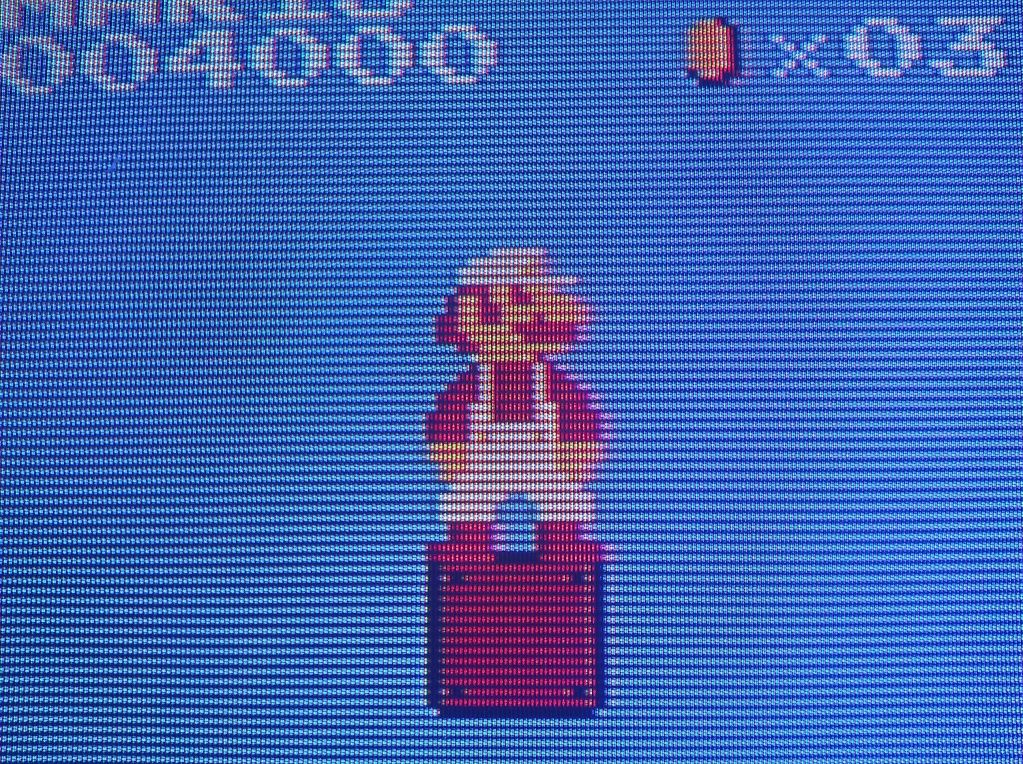

Pic 2 is FCE Ultra GX emulator running on the Wii with component video cable (using AspiringSquire's "real" color palette)

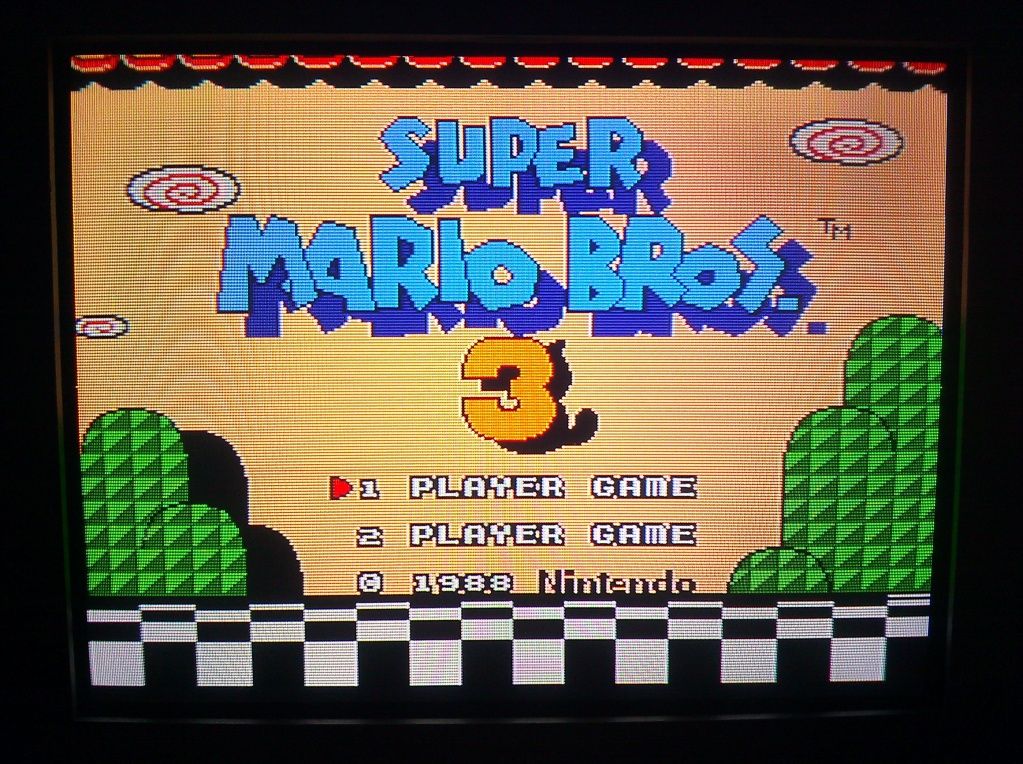

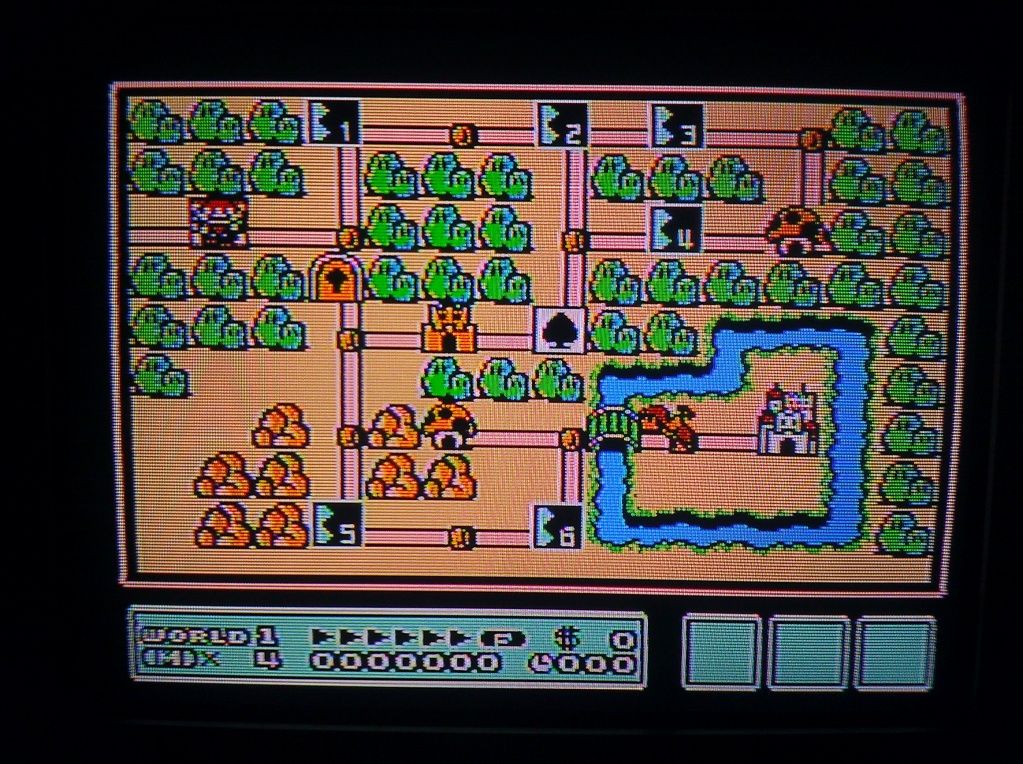

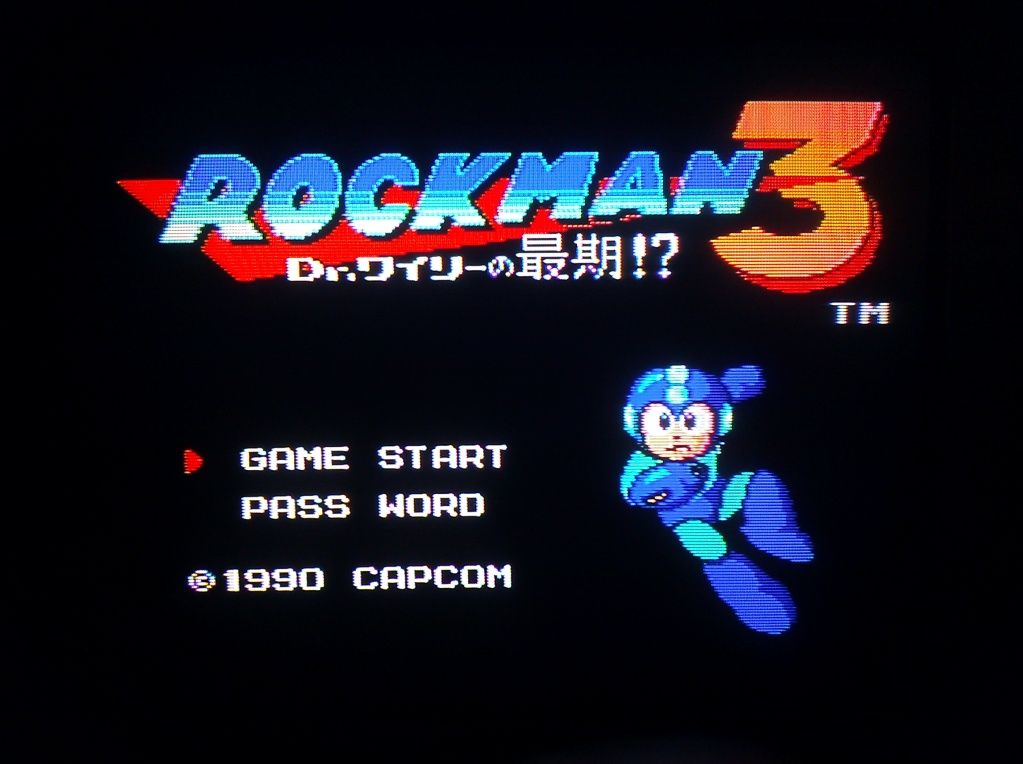

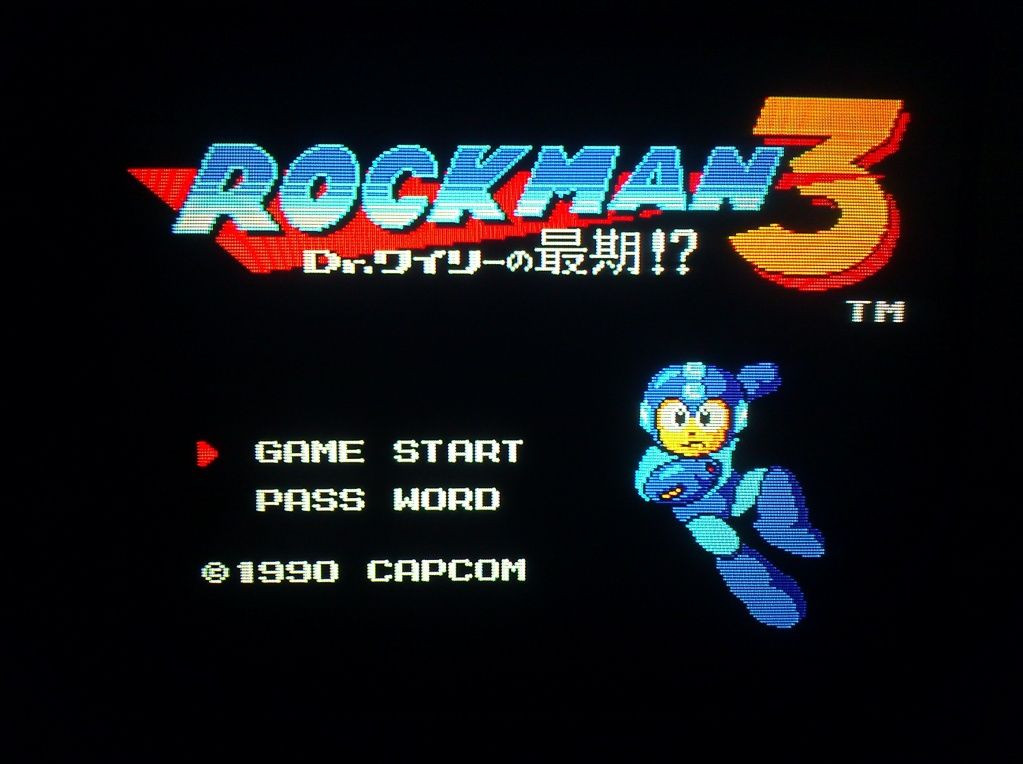

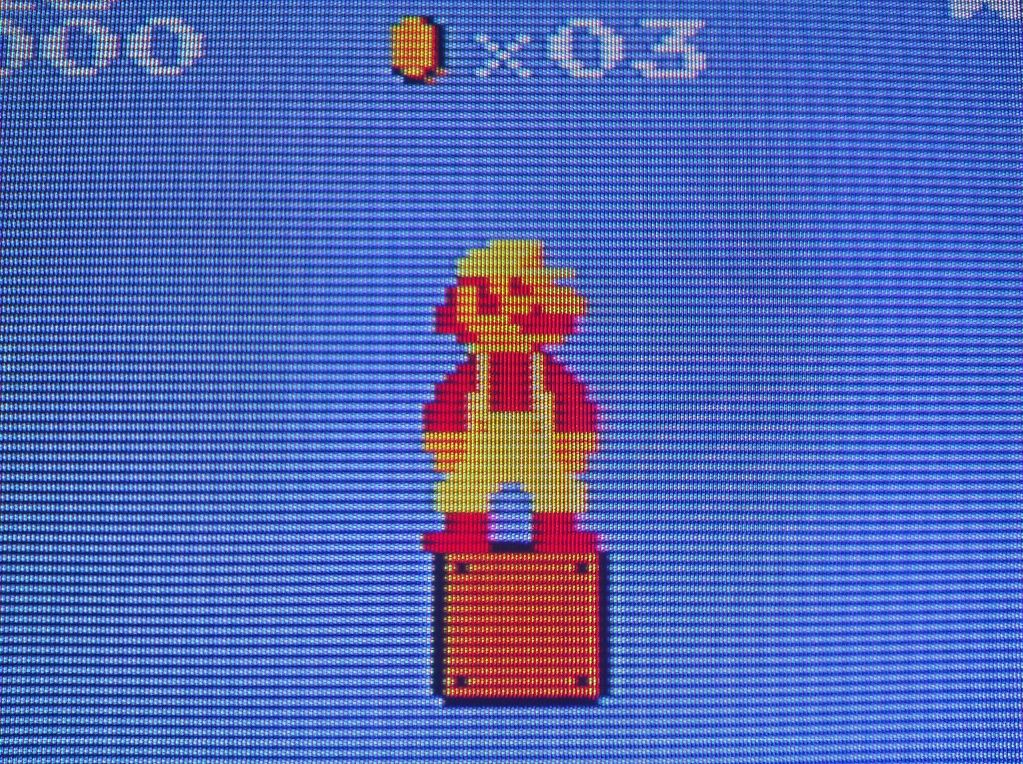

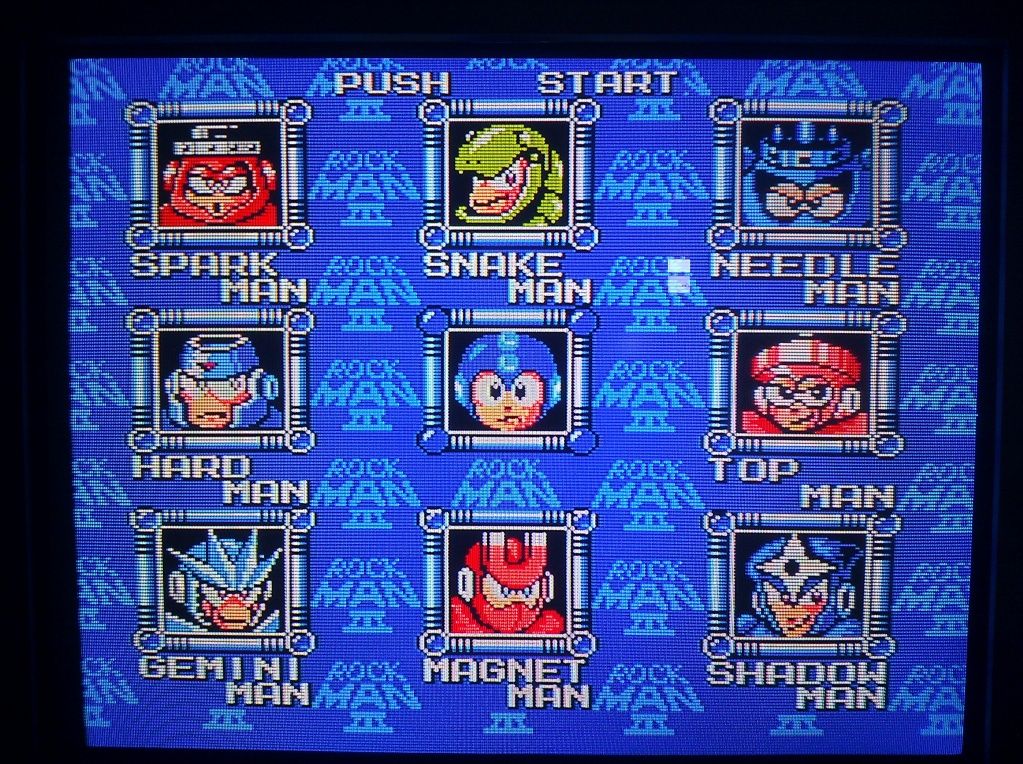

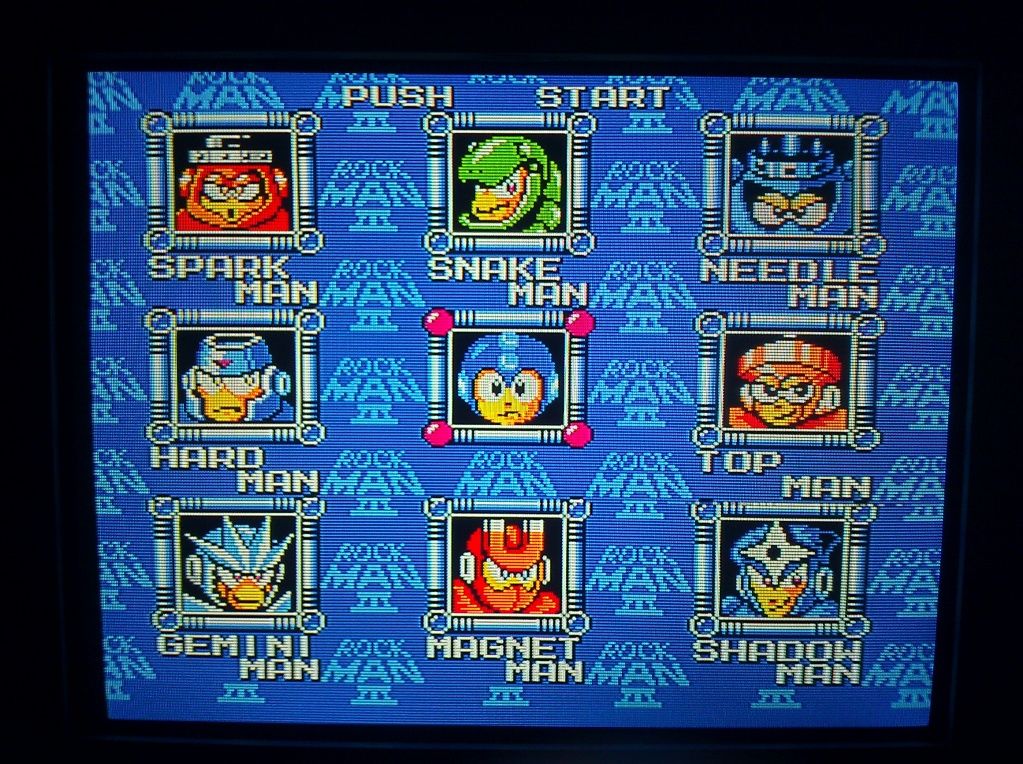

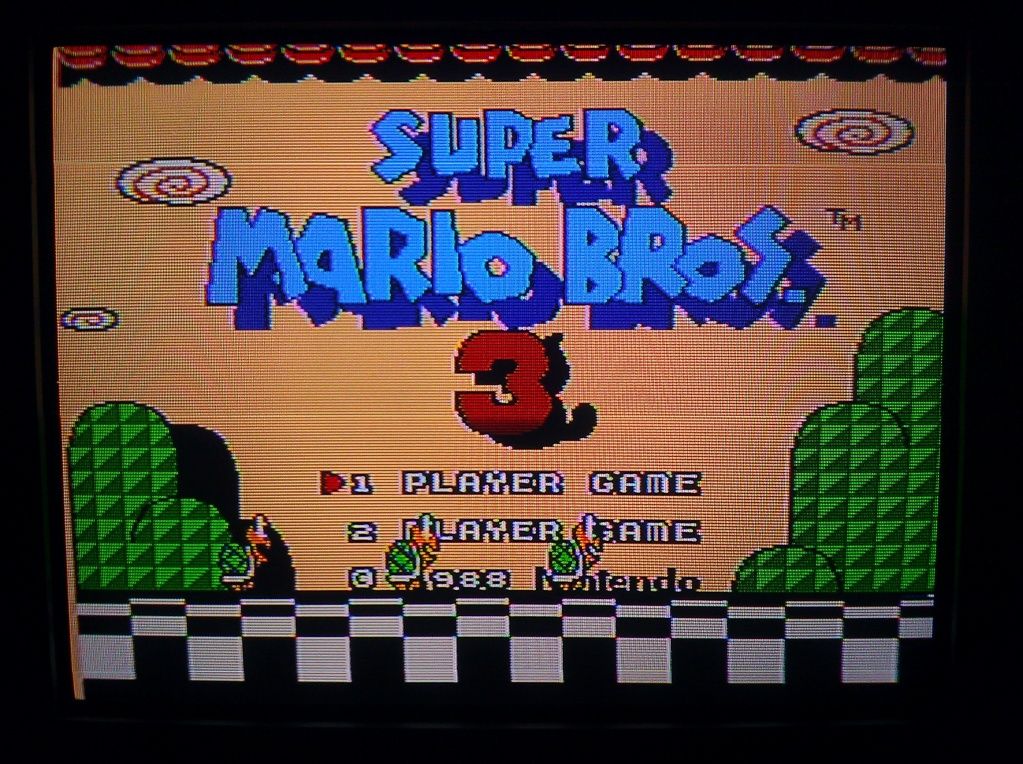

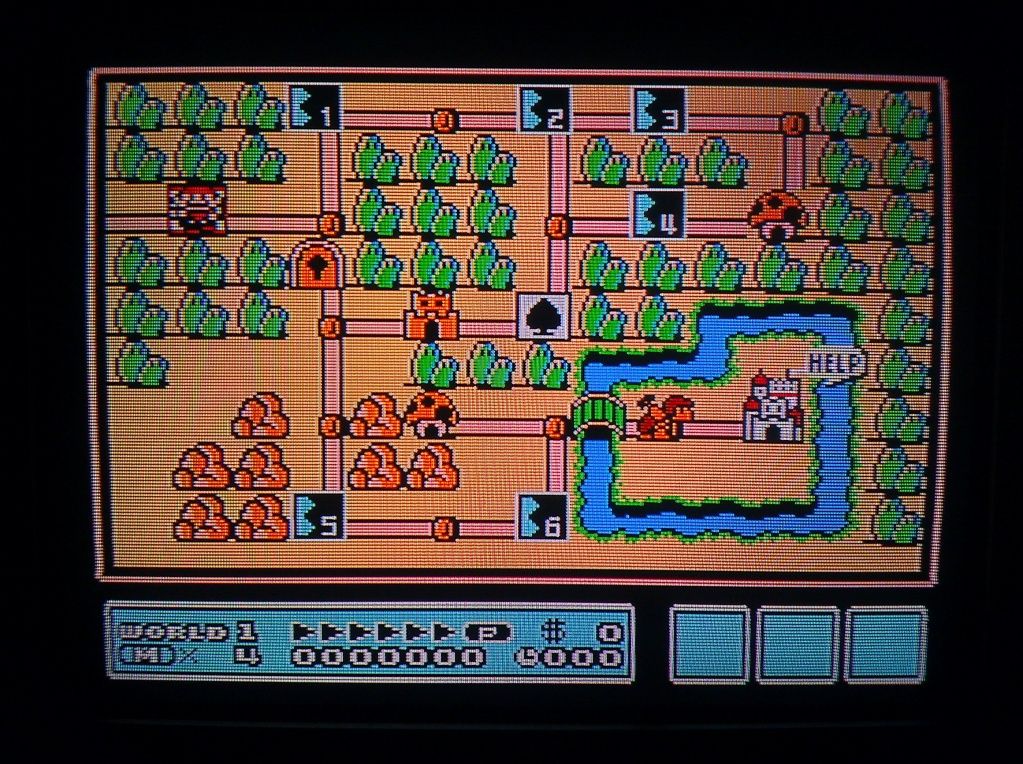

Pic 3 is AV Famicom with F-Labo kit/PC10 ppu RGB converted to component video with BA6592F based converter



I would love to see a picture of your BA6592F based converter, I plan on making one myself for my MVS console project.

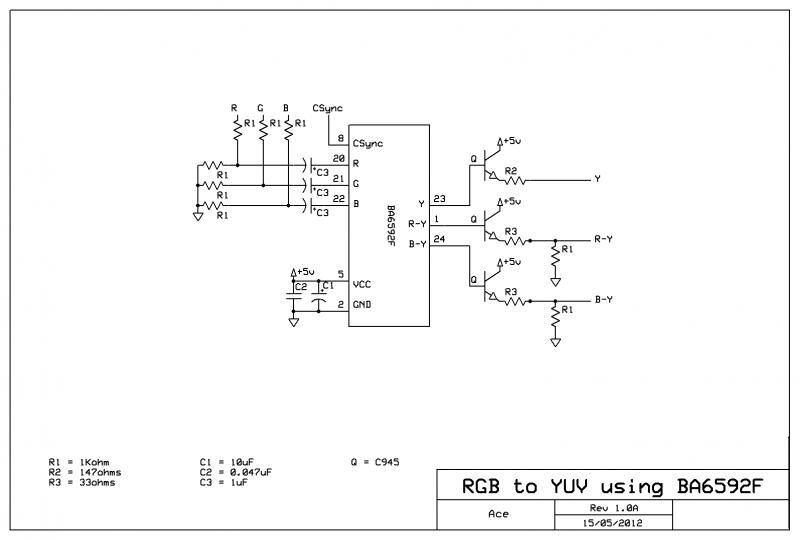

Sure, it's just Ace's circuit that he posted on Sega-16:

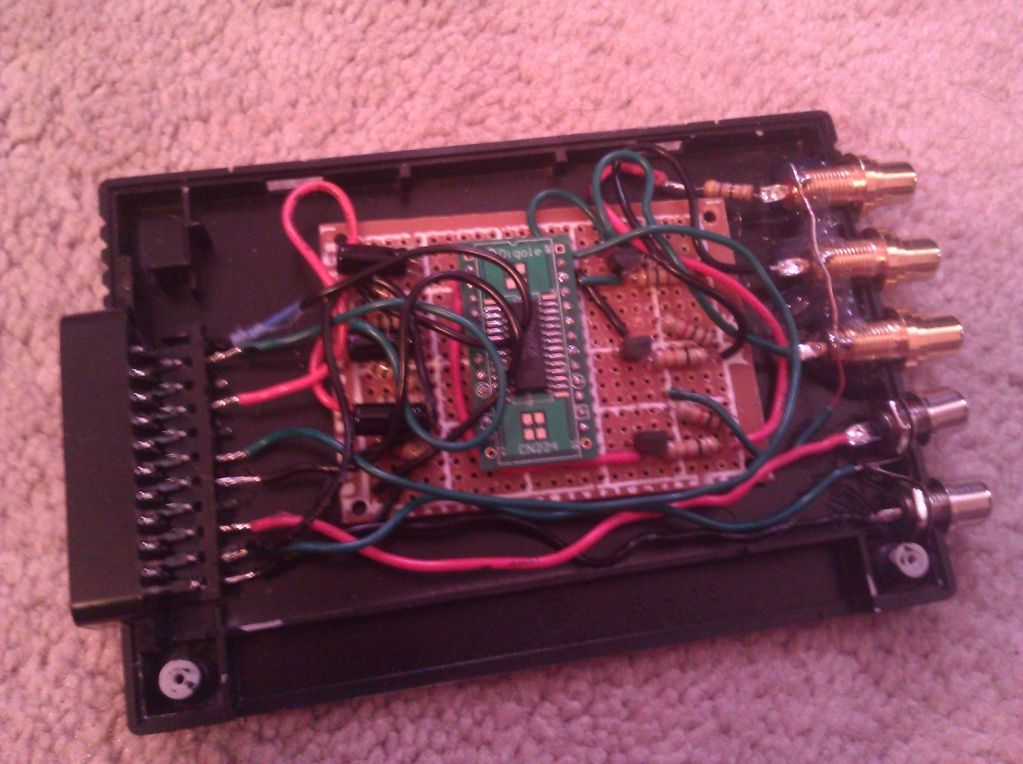

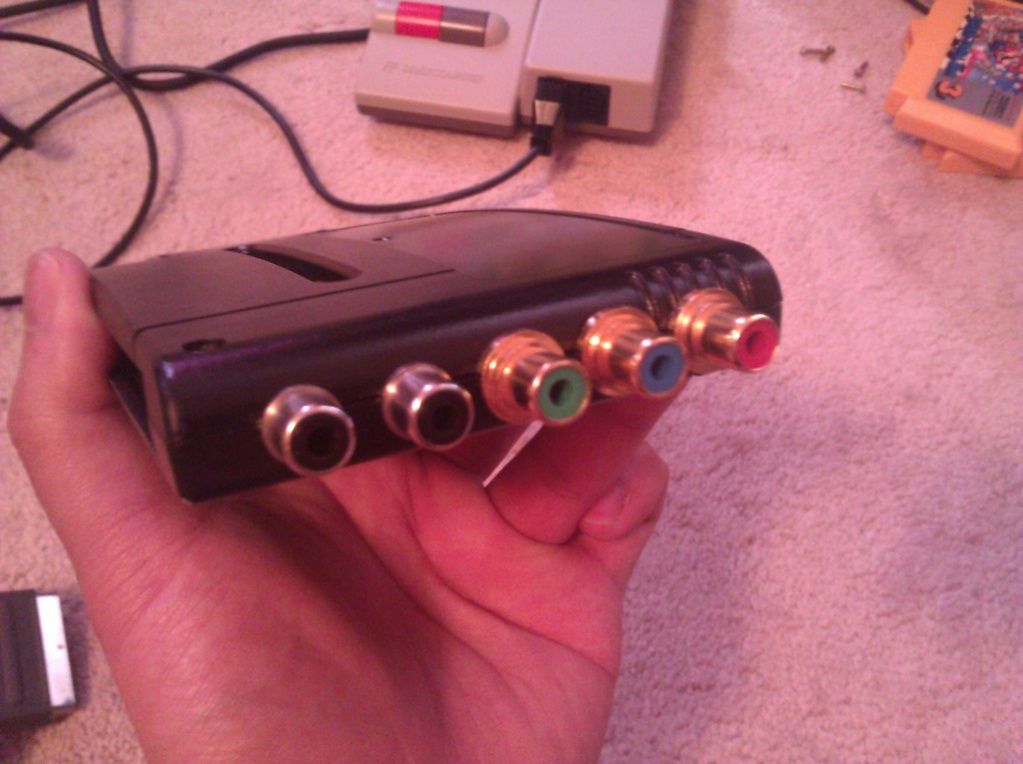

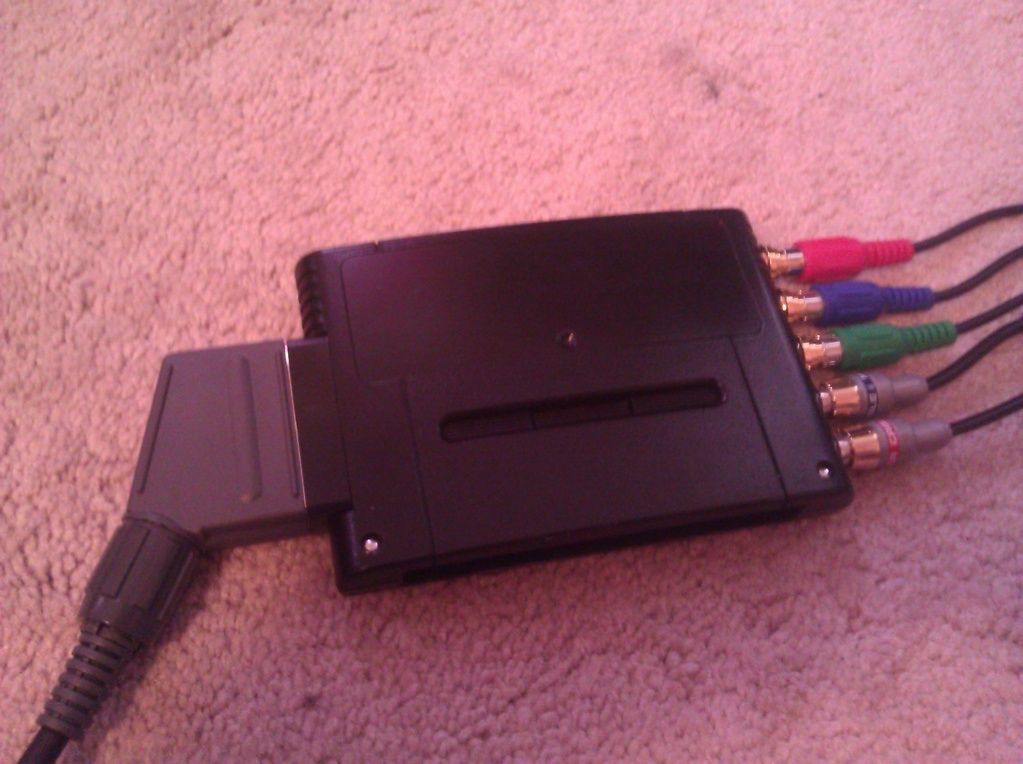

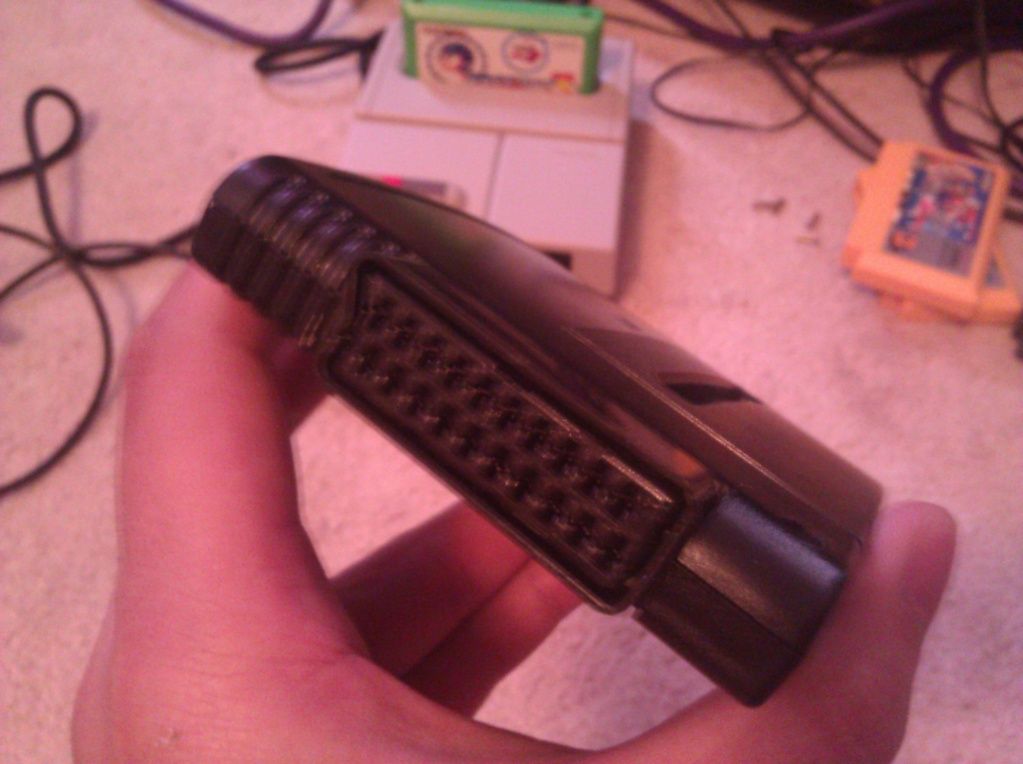

It's messy since I built the circuit before I even thought of using a super famicom cart as an enclosure and I didn't feel like redoing the wiring...but it works:
