fdsstick on front loader

I have a front loader NES and just got a fdsstick from a friend. Since I already put money and effort on an RGB mod I am not keen on getting a famicom for fds gaming. So my question is what the best, most clean way of fitting it with my NES is?

I realize I need to mod it for audio and buy a ram adapter. The trick is to connect the ram adapter. I do not find daisy chaining adapters and game genies an attractive solution. Any advice is welcome!



hack up a NES cart, turn it into a pin-converter and extension in one using some ribbion cable


I think the ram pack is too big to fit inside a nes cart so whack a edge connector on the extension, so you can also plug famicom games in too!



I will be selling a converter soon that will work with a front loader and a RAM cart.
https://www.facebook.com/muramasaen...YDLJrg-FEyNOfYhWkXjDEqlCQ-2X26lgWMyjq2Iuxfwf4



Cool! When do you estimate it will be ready?



Can you posts the pics here
Also how does it look and hold up with the ram pack



Hoping to have them ready in a week or two.

I still have to figure out photos. I'm hesitant to really post any photos any more since they end up stuck forever with a photobucket or imageshack ad. So I'm still trying to decide if I want to post pictures here or just link to places.



Whatever works for you, only please do not require people to go to fecesbook.



For now try the Nintendo Age thread.
http://nintendoage.com/forum/messageview.cfm?catid=22&threadid=177090



Interesting design.
Reading your facebook :
"Need either a blinking light win or perfect pins since it can't be seated all the way." Could you explain a bit more please ?
I could be one of your customer



So in a normal Front Loader you insert the cartridge and then push it down. With this converter the connector is sticking out the front so it can't actually be pushed down. Basically if you have a Blinking Light win you can't push the game down any way so that should be a good route otherwise if you need to have refurbished pins (usually boiled) or brand new pins.

Hope that helps.



Ah OK.
Just for information, Blinking Light Win don't let you to push the cartridge down.
Actually, it replace the whole mobile tray, so you just push the cartridge in the "new tray" already aligned.
So it may be time now to set my Blinking Light Win...



So the RAM cart would just... hang down in front? Might not be a good idea for anything bigger than a normal fc cart. I'd definitely add a ribbon cable or sth so everything can be placed down properly and there's less mechanical stress on everything.

Spoiler

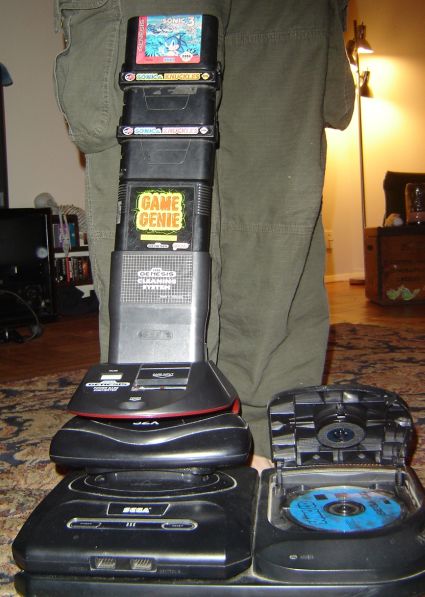

Guess Nintendo fans now get to build their own version of this:



He meant to say "if you have a Blinking Light win you can't push the game down any way".



Thanks for the catch. Fixed my post.



Hehe, language barrier + mistyping lead to some funny discussion :]



Sorry to ask you but what are the perfect pins?
Is that an adapter?
Thank you!



I'd assume it means the original pins need to be in very good condition in order to make decent contact with the adapter - most consoles will boot NES carts without the game being pushed down, but it's not the most secure connection and doesn't work if the pins are the slightest bit dirty or misaligned.



Received the converter now, and I have to say it works great with the fds ram adapter, so I'm happy with my purchase.
One potential concern is that the weight of the ram adapter is all held up by the solder joints of the converters edge connector. We'll see how it holds up over time.
