Fixing Gameboy pockets and applying bivert mod

Discussion in 'Repair, Restoration, Conservation and Preservation' started by snobgamergr, Dec 16, 2016.

  1. snobgamergr

    snobgamergr Spirited Member

    Joined:
    Aug 29, 2015
    Messages:
    138
    Likes Received:
    8
    I'm expecting off ebay some gameboy pockets that were listed as junk. I have never owned let alone fixed one before. What are the most common issues with these consoles?
    Also, if I manage to fix them, I plan to bivert mod one of them using a hex inverter chip. So far, I can't find a guide on how to do that. Is it possible to perform this mod?

  2. Madsmaten

    Madsmaten Gutsy Member

    Joined:
    Sep 6, 2012
    Messages:
    497
    Likes Received:
    149
    It is possible, but you really only should bivert it when you combine it with a inverted backlight.
    Bivert mod on a pocket is a matter of mixed opinion, however it will not look as crisp as it does on a DMG.

  3. snobgamergr

    snobgamergr Spirited Member

    Joined:
    Aug 29, 2015
    Messages:
    138
    Likes Received:
    8
    That's the answer I was looking for I'll stick to backlight modding dmgs .
    I did a rough Google search for pocket issues. It seems that they can suffer from dry solder joints on the power switch.

    I'll keep you posted when I receive the consoles

    I'll keep you posted when I receive the consoles

  4. AndehX

    AndehX You got boost power!

    Joined:
    Apr 7, 2016
    Messages:
    356
    Likes Received:
    68
    I seriously would recommend avoiding the Pocket when it comes to backlight mods. Its extremely easy to damage the screen performing the mod.
    The bivert mod is easy to do though. theres guides on hand held legend

  5. dibmem

    dibmem Rising Member

    Joined:
    Feb 28, 2015
    Messages:
    56
    Likes Received:
    14

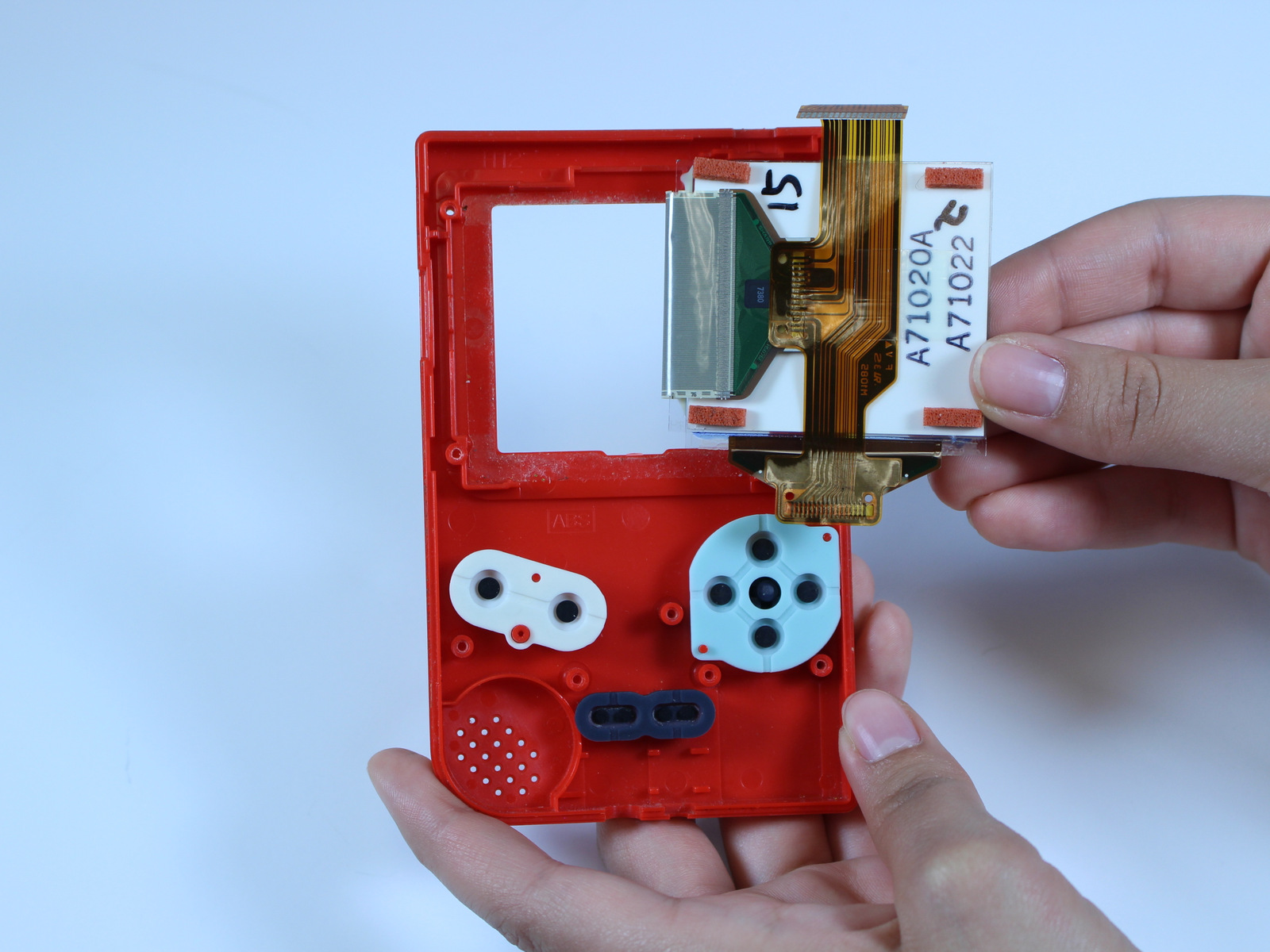

    To illustrate AndehX's point - you'll be peeling the polarizing layer off the lcd screen... (see photo)
    When I attempted this - I was able to peel it properly from the top and left sides, then I tore the very flimsy ribbon cable on the bottom of the screen. The cable itself, like the DMG, is not easily repaired or replaced.

    I'll likely try it again (as I am a glutton for punishment), but I haven't got the heart to trash another Gameboy Pocket anytime soon.


    Attached Files:

  6. snobgamergr

    snobgamergr Spirited Member

    Joined:
    Aug 29, 2015
    Messages:
    138
    Likes Received:
    8
    So the pockets arrived after a long time eventually..
    Two pockets power on and seem to be working properly. The third though won't power on, but if I switch it off , I can see some lines moving (like a normal Gameboy does when powered off)
    I'll go through them again tomorrow. It's really late now to do any troubleshooting..
