OTHER FS: diy Disk Dual kit for Super Wildcard DX2

Discussion in 'The ASSEMblergames Marketplace' started by mdmx, Dec 30, 2018.

Watch Thread
  1. mdmx

    mdmx Familiar Face

    Joined:
    Nov 3, 2005
    Messages:
    1,300
    Likes Received:
    29

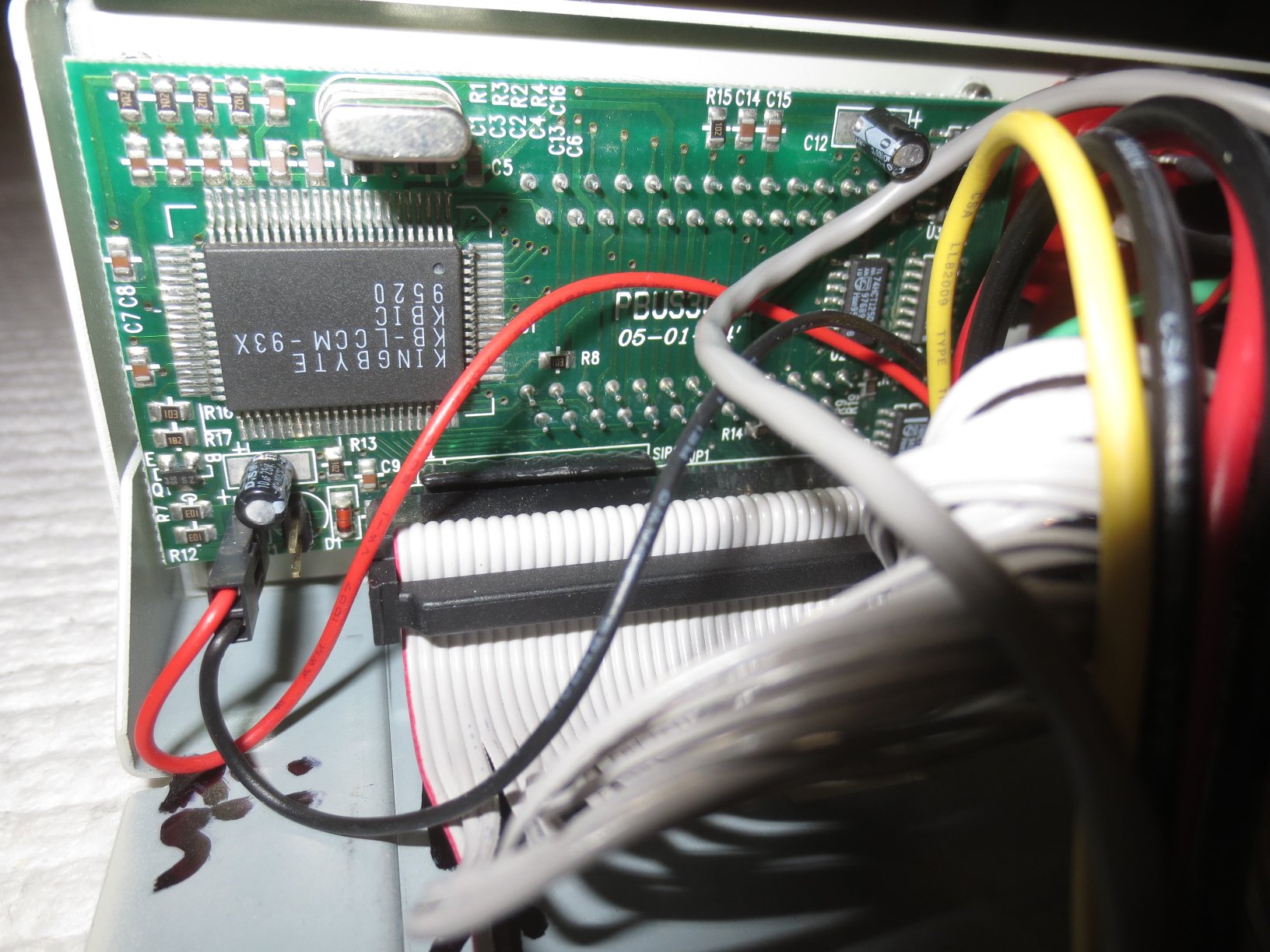

    I have a fully tested Kingbyte pcb and enclosure for sale. You can use this to make your own Disk Dual.

    The Disk Dual is an add-on for the Super Wildcard DX2. It supports IDE CD-ROM, IDE HDD and CF cards (adapter required for CF cards). CD-ROM has to be jumpered as a Slave device. HDD as a Master device.

    I've tested 2x, 4x and 8x CD-ROM drives which work flawless.
    I've also tried a 40x, but it failed to load roms.

    HDD/CF is limited to 2GB and FAT16. Please be aware of FAT16 file system limitations, such as 8.3 filenames, max 64 files per folder and so on.

    HDD and CD-ROM can be connected at the same time. However if you want to read files from HDD, make sure that no CD is in the drive.

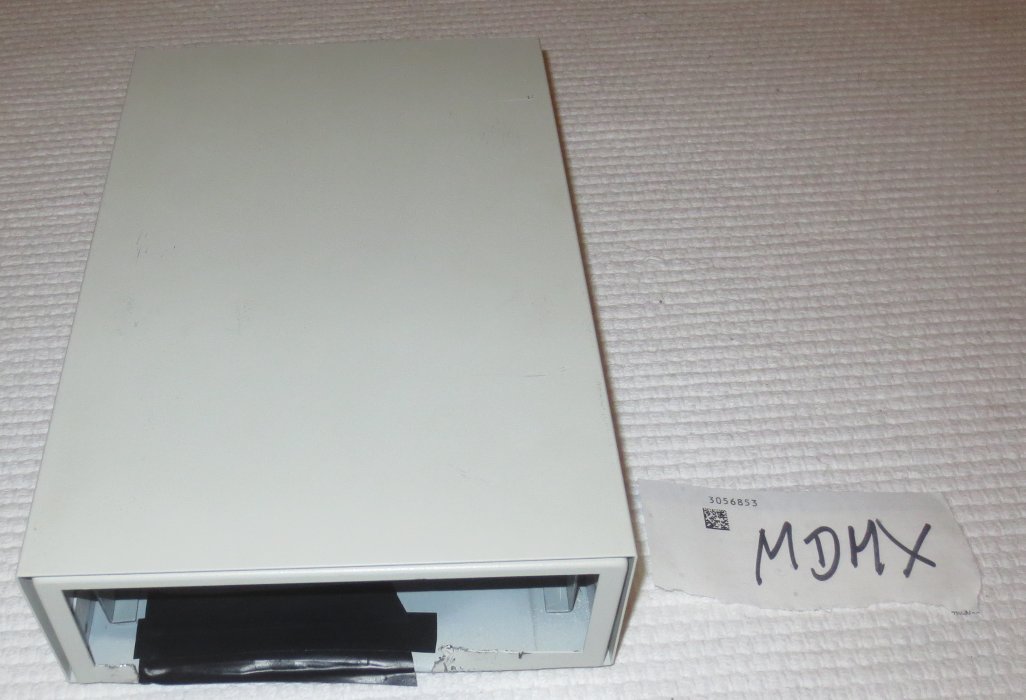

    The enclosure has scratches and a poorly made cutout for the CF card reader.

    update: I will include a 4x CD-ROM. It's a very noisy drive, but at least it works.

    price:
    now 30 Euros

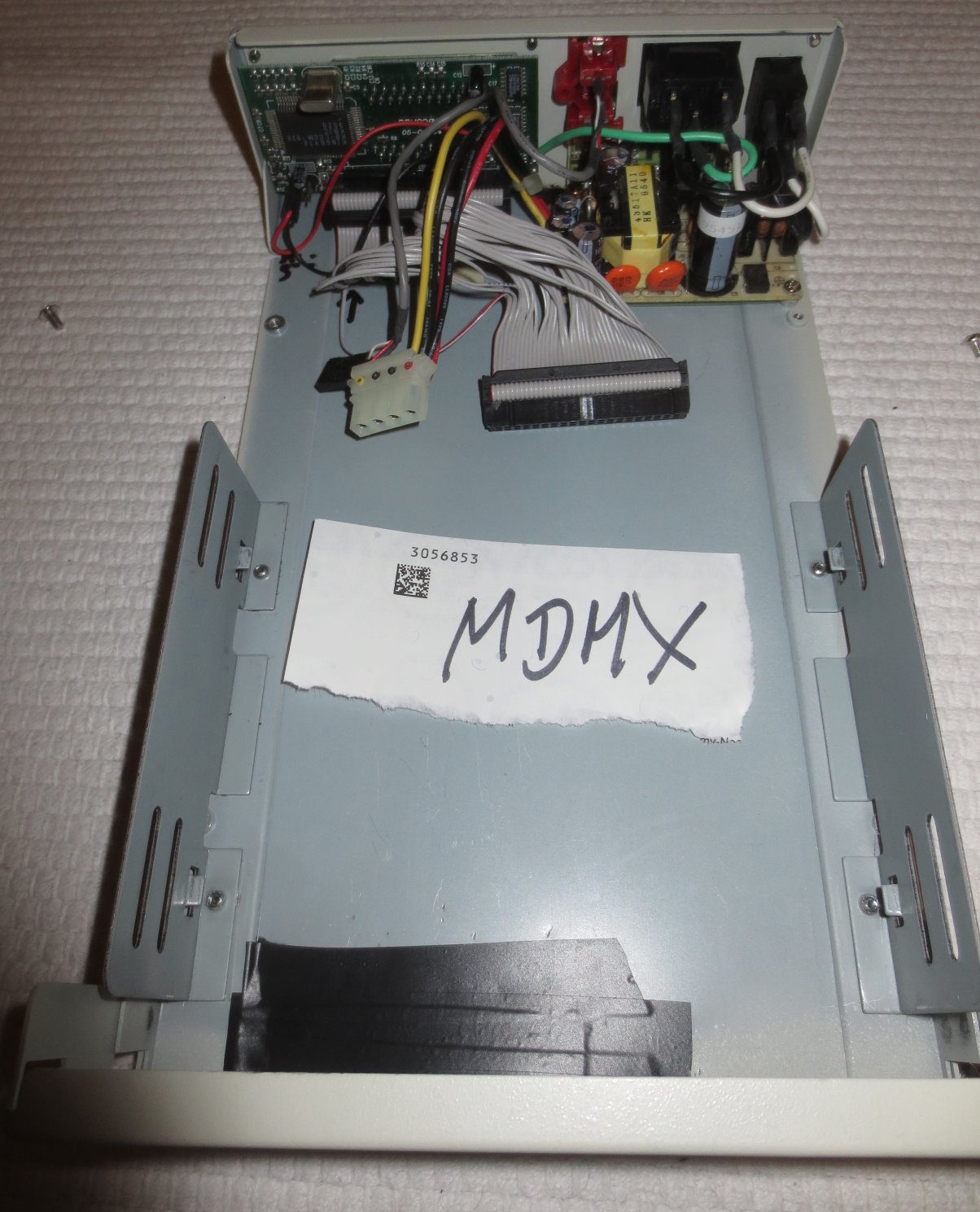

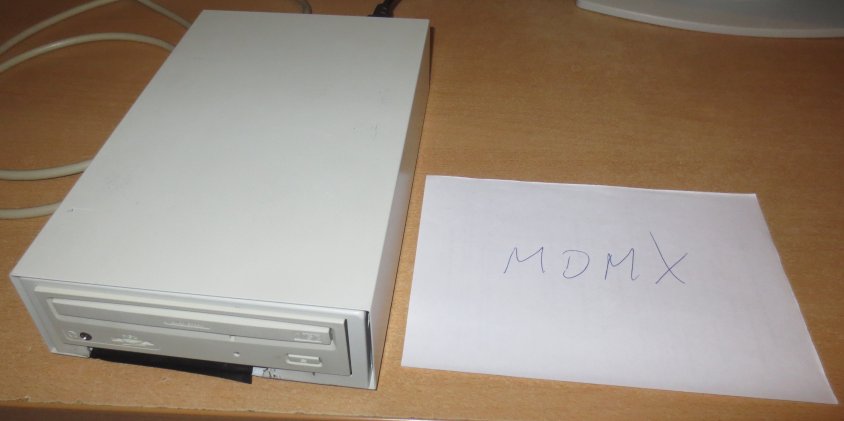

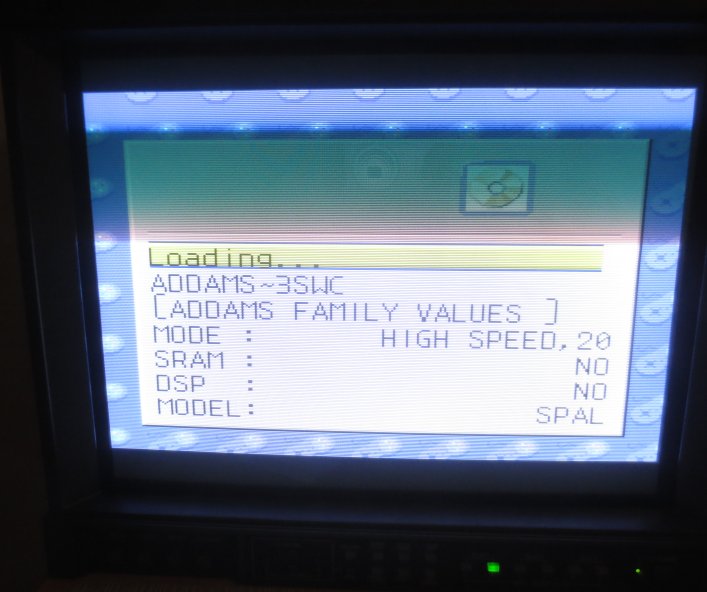

    DiskDual_6.jpg DiskDual_2.jpg DiskDual_3.jpg DiskDual_5.jpg

    worldwide shipping costs including tracking:
    EUR 6.20 for pcb only
    EUR 19.50 for pcb, psu and enclosure (it's very heavy)


    CF-Card+adapter, HDD, CD-ROM are NOT included!

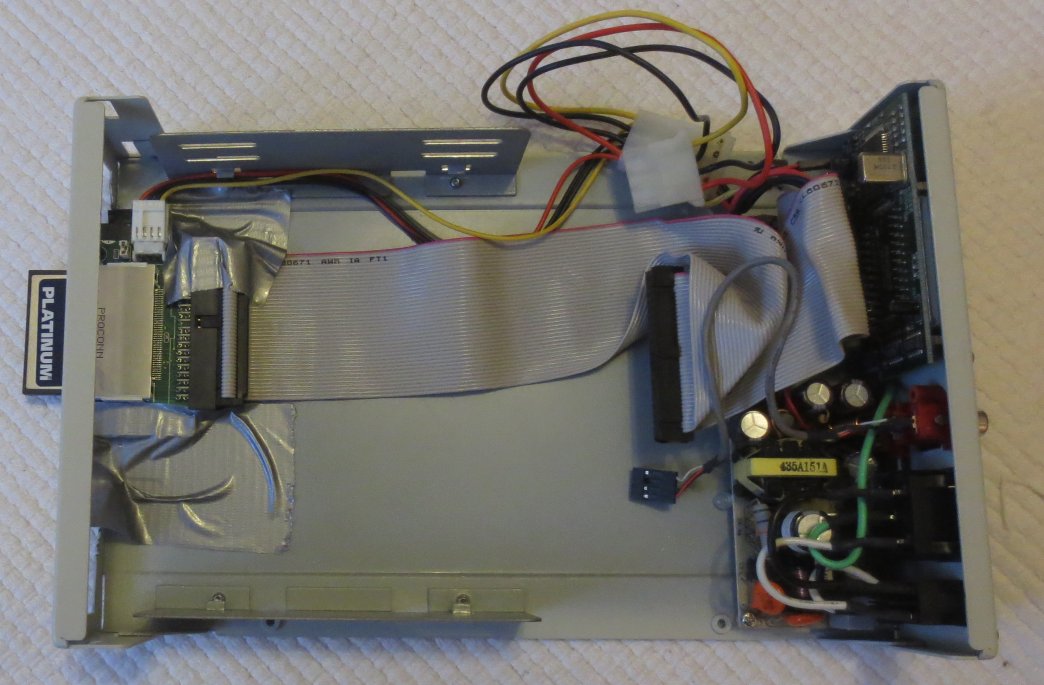

    Example with a CF card reader (a CD-ROM can be attached above it).
    DiskDual_4.jpg CF card reader NOT included!


    Attached Files:

    Last edited: May 30, 2019 at 3:29 PM
    mdmx, Dec 30, 2018 Report
    #1 + Quote Reply
  2. mdmx

    mdmx Familiar Face

    Joined:
    Nov 3, 2005
    Messages:
    1,300
    Likes Received:
    29
    bump, price drop. I need some space in my collection.

    mdmx, Jan 20, 2019 Report
    #2 + Quote Reply
  3. michaelpetri

    michaelpetri Newly Registered

    Joined:
    Jan 24, 2014
    Messages:
    3
    Likes Received:
    0
    Hi,

    is this kit still available?

    Cheers
    Michael

    michaelpetri, Feb 25, 2019 Report
    #3 + Quote Reply
  4. mdmx

    mdmx Familiar Face

    Joined:
    Nov 3, 2005
    Messages:
    1,300
    Likes Received:
    29
    Hello Michael,

    this item is still available.

    mdmx, Mar 23, 2019 Report
    #4 + Quote Reply
  5. michaelpetri

    michaelpetri Newly Registered

    Joined:
    Jan 24, 2014
    Messages:
    3
    Likes Received:
    0
    Hi mdmx,

    Sorry for my late response, all assemblergame mails get flagged as spam by my provider :/

    I'm still interested, can you estimate shipping to Germany? Do you accept PayPal?

    You can also dm me!

    Cheers Michael!

    michaelpetri, May 6, 2019 Report
    #5 + Quote Reply
  6. mdmx

    mdmx Familiar Face

    Joined:
    Nov 3, 2005
    Messages:
    1,300
    Likes Received:
    29
    Update: I will include a CD-ROM drive now. It's noisy, but it works.

    mdmx, May 30, 2019 at 3:31 PM Report
