Game Gear Capacitor Replacement Missing Pad Connections

Discussion in 'Repair, Restoration, Conservation and Preservation' started by Damn-Deal-Done, Mar 4, 2019.

  1. Damn-Deal-Done

    Damn-Deal-Done Spirited Member

    Joined:
    May 16, 2016
    Messages:
    137
    Likes Received:
    38
    Hello all.

    I am repairing a cheap Game Gear that has previously had a bad capacitor replacement. Besides from incorrect capacitor values, cold solder joints and not cleaning up the old corrosion, whoever did this managed to lift three pads.

    I have cleaned up the board and installed all the other capacitors but I am unsure of the exact connections of the three missing pads.

    Can anyone tell me if I have worked this out correctly?

    The pads in green are missing of C54 and C55. The red line is where I believe the connections are. I have possibly missed one connections from C55's right pad.

    It is a 837-8560 revision Game Gear.


    Any help will be greatly appreciated.

    Cheers

  2. segasonicfan

    segasonicfan Robust Member

    Joined:
    Sep 23, 2011
    Messages:
    261
    Likes Received:
    40
    I'm assuming you've taken a look at the schematics online? It should be fairly simple to figure out how things are connected that way. There are schematics available for the VA0 and VA1

    Edit: and all the info you need is here on the bottom right ( look for C55 and C54 and Q8)
    https://gamesx.com/wiki/lib/exe/fet...ar_va1_schematic_-_main_circuit_board_-_2.png

    Also feel free to post any relevant finds on the gamesx wiki or forum. It's a great database for this kind of stuff

  3. Damn-Deal-Done

    Damn-Deal-Done Spirited Member

    Joined:
    May 16, 2016
    Messages:
    137
    Likes Received:
    38
    Many thanks. I did have a look, it's where I got that image from, but I am still a noob to reading schematics. But I guess it's time to stop putting it off and really get deep with that. Thanks for the pointer, I should be able to get this sorted. Cheers

  4. Damn-Deal-Done

    Damn-Deal-Done Spirited Member

    Joined:
    May 16, 2016
    Messages:
    137
    Likes Received:
    38

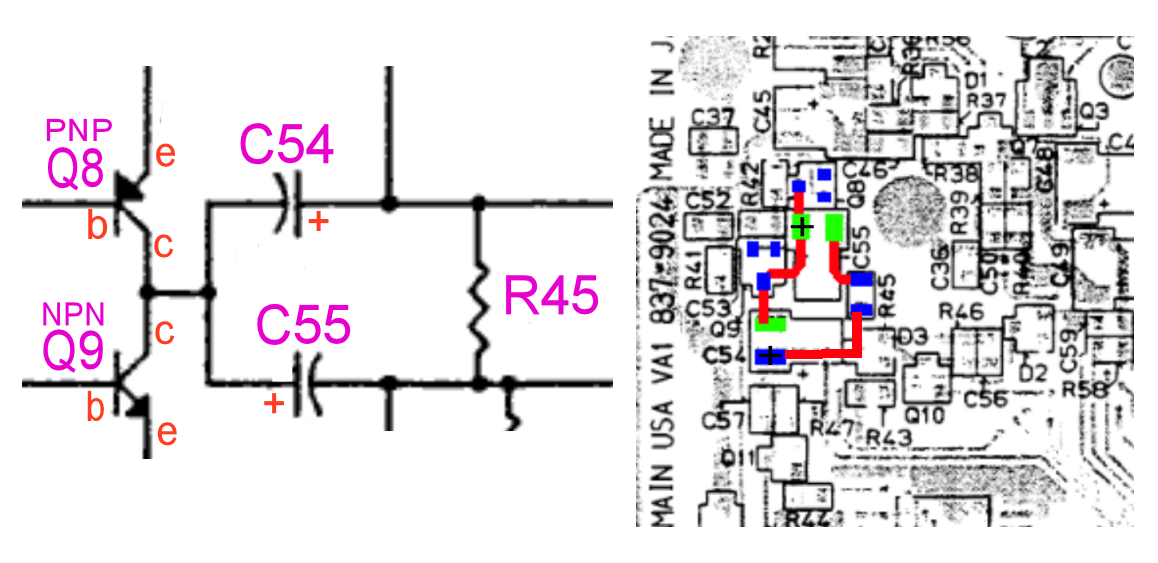

    Ok, I have been studying the schematic.

    So if I am not mistaken the schematic is showing that I was correct.

    Negative of C54 connects to the Collector of both transistors.
    Positive of C55 also connects to the Collector of both transistors.


    Cheers

  5. segasonicfan

    segasonicfan Robust Member

    Joined:
    Sep 23, 2011
    Messages:
    261
    Likes Received:
    40
    Looks correct to me. Glad to see you're learning and good luck with the repair!
