Gamecube controller plug

Discussion in 'Repair, Restoration, Conservation and Preservation' started by gorgyrip, Sep 4, 2017.

  1. gorgyrip

    gorgyrip Gutsy Member

    Joined:
    Oct 26, 2007
    Messages:
    446
    Likes Received:
    14
    Is it possible to open the controller plug? I have a controller with damaged cable and I would like to fix it.

  2. l_oliveira

    l_oliveira Officer at Arms

    Joined:
    Nov 24, 2007
    Messages:
    3,879
    Likes Received:
    245
    I've never tried to open one but I am pretty sure it's a snap/lock-on tab based mechanism. The plastic handle snaps into the metal casing which is pressure mounted around the wire.

  3. gorgyrip

    gorgyrip Gutsy Member

    Joined:
    Oct 26, 2007
    Messages:
    446
    Likes Received:
    14
    The case has 2 holes. I tried using a screwdriver. I didn't work.

  4. l_oliveira

    l_oliveira Officer at Arms

    Joined:
    Nov 24, 2007
    Messages:
    3,879
    Likes Received:
    245
    Maybe only with a x-ray of the plug... lol Have you tried google images, maybe someone already dismantled one...

  5. sanni

    sanni Intrepid Member

    Joined:
    May 30, 2008
    Messages:
    653
    Likes Received:
    77

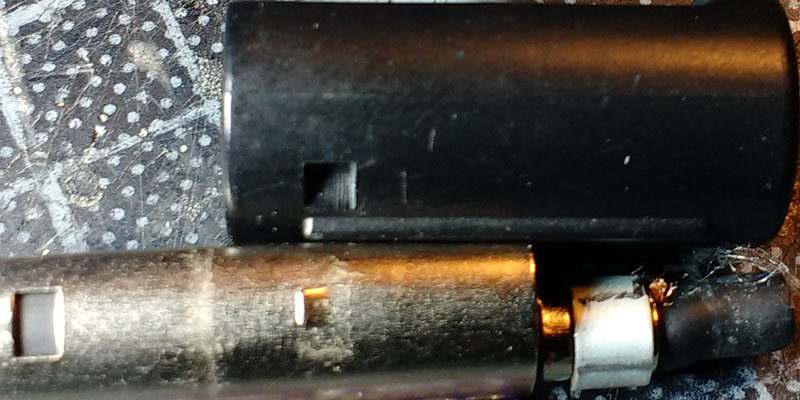

    There are a two metal tabs that you can reach through the holes, I think you need to bend the case over them a little:

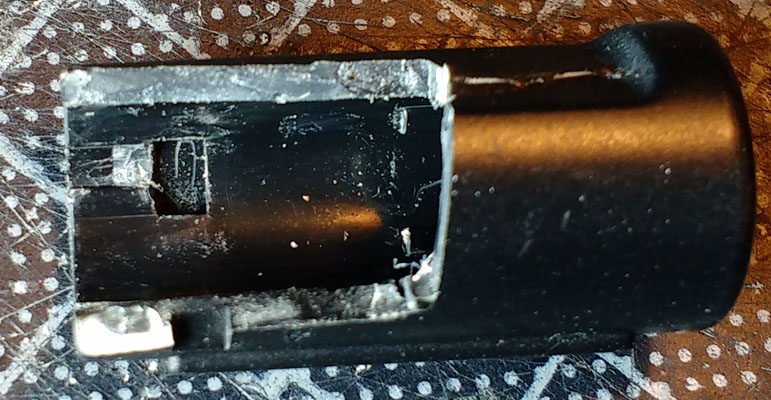

    Here is a cut through the plug case:
    The shiny part just in front of the hole towards the left is the raised portion that catches the metal tab.

    Last edited: Sep 4, 2017
    l_oliveira likes this.
  6. gorgyrip

    gorgyrip Gutsy Member

    Joined:
    Oct 26, 2007
    Messages:
    446
    Likes Received:
    14
    I did a google search, but I only found questions about how to open one. And the answers were to boil the plug or that it's impossible to open it.


    EDIT: Thank you sanni! I will give it a try.
    EDIT 2: I believed that those metal tabs can be pushed in, but that's impossible.
    I tried lifting the the plastic, but the plastic broke.

    Last edited: Sep 4, 2017
