GameNavi HiSaturn Bios v1.03 dumped....i think

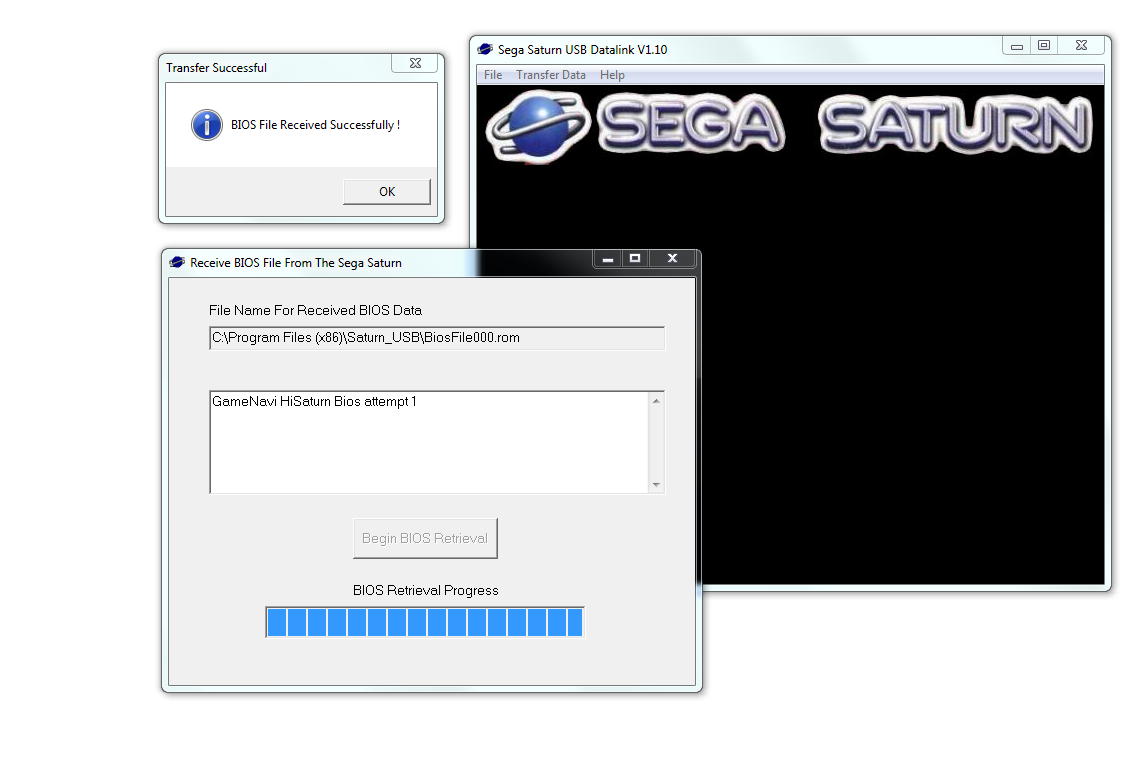

Got this this morning from my Navi. Used the saturn USB datalink. i have no idea if this is the same as the normal hisaturn bios. Loaded it into SSF and it seemed to work okay once i renamed it to a .bin. Would love for someone else to independently confirm a proper dump, and to check if there is anything special about this bios versus the normal HiSaturn bios. Also, please check if this can be made universal.

Thanks all

Filename: GameNavi_HiSaturn_Bios_v1.03_Dumped_2014-01-25_A_Murder_of_Crows.bin
MD5: 0306c0e408d6682dd2d86324bd4ac661
SHA1: 8c031bf9908fd0142fdd10a9cdd79389f8a3f2fc
CRC32: 6abfefea
Modified Time: 1/25/2014 6:34:52 AM
Created Time: 1/25/2014 6:33:34 AM
File Size: 524,288

http://amurderofcrows.net/Navi/GameNavi_HiSaturn_Bios_v1.03_Dumped_2014-01-25_A_Murder_of_Crows.bin



x



https://dl.dropboxusercontent.com/u/28488139/GameNavi_HiSaturn_Bios_v1.03_rf.rar

suggest archiving that, as it is subject to being deleted on a whim.

Maybe this too, for future ease:

https://dl.dropboxusercontent.com/u/28488139/sega.saturn.region.free.bios.patcher.1.0-patch.rar

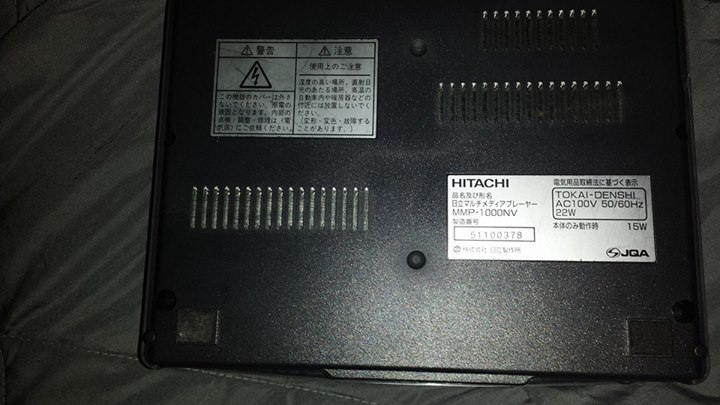

I've owned the Navi since december, and i'm very much in debate with myself regarding modding it with a universal bios or a region switch. I did know that i probably needed dump the bios if i wanted a universal option

I have to get some chips ordered from Bad_Ad84 and figure out some way to socket this so i don't need to alter the original bios all that much. I have a programmer now, but no cheap source of the appropriate eeproms.

I also need to figure out how to install a mod board on this thing, and probably a lid lift.



x



I think you mean 8mbit.

You technically only need 4mb, which is what I use at the moment. But I get which ever I can get - install is the same.



Hey Bad_Ad84, was there any major differences between this and the previous hisaturn bios? i'm trying to find out how the karaoke and navigation features are controlled.
