How to Build Xbox EEPROM Reader and Writer For Under $10

Hi guys this is a tutorial I made on how to make a Serial EEPROM Reader and Writer to Backup you Xbox EEPROM, which contains MacAddress details, HDD key and Live Key (Now Redundant).


Total cost to make one of these is under $10, total time to make one is around 10 minutes.


This is kind of a Part 1 to a series on modding the Original Xbox console, the other videos will be tutorials on:


How to dump EEPROM From the console
How to Soft mod
How to TSOP
How to Upgrade the RAM
and a whole bunch more!


It takes me on average about 2~3 DAYS to make these tutorials so please let me know what you think, even show your support by liking my videos and subscribing to my channel.


----------------------------------------------------------------------------------


Please Subscribe for more videos.


This Channel: www.Youtube.com/Slot1Gamer
Blog of Awesomesauce: www.Slot1Gamer@blogspot.com
Twitter: @Slot1Gamer


Check Out: http://www.Slot1Gamer.com








How to Extract EEPROM


thanks for watching



Great Tutorial, Thanks Leham!



I didn't finish watching it yet but it is excellent. Now off to go make my own.



Thanks Guys!

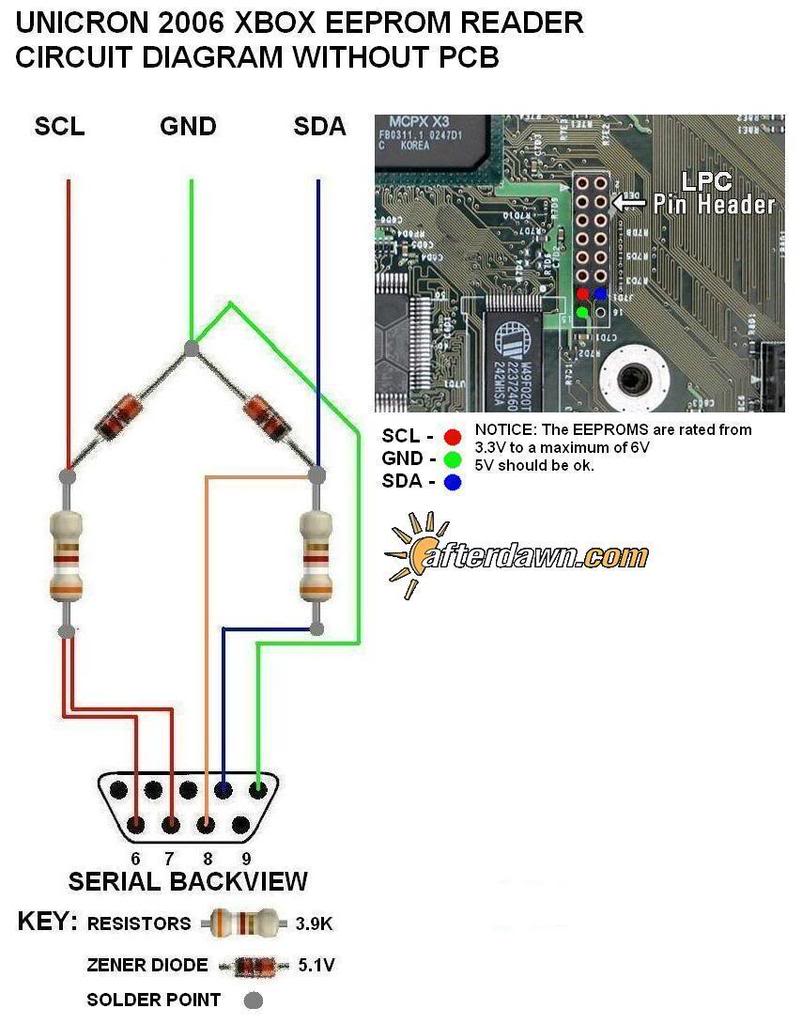

Here's the schematic I made mine with, looks to be the same judging by the video:



Yeah it is



If you're making a bunch of Xbox tutorials, post them all in one section. You have some in the Xbox section and here. That's just going to confuse people.

I'd like to have all your tutorials in one easy place in one thread. I'll then sticky them in the Xbox section.



This will be very handy, If i get an Xbox below 1.6. Thanks !



Ok, if I put them all in this sub forum as one thread, can that be stickied in the xbox sub forum? Or should I just post them all in xbox sub forum?
Now I'm confused haha

what at ever you think will be best mr. Hex



This will work on a 1.6, you'll need to rebuild the lpc OR you can just wire up the SDA and SCL directly to the EEPROM, the xbox uses an ATMEL 24co2n, it's a two wire EEPROM (you only need Serial Clock[SCL] and Serial Data [SDA], and VCC [between 3.3v and 6v!])

datasheet is here if anyone is interested.
http://www.atmel.com/Images/doc0180.pdf



I'd just move them all together mate, so I'd merge them.

It's good to see updated tutorials so, should also mention them in your signature. Once everything is together.



I probably wouldn't go through that much hasle, just to flash the eeprom. For my 1.6, I'm waiting for a modchip ( that a fellow member is making). Although, if the xbox HDD would be dead and you wouldn't have a modchip, I guess this method will work.
Thanks, anyway.



I personally use an EEPROM reader to do all my OG Xbox modding... even for 1.6. Open it up, use EEPROM reader to get the EEPROM so that I can use XboxHDM and install a larger HD, etc. The difference with 1.6 is that you can't TSOP flash it, but you can still read/write the EEPROM just fine.



Do you use a soic8 clip? That would make it a 2min job then haha, well for 1.5 and below its a 2 min job but anyhoo haha
I'm excited for my programmer to arrive hehe



How to Extract EEPROM using EEPROM Reader.



No, I just hold the 2 pins in place with one hand in the right spots in the LPC pin header while using my other hand to control the mouse and hit the "Read" button... get a few dumps just incase. It's only gotta be there for a few seconds so I don't bother soldering it or using clips for such.



I have header pins on mine, they don't fall out.
