Looking to buy an Original Playstation 1 modchip (to play backups)

I have game enhancer but its crap, i still need to swap disks.
I want to quickly have access, like by dropping the burned disk in and play.

Can anyone point me in the direction of a modchip that dont need to be soldered on the board? Thanks.





OR

If you have a ps1 thats modded already that you would be willing to sell id happily buy it. Just name a reasonable price.



Well i doubt there is modchips that dont need to be soldered, depending on your PSX console and what version it is it can be 4-8 wire installation which is really easy believe me.

here is a website which i purchase my modchips from http://www.eurasia.nu/shop/default.php?cPath=52

Or if your adamant you cant solder then this might be for you.

http://www.ioffer.com/i/premodded-ps1-mm3-modded-playstation-1-mod-chip-1001-537159918



Just buy a PIC 12F508A and program it with MM3 code found on eurasia's download section.

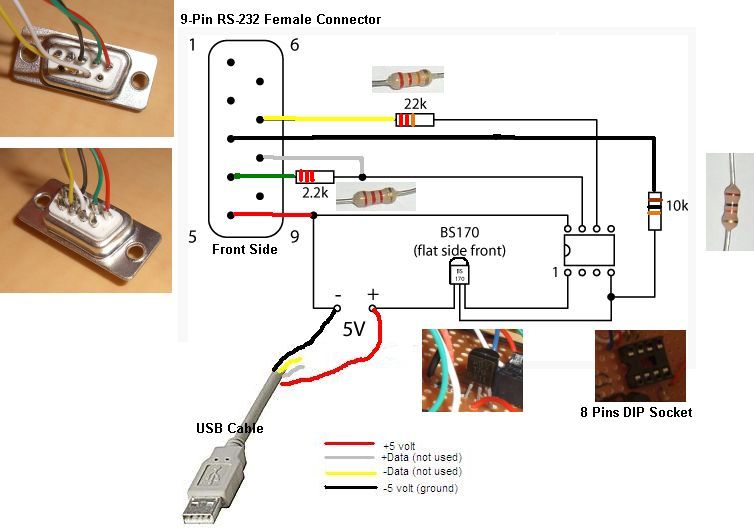

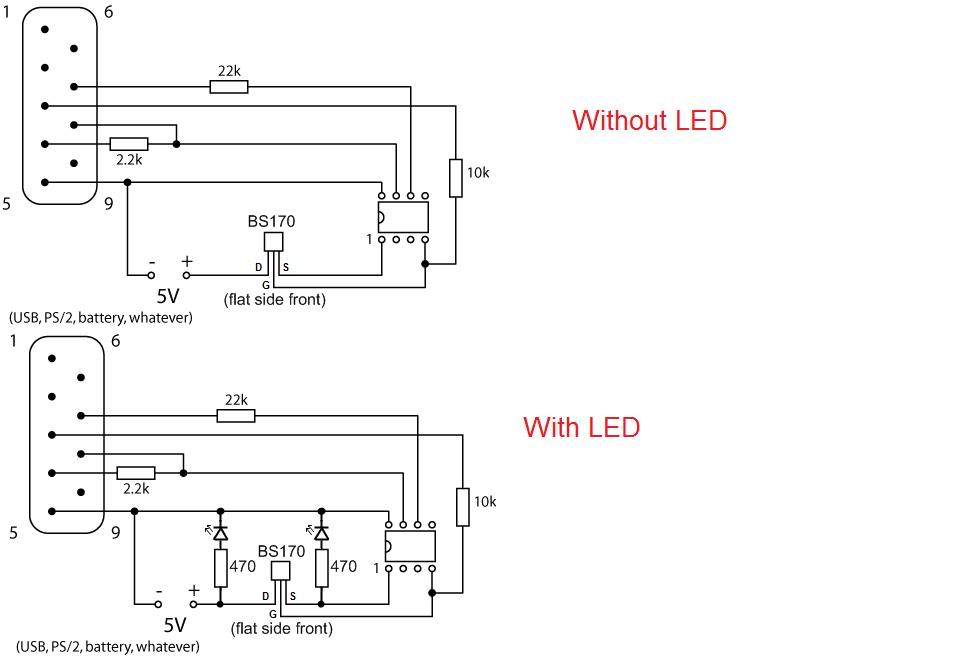

You can build your own programmer really cheap if you have a serial port on your PC.




You'll be able to program as much chips as you want. Programmer is good for probably all PIC 12F devices. That means you could program a YAOSM for Wii or any other mods that use 8 pins 12F devices.



I have a 5502 serie ps1(i dont know for sure) has a grey color
Its a pal system, comes with cords and one controller. And is chipped off course
Give me an offer



Hello from Maine, USA.

Making PSX modchips seems interesting to me

Is this programmer OK ?

http://www.ebay.com/sch/i.html?_sac...r+Programmer+K150+ICSP+w+Cable&rt=nc&LH_BIN=1

I'm not an EE but I have a minor understanding of all this. Apparently I'd buy the programmer and also buy some PIC 12F683 microchips :

http://www.ebay.com/sch/i.html?_odk...0.TRC0.XPIC+12F683+&_nkw=PIC+12F683+&_sacat=0

An 8-pin dip socket would be handy if I want to test each modchip I create :

http://www.ebay.com/sch/i.html?_odk...pin+dip+socket&_nkw=8+pin+dip+socket&_sacat=0

And then it would be simple - like burning a CD only I'd be burning PIC 12 chips ?

LOL, it's 2013 and I'm conspiring to make PSX modchips. Is that 1996 calling ?

Cheers, Craig



you can also change the powersupply of a console if you want to play foreign games, just look for japanese 5500 or american 5500 consoles and put your pal powersupply in



I tried a modchip for Playstation a while back, problem is Sony made so many revisions of the board that the chip you need and how to wire it up varies a lot, and also liable to break your console if it isn't right.



There is like 6 revisions, all clearly labelled on the board. Getting the correct install picture is as easy as reading the motherboard version.

In pal land, you need like 1 chip for all phat consoles and 1 chip for the PSone slim.

It's certainly anything but difficult to figure out



I don't have a serial port on my computer. Anyone have any usb based PIC programmers they'd recommend? How about this one - http://www.microchipdirect.com/productsearch.aspx?Keywords=DV164120



I have MODCHIPs available for cheap, pre-wired and tinned, please email me at tickets@carnivalelectronique.co.uk if you would like one.
