Making a Custom VGA Box for the Dreamcast. Need some help.

Discussion in 'Modding and Hacking - Consoles and Electronics' started by MonkeyBoyJoey, Oct 17, 2015.

Watch Thread

MonkeyBoyJoey 70's Robot Anime GEPPY-X (PS1) Fanatic

Joined:

Mar 1, 2015

Messages:

1,738

Likes Received:

312

Hey everyone!

So I've made a Dreamcast VGA box using a breadboard and before I start soldering it to my broken VGA box, I would like to know how to enable 15KHz RGB mode on the Dreamcast. Is it just linking pin 7 to ground or is it more than that? Any help will be highly appreciated!

I wish the world could get along. Not getting along is holding back so much progress in humanity. It's kinda sad really. -MonkeyBoyJoey 2016

MonkeyBoyJoey, Oct 17, 2015 Report

#1 Like + Quote Reply
bagheera Rising Member

Joined:

Aug 1, 2014

Messages:

65

Likes Received:

3

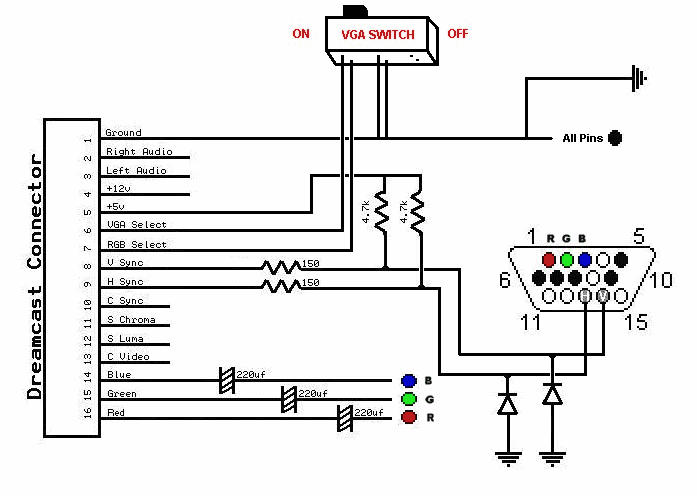

Yes, that seems to be the case:

I have not really experimented much with the Dreamcast and I do not know things from the top of my head. I did manage to successfully force VGA resolution, which I guess I did by shorting pin 6 to ground.

bagheera, Oct 21, 2015 Report
