MIL-CD (Legitimate Music) Exploration and Research. Need your help!

>Cool. I'd love to get more messed up redump dumps. Thanks!
Simply a matter of redump updating the cues. Much better to preserve in a datted set than the graveyard of dead links AG has become.



Just saying redump chose to butcher and reinvision the "gdi standard" in order to be assholes(?).

Instead of dumping to their own brand new format, or just doing it the same way everyone else does.

Offset corrected dumps are fucking stupid and worthless, they only exist to serve some random person's ego



>Offset corrected dumps are fucking stupid and worthless, they only exist to serve some random person's ego
Lol oh boy, must be one of "those" people. Offset audio is matched from other roms, saves a lot of time and trouble, especially when rebuilding unshared roms. Also two discs, same data, different offset, why dat both?



Bye Felicia



Sure, enjoy your hugs box.



Go create something original instead of just consuming other's work



Looked around for some disc images that conform to 'Blue Book' but haven't had any luck yet. However you can filter CDs on Discogs to look for Enhanced CDs. You can also search for Enhanced CDs on Amazon and some that are appropriately tagged will pop up. Oh wait do you have a physical copy of Linkin Park Meteora or Reanimation? Those are both Enhanced CDs apparently, if not I'll try to find mine.

Also I found this post on imaging 'Blue Book' discs that may or may not be of any help.

EDIT: Derp just re-read your first post, that's why you went with LP to begin with. Oh yeah instead of Cygwin it might be easier to use a docker container.



Nice find!

I believe I was able to source a dump of this and it's what I used as the base.

https://www.discogs.com/Linkin-Park-In-The-End/release/7578274

Of course it's not 1:1 obviously because video was converted to a (specially encoded) sfd, playlist was edited to match new files, audio had to be modified to fit LBA / track restrictions (I still don't understand this part), and some "spooky" files had to be faked.

So it's not really going directly from one to the other, but there's hardly any info about authoring a regular cd-extra, enhanced CD. I was able to find a parser to dump 1 special binary file, which was easy enough to write a writer for but the other 3 make no sense and don't even reference file data.

The image is a jfif (jpeg).



From an audio mastering perspective I imagine for an E-CD you would still create a DDP file to send over to whoever is manufacturing the discs. Even though it's "Disc Description Protocol" I'm not sure how granular this description is or if it's easy to view.



I wish there was some consumer software to create a from scratch e-cd.

At least I could understand what some of the things do.

Not tomorrow because working 15 hours but Sunday or Monday I'll put together something for ya. Maybe tou can look through it and glean some info I missed, idk.

I hate sharing copyrighted stuff so the image will have all audio blanked but I'll mark where it existed.



That would be cool, no rush. I'm probably not the most qualified person but I'd love to take a peek, I'm sure other peeps will as well.

EDIT:
Ok I found my Meteora CD, here's how it's laid out

Spoiler

Disc Information:
Status: Complete
State of Last Session: Complete
Erasable: No
Sessions: 2
Sectors: 312,952
Size: 640,925,696 bytes
Time: 69:34:52 (MM:SS:FF)

File System Information:
Sectors: 489,284
Size: 1,002,053,632 bytes
Time: 108:45:59 (MM:SS:FF)

TOC Information:
Session 1... (LBA: 0 / 00:02:00)
-> Track 01 (Audio, 00:13:33, LBA: 0 / 00:02:00)
-> Track 02 (Audio, 03:07:70, LBA: 1008 / 00:15:33)
-> Track 03 (Audio, 03:33:70, LBA: 15103 / 03:23:28)
-> Track 04 (Audio, 02:55:04, LBA: 31148 / 06:57:23)
-> Track 05 (Audio, 02:44:16, LBA: 44277 / 09:52:27)
-> Track 06 (Audio, 03:24:13, LBA: 56593 / 12:36:43)
-> Track 07 (Audio, 02:42:08, LBA: 71906 / 16:00:56)
-> Track 08 (Audio, 03:17:38, LBA: 84064 / 18:42:64)
-> Track 09 (Audio, 03:16:10, LBA: 98877 / 22:00:27)
-> Track 10 (Audio, 02:55:38, LBA: 113587 / 25:16:37)
-> Track 11 (Audio, 02:58:65, LBA: 126750 / 28:12:00)
-> Track 12 (Audio, 02:24:55, LBA: 140165 / 31:10:65)
-> Track 13 (Audio, 03:07:39, LBA: 151020 / 33:35:45)
-> LeadOut (LBA: 165084 / 36:43:09)
Session 2... (LBA: 176484 / 39:15:09)
-> Track 14 (Mode 1, LBA: 176484 / 39:15:09)
-> LeadOut (LBA: 312952 / 69:34:52)

So Session 1 is of course straight forward that's just the audio. Session 2 starts at LBA 176484 and gives us a nice little message "Apple_partition_map" "Toast 5.0.2 HFS Optimizer Apple_HFS". Indeed at the beginning of Track 14 we get three different file systems, ISO 9660, JOLIET, and HFS. Each point to pretty much the same files, a couple .mpg, .swf, and .html files. There are some extra files with HFS though, or at least the tool I'm using is saying that (IsoBuster). I don't think that's correct, since it looks like that section has some shared assets.

Here's what the 9660/JOLIET file tree looks like, ignore all the extra junk

Spoiler

E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\xtras
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\FileList.bat
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\start.exe
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\lptv.html
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\merch.html
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\screensaver.html
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\toolkit.html
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\AUTORUN.INF
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\linkin_interview.mpg
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\Linkin_Somewhere.mpg
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\lpunderground.mpg
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\lptv.swf
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\merch.swf
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\screensaver.swf
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\toolkit.swf
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\xtras\CDPRO.X16
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\xtras\OPENURL.X16
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\xtras\CDPRO.X32
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\xtras\DIRECTMEDIAXTRA.X32
E:\Desktop\Meteora\Session 2\JOLIET\LinkinPark\xtras\OPENURL.X32

Here's the "HFS" file tree, yes it came with an empty Desktop Folder.

Spoiler

E:\Desktop\Meteora\Session 2\HFS\LinkinPark\Desktop Folder
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\html
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\images
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\TheFindByContentFolder
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\TheVolumeSettingsFolder
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\Trash
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\xtras
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\Desktop DB
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\Desktop DF
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\Icon
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\FileList.bat
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\start (OS X).exe
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\start.exe
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\linkin_interview.mpg
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\Linkin_Somewhere.mpg
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\lpunderground.mpg
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\README.TXT
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\html\lptv.html
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\html\merch.html
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\html\screensaver.html
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\html\toolkit.html
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\html\lptv.swf
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\html\merch.swf
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\html\screensaver.swf
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\html\toolkit.swf
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\images\Icon
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\images\os9.jpg
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\images\os9r.jpg
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\images\osbkgrnd.jpg
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\images\osbottom.jpg
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\images\ostop.jpg
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\images\osx.jpg
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\images\osxr.jpg
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\images\pleaseselect.jpg
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\TheVolumeSettingsFolder\OpenFolderListDF
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\xtras\Buddy API Xtra
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\xtras\CDProT Xtra
E:\Desktop\Meteora\Session 2\HFS\LinkinPark\xtras\OpenURL

Looking at making DDP images it seems like a typical way to make them is just to throw in your .wav files and then add an .iso image that contains everything you need for the enhanced bit. It then creates a couple .DAT files and some other miscellaneous stuff. As we can see this Linkin Park CD has an .iso made using Toast 5.0.2.

EDIT: Converted CODE to SPOILERS



Sorry no quote, so I just liked.

That is definitely an enhanced audio CD BUT it isnt a CD Extra / CD Plus enhanced CD.

It's missing the required folders: SUB_INFO and PICTURES.

I'll look and try to find some dumps of them to share. It's easy to find extracted versions but those are worthless because the CDs need specific creation and per sector manipulation to be valid. So if someone extracts it suddenly it's worthless because you'd have to rebudre by hand



Shouldn't they be the same? It may not have those folders and associated files but I would think the structure of the disc itself would be the same.

Looking at Discogs I made a list of some albums that specifically use the CD+ logo

Spoiler

https://www.discogs.com/David-Victor-Proof-Through-The-Night/release/12010868

https://www.discogs.com/Various-Super-Eurobeat-Vol-76-Non-Stop-Mega-Mix/release/11809250

https://www.discogs.com/Tokyo-Ska-Paradise-Orchestra-トーキョーストラット/release/11626228

https://www.discogs.com/Various-Super-Dance-Freak-Vol-70-Anniversary/release/11459901

https://www.discogs.com/Iron-Maiden-Fear-Of-The-Dark/release/11247228

https://www.discogs.com/Toto-Livefields-1999-Live/release/9161519

https://www.discogs.com/Skunk-Anansie-Post-Orgasmic-Chill/release/1848235

https://www.discogs.com/Iron-Maiden-A-Real-Live-Dead-One/release/10094513

https://www.discogs.com/Dave-Rodgers-Take-Me-Higher/release/527739

https://www.discogs.com/Methods-Of-Mayhem-Methods-Of-Mayhem/release/996418

https://www.discogs.com/K-Pist-Voltage-Controlled/release/7526952

https://www.discogs.com/Jean-Michel-Jarre-Odyssey-Through-O₂/release/3087655

https://www.discogs.com/Various-Maharaja-Night-Presents-Dance-Pop-Selection/release/2857347

https://www.discogs.com/Iron-Maiden-Live-At-Donington/release/6961596

https://www.discogs.com/Various-Super-Eurobeat-Vol-74/release/790545

https://www.discogs.com/Various-Super-Eurobeat-Vol-78/release/898921

If you look at say Iron Maiden - Fear of the Dark, only the Japanese release uses the CD+ logo. All other regions use the Enhanced CD logo. So that might just be a branding thing.

EDIT: Oh derp here's a better file tree that actually includes the LBA for each file, that's probably more interesting. Some of the dates and whatever aren't right since, but that's not really important anyway.
JOLIET

Spoiler

00180221 , 2/7/1999 14:17:30 , 49.84 KB , >:\xtras\CDPRO.X16
00180246 , 2/7/1999 14:18:14 , 75.00 KB , >:\xtras\CDPRO.X32
00180284 , 5/14/2001 17:41:24 , 324.00 KB , >:\xtras\DIRECTMEDIAXTRA.X32
00180446 , 8/9/1997 6:29:02 , 15.66 KB , >:\xtras\OPENURL.X16
00180454 , 8/9/1997 6:26:34 , 28.50 KB , >:\xtras\OPENURL.X32
00176513 , 1/13/2003 8:19:48 , 0.02 KB , >:\AUTORUN.INF
00180742 , 2/18/2003 0:25:40 , 188.82 MB , >:\linkin_interview.mpg
00277417 , 2/25/2003 19:45:22 , 40.63 MB , >:\Linkin_Somewhere.mpg
00312448 , 2/21/2003 5:43:00 , 0.73 KB , >:\lptv.html
00312451 , 2/21/2003 5:43:00 , 0.14 KB , >:\lptv.swf
00298219 , 2/11/2003 8:52:00 , 11.64 MB , >:\lpunderground.mpg
00312454 , 2/21/2003 5:43:00 , 0.74 KB , >:\merch.html
00312457 , 2/18/2003 4:53:28 , 0.14 KB , >:\merch.swf
00312460 , 2/21/2003 5:43:00 , 0.76 KB , >:\screensaver.html
00312463 , 2/22/2003 9:49:42 , 0.14 KB , >:\screensaver.swf
00176514 , 2/26/2003 6:11:39 , 7.24 MB , >:\start.exe
00312466 , 2/21/2003 5:43:00 , 0.75 KB , >:\toolkit.html
00312469 , 2/18/2003 4:52:12 , 0.14 KB , >:\toolkit.swf

"HFS"

Spoiler

00180479 , 2/26/2003 10:43:33 , 0.50KB , >:\Desktop Folder\
00180480 , 2/26/2003 13:51:51 , 0.50KB , >:\html\
00180480 , 2/26/2003 12:28:04 , 0.50KB , >:\images\
00180480 , 2/26/2003 11:18:18 , 0.50KB , >:\TheFindByContentFolder\
00180480 , 2/26/2003 4:23:26 , 0.50KB , >:\TheVolumeSettingsFolder\
00180480 , 2/26/2003 10:43:33 , 0.50KB , >:\Trash\
00180480 , 2/26/2003 2:37:29 , 0.50KB , >:\xtras\
00312448 , 2/21/2003 5:43:00 , 0.73 KB , >:\html\lptv.html
00312451 , 2/21/2003 5:43:00 , 0.14 KB , >:\html\lptv.swf
00312454 , 2/21/2003 5:43:00 , 0.74 KB , >:\html\merch.html
00312457 , 2/18/2003 4:53:28 , 0.14 KB , >:\html\merch.swf
00312460 , 2/21/2003 5:43:00 , 0.76 KB , >:\html\screensaver.html
00312463 , 2/22/2003 9:49:42 , 0.14 KB , >:\html\screensaver.swf
00312466 , 2/21/2003 5:43:00 , 0.75 KB , >:\html\toolkit.html
00312469 , 2/18/2003 4:52:12 , 0.14 KB , >:\html\toolkit.swf
00180739 , 2/25/2003 12:27:39 , 0.47 KB , >:\images\Icon
00312472 , 2/25/2003 11:00:08 , 2.66 KB , >:\images\os9.jpg
00312475 , 2/25/2003 11:00:17 , 4.12 KB , >:\images\os9r.jpg
00312478 , 2/25/2003 10:27:30 , 109.12 KB , >:\images\osbkgrnd.jpg
00312535 , 2/25/2003 11:01:00 , 19.57 KB , >:\images\osbottom.jpg
00312547 , 2/25/2003 10:56:39 , 77.47 KB , >:\images\ostop.jpg
00312586 , 2/25/2003 10:59:34 , 2.80 KB , >:\images\osx.jpg
00312589 , 2/25/2003 10:59:43 , 4.28 KB , >:\images\osxr.jpg
00312592 , 2/25/2003 11:04:54 , 6.22 KB , >:\images\pleaseselect.jpg
00312598 , 2/26/2003 10:43:44 , 0.41 KB , >:\TheVolumeSettingsFolder\OpenFolderListDF
00312616 , 11/19/2001 12:59:00 , 137.06 KB , >:\xtras\Buddy API Xtra
00312712 , 2/7/1999 15:08:54 , 139.54 KB , >:\xtras\CDPro™ Xtra
00312793 , 3/25/1998 6:27:58 , 7.78 KB , >:\xtras\OpenURL
00180490 , 2/26/2003 10:34:01 , 48.00 KB , >:\Desktop DB
00180514 , 2/25/2003 12:53:36 , 392.92 KB , >:\Desktop DF
00180712 , 2/20/2003 4:22:11 , 48.59 KB , >:\Icon
00180742 , 2/18/2003 0:25:40 , 188.82 MB , >:\linkin_interview.mpg
00277417 , 2/25/2003 19:45:22 , 40.63 MB , >:\Linkin_Somewhere.mpg
00298219 , 2/11/2003 8:52:00 , 11.64 MB , >:\lpunderground.mpg
00304180 , 2/25/2003 12:29:51 , 1.26 KB , >:\README.TXT
00308368 , 2/26/2003 5:55:38 , 7.96 MB , >:\start (OS X).exe
00304288 , 2/26/2003 10:26:03 , 7.69 MB , >:\start.exe

EDIT DOS:
I found a CD Plus rip, it's not an actual image but the data section contains a CDPLUS folder with files INFO.CDP and SUB_INFO.EN. It also has a PICTURES folder with files JACKET01.00J, JACKET01.00N, JACKET01.00S, JACKET01.00T.

EDIT 3rd: Figured out that some common places to find such interesting media actually forbid uploading them as .bin etc...

EDIT 4rd: I redid my rip using Discjuggler the .cdi it spits out has the start of the data session about 9,975 sectors off in comparison to the bin. There also appears to only be 328 sectors between the end of the audio and the start of the data. In comparison with the .bin which has around 11,575 sectors. Typical compression for a DJ .cdi?

EDIT 5st: I didn't realize you were looking for CD Extra/CD+ stuff because MIL-CDs are also those. Well I can confirm that 6 of the 8 are at least.

EDIT 6nd (I'm going for a record, most edits and longest post): I'll tidy up my post a bit

In light of this new information I have compiled a list of more relevant releases. These are all CD+ and CD EXTRA from the same or related companies of that made MIL-CDs.

Spoiler

https://www.discogs.com/Original-Love-街男街女/release/11687252

https://www.discogs.com/Original-Love-美貌の罠/release/11678068

https://www.discogs.com/The-Bredrin-Daddys-Monkey-Business/release/8210398

https://www.discogs.com/Engineers-Engineers/release/3084493

https://www.discogs.com/Eric-Martin-Pure/release/7779236

https://www.discogs.com/Annie-Anniemal/release/547267

https://www.discogs.com/Sarah-Connor-Naughty-But-Nice/release/1522176

https://www.discogs.com/Kenji-Kawai-Avalon-From-Original-Soundtrack-Recordings/release/3683438

https://www.discogs.com/Rica-Matsumoto-OK/release/4736410

https://www.discogs.com/Yu-Suzuki-After-Burner-II/release/9541834 CD+ Only

https://www.discogs.com/Kraftwerk-Tour-De-France-Soundtracks/release/12196867

https://www.discogs.com/Helloween-Gambling-With-The-Devil/release/11282101

https://www.discogs.com/Place-Vendome-Streets-Of-Fire/release/6890750

https://www.discogs.com/Cher-The-Musics-No-Good-Without-You/release/7253178

https://www.discogs.com/Alanis-Morissette-Under-Rug-Swept/release/5323241

https://www.discogs.com/The-Horrors-Primary-Colours/release/2116446

https://www.discogs.com/Iron-Maiden-Killers/release/8088540

https://www.discogs.com/The-Used-The-Used/release/5279725

https://www.discogs.com/Damageplan-New-Found-Power/release/7066261

https://www.discogs.com/The-Big-Pink-This-Is-Our-Time/release/1884110

https://www.discogs.com/Blue-All-Rise/release/6446907

https://www.discogs.com/Linkin-Park-リンキンパーク-Leave-Out-All-The-Rest-リーヴアウトオールザレスト/release/1817875

https://www.discogs.com/Seasick-Ste...d-I-Still-Got-Most-Of-It-Left/release/6877741

https://www.discogs.com/Third-Eye-Blind-Ursa-Major/release/7859945

https://www.discogs.com/Fergie-Frederiksen-ファーギーフレデリクセン-Equilibrium-イクィリブリアム/release/6362679

Of special interest is Yu Suzuki ‎– After Burner II which may only be a CD+ release but it is made by our beloved friends over at Sega. The releases I listed before After Burner II are probably of greater interest then the ones I listed afterwards.

EDIT Seven:
List of MIL-CD Releases and Info, csv

Spoiler

No.,Title,Japanese Title,Label,Date,MIL VER,Logos,JAN

SCLX-2004,Snappers Nine Chairs,スナッパーズ 09 chairs（ナイン・チェアーズ）,SENHA & Co.,1999/6/25,1.05,"MILCD, CD EXTRA, CD+",

ZMCZ-656,KITAHE(Go North) White Illumination PURE SONG and PICTURES,北へ。PURE SONGS and PICTURES,Media Factory,1999/6/25,1.04,"MILCD, CD EXTRA, CD+",

PICL-7501,DPS HEARTBREAK DIARY,ディープス HEARTBREAK DIARY,Pioneer LDC,1999/7/22,1.06,"MILCD, CD EXTRA, CD+",

PCCAX-10001,CHECKICCO NO MIRU CD,チェキッ娘の見るCD,Pony Canyon,1999/8/4,1.07,,4988013013407

FSCA-10113,D2 Original Sound Track,Dの食卓2 オリジナルサウンドトラック+MIL-CD,First Smile (Distributed by Pony Canyon),1999/12/17,1.08,"MILCD, CD+, (probably CD EXTRA)",

MJCYX-80002,HANG THE DJ,HANG THE DJ,Marvelous Entertainment (Distributed by Pony Canyon?),1999/9/17,1.07,,4535506800022

WPCV-10045,HIMITSU Original Sound Track,秘密 オリジナル・サウンドトラック or 「秘密 THE TOP SECRET」オリジナルサウンドトラック,Warner Music,1999/10/14,1.08,"MILCD, CD EXTRA, CD+",4943674011599

,Space Channel 5 Ulala The Movie,スペースチャンネル5 ULALA THE MOVIE,SEGA,1999,1.08,"MILCD, CD EXTRA, CD+",



Look at what I found in the mail today


I started digging into them a bit, this is mostly surface stuff though.

So here is a list of files that occurs on each of these discs, as well as comparison results for their contents.

Spoiler

Filename,Folder,Comparison result
INFO.CDP,CDPLUS,Binary files are different
SUB_INFO.JA,CDPLUS,Binary files are different
MILPA.PVR,PASSPORT,Binary files are different
AP_SEL.PVR,PASSPORT,Binary files are identical
DPHPBG.GIF,PASSPORT,Binary files are identical
LOGO_1.PVR,PASSPORT,Binary files are identical
LOGO_2.PVR,PASSPORT,Binary files are identical
MANATEE.DRV,PASSPORT,Binary files are identical
RG20.DAD,PASSPORT,Binary files are identical
RG24.DAD,PASSPORT,Binary files are identical
TEX01.PVR,PASSPORT,Binary files are identical
TEX02.PVR,PASSPORT,Binary files are identical
TEX04.PVR,PASSPORT,Binary files are identical
TEX06.PVR,PASSPORT,Binary files are identical
TEX11.PVR,PASSPORT,Binary files are identical
TEX12.PVR,PASSPORT,Binary files are identical
TEX13.PVR,PASSPORT,Binary files are identical
TEX14.PVR,PASSPORT,Binary files are identical
TEX21_22.PVR,PASSPORT,Binary files are identical
TEX27.PVR,PASSPORT,Binary files are identical
TEX27B.PVR,PASSPORT,Binary files are identical
TEX57.PVR,PASSPORT,Binary files are identical
TEX61.PVR,PASSPORT,Binary files are identical
TEX66.PVR,PASSPORT,Binary files are identical
TEX90A.PVR,PASSPORT,Binary files are identical
TEX90B.PVR,PASSPORT,Binary files are identical
TEXV3.PVR,PASSPORT,Binary files are identical
DPHP.HTM,PASSPORT,Text files are identical
LICENSE.TXT,PASSPORT,Text files are identical
MLHP.HTM,PASSPORT,Text files are identical
PDATA10,PASSPORT,Text files are identical
PDATA11,PASSPORT,Text files are identical
PDATA12,PASSPORT,Text files are identical
PDATA13,PASSPORT,Text files are identical
PDATA14,PASSPORT,Text files are identical
PDATA15,PASSPORT,Text files are identical
PDATA16,PASSPORT,Text files are identical
PDATA17,PASSPORT,Text files are identical
PDATA18,PASSPORT,Text files are identical
PDATA19,PASSPORT,Text files are identical
JACKET01.00N,PICTURES,Binary files are different
JACKET01.00S,PICTURES,Binary files are different
JACKET01.00T,PICTURES,Binary files are different
JACKET01.00J,PICTURES,Binary files are identical
DISCTTL.PVR,SOFDEC,Binary files are different
JACKPIC.PVR,SOFDEC,Binary files are different
SFDLOGO.PVR,SOFDEC,Binary files are different
TRKTTL01.PVR,SOFDEC,Binary files are different
VIDTRK01.SFD,SOFDEC,Binary files are different
MILSFD.PLY,SOFDEC,Text files are different
1MILSFD.BIN,,Binary files are different
2MILPASS.BIN,,Binary files are identical

A number of the files are identical across all three discs, although RECLOGO.PVR in the SOFDEC folder only appears on the Checkicco and Snappers discs (binaries are different). Interestingly TEX27.PVR and TEX27B.PVR are identical and are on all three discs.

Some files appear to use the x-mac-japanese (could be ShiftJIS) encoding, remember these were made in 1999 so we’re talking Windows 98 and Mac OS 8 here.

Here’s some stuff that I’ve scraped together so far.
INFO.CDP looks like a two or one byte difference between the discs.
SUB_INFO.JA lists the date and track names.
MILPA.PVR looks like a two byte difference.
The JACKET01 files that are different look like they’re mostly the same except for three bytes that increment and repeat.
MILSFD.PLY is just disc information, here is what the Snappers one looks like

Spoiler

;MIL CD PLAYER INFORMATION
;1999-05-26

[MilcdSofdecPlayer]
milsfd.ply

[TotalTrack]
2

[VideoTrack]
;Filename SizeXY Bitrate Time
vidtrk01.sfd 352 240 2.9401 242980
vidtrk02.sfd 352 240 2.9401 252990

[DiscTitle]
discttl.pvr

[TrackTitle]
trkttl01.pvr
trkttl02.pvr

[JacketPicture]
jackpic.pvr

[SofdecLogo]
sfdlogo.pvr

[RecordLogo]
reclogo.pvr

;end of file

PDATA10, likely padding data right? So it is! Inside you’ll find repeating numbers and some repeating Japanese, here’s an example 0010010,北海道札幌市北区北十条西. Which is here. The padding file is filled with addresses from Sapporo, Japan lol

That’s it for now, I have filelists and relevant information up on Google Drive if you want to dive in yourself.

Oh yeah they misspelled the 09CHAIRS disc to 09CHAIRES, so don't be surprised when I refer to it as 09CHAIRES.

EDIT: Added sbver.txt, extracted pvr images, unscrambled bins(for the lazy), and redid the Session02 file trees so they list the files in order by LBA. I've extracted all the video and audio, I even redid the music videos with better audio but I'm not going to upload those. PDATA11 is Chiyoda, 12 Komae, 13 Tsuchiura, 14 Kofu, 15 Gifu, 16 Ukyo-ku, 17 Okayama, 18 Moji-ku, Kitakyūshuu, and 19 Naha.

EDIT dos: I added pictures of the booklets and such. Apparetly Noriko Ishimoto was the "MIL CD Coordinator" for at least the Snappers release, it looks like they are now at studiofake

Yep: dps Dremcast website, Checkkico Dreamcast website



this is very cool



Indeed it is

I need to get back to working with

It's just it was a pain to keep checking images but now I have a gdemu it would likely be easier.

Or at least pick my old research back up and figure out more.

I did also recently find something of note



Do tell!

Something I noticed is that it looks like they used the DPS disc as a template for the Checkicco disc, some of the files are in the same locations even though they don't need to be. Considering that it looks like they were finalized three days apart that would make sense, which also means that they went from version 1.06 to 1.07 of the MIL-CD software in those three days.

Interesting note on my end, none of these discs actually work in any of my NA or JP Dreamcasts. They can play legit and burned games and aren't modified in anyway, yet they can only play the audio portion of these MIL-CDs. The MIL-CDs themselves are in good shape so it's a little odd.



Very odd the originals don't play. Although from what I saw when testing its super finicky



No way!

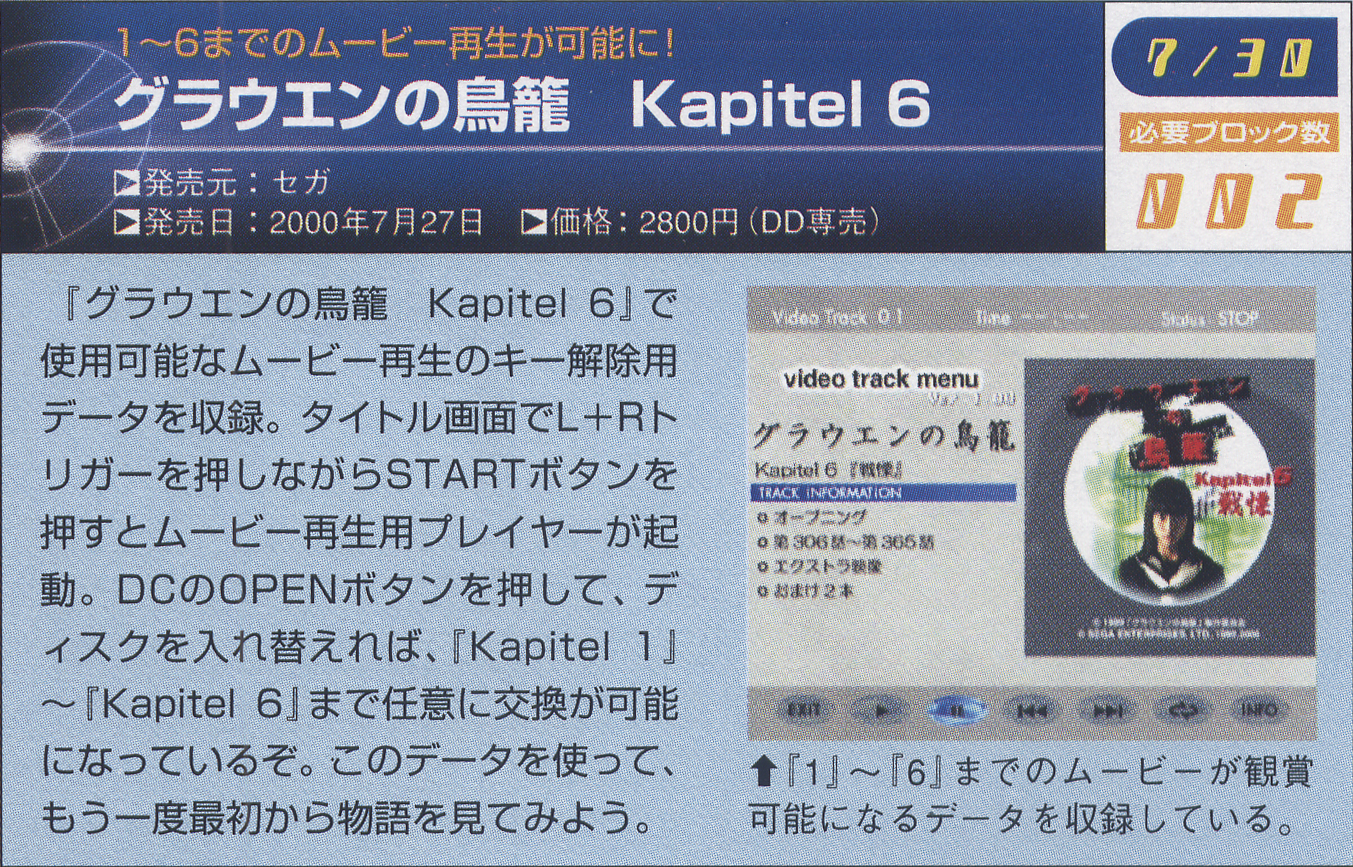

For those going "lolwut" グラウエンの鳥籠 (Gurauen no torikago) was an internet drama series that consisted of 365 one minute episodes that you would tune in to watch everyday. I previously thought that the "games" themselves either didn't have the videos on them or required internet access to watch them.

This apparently isn't the case as Mrneo240's image shows, you can use the sixth disc as a boot disc and swap in any of the other discs to watch the series.

Here's a video I found of someone doing just that.
http://nico.ms/sm19322100

Interesting find indeed, is there a decent version floating around? I imagine the discs themselves are pretty pricey considering the rarity.
