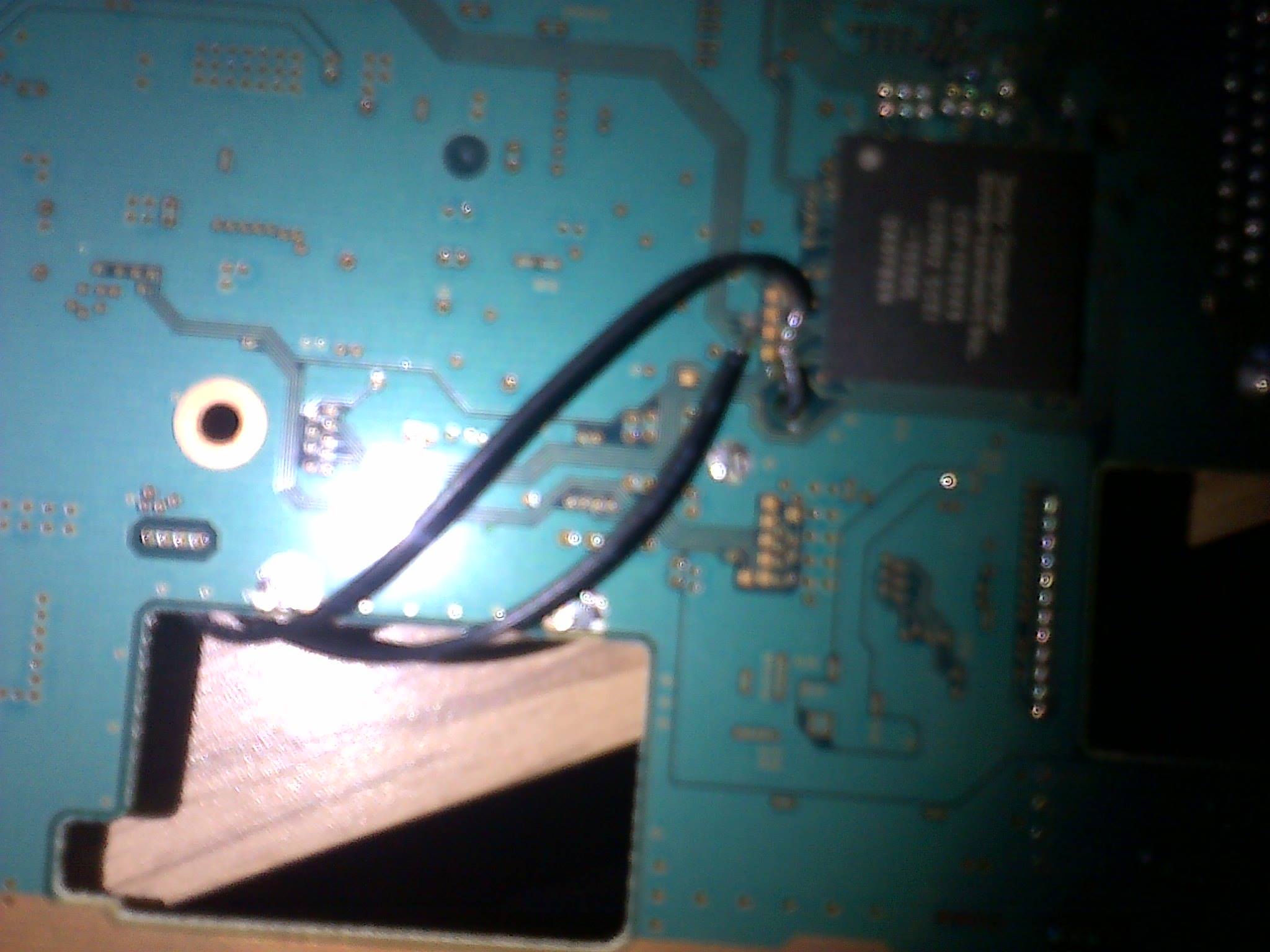

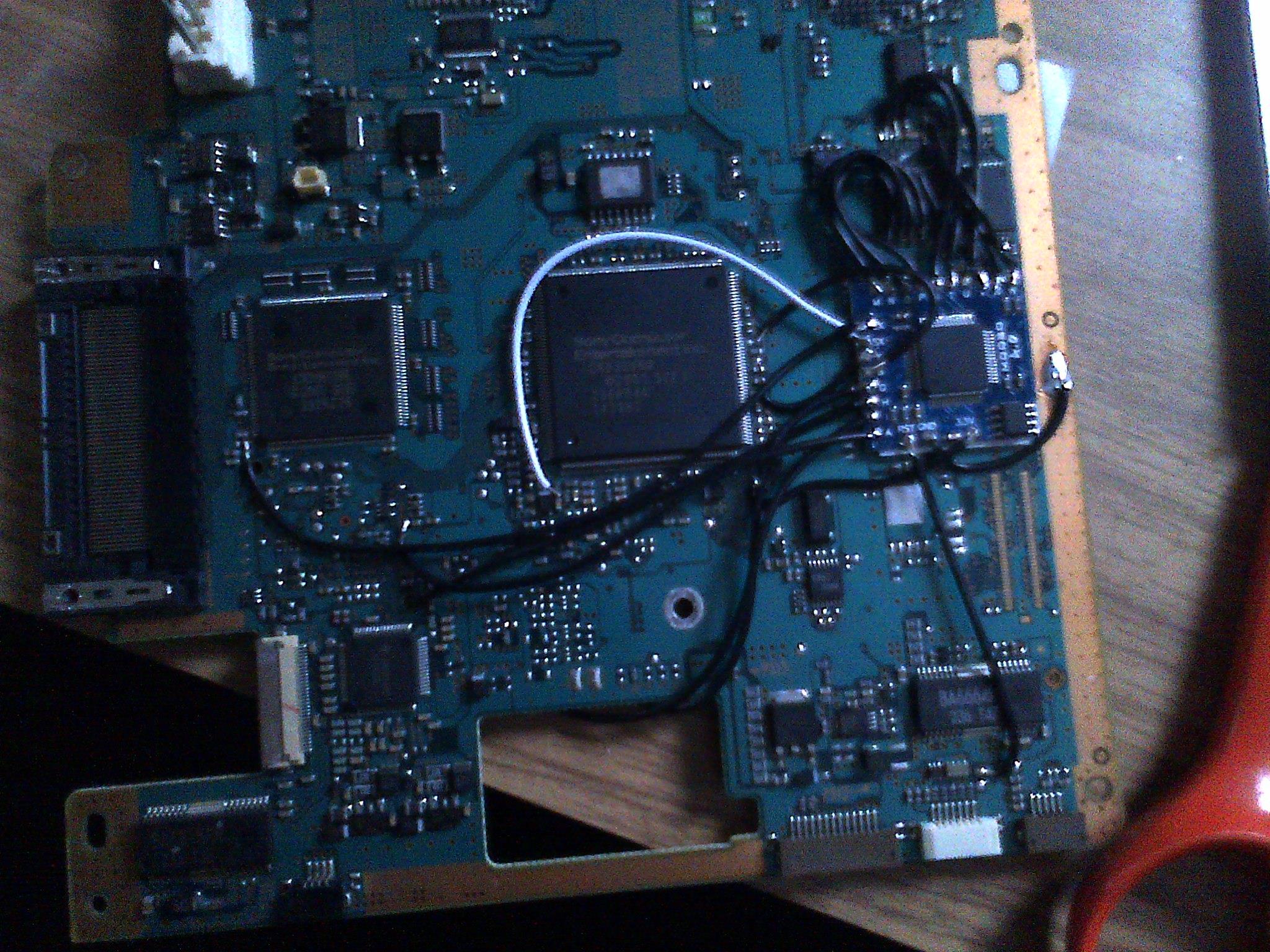

modbo 4.0 installed

how do you think i did? it all works



great mate next time use a smaller gauge wire mate.



How long does it took you to install it?



I always enjoy seeing the wiring porn but quite frankly unless it's going to get hooked on something next time someone takes it apart or you've got a rats nest for a wiring job it doesn't matter as long as it works.



it looks worse than it is, the wireing was a really thin but had the thichest shielding i have ever seen. i didnt think it was a rats nest i thought i did pretty good.



bout an hour, got confused on some of the solder points



thanks, the wire is fairly thin but has a really thick shielding so i couldnt make it look as pretty as i wish i could.



+10 (it won't let me hit the reputation button because I already gave you some rep+ recently lol)



Looks good dude. Wiring looks a bit thick but like ape said, as long as it works



im sorry if my wireing was a rats nest...thought i did good installing it...



You did do a good job dude, i noticed you took the initiative to make the wires as short as possible so +1 , i'm just saying the thickness of the wiring is making look a bit bad.



oh ok, thanks man



Very nice install, you said you did that in 1 hour? Thats pretty fast, took me 4 hours to fit a modbo 4.0 v1.99 into a v9 GH-023 console.

What iron did you use? I used a RadioShack Dual Heat soldering iron 15w/30w for about $15, then filed the tip a bit for more control I have backup tips though lol.

Happy New Year All,
HaloSlayer255



Wouldn't filing the tip fuck up the coating and hinder your ability to solder?



I've heard that around the net but for my purpose it works. I just do hobbiest level stuff, but if you file too much it can kill the tip. I tried to get a tip very pointy and sharp for soldering small traces and it died, slowly though. I've also heard that it is fine so long as you keep the tip tinned enough though.

HaloSlayer255
