Modding A Pal Megadrive 2 - queries and checks

Discussion in 'Modding and Hacking - Consoles and Electronics' started by atoneforthesoul, Feb 15, 2018.

  1. atoneforthesoul

    atoneforthesoul Newly Registered

    Joined:
    Feb 15, 2018
    Messages:
    3
    Likes Received:
    0
    Hi all,

    I'm thinking about modding my childhood PAL megadrive 2 so it can switch between 50hz and 60hz. I have an everdrive X7 on the way and already own a framemeister (using RGB) so would like it to be capable of running more games from other regions. It has some sentimental value and this will be my first mod so I would like to check a few things before starting.

    The best guide I found was from these forums was on this thread. Its quite clear and uses the same board version but I'd like to double check a few things before starting! 2 posts from this thread concern me though.
    - post #2 where Bearking talks about adding "pull up resistors on the switch". (I have no idea what this means and the images have expired so I can't see.)
    - post#10 where a user is saying they've followed the guide but lost all video signal. (again I can't see the image they posted)
    Will I need to follow Bearkings advice on the transistors or is this simply optional? I'm hoping the #10 post from this thread is not related to that issue.

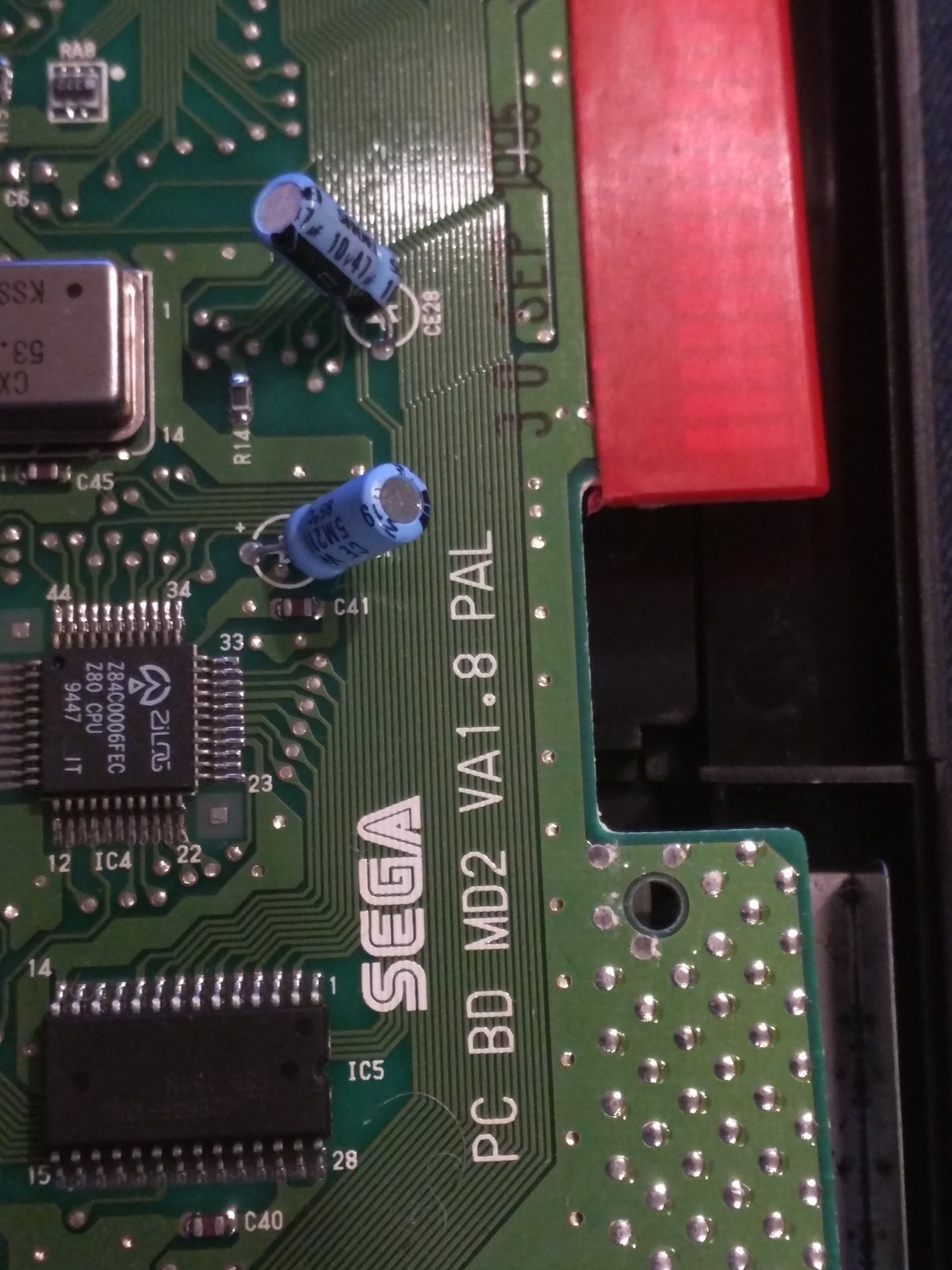

    My board version is VA 1.8 [​IMG]
    board version.jpg

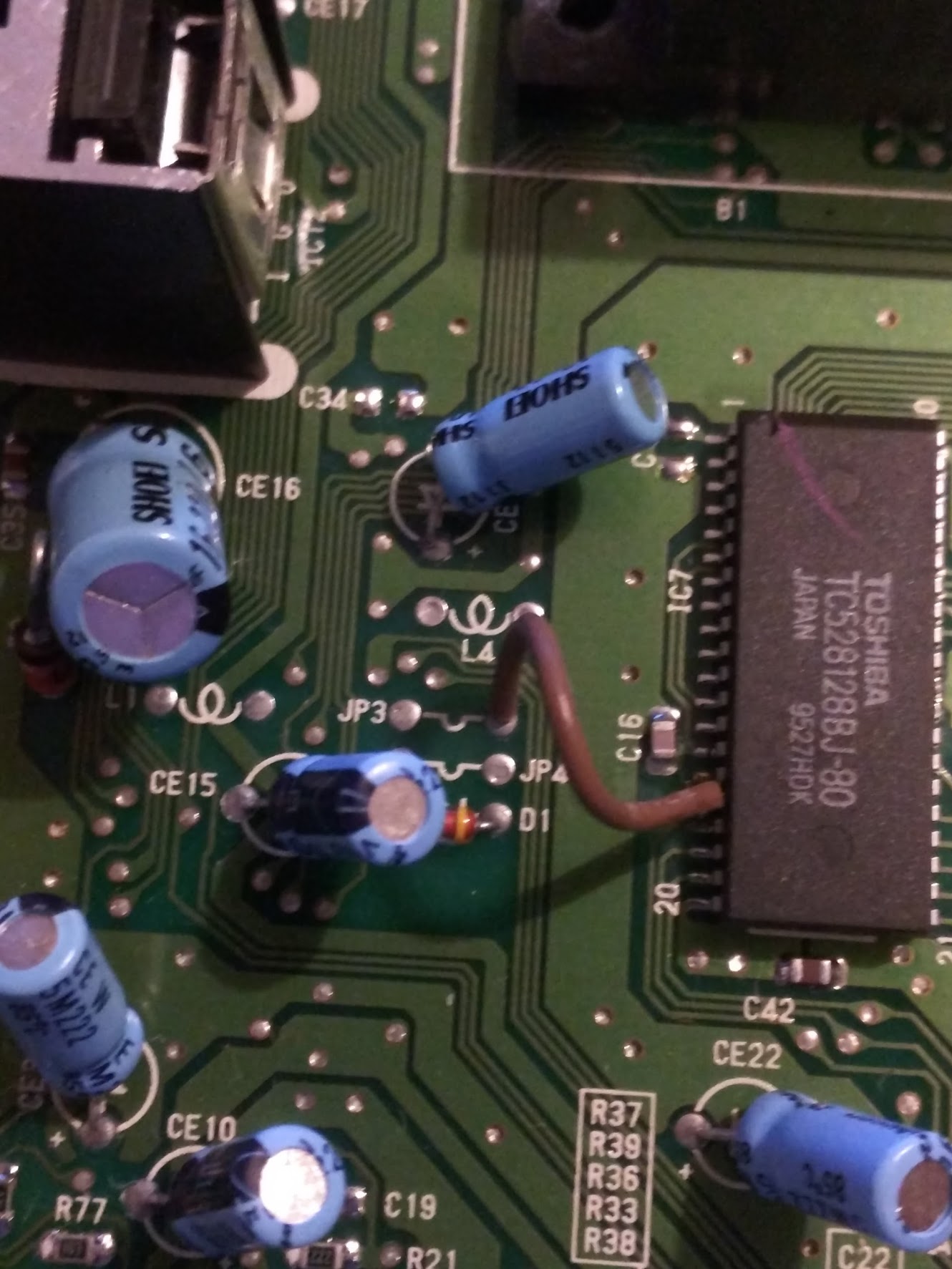

    The only difference I've noticed from the walk through is that there is a mysterious brown wire going from the solder point near JP3 to the Toshiba chip which I've never seen before. Would this require me to so anything different?
    brown wire.jpg

    [​IMG]

    Other than that the rest seems straight forward. I've added some plans on pics of my MD2 board below.

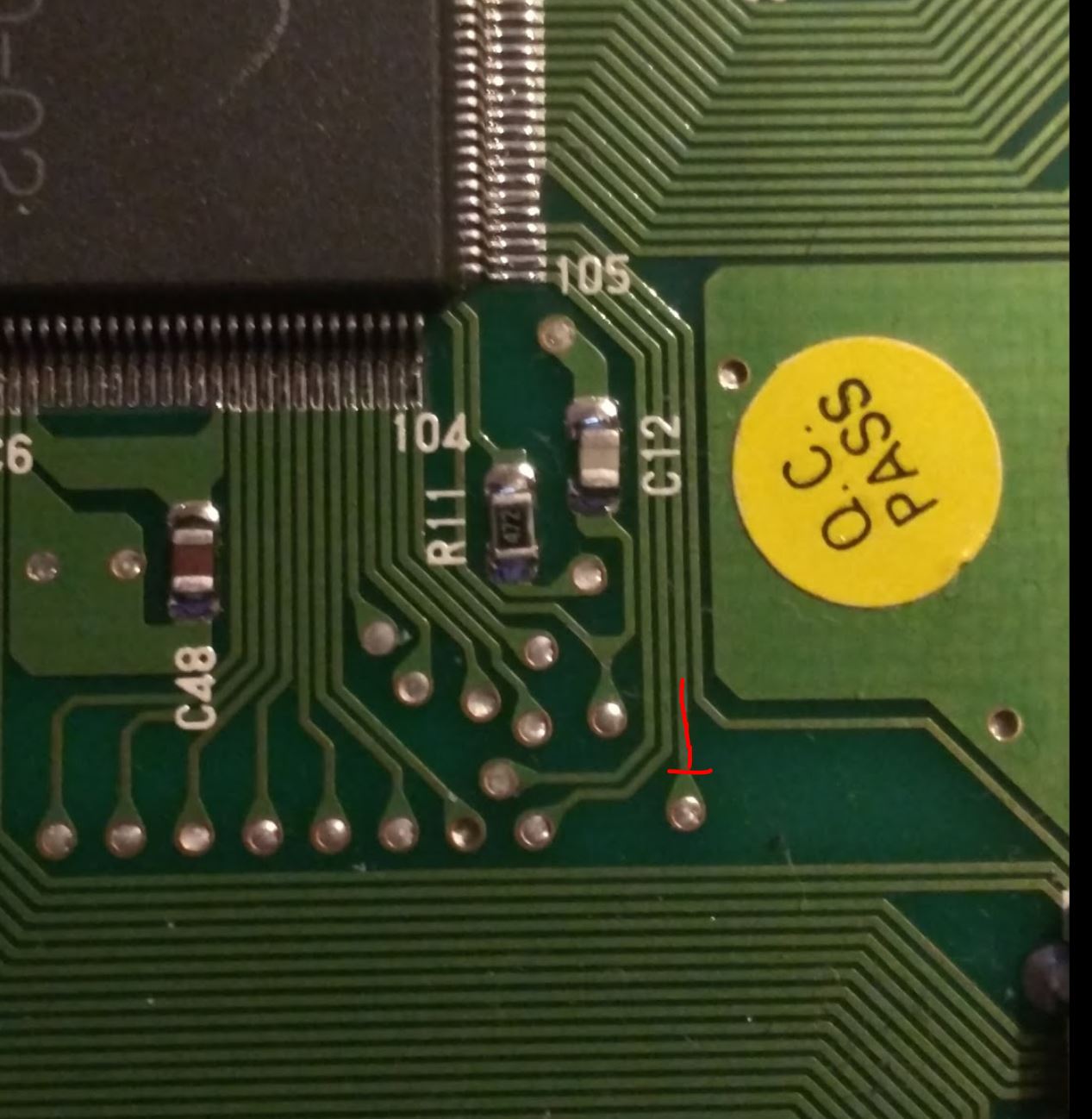

    I cut here for the pad leading to 107, scrape the point just above and add a wire.
    [​IMG] 107.JPG

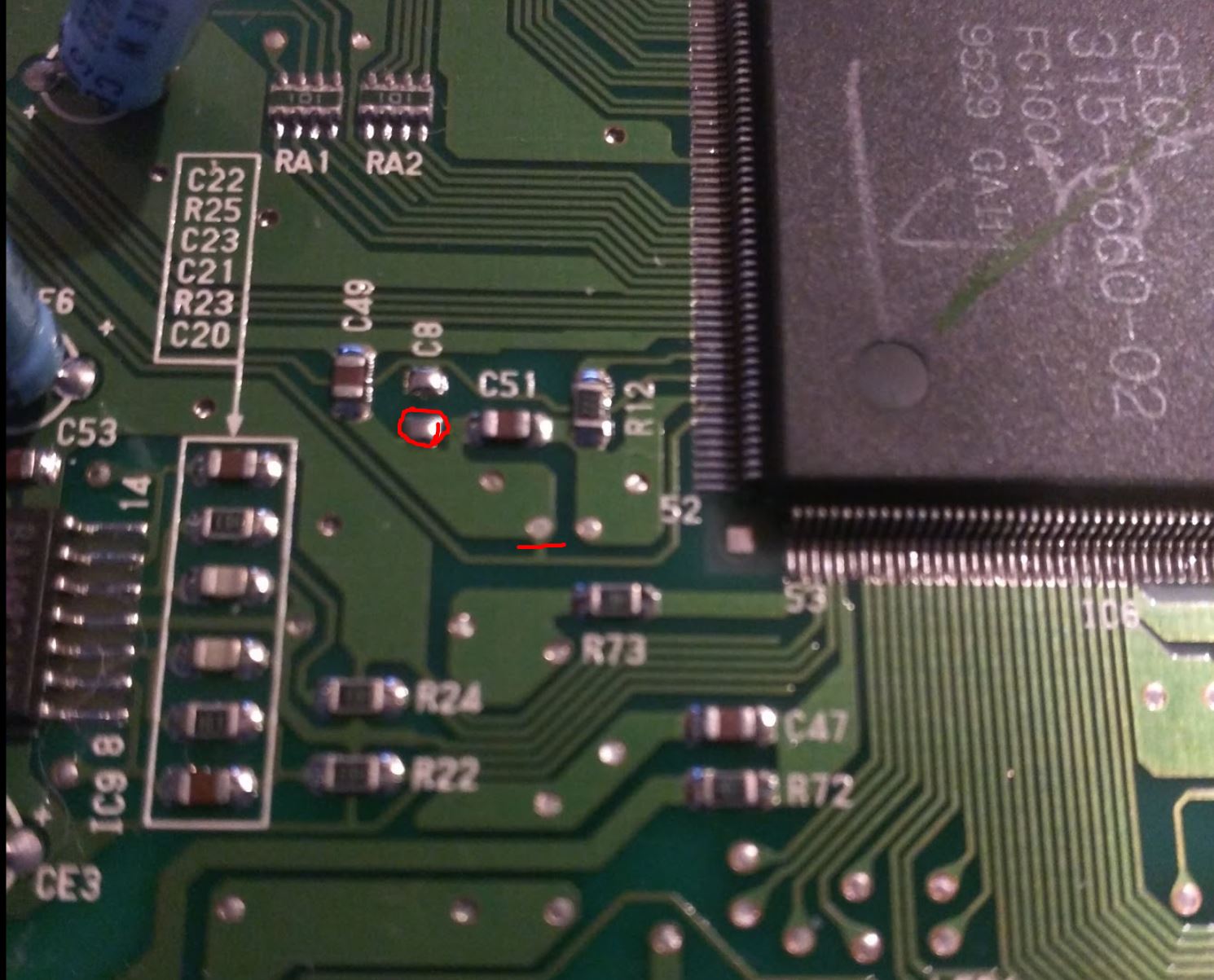

    I cut the connector coming from 52 and add a wire to the solder point below C8.
    [​IMG]

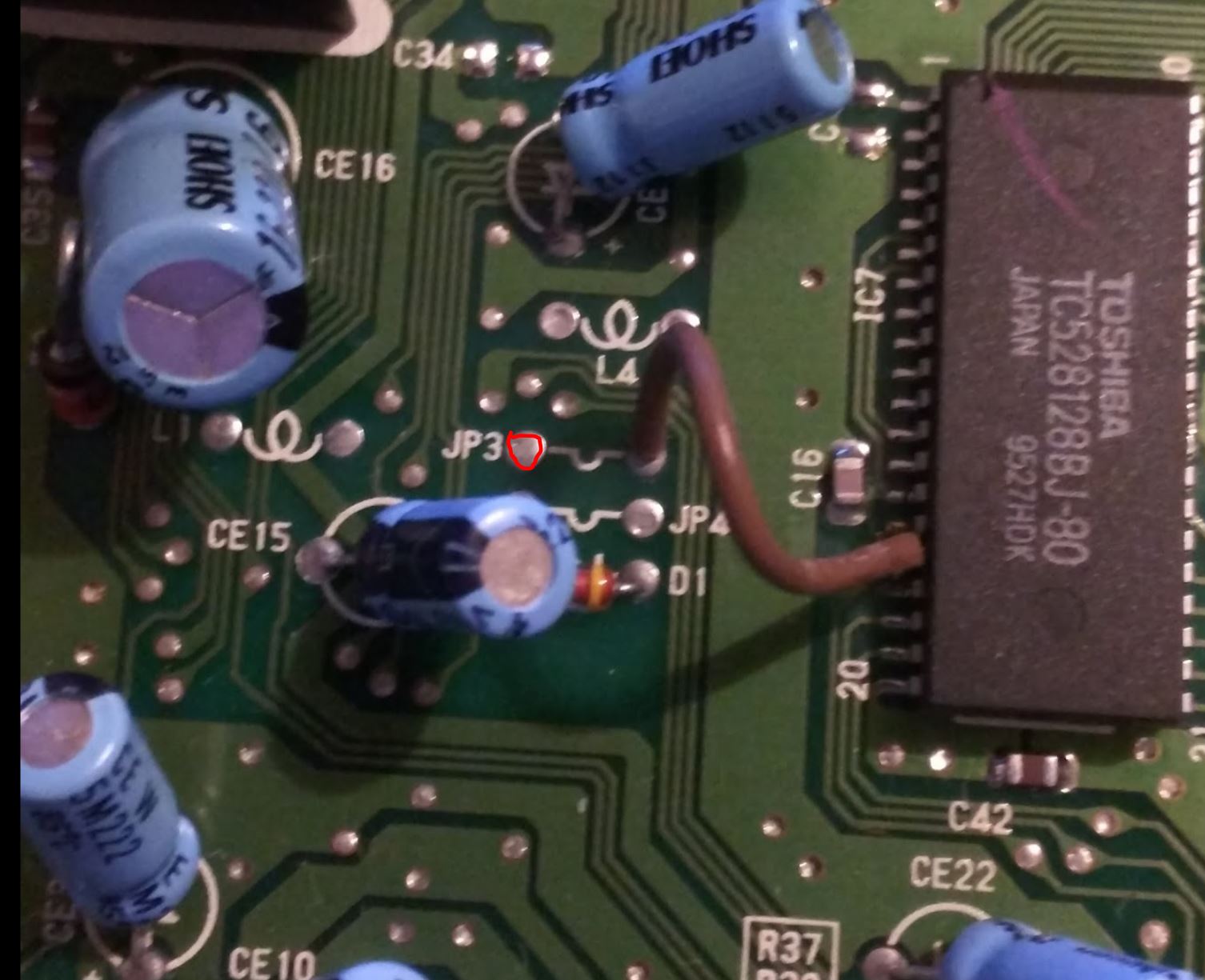

    And add a wire to JP3 on my board.
    [​IMG]

    Finally I will then solder each wire directly to a 3 way rocker switch. [No pic here as I have to get one, but it seems straightforward.]

    From my understanding this will allow me to switch between PAL - 50hz, American NTSC - 60hz and JP NTSC 60hz and each point of the three way switch.

    Does this sound correct? Am I misunderstanding any steps or options here?

    I know that it will need further modification for other video signals to run in 60hz but I believe that should not be of concern at the moment as I'm using RGB

    Thanks in advance for any advice on this!

    Last edited: Feb 15, 2018
  2. Taijigamer2

    Taijigamer2 Gutsy Member

    Joined:
    Jun 29, 2015
    Messages:
    483
    Likes Received:
    179
  3. atoneforthesoul

    atoneforthesoul Newly Registered

    Joined:
    Feb 15, 2018
    Messages:
    3
    Likes Received:
    0
    Hey thanks for getting back. I haven't heard of a switchless mod? How exactly do these work? I checked the post but his guide seems to have expired. Would this be more complicated to install?

  4. Taijigamer2

    Taijigamer2 Gutsy Member

    Joined:
    Jun 29, 2015
    Messages:
    483
    Likes Received:
    179
    http://wolfsoft.de/wordpress/?p=322 Here's another site. Sorry didn't realise they were dead links. It basically wires a chip to the reset button which then activates the required mode depending on button press. A couple more wires required but cooler. It drives a 2-colour led as well to indicate mode.
