my newest Nintendo Gamecube Modding

Hi this is my newest Gamecube Modding project

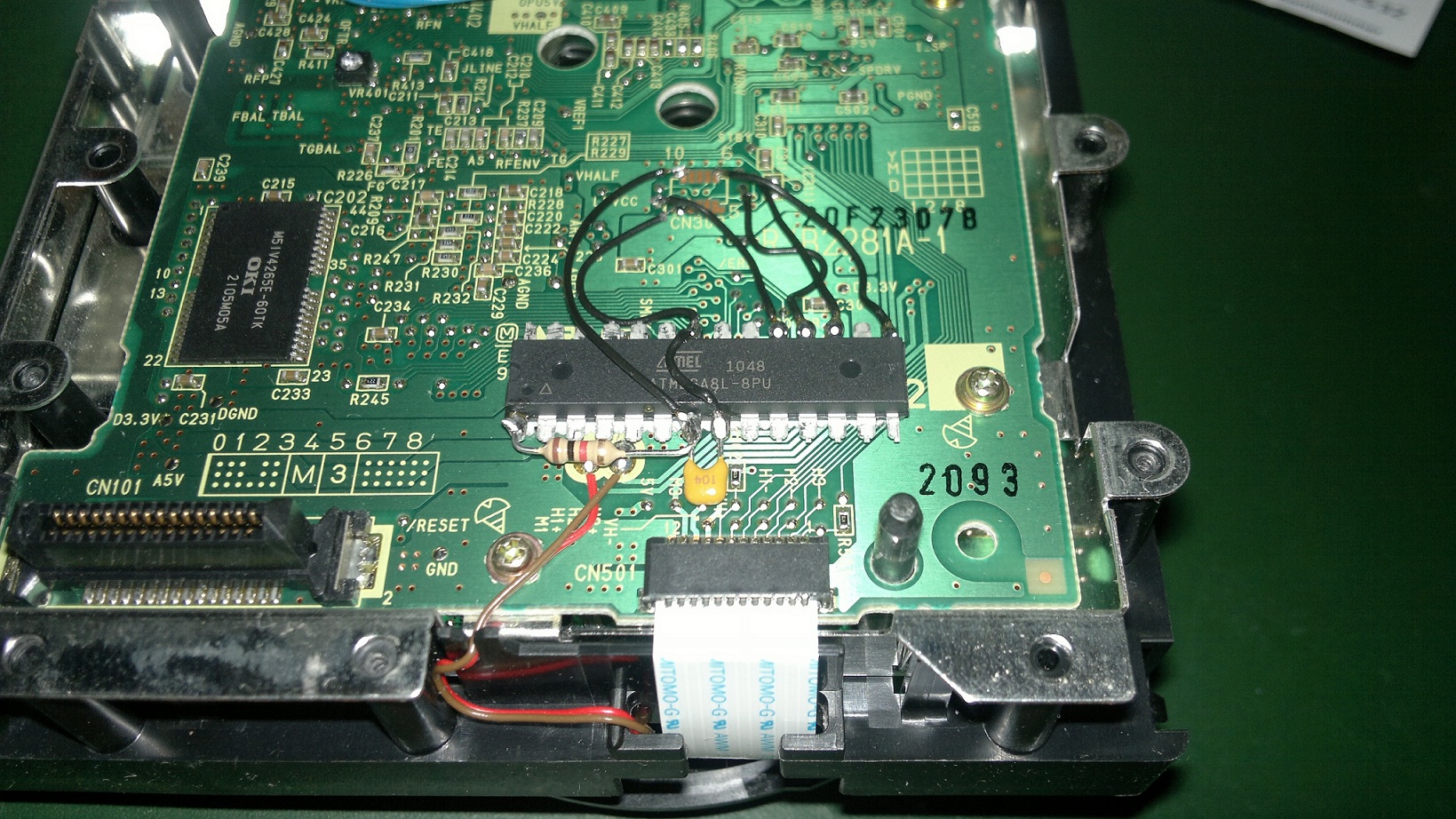

- solder a selfmade Xeno

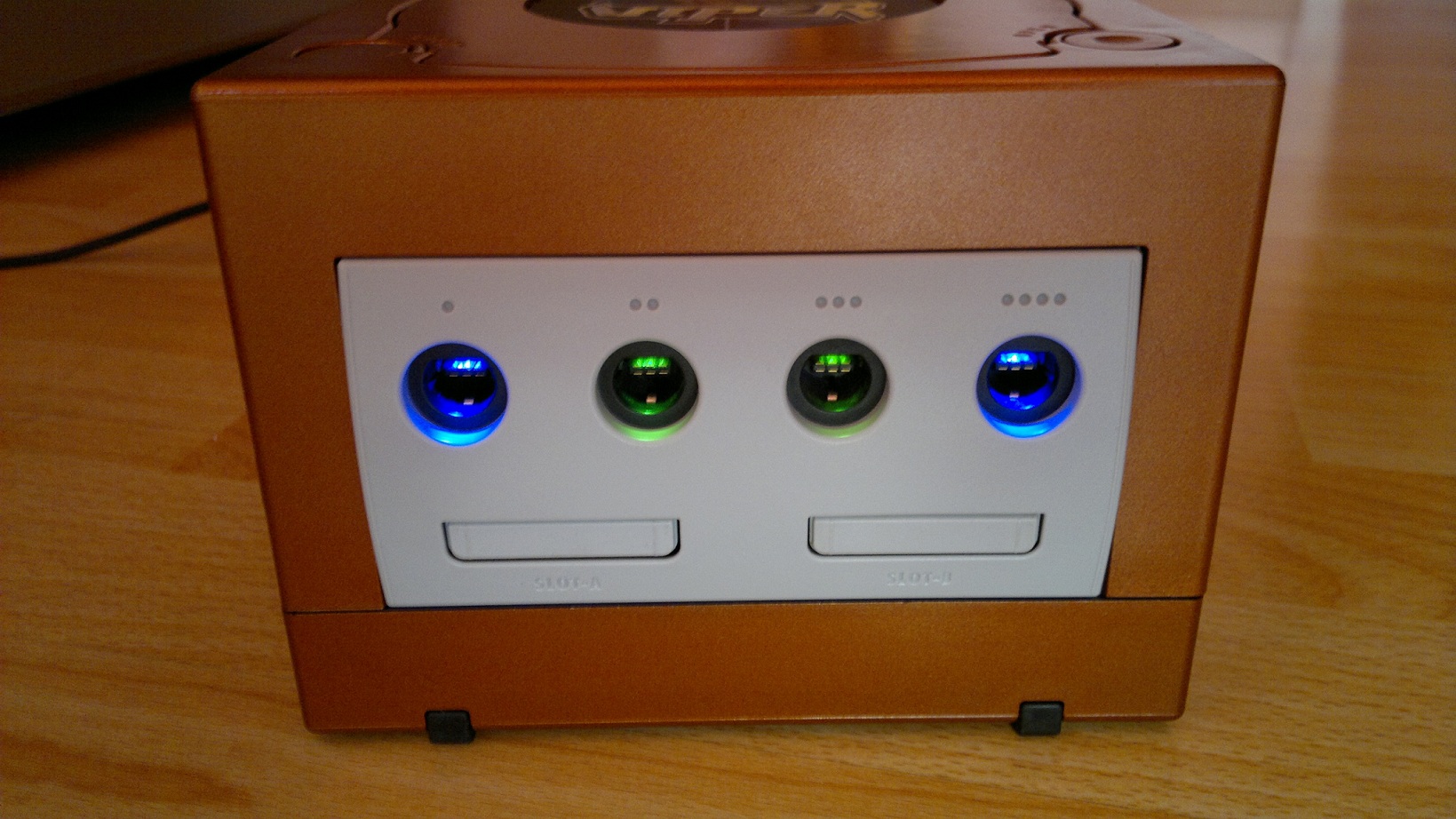

- LED Controller Port in green and blue

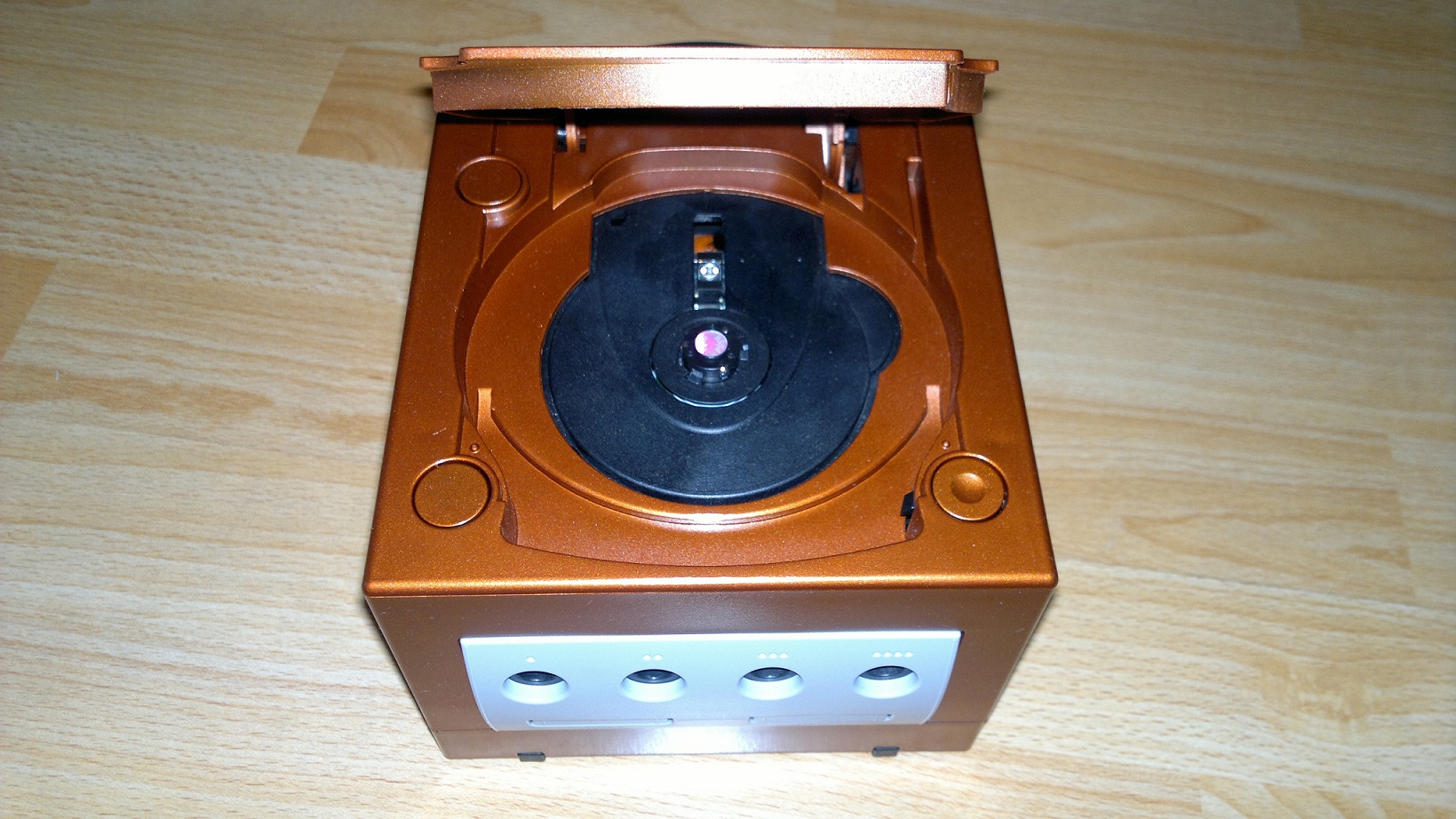

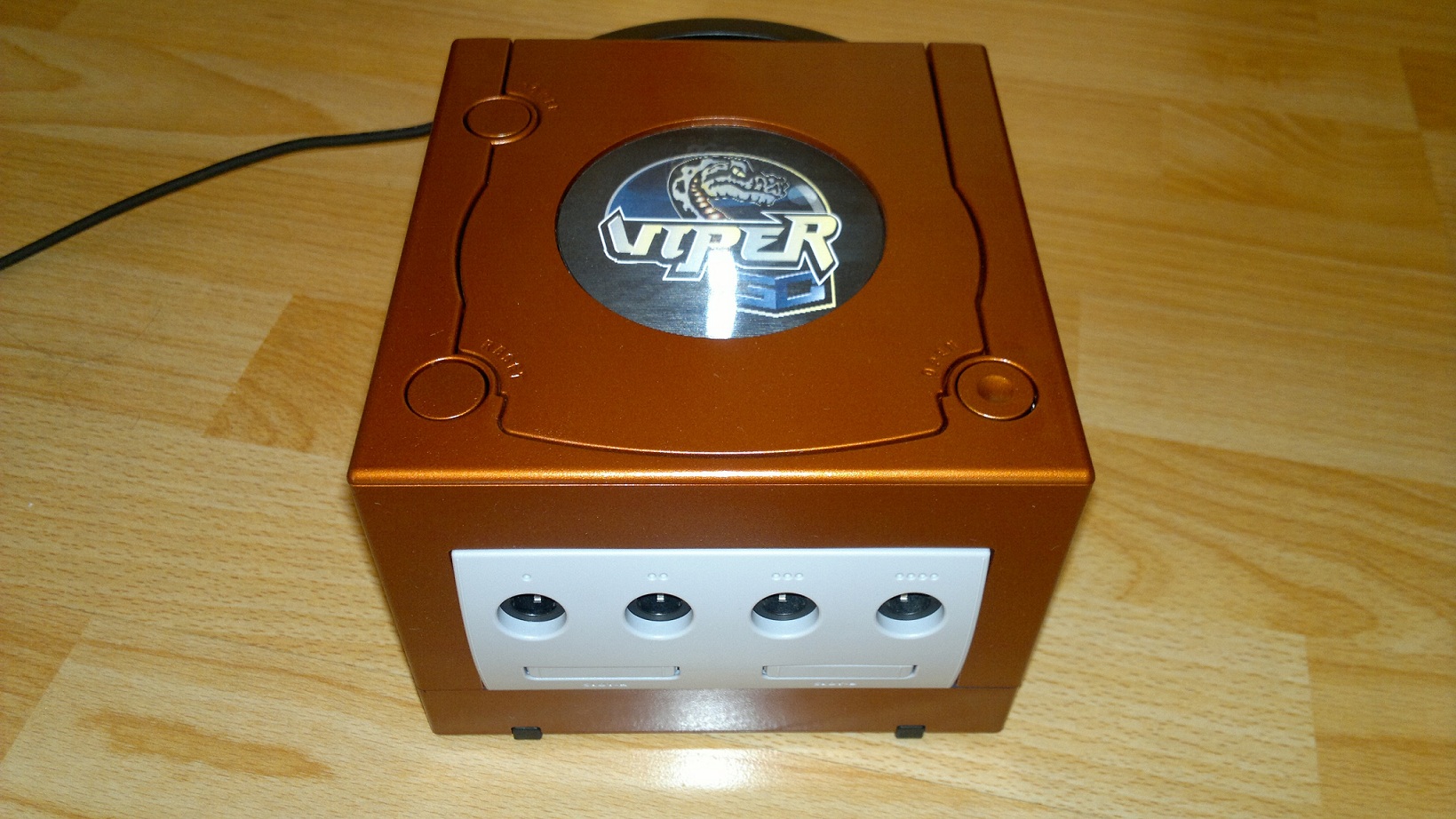

- paint the XCM Viper Case Copper orange



Looks very nice!



love the led's i plan on getting a gamecube to mod soon, and ps2 on the way. 2 consoles i never payed much attention to as i never had them myself the 1st time around.



Hey I like the LED's! Are they mounted "in" the controller port or just outside?



How did u get leds to shine thru the controller ports.post pic if possiable



Looks badass!
Selfmade Xeno?



that's pretty gnarly. Good job. Real curious how you put LEDs in the controller ports

http://retro-hack.blogspot.com/2012/12/playing-backups-on-gamecube-making-your.html

XenoGC has been open source for a while now



I second that!



Awesome!



I wish I could find those Viper cases... I need one..



Superb work!

Have a look here, looks like there's a batch in stock - http://www.assemblergames.com/forum...elopment-items&p=682524&viewfull=1#post682524



I wanted to add LEDs to the controller ports just like you. How did you do it? Do you have any pics?



Ports are rather small are they not? It's most likely a 3mm LED glued into place, then a wire is ran to the fan power source. That's my theory anyway



Interesting work with the self made xeno , good job dude.



Or surface mount and using controller power source (3.3V) with a small current-limiting resistor. That was my initial plan but seeing that this guy already did it I would take his advices on how he did it properly.
