N64 CD64 Voltage regulator ID...

Discussion in 'Repair, Restoration, Conservation and Preservation' started by Ronnie, Dec 21, 2016.

  1. Ronnie

    Ronnie Spirited Member

    Joined:
    Sep 13, 2012
    Messages:
    132
    Likes Received:
    40

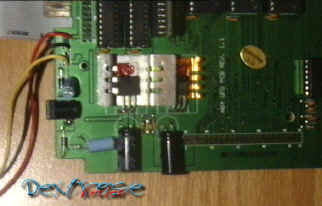

    Hello, I just got a hold of a N64 CD64. The main board has 2X Voltage regulators and one is dead beyond recognition (has a hole and broken in pieces). One is a 7805 Voltage regulator but the dead one I can't tell.

    Does anyone here has one and can check to see what it is or, if someone has been inside one of these and knows that'll help too. Thanks in advance and Happy Holidays!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Dec 22, 2016
  2. Seeds

    Seeds Member

    Joined:
    Aug 21, 2012
    Messages:
    13
    Likes Received:
    5

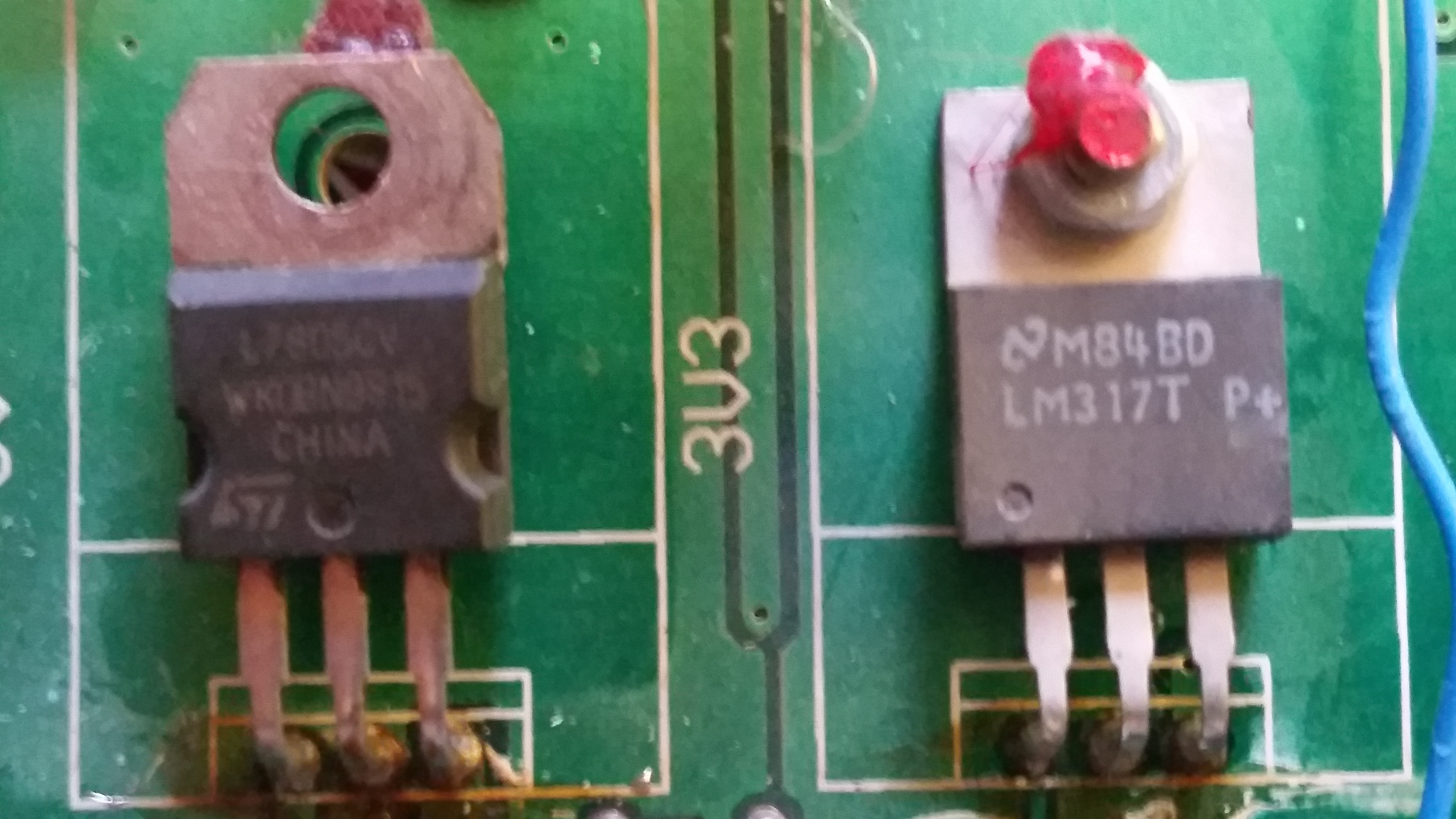

    OK so looking at my cd64 you have the two voltage regulators. It looks like the one labeled L78050V WKT08N9815 the board is printed 5V for this one. The other one is printed as 3V3 numbers on it are M84BD LM317T P+. I am assuming the 5 V one is the power from your adapter to the CD64 and the 3.3V one is from the N64 cartridge slot to CD64 to read cartridges . I will attach a picture in a couple mins.
    EDIT: PICTURE
    [​IMG]

    The two other pictures it looks like you tried to post arent showing up on my computer I am assuming it is of the regulators themselves?

    Last edited: Dec 24, 2016
    ASSEMbler likes this.
  3. Ronnie

    Ronnie Spirited Member

    Joined:
    Sep 13, 2012
    Messages:
    132
    Likes Received:
    40
    Great! I can't thank you enough!

    Yes, they are a pics of the CD64 regulators shamelessly taken from the internet :D

  4. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    Why I love this community. People care and help.

    Thanks for helping him Seeds.
