Need Help Out Of Options

Discussion in 'Repair, Restoration, Conservation and Preservation' started by superkeith, Aug 24, 2012.

Watch Thread
  1. superkeith

    superkeith Newly Registered

    Joined:
    Aug 24, 2012
    Messages:
    2
    Likes Received:
    0

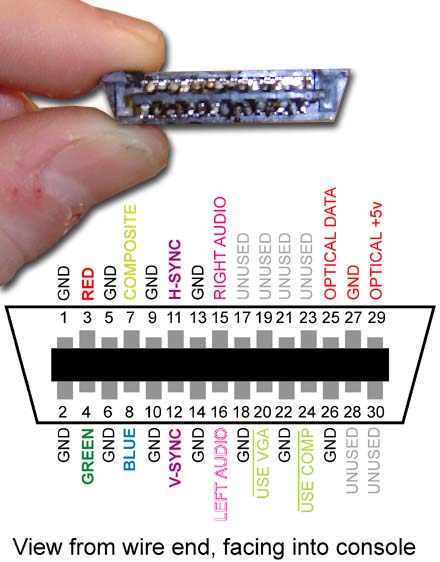

    I am directly wiring the component cables to the motherboard of the xbox 360 . I have followed the steps provided on this site but all i get is sound no picture. this is what i have where hopefully someone can point out whats missing. red pin 3 - yellow pin 4 - blue pin 8. not sure what to do with the use component pins tried grounding it but nothing. all audio is fine. what do i do next? all grounds for these wires are grounded to the same location. Is that a problem? Please someone put me in the right direction with this

    superkeith, Aug 24, 2012 Report
    #1 + Quote Reply
  2. MaxWar

    MaxWar <B>Site Supporter 2013</B>

    Joined:
    Aug 13, 2012
    Messages:
    1,486
    Likes Received:
    28
    link?

    MaxWar, Aug 24, 2012 Report
    #2 + Quote Reply
  3. Lum

    Lum Officer at Arms

    Joined:
    Sep 30, 2010
    Messages:
    3,233
    Likes Received:
    42
    The xbox 360 component cable has an SD/HD switch. Not exactly sure why or what it does, but could be one issue.

    Lum, Aug 24, 2012 Report
    #3 + Quote Reply
  4. gs37

    gs37 Robust Member

    Joined:
    May 22, 2012
    Messages:
    272
    Likes Received:
    3
    Why would you fasten them directly to the mobo? Having the cables as they are provides a nice quick-disconnect feature...

    Last edited: Aug 25, 2012
    gs37, Aug 24, 2012 Report
    #4 + Quote Reply
  5. johnace

    johnace Grumpy Old Man

    Joined:
    May 12, 2006
    Messages:
    555
    Likes Received:
    2
    Last edited: Aug 26, 2012
    johnace, Aug 26, 2012 Report
    #5 + Quote Reply
