NES Toploader AV Mod (PAL Console) - Video??

Discussion in 'Modding and Hacking - Consoles and Electronics' started by shifted, Aug 29, 2017.

  1. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    Fellas,

    Hope someone here has the knowledge, I've searched all over the Googles and can't figure out the video side of the AV mod. The wiki images for one guide are incredibly difficult to figure out and the wiring diagram doesn't work for me, maybe because it was for an NTSC console?

    This is a PAL board. I've previously used Helder's mod kit from these forums for my personal one but this second console I've gone with standard yellow/white/red so can't figure it out.

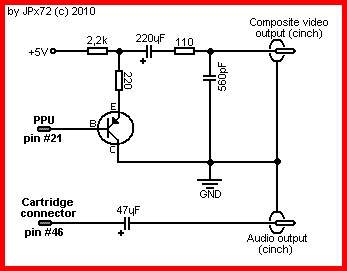

    Audio works, video does not. One I followed is: https://console5.com/wiki/Nintendo_NES-101

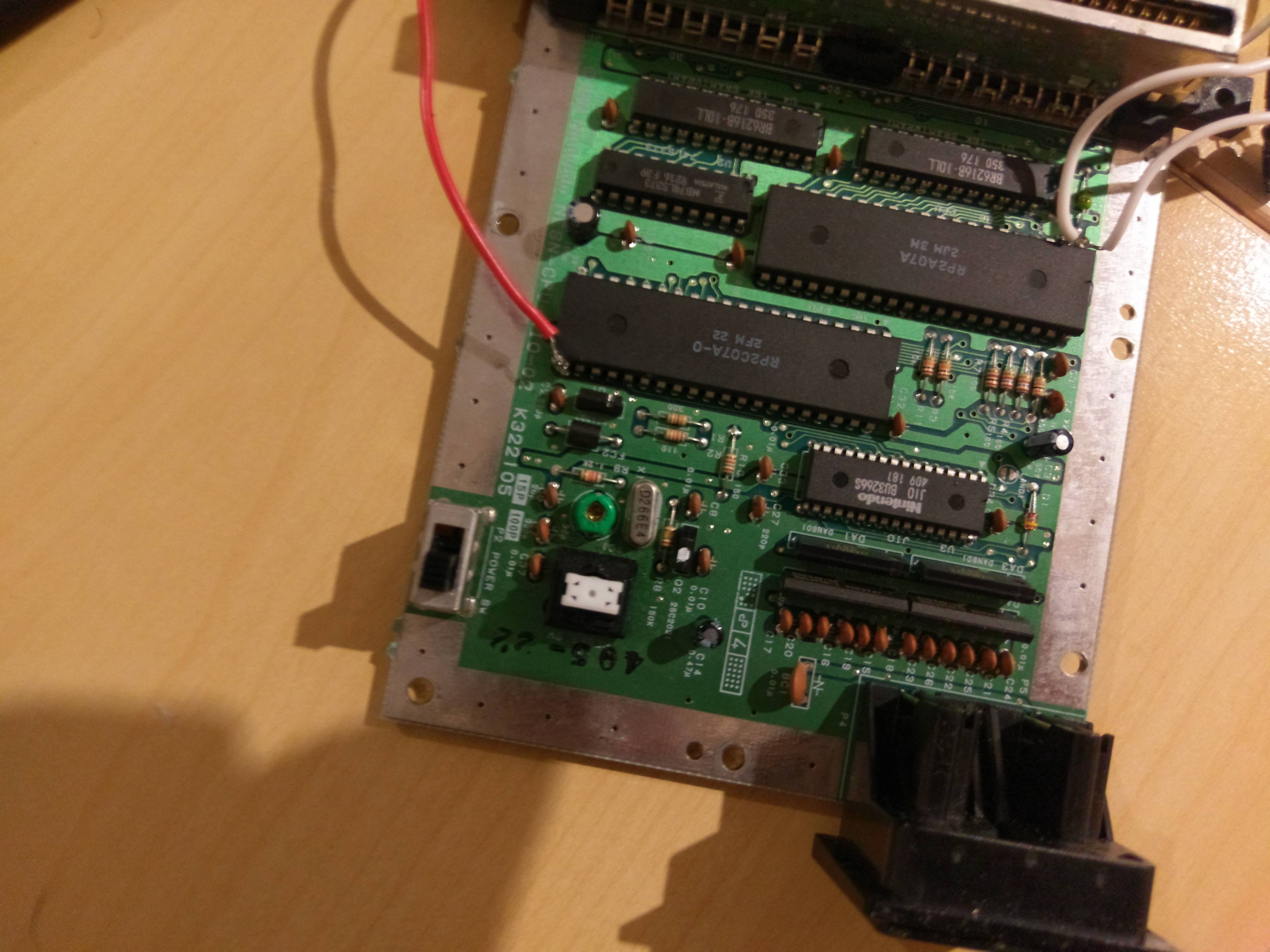

    [​IMG]

    [​IMG]

    The pin looks correct to me (same one I've used before). So I think there is something wrong in the other bits and pieces and their order? Maybe one that's not needed because it's PAL not NTSC?

    Any guidance would be greatly appreciated.


    Kind regards,
    Paul

  2. Pikkon

    Pikkon "Moving in Stereo"

    Joined:
    Mar 4, 2005
    Messages:
    2,695
    Likes Received:
    80
    The pal toploaders really don't need a amp,just take composite from the rf video pin on the bottom of the motherboard and if you did lift pin 21 solder it back.

  3. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    Will give that a shot, thanks! Wasn't sure as on the kit initially provided by helder it had additional elements so thought the guide replicated it somewhat similar.

    Hopefully straight to it will work. :D

    Didn't lift pin 21 either.

  4. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    Ran the wire straight like you said and it worked! Was surprised, why does the NTSC one need an amp?

    I have capacitors on the audio lines, don't need one on the video line? No risk of jail bars etc?

    Cheers!

  5. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    Seems to be quite washed out and jumpy this morning, must need an amp in the line?

  6. Pikkon

    Pikkon "Moving in Stereo"

    Joined:
    Mar 4, 2005
    Messages:
    2,695
    Likes Received:
    80
    The pal toploaders use the redesigned motherboards unlike most of the ntsc ones.

    How bad is the picture?

  7. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    its not great. on CRT it's barely visible, on LCD its visible but it's almost like its missing a colour, defintely seems duller. Saying that, I went direct from pin 21 so I'm going to try direct from the RF module thing now in case that fixes it. :D

  8. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    alright, went from the RF video instead (underside of board near the rf module, audio on right, video on left?)

    this is the result:

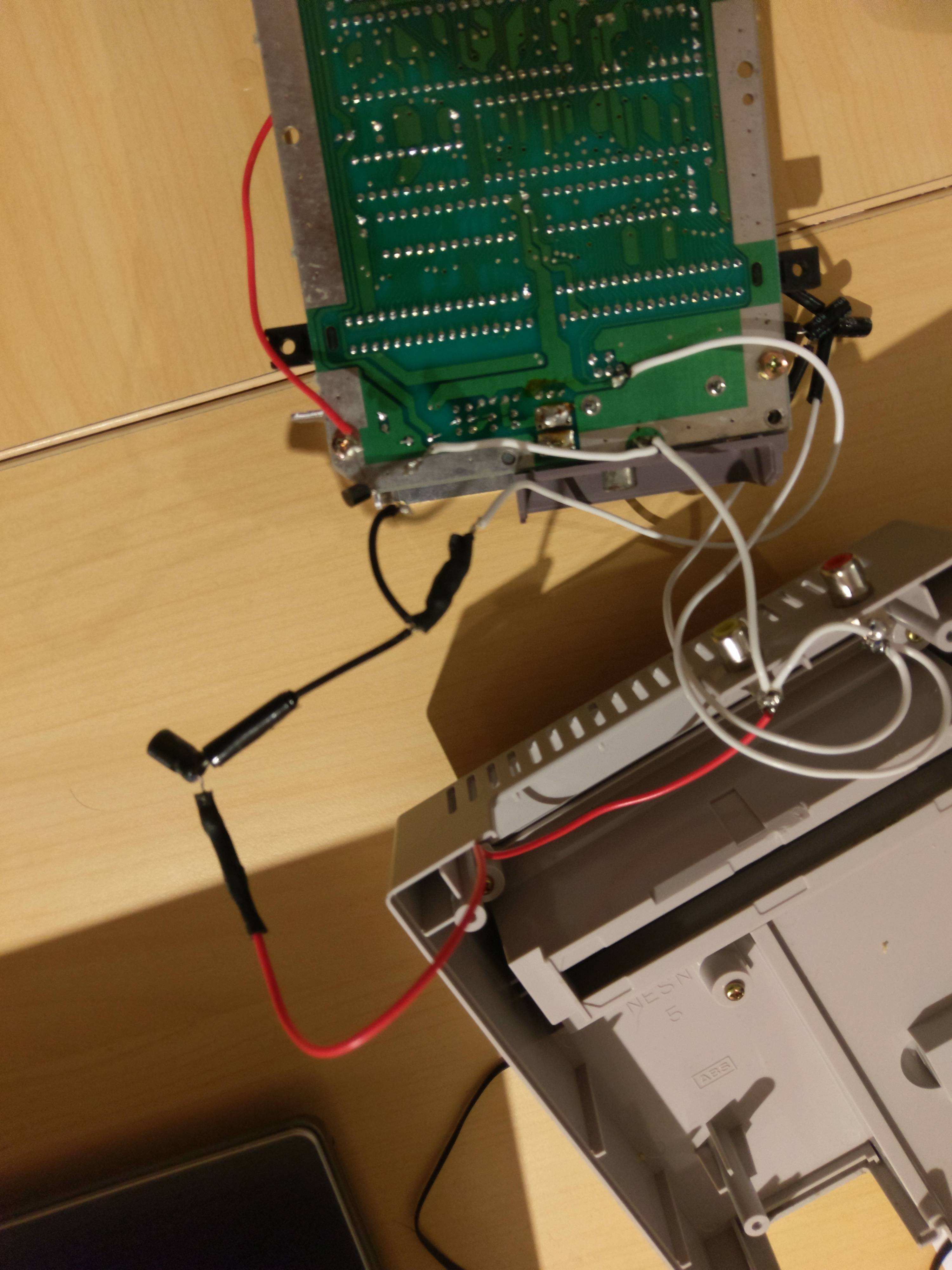

    [​IMG]

  9. Pikkon

    Pikkon "Moving in Stereo"

    Joined:
    Mar 4, 2005
    Messages:
    2,695
    Likes Received:
    80
    Picture looks good to me and here is a video from GameTechUS explaining the difference from a pal and ntsc.

  10. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    Yeah picture shows up but is washed out/discoloured. I'll watch the video, but I think it needs something :D

  11. Bearking

    Bearking Konsolkongen

    Joined:
    Aug 2, 2010
    Messages:
    856
    Likes Received:
    100
    That's composite for you. It's probably as good as it gets without RGB-modding it :)

  12. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    Well... with Helder's kit on my other one it looks perfect, though that seems to build a bit of an amp into it.

    Full disclosure, I have zero electrical idea so following guides is the only way I'll figure this stuff out :D haha

    Well, I know positive and negative, what a resistor and capacitor is (thanks JayCar!) but figuring out which component should go there without a guide is me basically shrugging my shoulders and saying "she'll be right, mate" haha

  13. Pikkon

    Pikkon "Moving in Stereo"

    Joined:
    Mar 4, 2005
    Messages:
    2,695
    Likes Received:
    80
    Does it look the same using RF?

  14. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    RF was definitely cleaner and more full of colour. I'll get a photo this weekend of it to show the difference.

  15. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    [​IMG]
    AV

    [​IMG]
    RF

    Note: I have run the wire now from the RF video straight to the output, not sure if I should have done something else as it looks to have dropped the video quality on the RF, and the quality on the AV is pretty low.

    Running it on another console that hasn't been touched, looks like below:
    [​IMG]

  16. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    Any thoughts? If I add a 5v line and a capacitor/resistor line it may fix the issue?

  17. Jarrah White

    Jarrah White Rising Member

    Joined:
    Dec 21, 2016
    Messages:
    50
    Likes Received:
    2
    If I may chime in, I just had my PAL top loader modified to output composite. When I sent the device in for modification, I requested he keep the RF box working because - well, for RF it looks beautiful. The modder tried soldering to the RF pins, as suggested by GameTech, however he also got the extremely washed out video. We found that by adding a composite video amp yielded better results. Of course, because of the revised board, we didn't need to lift pin 21 or anything like that. Here's the guy who modified my console.
    https://www.youtube.com/user/vougbour1

    I'm not an electrician, but I think the issue might be because we were keeping the RF box working. GameTech uploaded a video in which he performed such a mod on a PAL top loader. However, he also replaced the RF out with the multi out from a dead AV Famicom.

  18. shifted

    shifted Robust Member

    Joined:
    Nov 8, 2011
    Messages:
    237
    Likes Received:
    4
    That's what I was thinking, that the video out needs an amplifier. Are you able to open yours and take a photo of the board/wiring by any chance please?

  19. Jarrah White

    Jarrah White Rising Member

    Joined:
    Dec 21, 2016
    Messages:
    50
    Likes Received:
    2
    I don't have a Gamebit, sorry. But I'll ask my modder what he did if you like.

    shifted likes this.
  20. malcolm

    malcolm Rising Member

    Joined:
    Jan 10, 2015
    Messages:
    54
    Likes Received:
    5
    Hello i modded Jarrah pal (aus) top loader for composite. components used
    1 x 120ohm resistor
    1 x 330ohm resistor
    1 x 220uf 10v cap
    1 x 560 pf cap
    1 x 3906 NPN transistor.

    dont have the diagram right at this moment, just do it by memory. but similar to

    here is a video of connecting composite via RF


    here is the end results and agreed by jarrah, believe he is happy with how it turned out.



    Attached Files:

    shifted likes this.
sonicdude10
