(NEW CASE )PC ENGINE Plugable rgb mod via exp port- part 1 complete and easy

My new pc engine rgb mod.

http://nfggames.com/forum2/index.php?topic=4283.0

SEE MY POST FURTHER DOWN ,IT HAS AN UPDATED AND CLEAR TUTORIAL TO FOLLOW
Finally finished my external rgb mod for the PC engine which plugs into the expansion port ,and is really simple to do with those connectors which are just different versions of the ones you find plugged into your pc's reset/power/hdd led headers.They're nice and thin ,so fit perfectly into the pc engine's expansion port and the holes for the PC engine's exp port pins to fit into are also the exact width apart (2.54mm or.1 inch) and thickness.

There is a few ways of doing this ,like having the connectors come from the exp port and going to a small pcb with the amp and a female scart plug on that ,then the user can just buy a scart lead and plug straight in ,but for simplicity sake i opted to just crimp the terminals to the scart lead ,then those plug into the header sockets and into the exp port and the RGB amp is inside the scart plug .

RGB amp inside the scart plug ,can use the 3 Q's (transistor) method for simplicity ,found on http://www.mmmonkey.co.uk/console/pce/amp.htm



There's also a 95% finished version of the plugable RGB mod which works with the cd rom rom connected in the briefcace .
These mods are mainly for people who don't want to open up their consoles and poke around with a soldering iron when they're not competent using one or don't want to send their console to someone to internally rgb mod it for them.I'll just stick to the internal mod and amp (are there any games that would benefit from each person having a seperate tv screen ,as you can use both mods ,one showing on each tv screen at the same time).

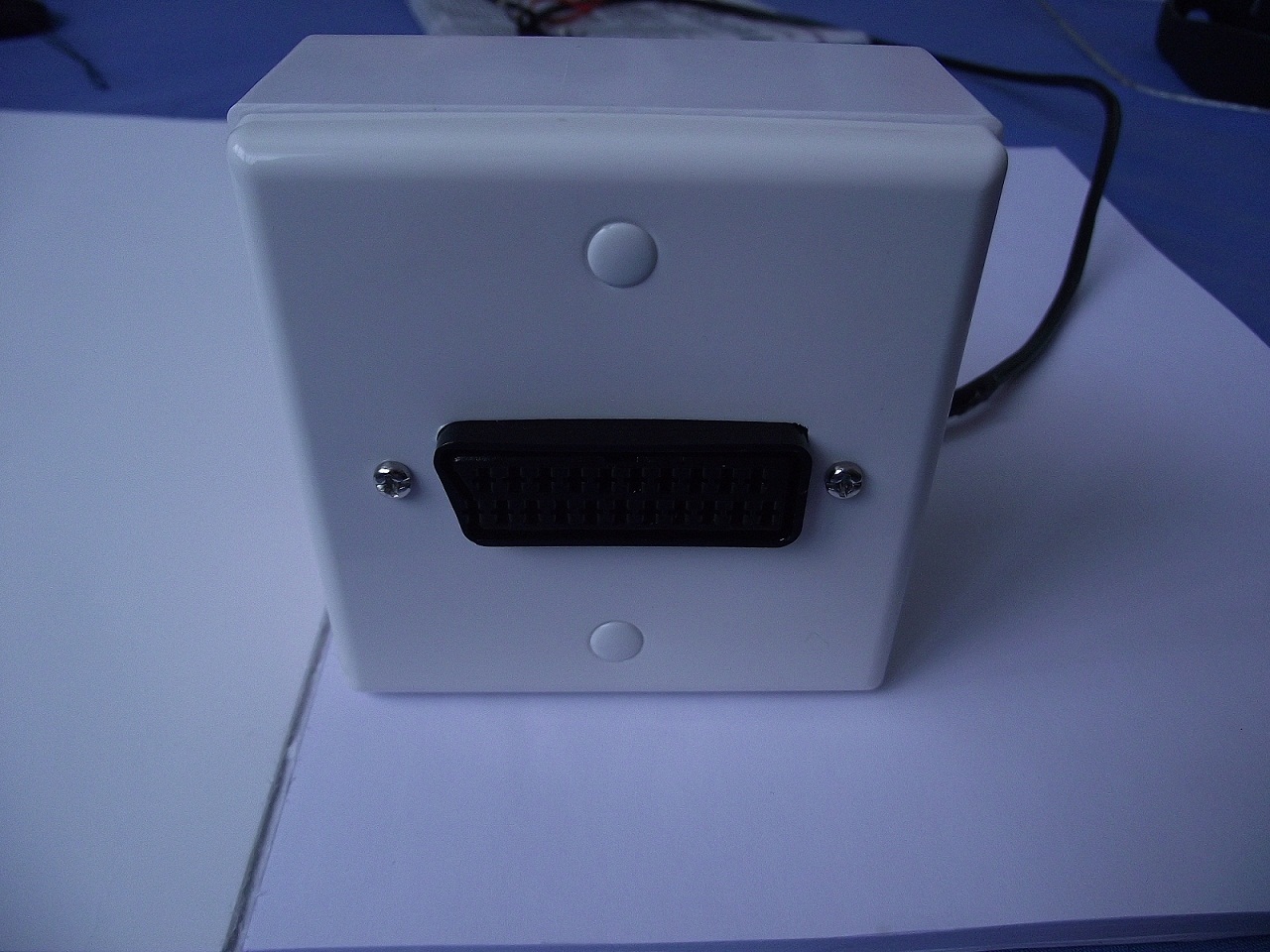

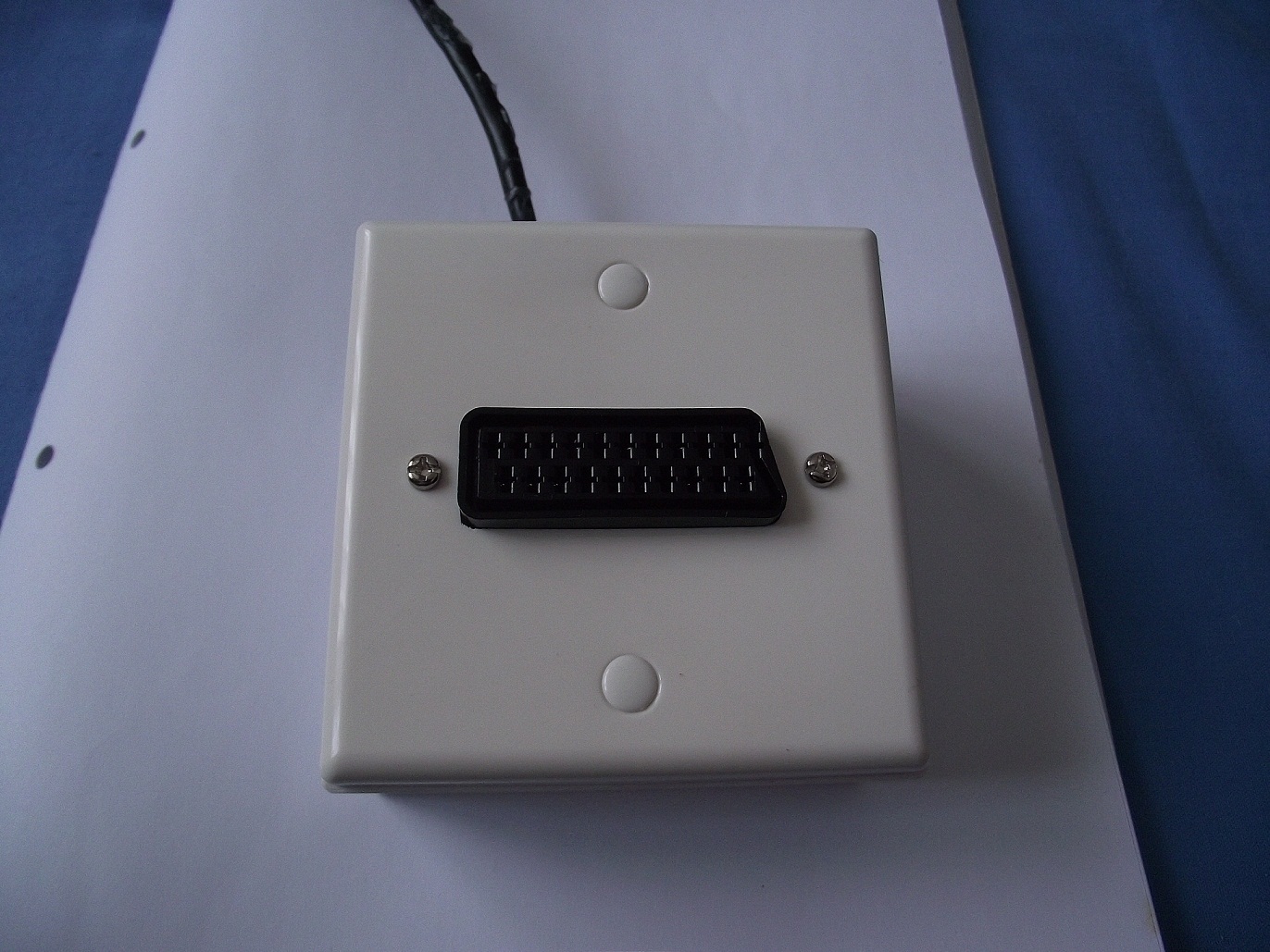

New box

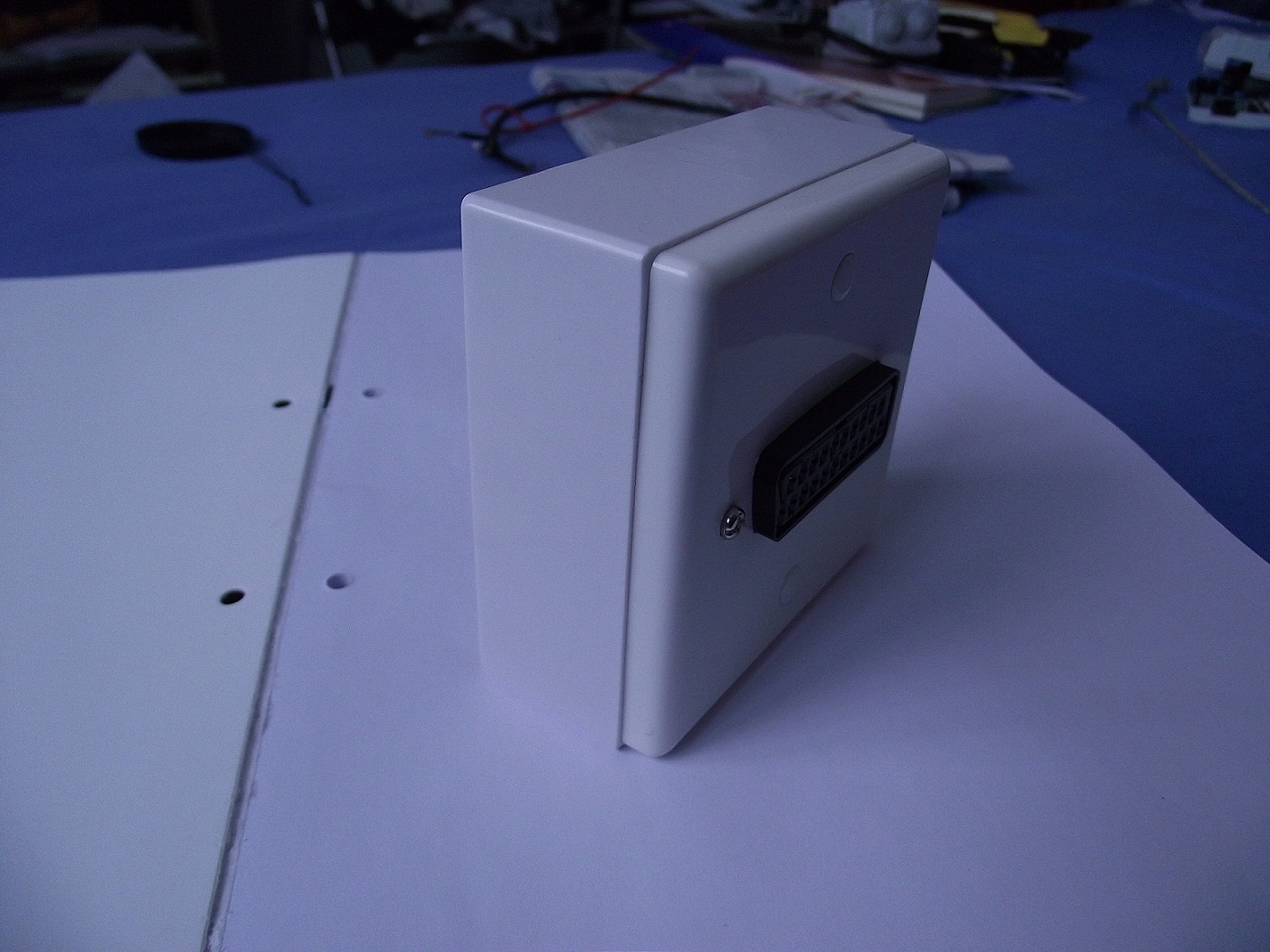

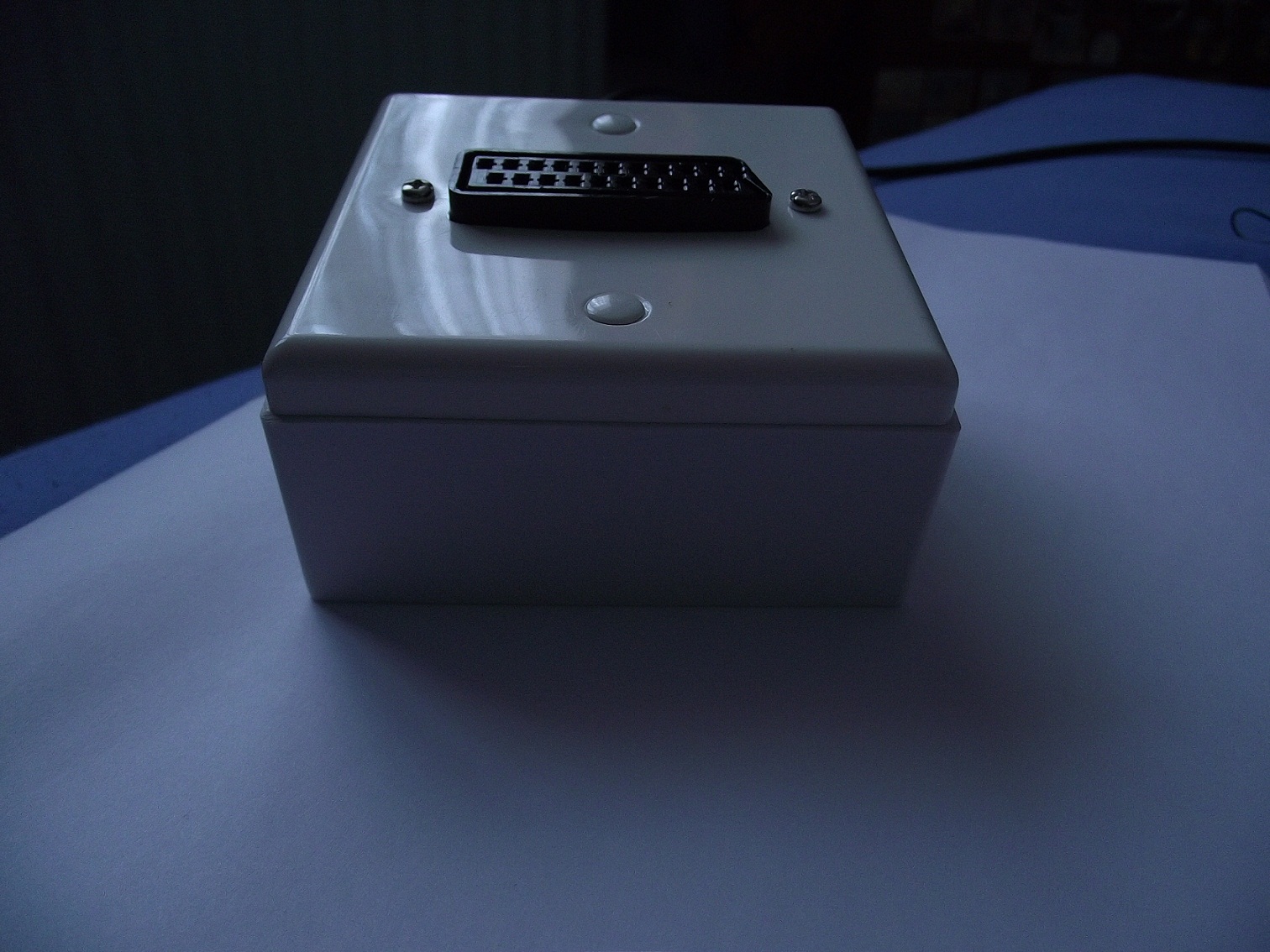

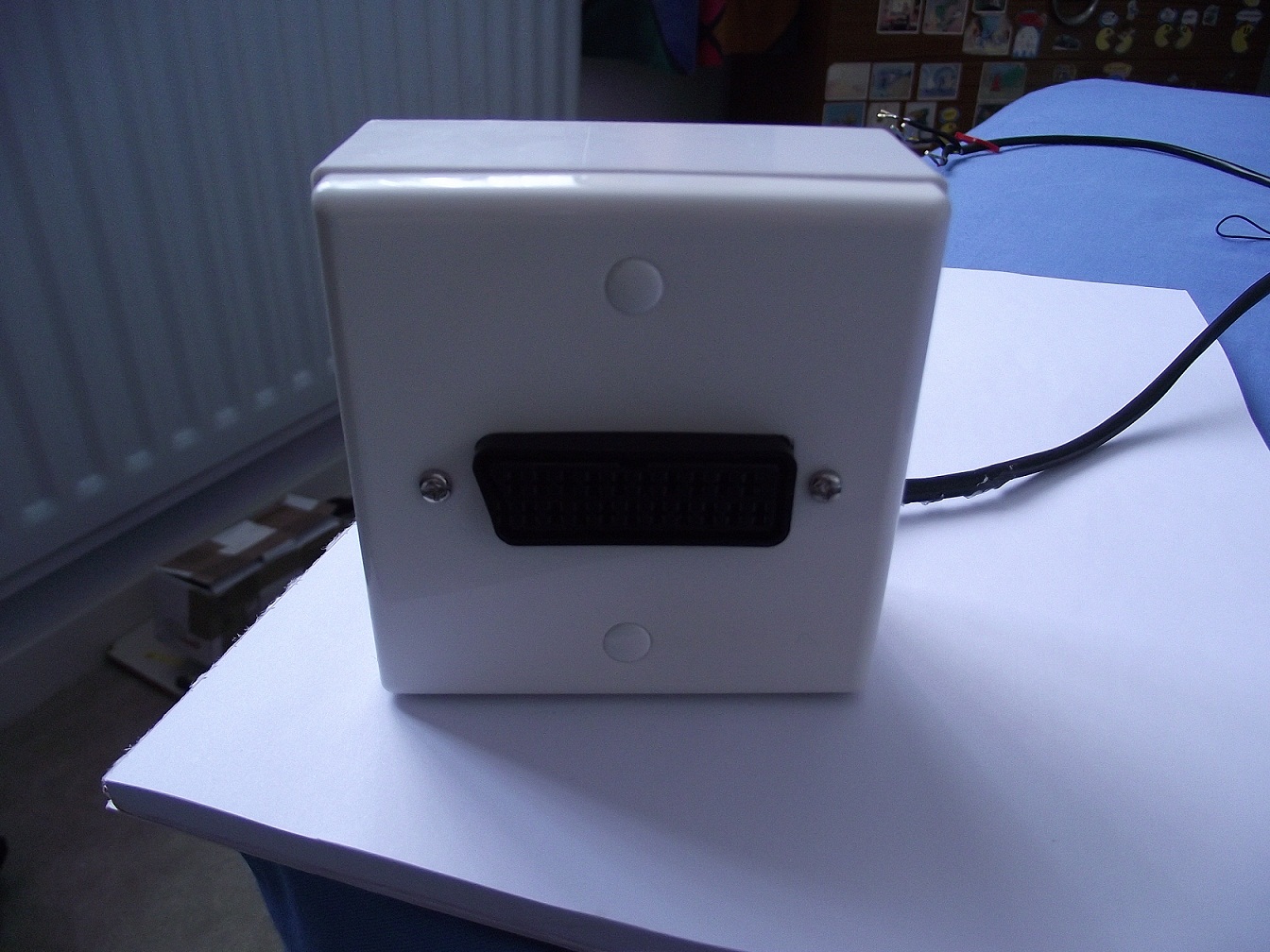

Pictures are a bit dark as the ISO was set too low .Just need to counter sink and cover those two screws and possibly find a sticker which has the Pc engine logo on to make the box more complete and match the original white console.(finding some white sleeving would be even better )



appreciated



Those pics make it hard to read, at least on my old 1024x768 laptop. Any chance of smaller images that link to the large ones when clicked? (some hosting services e.g. imageshack will take the hard work out of that for you)

Sounds interesting though - thanks!
