NTSC SNES graphics issue

Discussion in 'Repair, Restoration, Conservation and Preservation' started by edd_jedi, Dec 11, 2012.

  1. edd_jedi

    edd_jedi Rising Member

    Joined:
    Apr 29, 2012
    Messages:
    57
    Likes Received:
    1

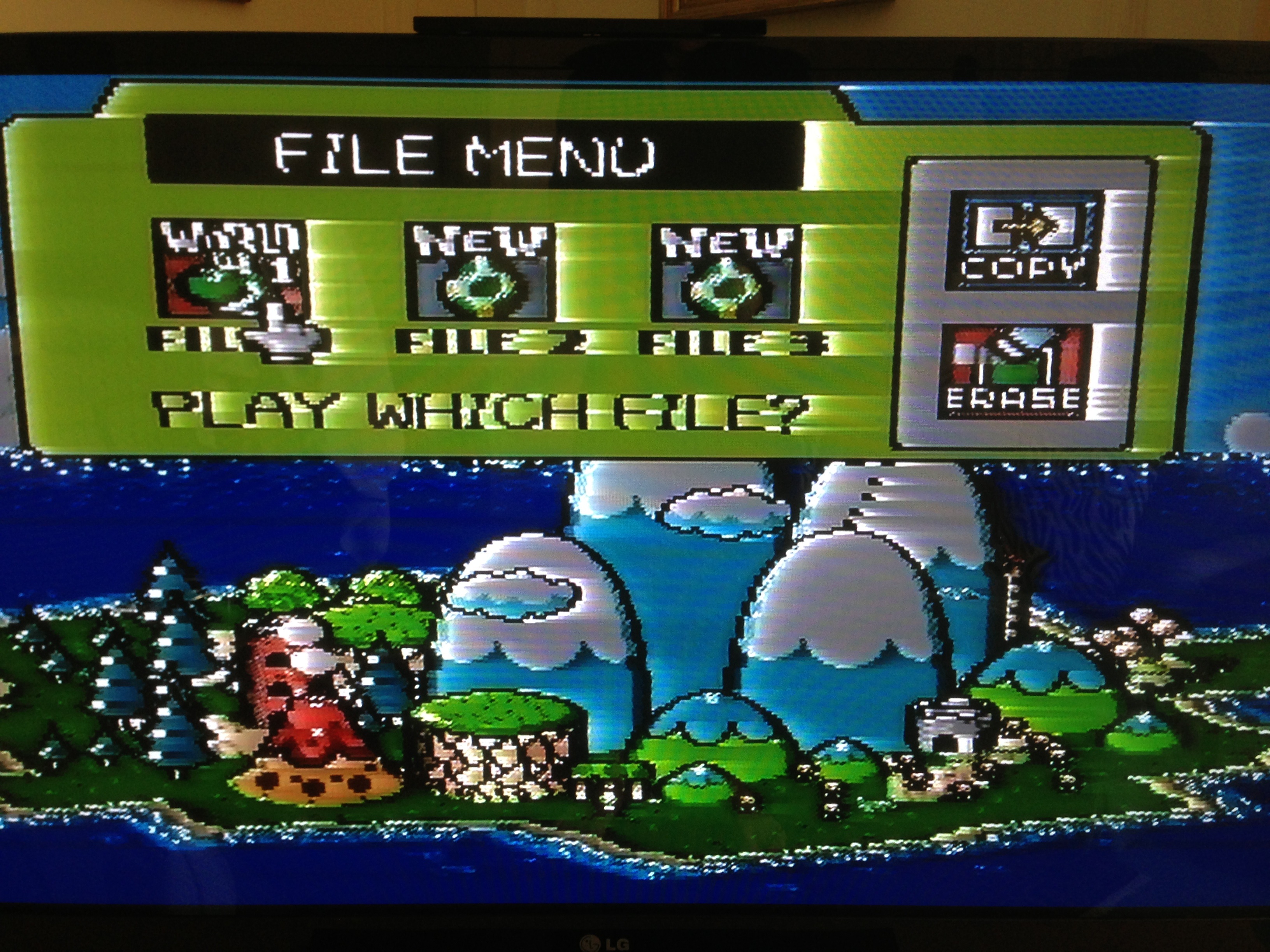

    I have just picked up an NTSC SNES and it has a slight issue. As you can see in the attached screenshot, the screen is slightly distorted and also occasionally rolls a little. I am using an RCA cable. It is a first edition large PCB SNES. Does anyone know what might be causing this? It's not the power supply as I tested a spare and got the same result. Thanks.


    Attached Files:

  2. edd_jedi

    edd_jedi Rising Member

    Joined:
    Apr 29, 2012
    Messages:
    57
    Likes Received:
    1
    Just to add, it's also definitely not an issue with the RCA cable or the TV as I have another identical SNES which works fine.

  3. Cyantist

    Cyantist Site Supporter 2012,2013,2014,2015

    Joined:
    Oct 28, 2008
    Messages:
    4,158
    Likes Received:
    20
    Colour bleeding. This one might be capacitors I think.

    Any of the chips getting overly hot? does it fix itself when pressure is placed upon them?

  4. edd_jedi

    edd_jedi Rising Member

    Joined:
    Apr 29, 2012
    Messages:
    57
    Likes Received:
    1
    Thanks for the suggestion, I guess I'll have to open it up and take a look. Will the capacitors be leaking it they're the culprit? Do you know which capacitors relate to the graphics?

    Last edited: Dec 11, 2012
