Would anyone out there mind scanning or taking detailed pictures of any of the following PCBs? Beatmania for Wonderswan Saturn official 8M RAM cart Saturn official 32M RAM cart Saturn unofficial 8M RAM cart (not Action Replay clone) Saturn unofficial 32M RAM cart (not Action Replay clone) Saturn 3rd party Flash memory card (any brand) Saturn ST key cart Saturn Magic Card (good pic) Saturn Ultraman cart Saturn KOF 95 cart Datel CDX carts PC Engine Avenue3 PC Engine Multitap 2/3 Feel free to post any requests you have too!
I don't know when but I will soon scan the different cart for the MegaDrive. The scans will be here : http://dump.megadrive.org
That's good, but how are you opening all the carts? If you want, I can confirm some CRCs, I've dumped maybe 30 games but haven't checked any of the MD game PCBs.
I'm not sure I understand the question .... The classic EUR/US games with a gamebit. The jap one with a gamebit too after removed carefully the sticker. Codemaster with classic screwdriver after removed carefully the sticker (just the two bottom corner) Only the Acclaim ones resist me now ... Cool, let me know which ones. Edit: http://www.mirari.fr/zeTX Wonderswan cart with save.
Here goes: http://i211.photobucket.com/albums/bb311/c_e_z/game/ngpc_spa.jpg Hope the resolution is enough. I meant to take pics of Wonderswan carts too but I don't have a small enough screwdriver. :crying: Edit: Ah, one has been posted already.
Wow, you're brave! Do you want a scan of NBA Jam's PCB? I have the bit to open it. Somewhere I traced out the circuit too. I also have Phantasy Star II/III and Sonic & Knuckles to scan but haven't traced the circuits yet. OK, it will take a few days, I need to exchange hard drives. That is very helpful! This is great, thanks! I guess there must be a "NP-CFL32" out there too as well as a few PCB with saves.
This can be really helpfull, thanks. My goal is to have a scan of each MD cart pcb and an electronic schema for it on my web site. Take your time, I'm not really in a hurry.
If you still want some images I can send you about 20 Megadrive PCB, same Megatech, Saturn official 8M RAM cart, Saturn 3rd party Flash memory card (4in1 Action Replay)
Hi guys I didn't forget about you, but I went to Australia and New Zealand for a little bit holiday, but I'll be home in about month or so then I'll send you the scans.

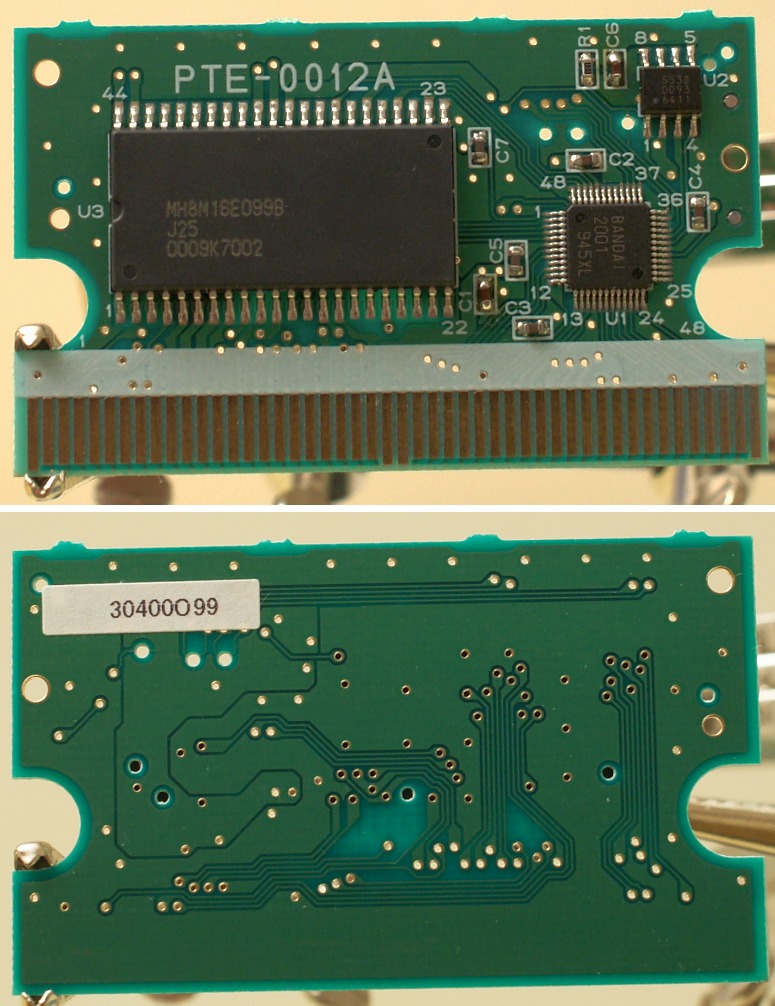

Sorry I never noticed this thread. Here are a few pics of the Saturn X-Terminator 3 and Wonder Swan cartridge (Makaimura). Unfortunately, they're photos because my LIDE-type scanner can't handle depth in an object. http://www.disgruntleddesigner.com/chrisc/images/xt3front.jpg http://www.disgruntleddesigner.com/chrisc/images/xt3back.jpg http://www.disgruntleddesigner.com/chrisc/images/wswanpcb.jpg
I'd do you HQ scans of the saturn cartridges (2MB RAM and 4MB RAM) if I had the special driver. I knwo where I can get one but they're about 10 USD in Japan. I could do a scan now of the Saturn Karat branded Action Replay Pro 2 if you need it. Yakumo
Sure, it would be nice to see all Saturn carts. Oh yeah, KOF95/Ultraman ROMs would be cool too if anyone has them.
