PlayStation 1 SCPH-1002 Trace repair query.

Discussion in 'Repair, Restoration, Conservation and Preservation' started by McMiller, Nov 4, 2015.

Watch Thread
  1. McMiller

    McMiller Gasp!

    Joined:
    Oct 9, 2015
    Messages:
    4
    Likes Received:
    1

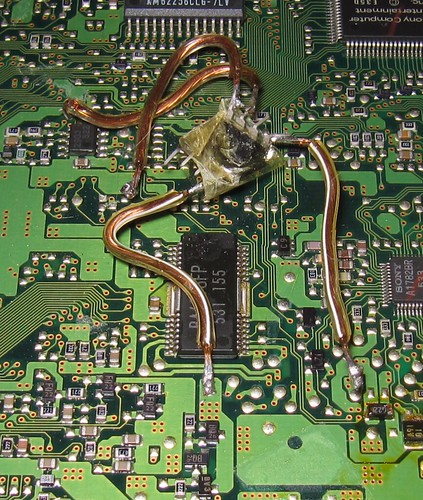

    Heyo. I bought a faulty PS1 and found a pretty messy mod chip install.
    [​IMG]

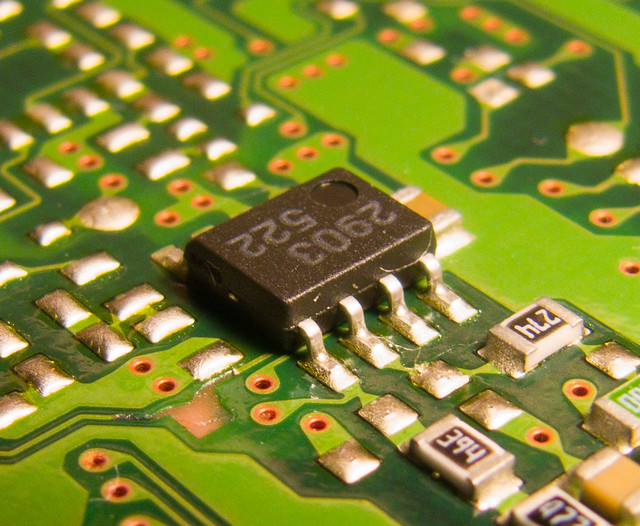

    I removed it but one of the solder points had already done it's damage and broke a trace.
    [​IMG]

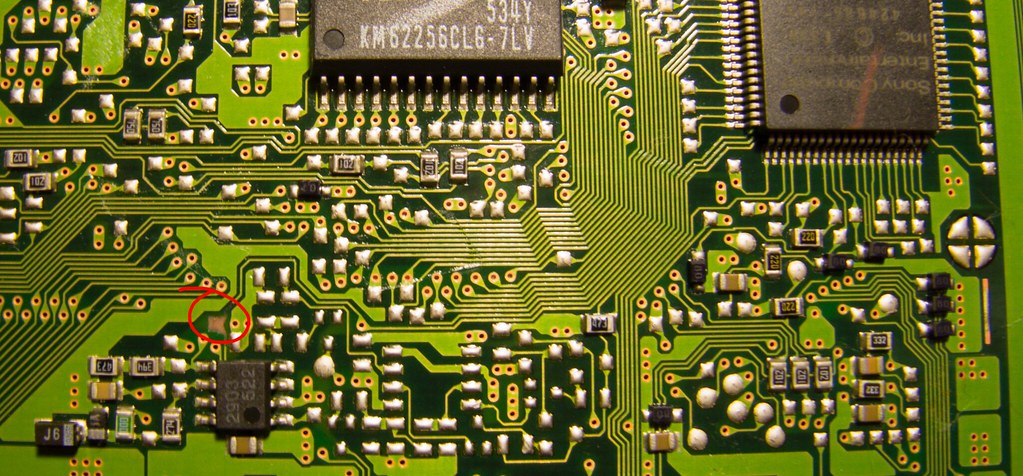

    I'm trying to identify which leg the trace leads to. I was hoping someone on the forum would already know which leg I should solder to.
    [​IMG]

    McMiller, Nov 4, 2015 Report
    #1 + Quote Reply
  2. Pikkon

    Pikkon "Moving in Stereo"

    Joined:
    Mar 4, 2005
    Messages:
    2,695
    Likes Received:
    80
    I can't be certain but you need to scrap a bit of the trace by the chip to expose the copper and use a mulimeter to determine were it goes and the other trace leads to a via.

    Pikkon, Nov 4, 2015 Report
    #2 + Quote Reply
  3. Armorant

    Armorant Spirited Member

    Joined:
    Sep 13, 2014
    Messages:
    187
    Likes Received:
    57
    Maybe it will be easy to restore the damaged trace? That is not so hard as you might think - try it.

    Armorant, Nov 4, 2015 Report
    #3 + Quote Reply
  4. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    Holy shit, speaker wire.

    Just follow the broken pad, find a wide are of trace and remove the top coat with a fiberglass scratch pen.

    Solder in a jumper. Be sure to use decent gauge wire.

    ASSEMbler, Nov 4, 2015 Report
    #4 + Quote Reply
  5. McMiller

    McMiller Gasp!

    Joined:
    Oct 9, 2015
    Messages:
    4
    Likes Received:
    1
    I'm gonna go wear my dunce hat now.
    Trace repair done! Now to see if this PS1 still works.

    McMiller, Nov 4, 2015 Report
    #5 + Quote Reply
  6. McMiller

    McMiller Gasp!

    Joined:
    Oct 9, 2015
    Messages:
    4
    Likes Received:
    1

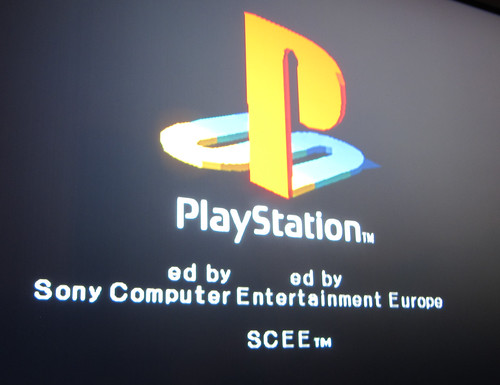

    Oh well.
    [​IMG] [​IMG]
    Trace repair is fine. I guess it's just finally failed from use.

    Audio CDs work though. This unit should be perfect for Feuerbacher's audio mods.

    (Although if there is a way to repair this then let me know!)

    Last edited: Nov 4, 2015
    McMiller, Nov 4, 2015 Report
    #6 + Quote Reply
