Ps2 slim power ribbon pinout?

Discussion in 'Repair, Restoration, Conservation and Preservation' started by aspireone45, Sep 30, 2014.

Watch Thread
  1. aspireone45

    aspireone45 i am a frog, i cannot talk *ribbit*

    Joined:
    Jan 28, 2014
    Messages:
    75
    Likes Received:
    2
    The ribbon cable of my ps2 slim popped off and i cant find it... I would like to solder a couple switches for my ps2 slim so it works again..

    aspireone45, Sep 30, 2014 Report
    #1 + Quote Reply
  2. Riki

    Riki Peppy Member

    Joined:
    Sep 2, 2013
    Messages:
    313
    Likes Received:
    5
    There are several ribbon cables inside PS2. Which one? Any could be purchased for a dollar on chinese shops.

    Last edited: Sep 30, 2014
    Riki, Sep 30, 2014 Report
    #2 + Quote Reply
  3. aspireone45

    aspireone45 i am a frog, i cannot talk *ribbit*

    Joined:
    Jan 28, 2014
    Messages:
    75
    Likes Received:
    2
    well i caqnt buy a ribbon cable 20140930_153358-2.jpg for it due to the connector being broken off.... and its thiis one...

    aspireone45, Sep 30, 2014 Report
    #3 + Quote Reply
  4. LeHaM

    LeHaM Site Soldier

    Joined:
    May 5, 2013
    Messages:
    2,634
    Likes Received:
    292
    When my new multi meter probes arrive I'll take a look at mine and try and get the pinout for you...

    LeHaM, Sep 30, 2014 Report
    #4 + Quote Reply
  5. aspireone45

    aspireone45 i am a frog, i cannot talk *ribbit*

    Joined:
    Jan 28, 2014
    Messages:
    75
    Likes Received:
    2
    im guessing nothing yet? id love to use my ps2 slim but i dont have the ribbon connector.... if there was a ribbon connector available online i would get it... but i dont see one...

    Last edited: Oct 16, 2014
    aspireone45, Oct 16, 2014 Report
    #5 + Quote Reply
  6. LeHaM

    LeHaM Site Soldier

    Joined:
    May 5, 2013
    Messages:
    2,634
    Likes Received:
    292
    Yeah they haven't arrived yet :(

    LeHaM, Oct 16, 2014 Report
    #6 + Quote Reply
  7. LeHaM

    LeHaM Site Soldier

    Joined:
    May 5, 2013
    Messages:
    2,634
    Likes Received:
    292

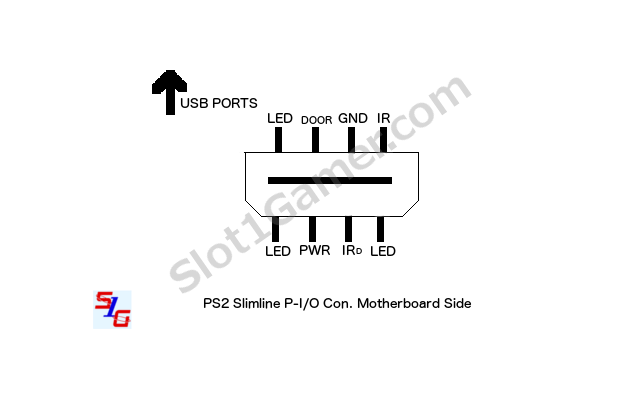

    Ok here you go, my mobo is a different version to yours but the pinout should be the same.

    The top row of pads on yours are the same as the top row on this diagram..

    [​IMG]

    Shorting either DOOR or PWR to ground will activate/close that circuit, ie; PWR shorted to GND will turn the system off or on or reset (depending on how many ms the circuit is closed)

    Last edited: Oct 26, 2014
    LeHaM, Oct 26, 2014 Report
    #7 + Quote Reply
