Ps2 v7 modbo 4.0 install,160 gh hd and hdloader(dev2)

Discussion in 'Modding and Hacking - Consoles and Electronics' started by turfster, Jun 4, 2016.

Watch Thread
  1. turfster

    turfster i grow grass

    Joined:
    Mar 17, 2013
    Messages:
    612
    Likes Received:
    48

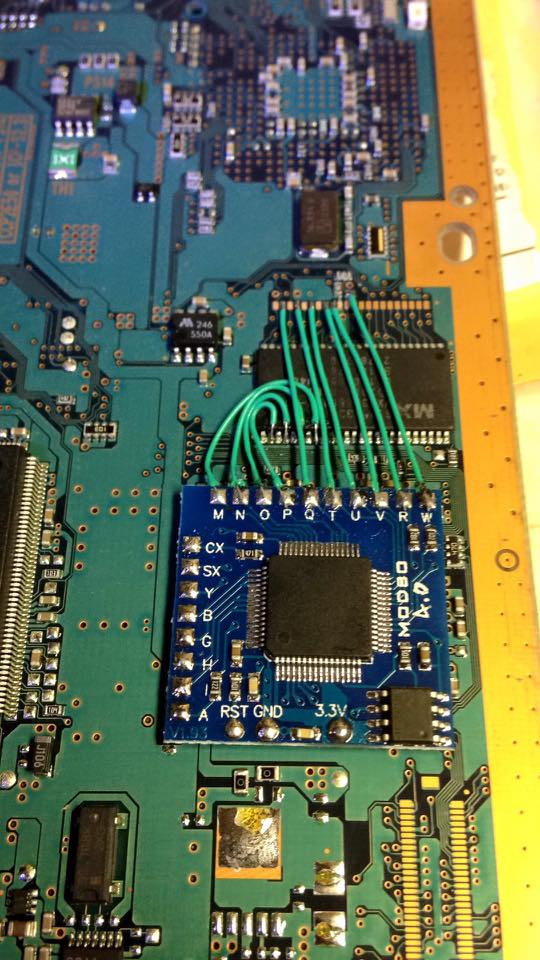

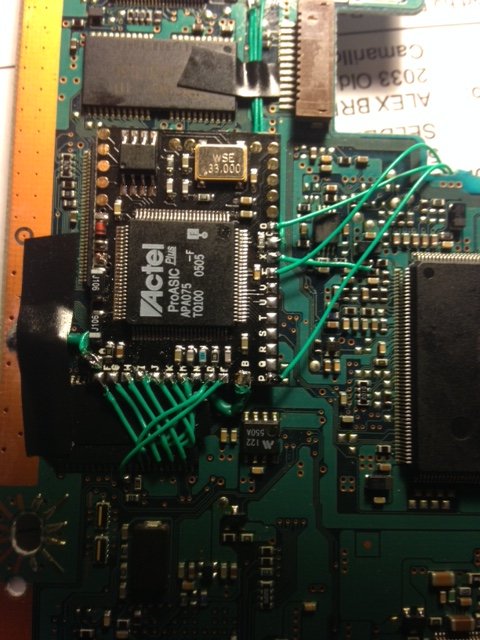

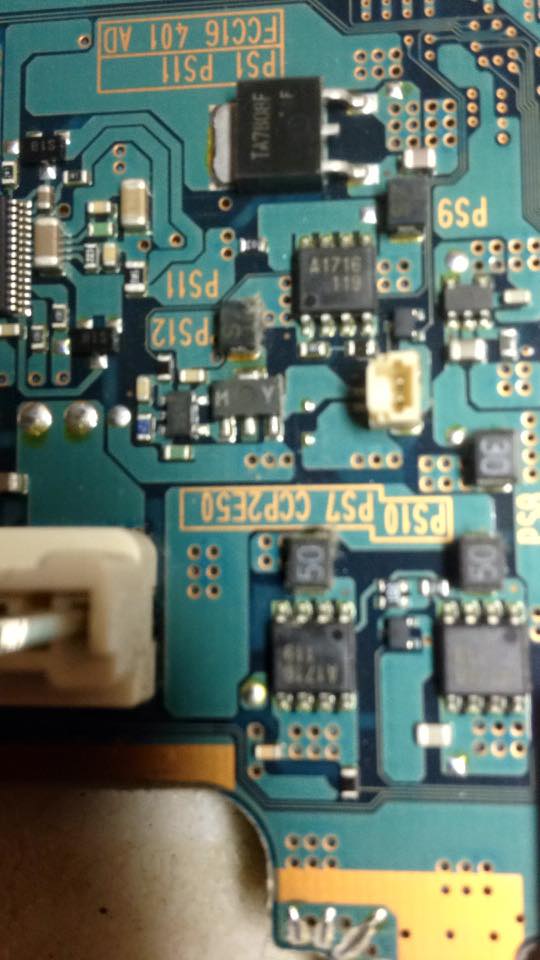

    Working on a ps2 for a friend. I had a issue with the hard drive not being detected. It ended up being ps7, ps9 and ps10 fuse for 5v and 12v power to hard drive. 13321791_10209801556575457_3352588854040370922_n.jpg 13319808_10209801556735461_3934285345450833031_n.jpg 13331087_10209801556895465_7017017808562148980_n.jpg 13315785_10209802134189897_2746296235039928199_n.jpg


    Attached Files:

    Last edited: Jun 4, 2016
    turfster, Jun 4, 2016 Report
    #1 + Quote Reply
  2. MightySubzero

    MightySubzero Rising Member

    Joined:
    May 15, 2016
    Messages:
    56
    Likes Received:
    9
    nice work.. thanks for the info.. I will have to remember this ..

    MightySubzero, Jun 4, 2016 Report
    #2 + Quote Reply
    turfster likes this.
  3. LeHaM

    LeHaM Site Soldier

    Joined:
    May 5, 2013
    Messages:
    2,634
    Likes Received:
    292

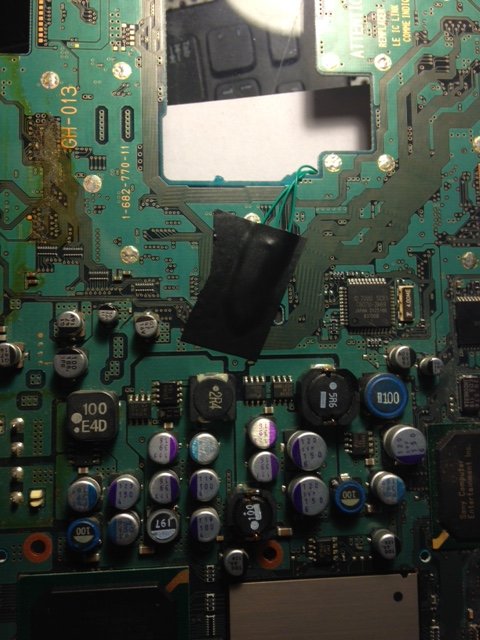

    Swap electrical tape for kapton, makes it look a bit nicer and there is no residue (also kapton doesn't shrink like electrical tape)

    LeHaM, Jun 4, 2016 Report
    #3 + Quote Reply
    turfster likes this.
  4. turfster

    turfster i grow grass

    Joined:
    Mar 17, 2013
    Messages:
    612
    Likes Received:
    48
    Yeah your right. I got 3 huge rolls of black electrical tape from my neighbor so I just use it. I'll pick up some kapton tape though. Thanks for the tip.

    turfster, Jun 4, 2016 Report
    #4 + Quote Reply
    LeHaM likes this.
