[PS3] Help identifying a missing component.

Discussion in 'Repair, Restoration, Conservation and Preservation' started by Mimelgue, Aug 3, 2013.

  1. Mimelgue

    Mimelgue Newly Registered

    Joined:
    Jul 28, 2013
    Messages:
    2
    Likes Received:
    0
    Greetings
    I have a 60GB Fat PS3 (CHECH04). I dicided to change the thermal paste beneath Cell and RSX IHS to avoid yellow light problem.
    While I was removing Cell IHS I tore away a smd capacitor (I think it is a capacitor).
    When I was about to solder it again, it fell from my tweezers and I lost it... :livid:

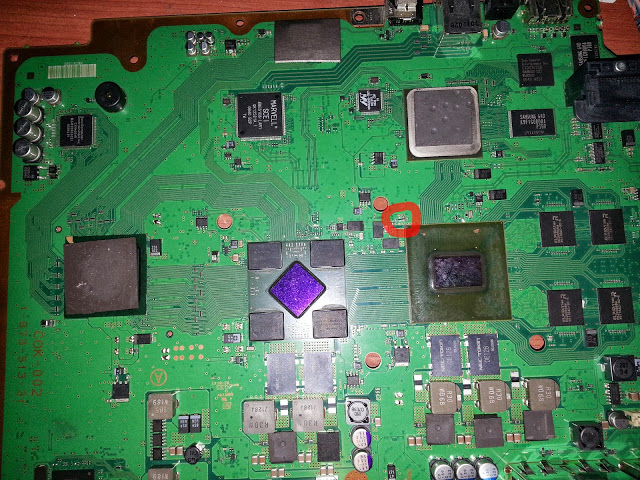

    The component was located in the red circled area:

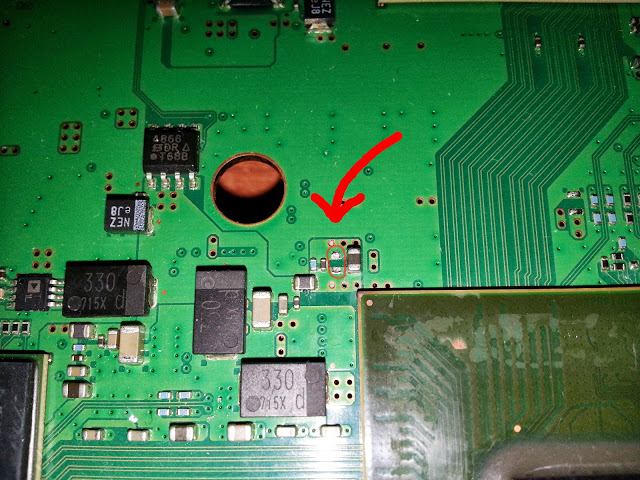

    This is its exact location:
    The component looks like that two located at the bottom left of the picture.
    What should be there?
    Thanks.

  2. LeHaM

    LeHaM Site Soldier

    Joined:
    May 5, 2013
    Messages:
    2,634
    Likes Received:
    292
    This is upside down to your pic but it might help you identify the part. It's a cap btw..

    The part is C1463

    [​IMG]

  3. LeHaM

    LeHaM Site Soldier

    Joined:
    May 5, 2013
    Messages:
    2,634
    Likes Received:
    292
    Found it ! It's 1u 10v

    [​IMG]

    Edit: Hope this helps, BTW it has the same value as C1457

    Last edited: Sep 3, 2013
  4. Kaicer

    Kaicer Site Supporter 2014

    Joined:
    Mar 24, 2012
    Messages:
    555
    Likes Received:
    5
    that means more caution next time and your lucky that do not tore the solder pad too.
