Ps3 in PC Case + ATX Power Supply Mod

Discussion in 'Modding and Hacking - Consoles and Electronics' started by cmw500.id, Mar 1, 2014.

  1. cmw500.id

    cmw500.id Member

    Joined:
    Feb 24, 2014
    Messages:
    14
    Likes Received:
    0
    Just sharing my ps3 in a pc case mod powered by a 530 watts thermatake atx power supply.
    I had recently added a post to get help on the voltage pinout for the 3 pin cable found on my ps3 power supply but to no avail. So i just crack opened the PS3 PSU and found the Voltages in the board itself :)

    This is is still an ongoing project as i am still adding my xbox 360 as well.

    Here are some photos:

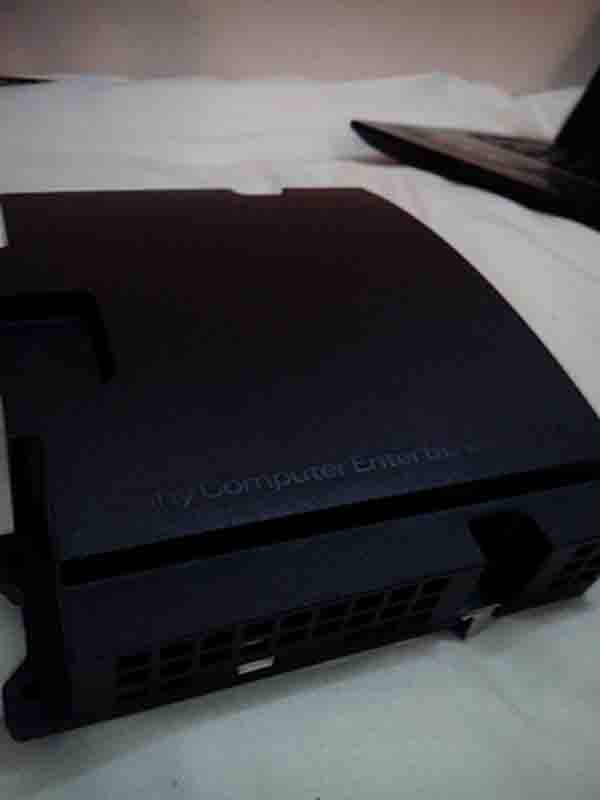

    Original PS3 Power Supply:

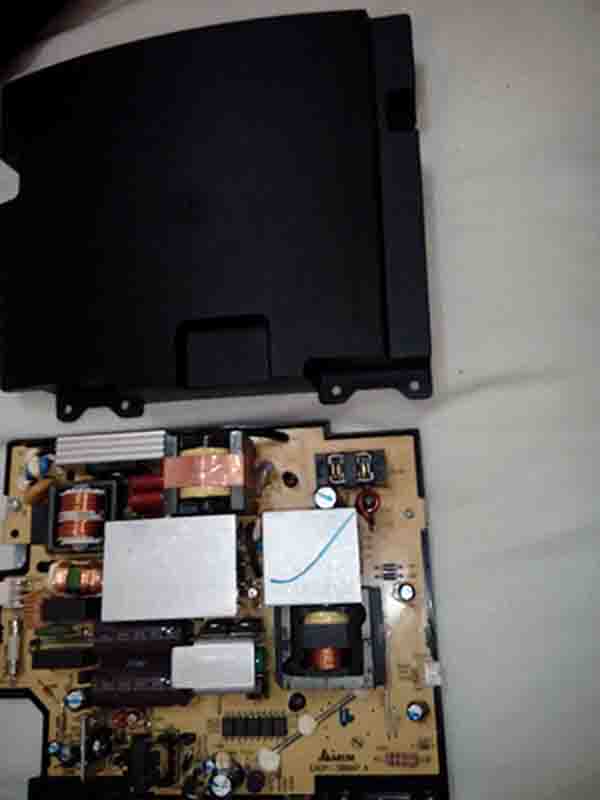

    To Identify the Voltages, i opened the psu and it looks like this:

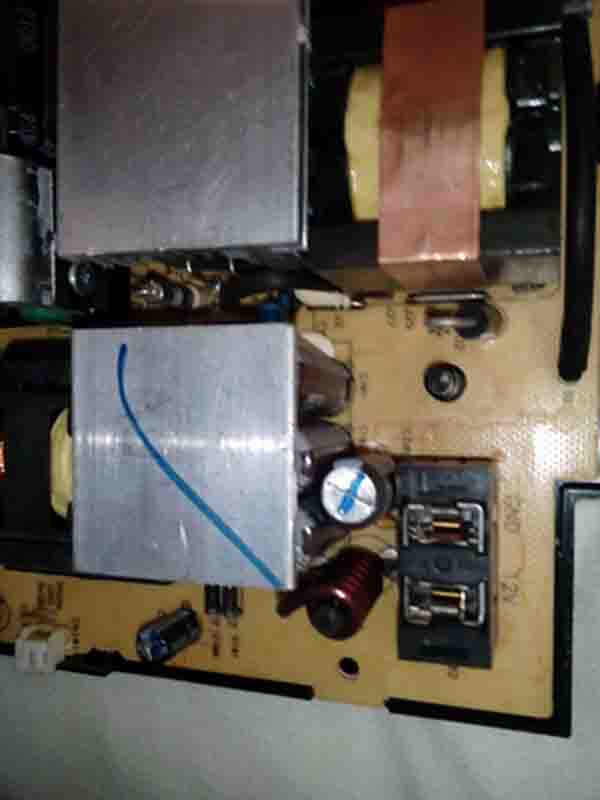

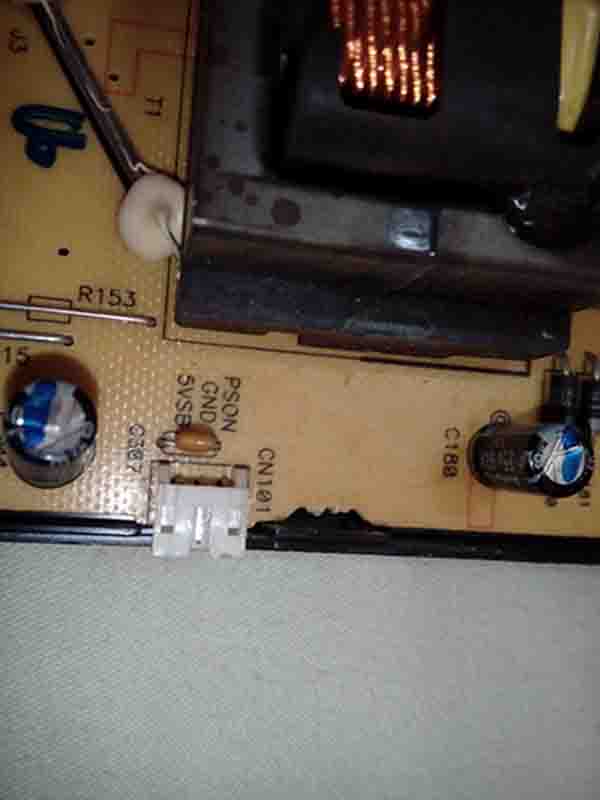

    Here are the Voltages for the 3 Pin Connector:

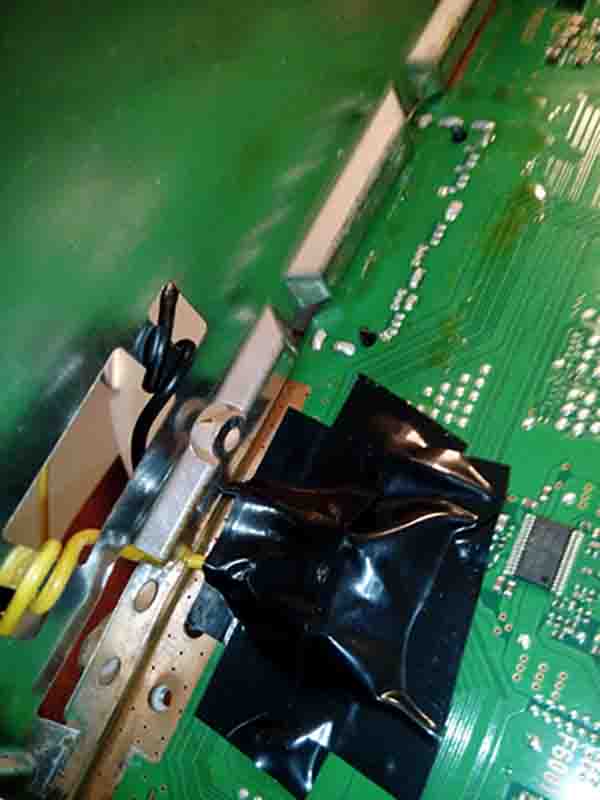

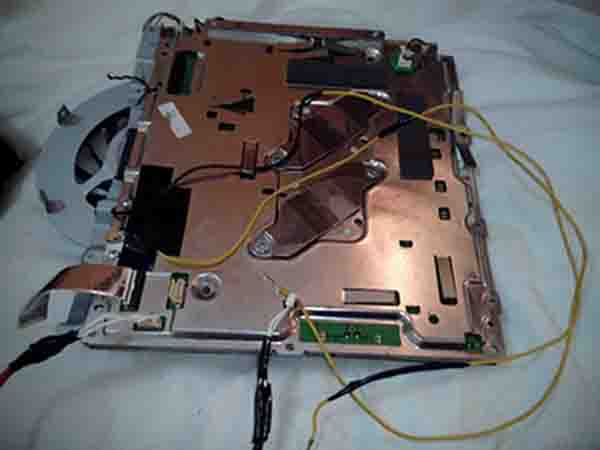

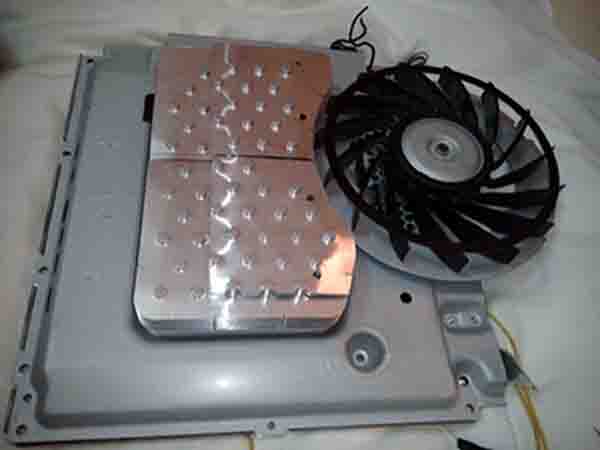

    Removed Original Fan Enclosure and the 2 pin 12v mother board connector to psu was cut and soldered the wires directly to it:

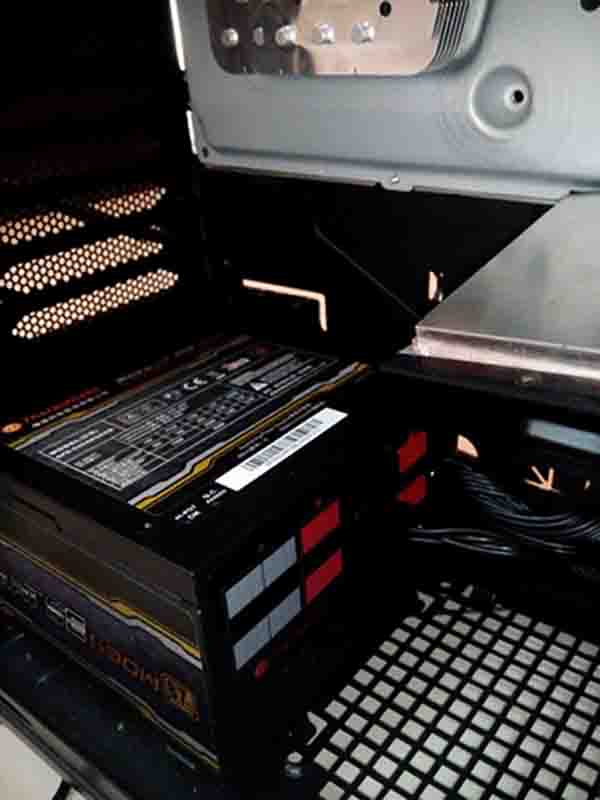

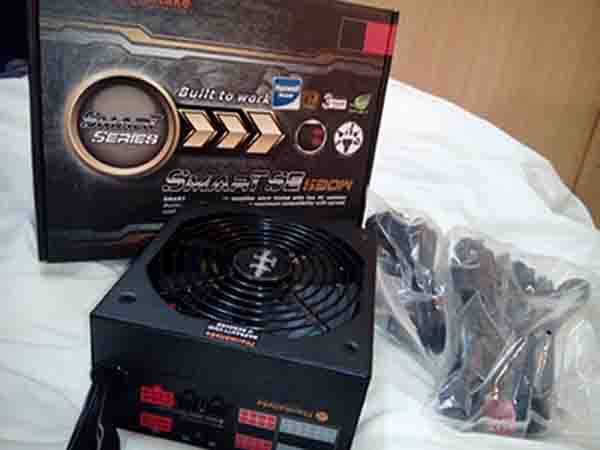

    Heres the ATX power Supply i used to replace the original PS3 PSU:


    Now here's what happens next:

  2. cmw500.id

    cmw500.id Member

    Joined:
    Feb 24, 2014
    Messages:
    14
    Likes Received:
    0

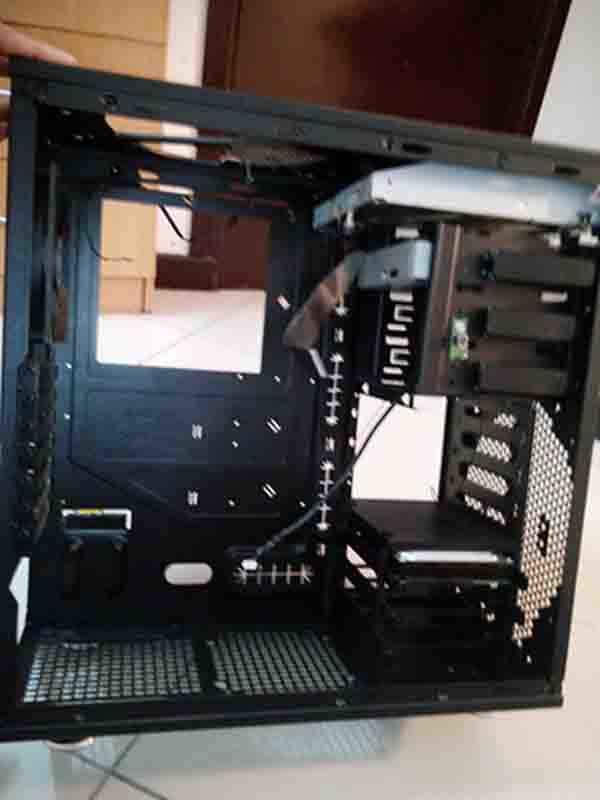

    And more photos:

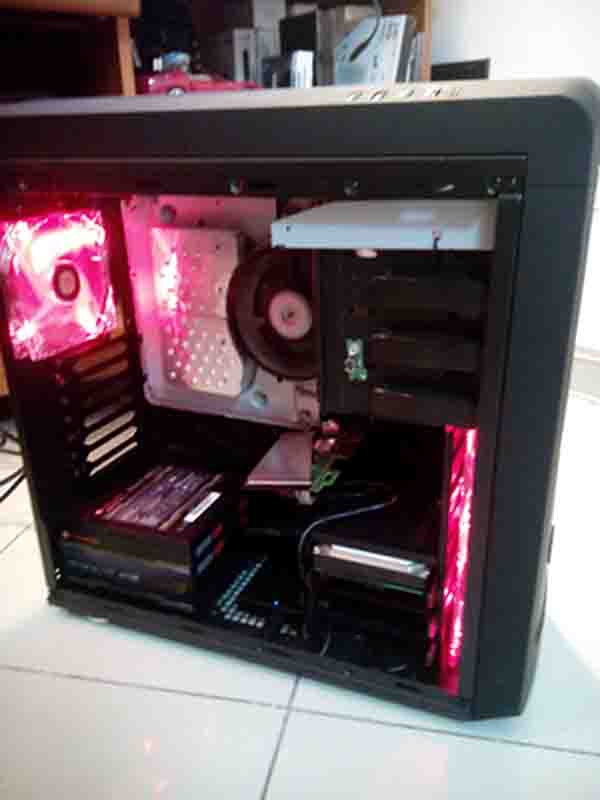

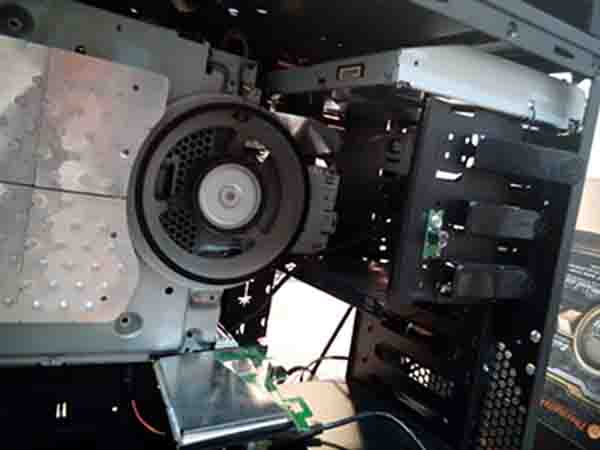

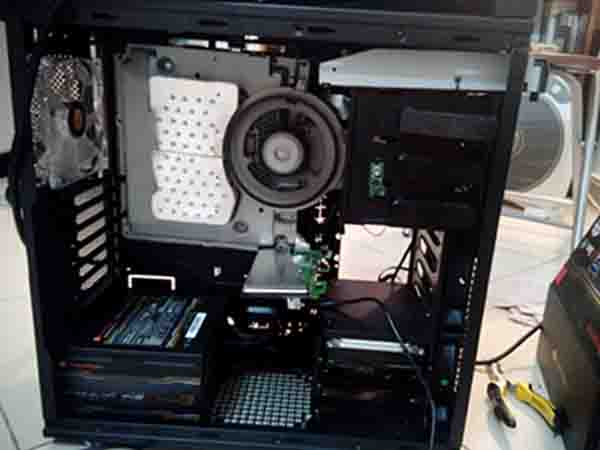

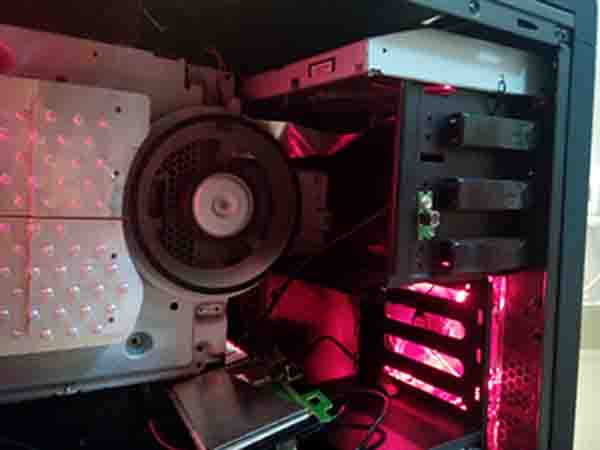

    Almost done:

  3. cmw500.id

    cmw500.id Member

    Joined:
    Feb 24, 2014
    Messages:
    14
    Likes Received:
    0

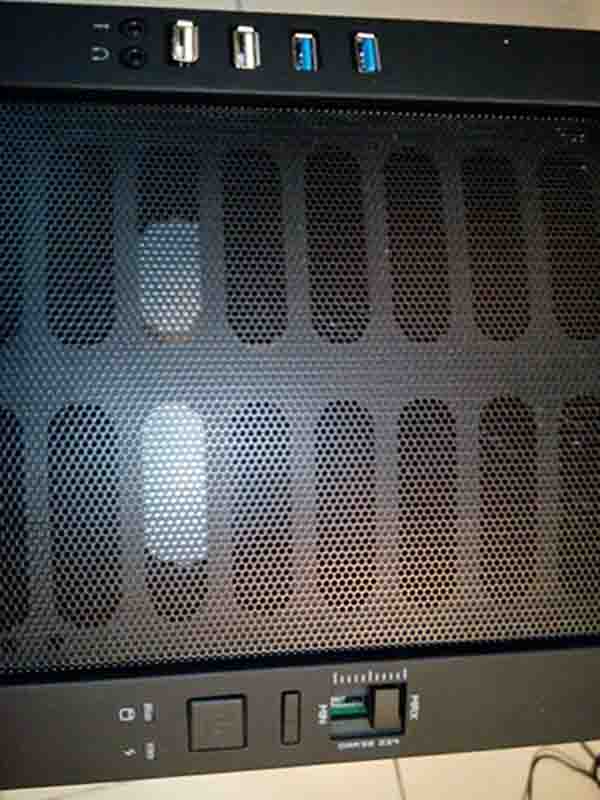

    And heres the fan control:

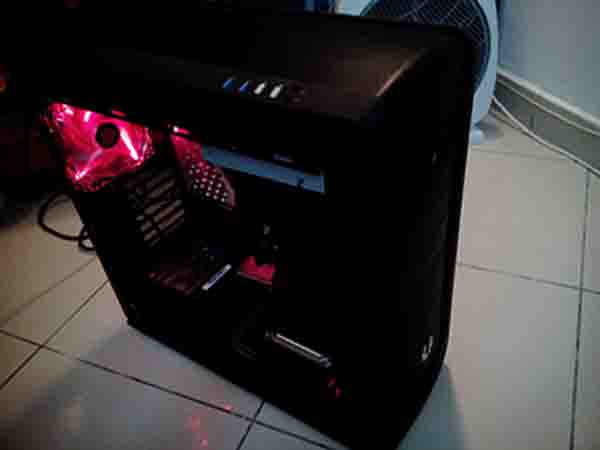

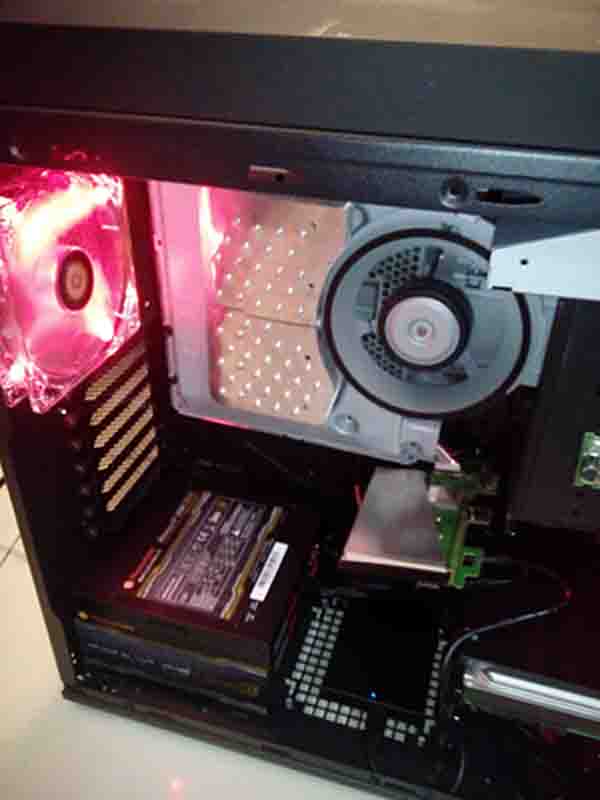

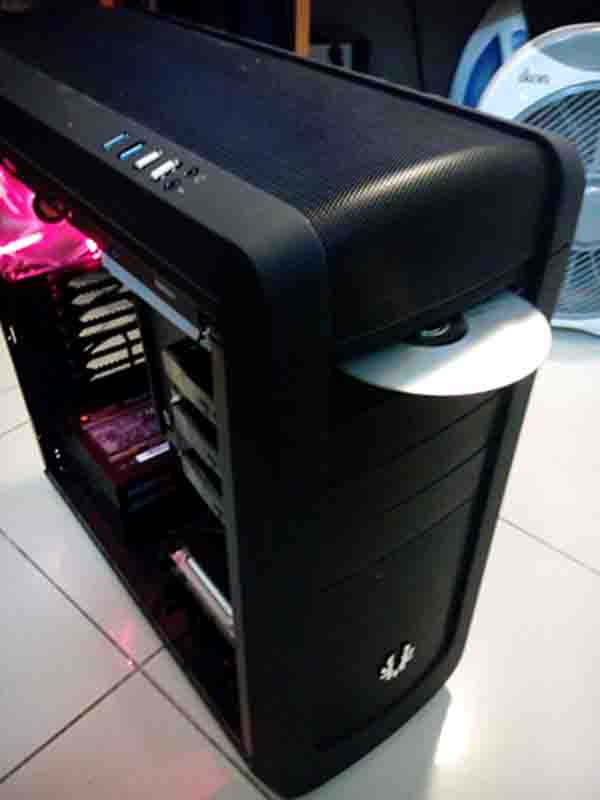

    And here we go!

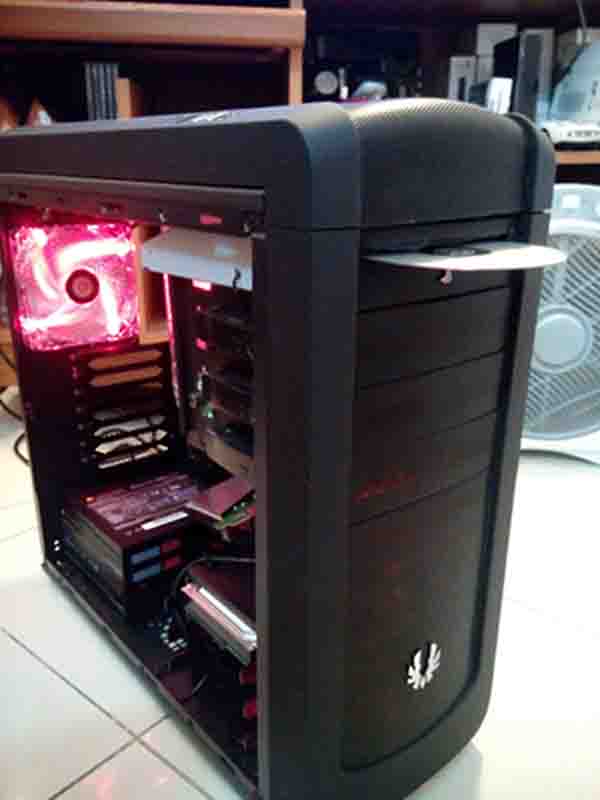

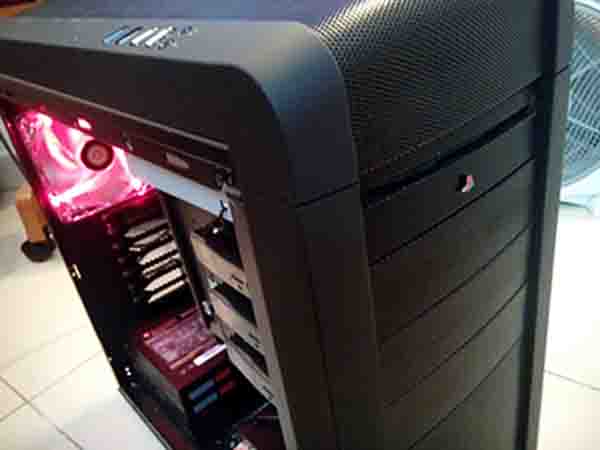

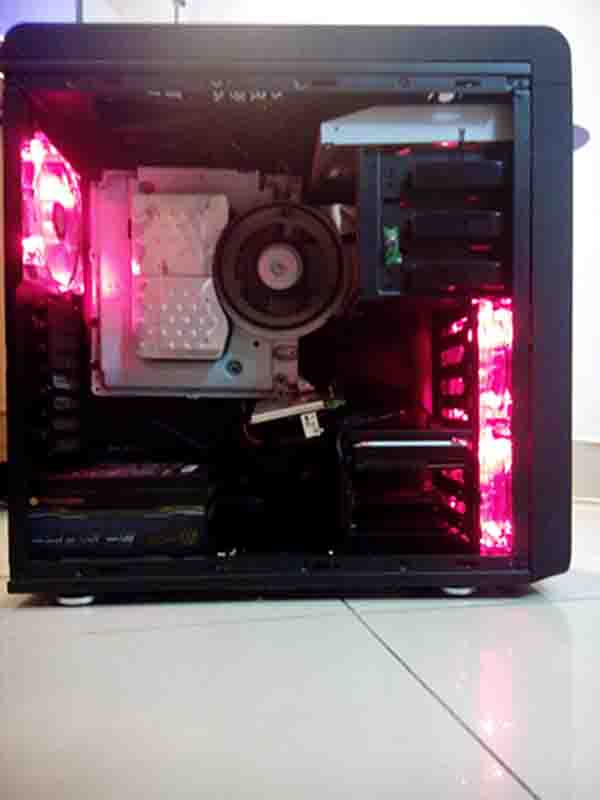

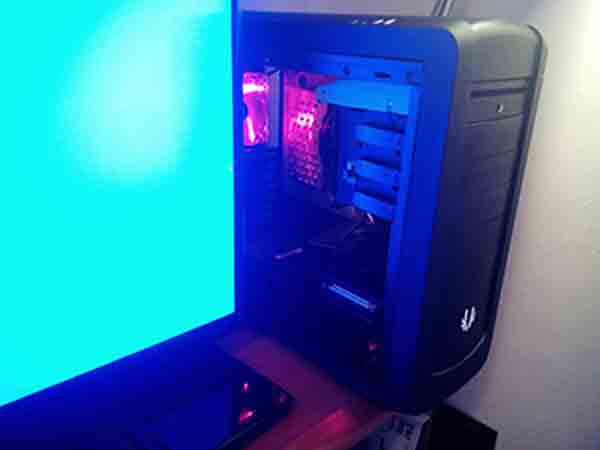

    It all works perfect:

    Xbox 360 to be added very soon. :)
    Thanks guys.

  4. Icelvlan8866

    Icelvlan8866 Member

    Joined:
    Jan 9, 2014
    Messages:
    7
    Likes Received:
    0
    This is pretty cool. Good job

  5. proarturs

    proarturs The force is with me

    Joined:
    Dec 23, 2013
    Messages:
    820
    Likes Received:
    49
    Really awesome mod. That probably took a bit of time and a lot of effort. Thumbs up for you !

  6. cmw500.id

    cmw500.id Member

    Joined:
    Feb 24, 2014
    Messages:
    14
    Likes Received:
    0
    Here are the guts of the xbox 360. Still figuring out where to mount the motherboard etc. :)

  7. Riki

    Riki Peppy Member

    Joined:
    Sep 2, 2013
    Messages:
    313
    Likes Received:
    5
    What's the point without modifying cooling system. Original system had flow tests and such to be efficient in its original case. 530W PSU is also unnecessary unless it has 80 Plus Gold Efficiency level.

  8. cmw500.id

    cmw500.id Member

    Joined:
    Feb 24, 2014
    Messages:
    14
    Likes Received:
    0

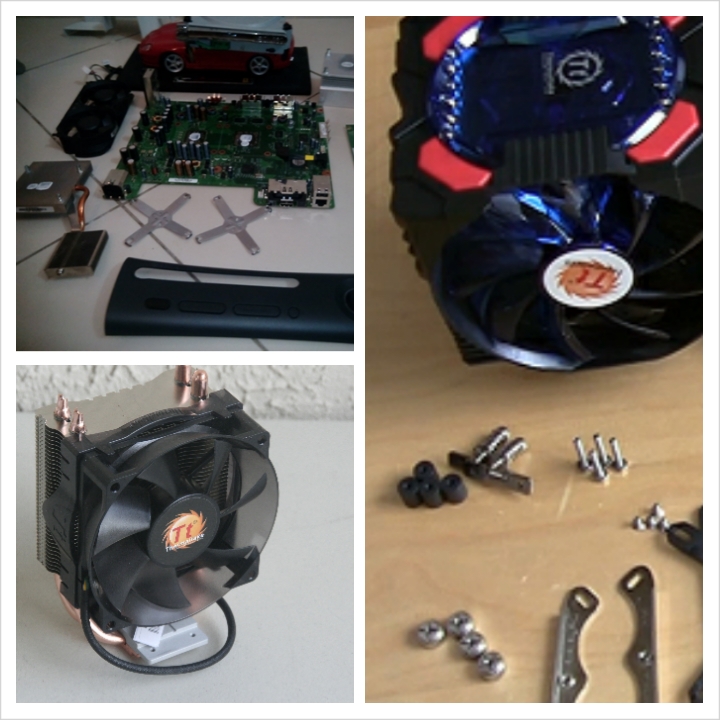

    The point is, its not done yet :) See below. Im still figuring out how to intstall these unused fan. :)

  9. cmw500.id

    cmw500.id Member

    Joined:
    Feb 24, 2014
    Messages:
    14
    Likes Received:
    0
    Does any one knows how to power the ps3 fan using the ATX powr supply?
    I it only spins less than a second then it stops when connected with the 12V psu.

    Is this accurate?
    Brown wire: 12V
    Black wire: Ground
    Gray wire: Fan speed?

    I dont understand why it doesnt work.

  10. cmw500.id

    cmw500.id Member

    Joined:
    Feb 24, 2014
    Messages:
    14
    Likes Received:
    0
    Any ideas as to how i can fit a cpu heatsink?

    Last edited: Apr 24, 2014
  11. mudajama

    mudajama Newly Registered

    Joined:
    May 17, 2014
    Messages:
    1
    Likes Received:
    0
    Just finished my similar project. I used some old aluminum heatsinks from k8 amd's. I cut down the side of one and then mocked them up. Used a marker to draw threw holes and used a drill press to drill holes in the sinks. Just. Used threaded rod cut to length for anchor's. They will not sit straight. They will be off angle in order for each sink to catch the mount holes

  12. Forcer UK

    Forcer UK Active Member

    Joined:
    Feb 13, 2014
    Messages:
    40
    Likes Received:
    0
    Great idea looking forward to seeing the finished unit, keep up the good work!

  13. geluda

    geluda <B>Site Supporter 2012</B><BR><B>Site Supporter 20

    Joined:
    Apr 25, 2011
    Messages:
    1,422
    Likes Received:
    13
    This is pretty cool, looking forward to seeing more!

  14. ArgyleEyes

    ArgyleEyes Rising Member

    Joined:
    Feb 24, 2011
    Messages:
    51
    Likes Received:
    0
  15. proarturs

    proarturs The force is with me

    Joined:
    Dec 23, 2013
    Messages:
    820
    Likes Received:
    49
    Didn't think that something like that would even exist.

  16. Commander47

    Commander47 Spirited Member

    Joined:
    Dec 28, 2013
    Messages:
    137
    Likes Received:
    0
    Looks great , but would look amazing liquid cooled

  17. Matssousan

    Matssousan Newly Registered

    Joined:
    Jul 5, 2014
    Messages:
    3
    Likes Received:
    0
    Hello guys, i just bought a ps3 60g and it had never been opened, i modified my case added a pompe, fans, and im wating for my waterblocks "koolance gpu-200" the probleme is the atx power supply the orginal voltage of my ps3 is 12v 30A is it ok with an corser CX430 ? thanks for your help
    Sorry for my english :)

  18. LeHaM

    LeHaM Site Soldier

    Joined:
    May 5, 2013
    Messages:
    2,634
    Likes Received:
    292
    Ps3 (Even the 60GB) should only pull max 160watts (13 amps)

    30A would make it 360watts on the 12v rail!

  19. LeHaM

    LeHaM Site Soldier

    Joined:
    May 5, 2013
    Messages:
    2,634
    Likes Received:
    292
    [​IMG]

    I have run a 60GB off a 400W PSU before and had no issues :)

    Last edited: Jul 6, 2014
  20. Matssousan

    Matssousan Newly Registered

    Joined:
    Jul 5, 2014
    Messages:
    3
    Likes Received:
    0
    Ok Thank you LeHam i will post the picture here when finished
