ps3 ylod'ed would the hairdryer fix prevent a futur reball?

Discussion in 'Repair, Restoration, Conservation and Preservation' started by I AM ME, Jan 31, 2014.

  1. I AM ME

    I AM ME Spirited Member

    Joined:
    Dec 9, 2013
    Messages:
    113
    Likes Received:
    0
    hey my ps3 ylod'd, its my cooler that doesnt work..at all apperantly. anywhore i bought some pc heat sinks and a dremel that im going to put on there so this thing will last, i need an original for my collection so 2 questions:

    1. if i did the hair drier fix work for a while with the pc heatsynks ( there going to be protruding out from the bottom of the case lol )

    2. if the console ylods again after this would the hairdryer fix hinder the possibility of me getting the ps3 reballed in the fiture


    also in case you were wondering for my collection i want the launch consoles, i have a fat ps1, fat ps2, this ylod fat ps3, and a ps4 comeing from amazon as a bday preasent from my gf

  2. heyya

    heyya Member

    Joined:
    Jan 4, 2014
    Messages:
    5
    Likes Received:
    0
    Chances are hairdryer will not get hot enough. I always use a heatgun

  3. I AM ME

    I AM ME Spirited Member

    Joined:
    Dec 9, 2013
    Messages:
    113
    Likes Received:
    0
    if i had one i would use a heatgun, but i did a hair dryer fix before where you put the mobo in a box and heat it for 15 minuits

  4. Jackhead

    Jackhead Site Soldier

    Joined:
    Apr 2, 2008
    Messages:
    2,433
    Likes Received:
    610
    The hairdryer will maybe get the unit back to live for a backup. But will not be a solution.
    A prof reball is allways the best solution.

    Last edited: Jan 31, 2014
  5. I AM ME

    I AM ME Spirited Member

    Joined:
    Dec 9, 2013
    Messages:
    113
    Likes Received:
    0

    i know, i did the hair dryer fix ( stripped it down to the mobo first ) and once i get 2 of these :(http://www.newegg.ca/Product/Product.aspx?Item=N82E16835103064) im going to mount them and see how long it lasts, if it dies then ill get it reballed

  6. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    Heatguns are only used by people who lack any forethought as to how bad of an idea it is and why they should do things the right way.

  7. Eviltaco64

    Eviltaco64 or your money back

    Joined:
    Jul 16, 2008
    Messages:
    1,027
    Likes Received:
    136
    If you have time to reflow every once in awhile, it will stagger along on life support but you will have to start reflowing it more and more often over time.

    As long as the core problem (poor quality lead-free solder that's slowly cooking itself) exists, the YLOD will persist.

  8. A Toubib

    A Toubib Midnight Xbox Crew

    Joined:
    Jun 22, 2013
    Messages:
    647
    Likes Received:
    109
    To answer question 2, yes OP if you do the hair dryer trick and damage another component outside the GPU/CPU (which could happen) a reball would be effectively useless.

    Also did you put new thermal paste after opening the console up?

  9. I AM ME

    I AM ME Spirited Member

    Joined:
    Dec 9, 2013
    Messages:
    113
    Likes Received:
    0
    i know it could do damage to other components but i was asking if i could still get it reballed and such later. yes i did put new thermal paste on the board, however for some reason the stock heatsink wont make full contact with either of the chips, i think the console was reballed before i purchassed it and somehow the chips arent sitting flat, also there is flux around the rsx and the cell that i hat to clean.

    the console came heavily damaged, the seller said the dvd drive didnt work and it had an overheating problem. i figured that it would need a new drive and a fan cleaning/thermal paste replacement at the most. when i opened it i found these extra issues:
    1:) most of the RF shielding had been yellowed from the console being smoked around
    2:) anything thats white (the power supply cable that goes from the psu to the mobo, the label on the hdd, etc) had a brown coating
    3:) litterally 20% contact between one of the processors and the cooler ( i know becuase the guy spread the thermal thin enough i could see what had touched)
    4:) flux on the mobo
    5:) thermal paste that looks like as5 on the motherboard
    6:) a few areas on each of the heat spreaders that look like he stabbed at the chips with a screwdriver fairly hard ( litterally hundreds of little dents )

    so my plans are too:
    1:) install a new disk drive
    2:) buff the heat spreaders so there flat again ( dremel coming from amazon soom )
    3:) install a few coolermaster heatsinks
    4:) add ram heatsinks
    5:) install a 500gb hdd
    6:) possibly get the system reballed with leaded solder




    edit: i forgot, for some reason the power button works to turn the console on but it wont turn it off, i need to turn if off from the xmb. no clue why

    Last edited: Jan 31, 2014
  10. Jon2887

    Jon2887 Member

    Joined:
    Feb 9, 2014
    Messages:
    13
    Likes Received:
    0
    Yeah get it reballed if you can. A lot of shops don't reball due to time and ability to do. I don't know anyone else other than myself who reballs in my area (plenty of professional heat gunners though!)

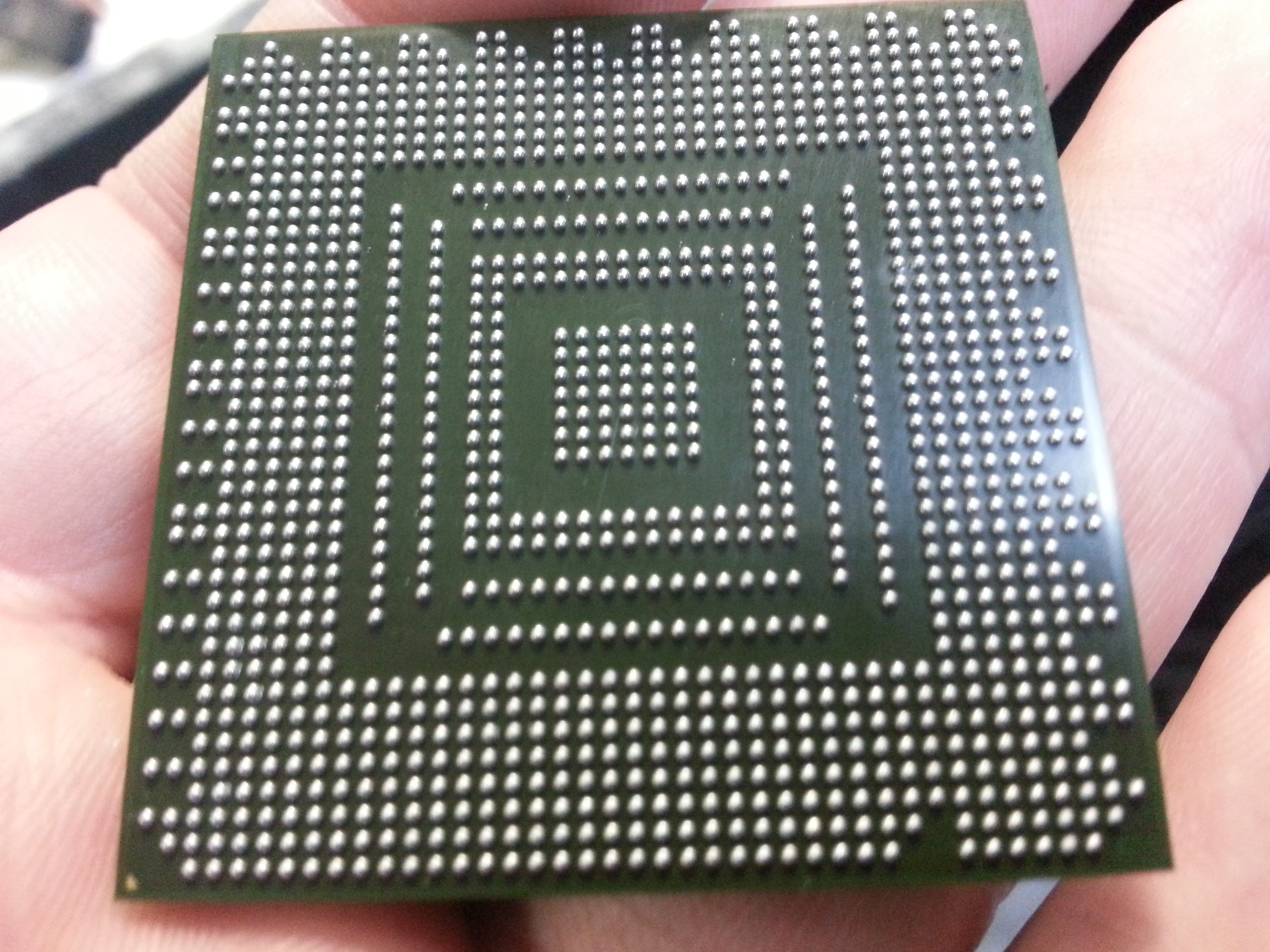

    This is what you want:

sonicdude10
