PSVITA bad LCD backlight, help to find correct voltages

Discussion in 'Repair, Restoration, Conservation and Preservation' started by Mauro, Aug 4, 2018.

  1. Mauro

    Mauro Member

    Joined:
    Sep 16, 2016
    Messages:
    5
    Likes Received:
    1

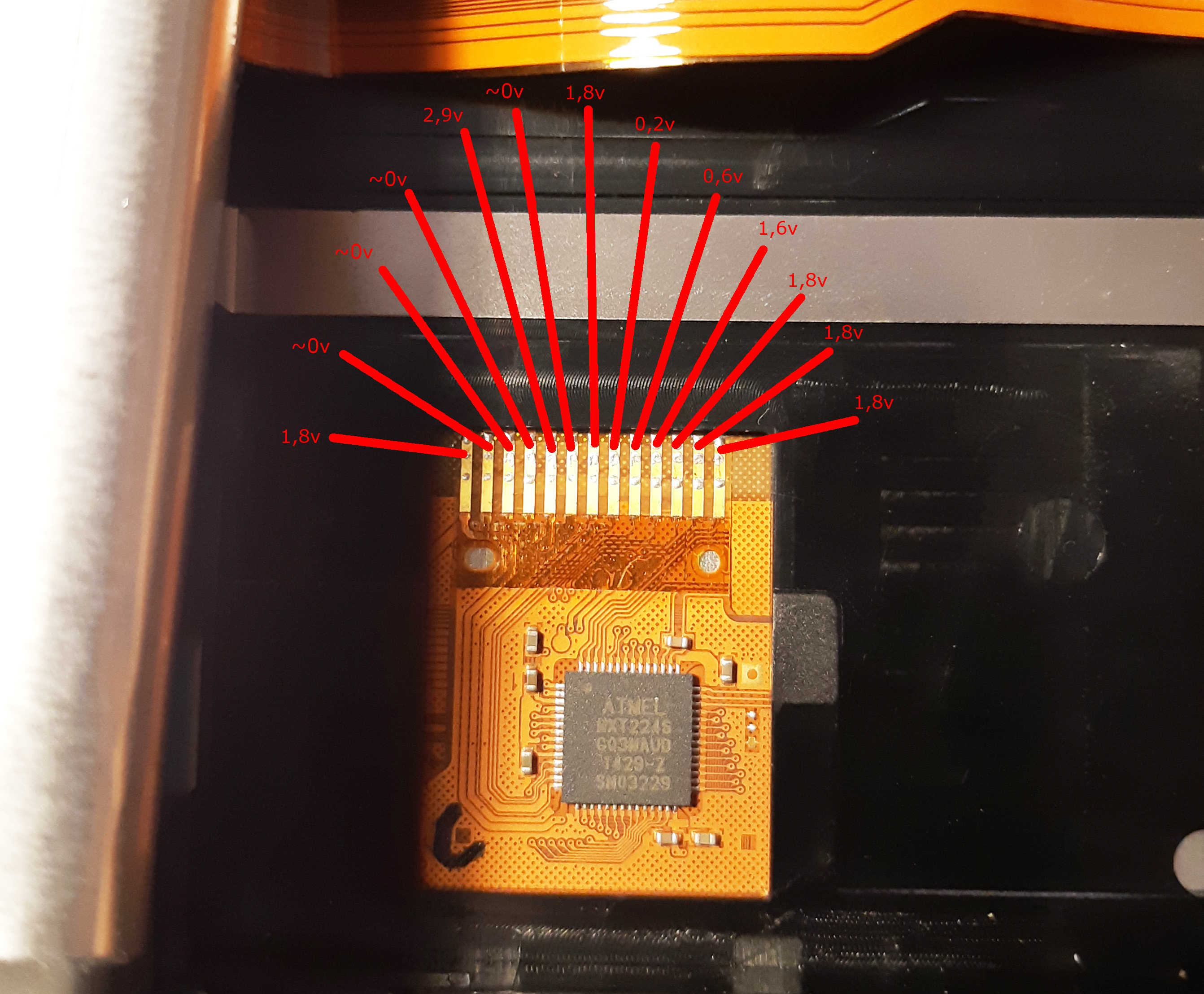

    Hi all, I have a Sony PSVITA 2000 (slim model) with monitor backlight that doesn't work (completely off, while monitor itself and touchpanel are ok). Anyone so nice to share the voltage readings at the AMTEL chip behind the Vita battery for me? I have the readings in attachment

    My guess is the voltage regulator or some transistor is faulty on the mother board, but I need to trace back the voltages to find the bad guy

    Thanks a lot in advance


    Attached Files:

  2. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,308
    I'd imagine most of those are digital signals, not power lines.

    You can't really measure them with a multimeter.

    TerdFerguson likes this.
  3. Mauro

    Mauro Member

    Joined:
    Sep 16, 2016
    Messages:
    5
    Likes Received:
    1
    Definitely so, but one has to be the power line indeed... Any clue which one?

    TerdFerguson likes this.
