[REQ] PSP Testing Tool motherboard pictures

[REQ] PSP Testing Tool controller motherboard pictures

Hello all. Does anyone have any pictures of the PSP Testing Tool controller motherboard, or if they can take one?

Thank you.



In the assembly guide (and the thread)-

http://www.assemblergames.com/forums/showthread.php?16782-Sony-PSP-Test-assembly-guide



Thank you but I meant the controller. Sorry for the confusion but thanks again, anyway.



Haha, totally missed that... I have a couple of spare controller boards actually, I'll take pics of them tonight.

Not much to them though, I think just the LCD controller chip and that's it...



Okay, here's the two spare boards I have (I'll see about opening my working controllers and see if they have different board revs in them at some point). Seems like there's a little more circuitry on them than I thought...

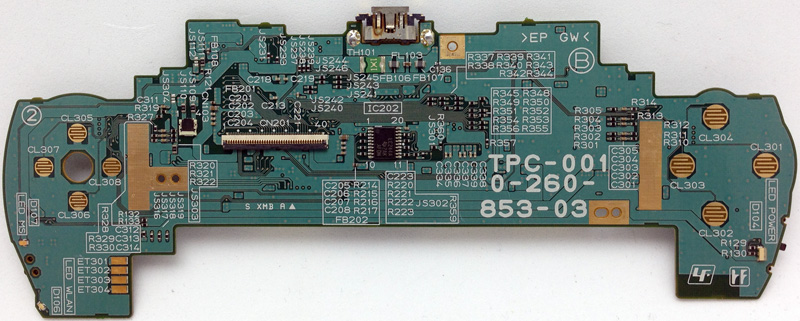

These are from the DTP-H110, this one appears to be a Rev 3 maybe? Based on the part number...
TPC-001 0-260-853-03

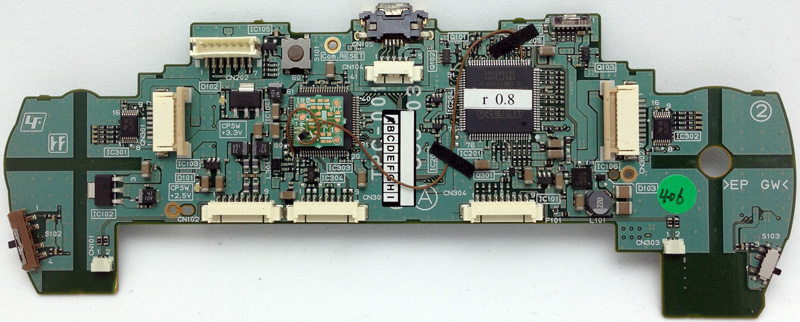

Notice the little circuit board stuck to the top of a chip with a transistor or something on it... Quick manufacturing fix of the board.

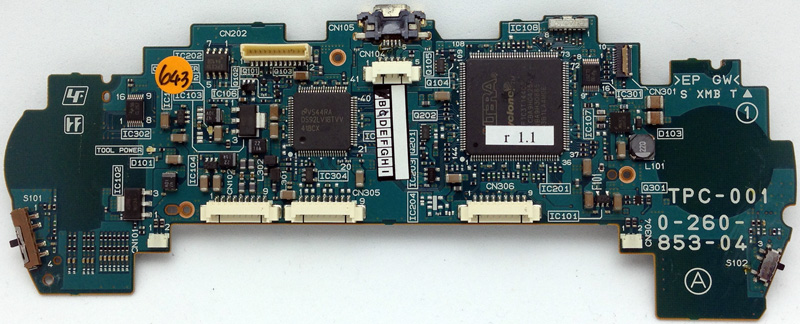

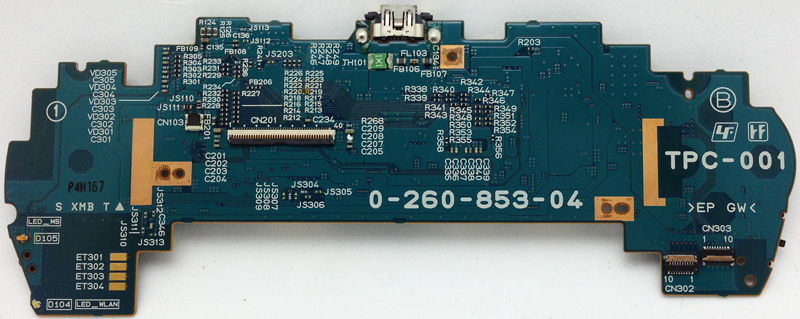

And here's a Rev 4:
TPC-001 0-260-853-04



Enjoy...



その調子でTesiting Tool の高解像度写真もお願いします......



I think those pictures are fine, thank you very much Psycho
