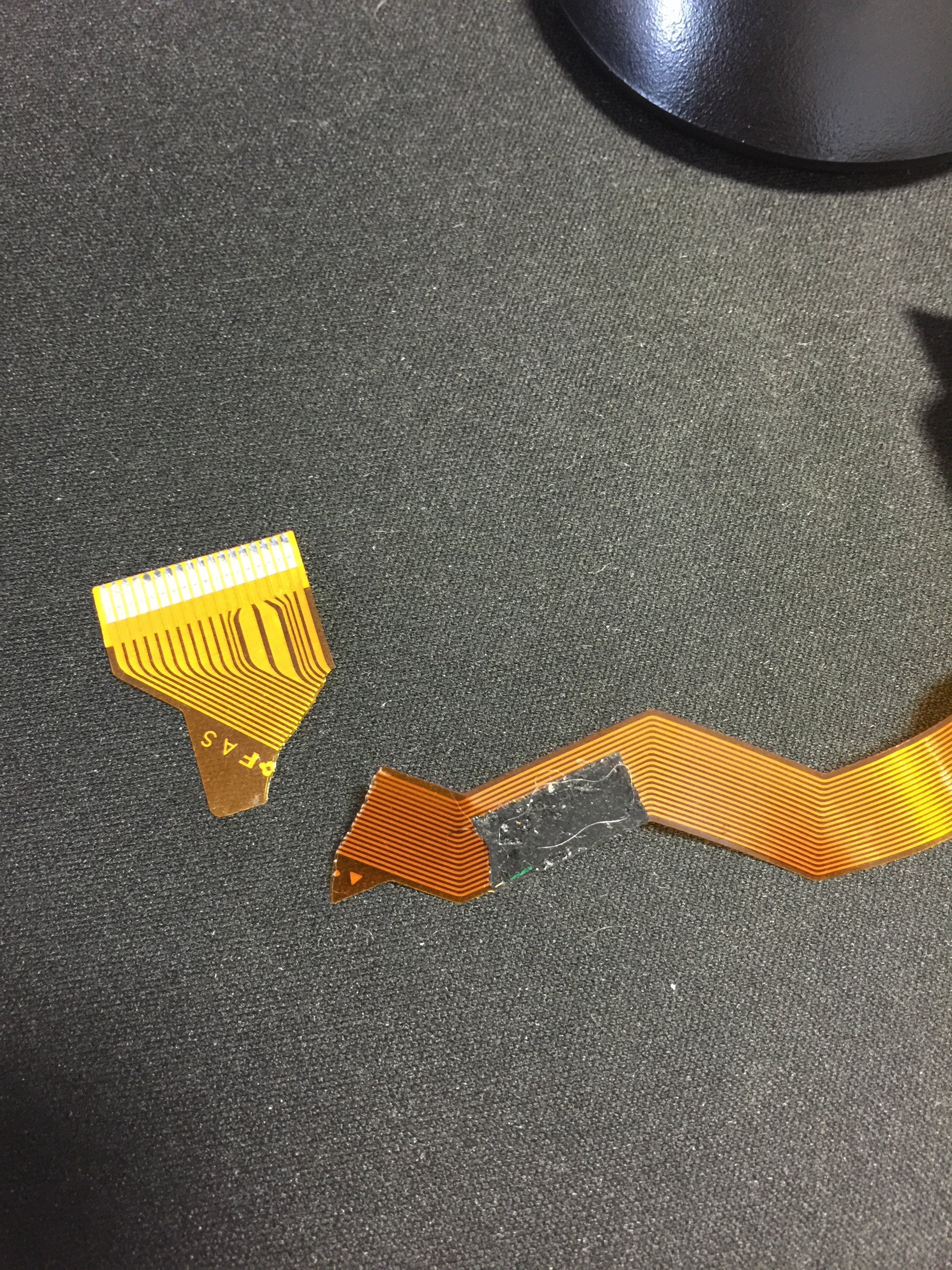

    So it arrived. Opened her up to find the ribbon cable sheared. Don't suppose anyone has a spare :(


    Attached Files:

  2. takeshi385

    takeshi385 Mojarra Frita Bandit

    Joined:
    Mar 29, 2011
    Messages:
    1,856
    Likes Received:
    164
    Your best bet may be to count the pins of the ribbon cable and order one off eBay that has the same. Measure the length of the cable as well. The only issue might be the pitch also known as the spacing between the pins. In general it is 2.54 on most things. Also even though it is a type of ribbon cable it is a ffc cable so search for that. Best of luck.

  3. VerticalE

    VerticalE Robust Member

    Joined:
    Feb 28, 2012
    Messages:
    290
    Likes Received:
    177
  4. radiokid

    radiokid Rising Member

    Joined:
    May 10, 2016
    Messages:
    50
    Likes Received:
    3
    Ha yeah I did actually consider tape, but neither end has enough exposed copper. The other issue is that one end is what looks like 1mm pitch and the other is 0.5mm pitch, and I can't find anything like that.

  5. GoodTofuFriday

    GoodTofuFriday Site Supporter 2015,2016,2017

    Joined:
    Sep 1, 2013
    Messages:
    498
    Likes Received:
    194
    Its repairable. The easiest option if the other end is not a ZFI connector is to expose the cooper on both ends of the tear and solder together. hopefully you can expose the copper on the underside of it. That way you can just overlap the exposed parts and solder.

  6. takeshi385

    takeshi385 Mojarra Frita Bandit

    Joined:
    Mar 29, 2011
    Messages:
    1,856
    Likes Received:
    164
    If all else fail you make a pitch adapter board i.e. one side has a a connect for .5mm and the other for 1mm, then use two different ffc's. Or you could solder wires, though things are nicer if they can come apart.

    rso likes this.
  7. radiokid

    radiokid Rising Member

    Joined:
    May 10, 2016
    Messages:
    50
    Likes Received:
    3
    Gonna try exposing the copper, I'm thinking maybe an exacto knife to rub away the coating. If I can do that and line both sides up the next question is how to solder them together, could be hard to do and also prevent bridging. Unless I just line then up and use take to keep the parts connected.

    The alternative is maybe use some AWG30 wire to connect each track on the cable. I've done some pretty fine pitch work before so it should be doable.

  8. GoodTofuFriday

    GoodTofuFriday Site Supporter 2015,2016,2017

    Joined:
    Sep 1, 2013
    Messages:
    498
    Likes Received:
    194
    Once exposed tin all of the exposed copper. make sure there are no globs so that you can prevent briding. Then when you place on top of each other you can just place the soldering iron on top of the over lapped to melt the solder, as the heat will go through enough to melt the solder. As long as there was enough solder the connections shouldnt be too fragile, but after testing it works id recommend gluing it in some way.

  9. takeshi385

    takeshi385 Mojarra Frita Bandit

    Joined:
    Mar 29, 2011
    Messages:
    1,856
    Likes Received:
    164
    Flux paste will help prevent bridging.
