Sega Genesis unknown power component

Discussion in 'Repair, Restoration, Conservation and Preservation' started by TriState294, Apr 26, 2015.

  1. TriState294

    TriState294 Site supporter 2016

    Joined:
    Feb 20, 2012
    Messages:
    274
    Likes Received:
    48
    I'm embarrassed to say I did this, but I plugged a power cord with reversed polarity into my Sega CD (model 2). The Genesis (VA 2.3) was also attached at the time of the incident. The Sega CD is fused, and luckily, all I blew on the Sega CD was the fuse. I replaced the fuse and tested it with another Genesis, and all is well.

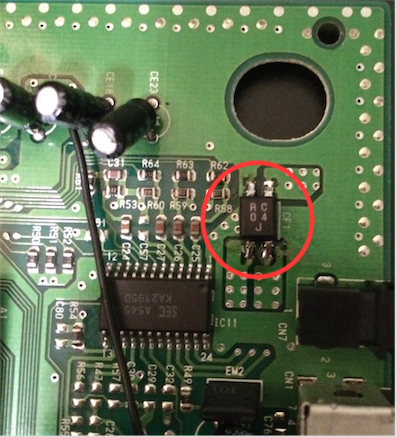

    After the incident, the Genesis appeared "fried" as well. The Genesis is not fused in the way that the Sega CD is, so I had to start hunting around for what I blew up. I swapped out the regulator without success. Then I swapped out a component labeled "CF1" from another working Genesis board, and all seemed well again. What is "CF1"? How would I go about buying one on Mouser or the like? Here's a photo of it:


  2. wilykat

    wilykat Site Supporter 2013

    Joined:
    Mar 25, 2012
    Messages:
    991
    Likes Received:
    45
    Not sure as the marking is odd. It could be a bridge rectifier. It shouldn't blow on reversed polarity since it'd correct anyway but if one of the 4 internal diode is bad, it may prevent power supply from getting through.

  3. dc16

    dc16 Dauntless Member

    Joined:
    Jan 20, 2013
    Messages:
    751
    Likes Received:
    20
    The second Sega Genesis I fixed, I messed up that part because I shorted the system when I mixed the ground and voltage when I reflowed the solder for the power port. Console5 told me to remove that part and connect the points directly.

  4. TriState294

    TriState294 Site supporter 2016

    Joined:
    Feb 20, 2012
    Messages:
    274
    Likes Received:
    48
    If that worked, that means this part is not a diode. If shorting these points work, that suggests that this is in fact some sort of fuse. Right?

  5. boom10ful

    boom10ful Active Member

    Joined:
    Apr 7, 2014
    Messages:
    47
    Likes Received:
    0

    Kind of reminds me of an EM (Electro Magnetic) Filter.

  6. ApolloBoy

    ApolloBoy Gutsy Member

    Joined:
    Sep 22, 2011
    Messages:
    425
    Likes Received:
    0
    And that's exactly what it is.
