Sega Master System 2 RGB mod not working

Discussion in 'Modding and Hacking - Consoles and Electronics' started by tezting, Jan 4, 2014.

  1. tezting

    tezting Newly Registered

    Joined:
    Jan 4, 2014
    Messages:
    1
    Likes Received:
    0
    Hi,
    I have followed this guide:
    http://kaikoshumi.webs.com/mastersystemiimod.htm

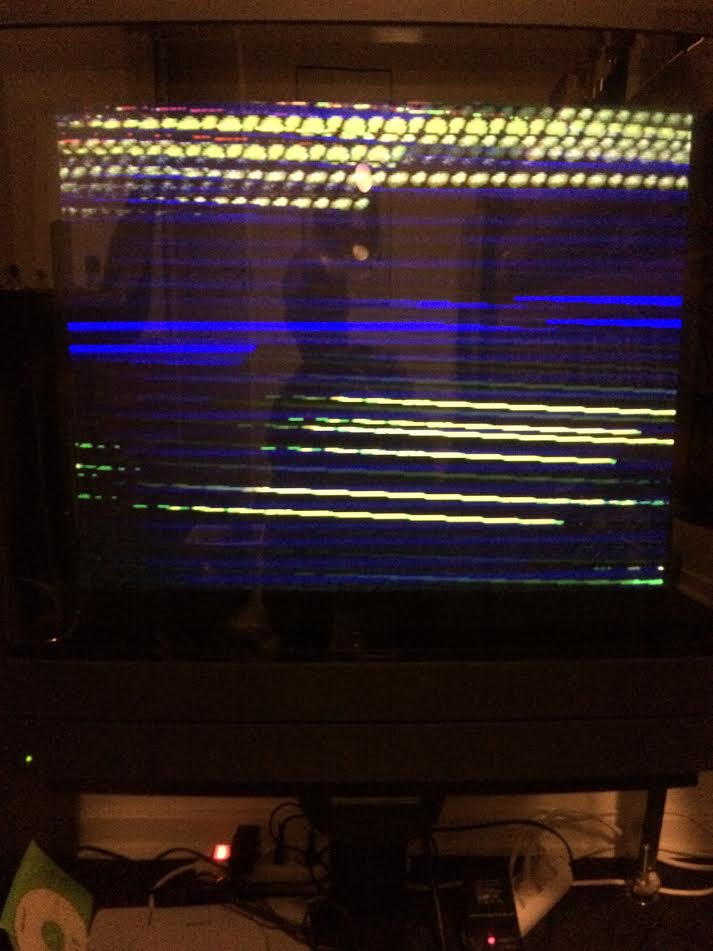

    But all I see is:

    I have double checked everything and I can not see what is wrong. I can hear the sounds from the game but it is not very loud (dont know if that is normal)

    Please help me

  2. sanakan

    sanakan Member

    Joined:
    Sep 8, 2013
    Messages:
    6
    Likes Received:
    0
    Hi
    total newb myself, but done a bit of googleing, since i want do the same mod soon.


    from http://www.smspower.org/Development/VideoOutput

    Your horizontal sync seems to be off by just a tiny margin.

    The guide in your link uses pin20.
    (scart allows for some wierd hacks where the sender is free to put the whole composite signal on the sync line and the receiver deceides to either use that and ignore the rest - or - extract only the sync info from the composite signal and use rgb from the distinct lines)

    Maybe also an adjustable capacitator and some wiggling on the sync line is enough.

    Again - only posting in case no one else answers you, as i hardly have a clue myself.

  3. retro

    retro Resigned from mod duty 15 March 2018

    Joined:
    Mar 13, 2004
    Messages:
    10,354
    Likes Received:
    822
    Could you be more specific? What country are you in? Is that a CRT TV? Are you using SCART? Did you wire a SCART socket as per the guide and use a standard SCART cable? Which version motherboard do you have - is the chip a Sony?

    It's either a sync issue or a switching issue, I'd imagine. Check that your switching voltage is correct first. Some TVs use pin 8 for RGB switching, which is why it's usually wired to pin 16, via a resistor - pin 16 only needs 1-3V for RGB switching.

    If you're in America and/or using a monitor such as a PVM, you might need a sync stripper.

    Why is there a resistor and capacitor on the composite line? That seems crazy. I'd try without them.

  4. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,309
    I think the composite video has the resistor and cap on the board usually. If you are soldering directly do the chip, you are bypassing the on board resistor and cap.

  5. io.

    io. Member

    Joined:
    Oct 30, 2011
    Messages:
    23
    Likes Received:
    0
    It's like a synch problem. Sometime when the TV doesn't autoswitch properly to the right AV channel, it does that.
    I don't like autoswitch via pin 8 of the SCART/Péritel, so I never wire it (and it's not wired in kaikoshumi's guide). But you have to wire pin 16, it's for RGB activation.
    First, try to manually switch to the right AV channel and see if you still get the same.

    Last edited: Jan 10, 2014
