Sega SKC-1000C Saturn Bios and sub board bios dumps

Discussion in 'Sega Saturn Programming and Development' started by CoolMod, Oct 20, 2014.

Watch Thread
  1. CoolMod

    CoolMod Peppy Member

    Joined:
    Dec 31, 2006
    Messages:
    364
    Likes Received:
    173
    Got around to desoldering the main bios on the Saturn. Enjoy!

    Sega Saturn Bios:

    https://www.dropbox.com/s/e4pifh6nkz58av2/MPR-17450A.w04 <----Need to BYTE SWAP


    Sega Harmony Board:

    https://www.dropbox.com/s/dcxp4qv4fgyjj4h/01-HR-SE- Sega Harmony board

    Sega Modem Board:

    https://www.dropbox.com/s/sr55zb4wudkwcpe/IC9-DSP14.4736 Modem Board

    https://www.dropbox.com/s/ldrpdae65i8iyte/IC14-DSP.V1.62S Modem Board

    Sega Denon I/O Board:

    https://www.dropbox.com/s/65079yit9p0vxuy/IC451-v3.8-Denon IO Unit

    https://www.dropbox.com/s/ulr8fwqwa71zne9/IC452-v3.8-Denon IO Unit


    [​IMG]

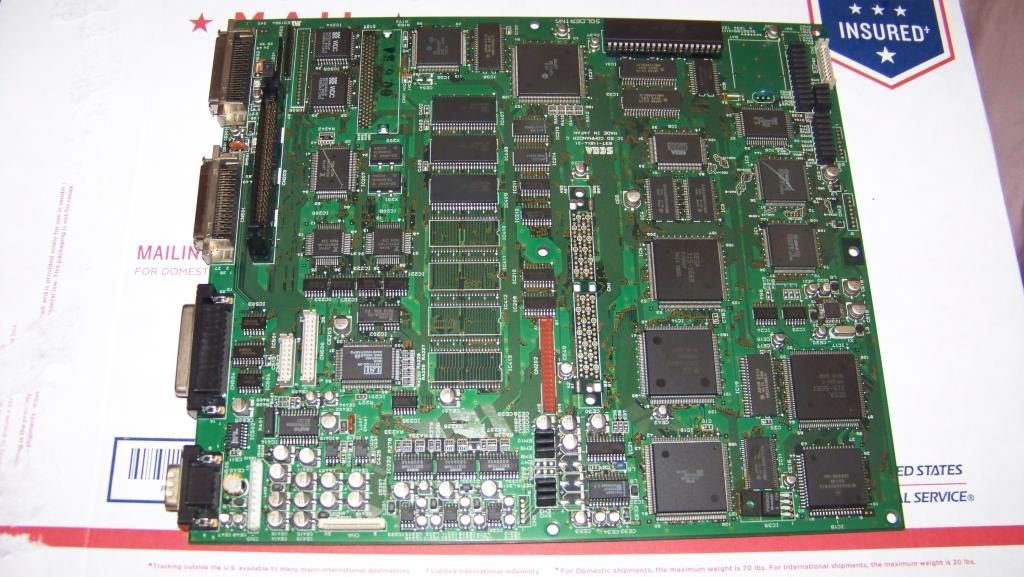

    What's interesting to note is even though the PCB layout is quite different from a normal saturn, it still has spaces for the cart slot and mpeg slot. I'm sure they left the connectors out though due to space reasons.

    Last edited: Oct 20, 2014
    CoolMod, Oct 20, 2014 Report
    #1 + Quote Reply
  2. Druidic teacher

    Druidic teacher Officer at Arms

    Joined:
    Jun 6, 2006
    Messages:
    3,643
    Likes Received:
    129
    x

    Last edited: Jun 22, 2017
    Druidic teacher, Oct 21, 2014 Report
    #2 + Quote Reply
  3. CoolMod

    CoolMod Peppy Member

    Joined:
    Dec 31, 2006
    Messages:
    364
    Likes Received:
    173

    Ah, I was going to do those, but it looked to be a pain..so I held off hah. It's always great to find notes in the code lol..

    Last edited: Oct 21, 2014
    CoolMod, Oct 21, 2014 Report
    #3 + Quote Reply
