SH2 in-circuit emulator high resolution images

I was asked to provide some high res images of my SH2 ICE module, so I might as well share for all!

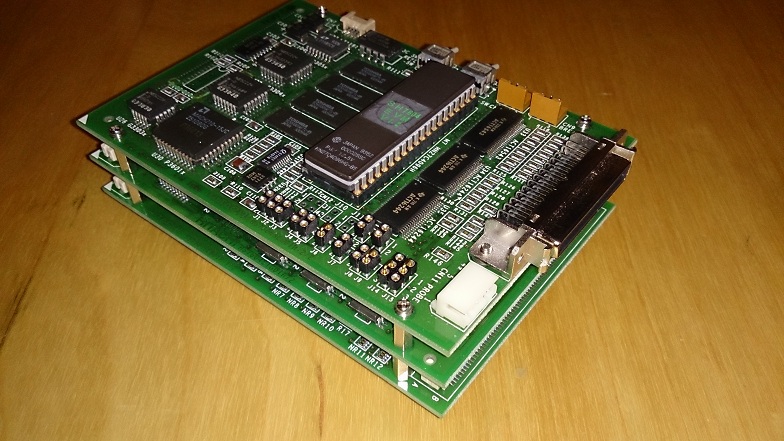

There's 3 PCBs, held together with chunky sockets and some board mounts, with the SH2 sockets at the bottom. There's a few switches and connectors, I'm not yet sure what they do since I'm struggling to find the documentation. Also included is some shots of the ISA card that goes with it:

http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_Front.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_Left.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_Right.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_Rear.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_PCB_A_Top.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_PCB_A_Bottom.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_PCB_B_Top.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_PCB_B_Bottom.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_PCB_C_Top.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_PCB_C_Bottom.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_ISA_card_front.jpg
http://www.fileden.com/files/2012/3/23/3282359/SH2_ICE_ISA_card_rear.jpg

The unit isn't for sale, sorry. These images are just to satisfy curiosity, for archiving or documenting, or for comparison with other gear. Once I've finished my Megadrive project, I'll be getting the rest of this kit together and hopefully using it for Saturn development!



x



It slots into a Sophia unit, in place of the removable CPU cards, so perhaps this is how it was done before the SH2 was manufactured.



x



Ahh I see, I didn't pay much attention to the chips on it. Perhaps this is something different, then?



x



That's not an ICE. It's the EVA board.

Do you have the cable to connect it to the ISA card?



Hi friends i am here i just want to ask you and also say you that I know that it spots there; I mean I believed that the E7000 ICE was an whole device that copied the processor, but the photos you submitted have an real SH2 on them. So it looks more like a debugging place instead? I don't know...
