SNES bottom shell issue?

Discussion in 'Repair, Restoration, Conservation and Preservation' started by sonicsean89, Jan 26, 2013.

Watch Thread
  1. sonicsean89

    sonicsean89 Site Soldier

    Joined:
    Dec 19, 2012
    Messages:
    2,207
    Likes Received:
    157
    So, I got a really falling apart SNES with the intention of replacing the top shell and reselling it (the system works fine). Unfortunately, the bottom wouldn't give up the screws and started breaking as I unscrewed it. As an aside, that has to be the crummiest plastic I've seen, it literally broke off in my hands. So, I looked on eBay and got a bottom shell.

    When I tried replacing it, I found out it was a different mold, made for the updated SNES board (with the sound chip soldered on as opposed to separate). So my question is, how can I remove the middle ridge to make the board fit properly in the shell without damaging the shell?

    sonicsean89, Jan 26, 2013 Report
    #1 + Quote Reply
  2. HEX1GON

    HEX1GON FREEZE! Scumbag

    Joined:
    May 4, 2011
    Messages:
    9,916
    Likes Received:
    837
    File it?

    HEX1GON, Jan 27, 2013 Report
    #2 + Quote Reply
  3. wiggyx

    wiggyx Spirited Member

    Joined:
    Jul 5, 2012
    Messages:
    108
    Likes Received:
    1

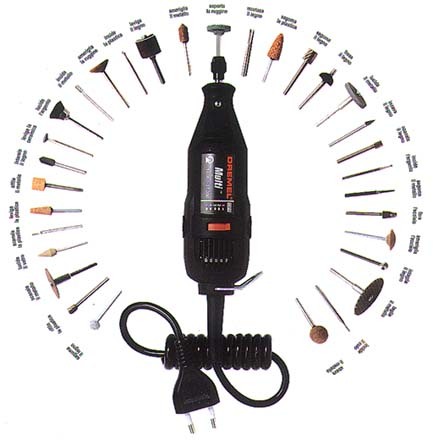

    One word: Dremel.

    [​IMG]

    wiggyx, Jan 27, 2013 Report
    #3 + Quote Reply
  4. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    The case is pretty brittle.

    You can cut the ridge down with a sideways box cutter. Dremel puts out too much heat, and cuts way too fast. Plus you can't get shallow enough angle to make it flat.

    Sideways box cutter, and patience.

    ASSEMbler, Jan 27, 2013 Report
    #4 + Quote Reply
  5. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,309
    Dremel works fine. Any decent one is adjustable RPM to stop you melting the plastic.

    Bad_Ad84, Jan 27, 2013 Report
    #5 + Quote Reply
  6. sonicsean89

    sonicsean89 Site Soldier

    Joined:
    Dec 19, 2012
    Messages:
    2,207
    Likes Received:
    157
    I'll try the box cutter, thanks!

    I just didn't want to go gung-ho on the thing and have it snap in half on me.

    sonicsean89, Jan 27, 2013 Report
    #6 + Quote Reply
  7. wiggyx

    wiggyx Spirited Member

    Joined:
    Jul 5, 2012
    Messages:
    108
    Likes Received:
    1
    There are bits for just this sort of thing ;)

    [​IMG]

    wiggyx, Jan 27, 2013 Report
    #7 + Quote Reply
