SNES Jr black screen and not working

Discussion in 'Modding and Hacking - Consoles and Electronics' started by hugocraft, Oct 18, 2013.

  1. hugocraft

    hugocraft Rising Member

    Joined:
    Nov 20, 2012
    Messages:
    66
    Likes Received:
    0

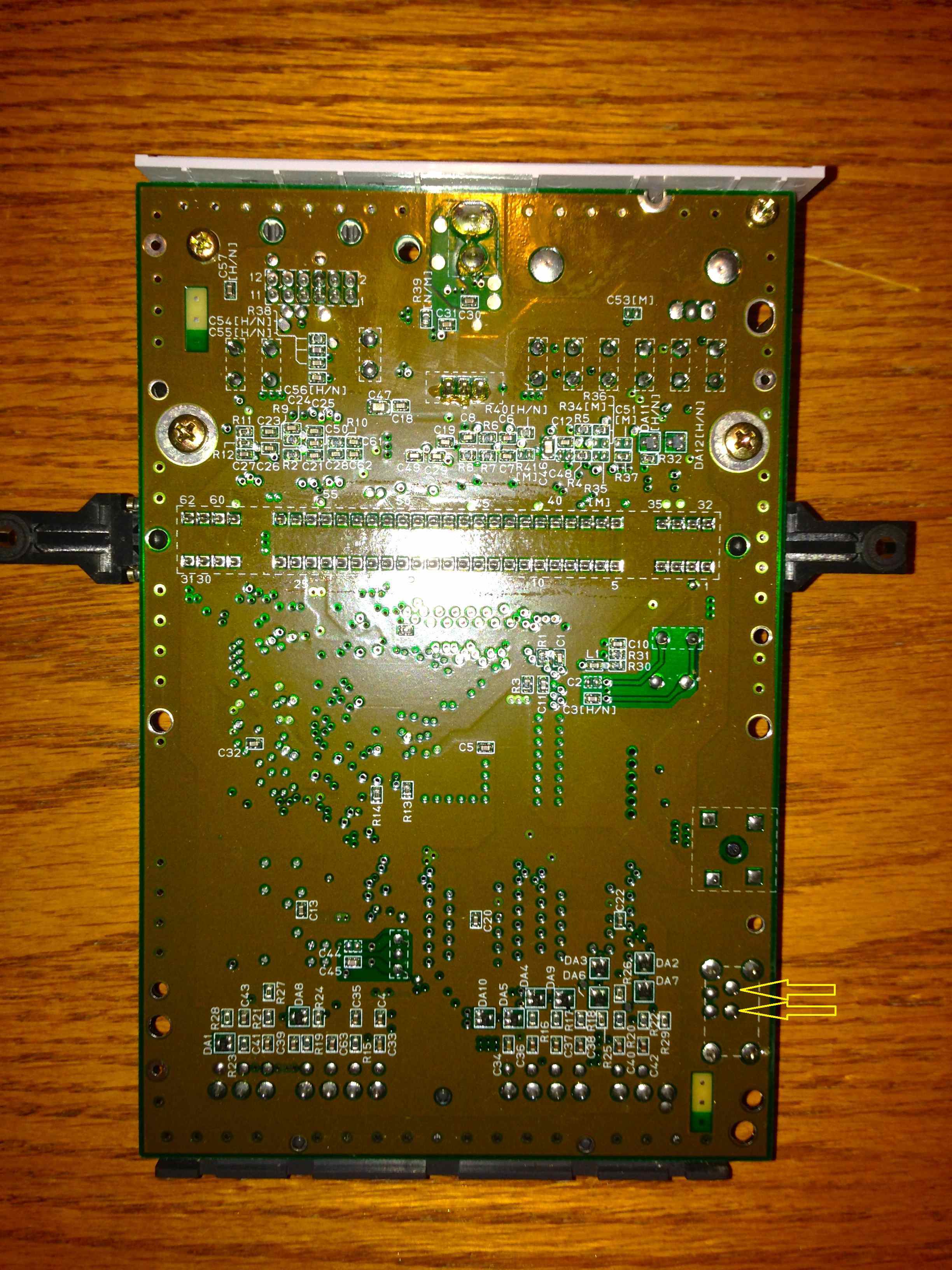

    I was reading those voltages from the 2 pins that drops down from the switch sticking out on the bottom of the board. What does that switch do as in does it just simply short circuit those 2 contacts from - to + or is it just just completing the +/hot circuit. I'm wanting to bypass that switch by connecting those two contacts and see if its the switch causing the problems since its rusted. But I just want to make sure its safe and okay to connect those 2 pins marked in the photo to bypass the switch.

    IMG_0865 (2).jpg

    Last edited: Oct 22, 2013
