Snes RF Pinout

Discussion in 'Repair, Restoration, Conservation and Preservation' started by GoodTofuFriday, Dec 25, 2016.

Watch Thread

GoodTofuFriday Site Supporter 2015,2016,2017

Joined:

Sep 1, 2013

Messages:

498

Likes Received:

194
I don't know why you'll need this info, I did to test if sound was still working through RF, which it wasn't. But here you go

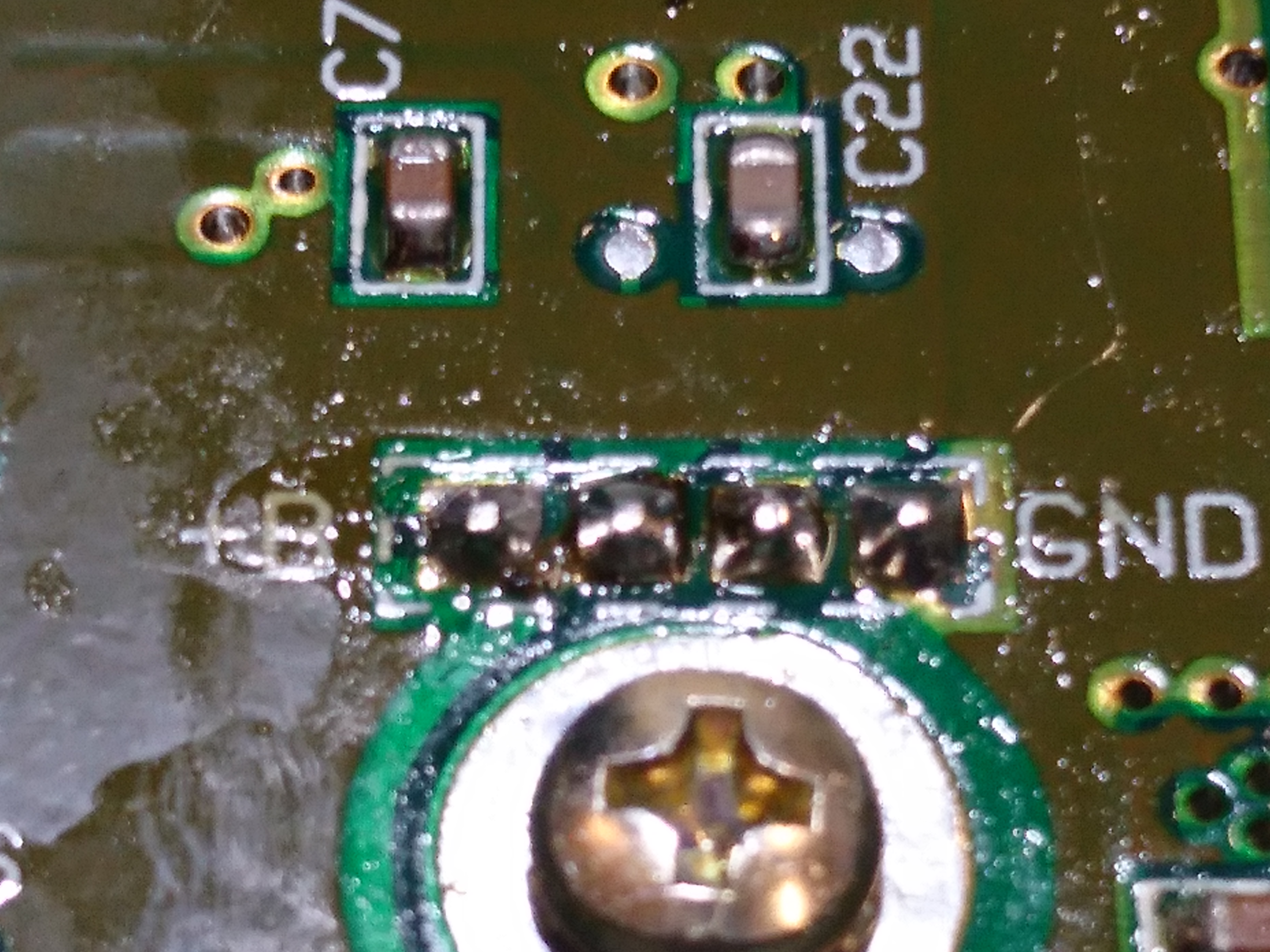

From left to right when looking at the b+ symbol

+5v
Video
Mono Audio
Ground
Attached Files:
- CXDQsxO.jpg

  File size:

  3.9 MB

  Views:

  102
