SNES SuperCIC on SHVC-CPU-01 board

You dont just lift it. Connect to VCC or GND to set mode.

But just use RGB?



Hi,

I lifted and conected it to gnd, because it is conected to 5v in this model.
About the RGB issue, the scart cable that I use is RGB.

Thanks



If the cable is RGB and your TV supports 50hz, then it would work without modification.

Either your cable isnt RGB, your TV isnt RGB, Your TV doesnt support 50hz or your cable is a crappy 3rd party one with components missing.

Open the scart end and post a picture.



Hi,

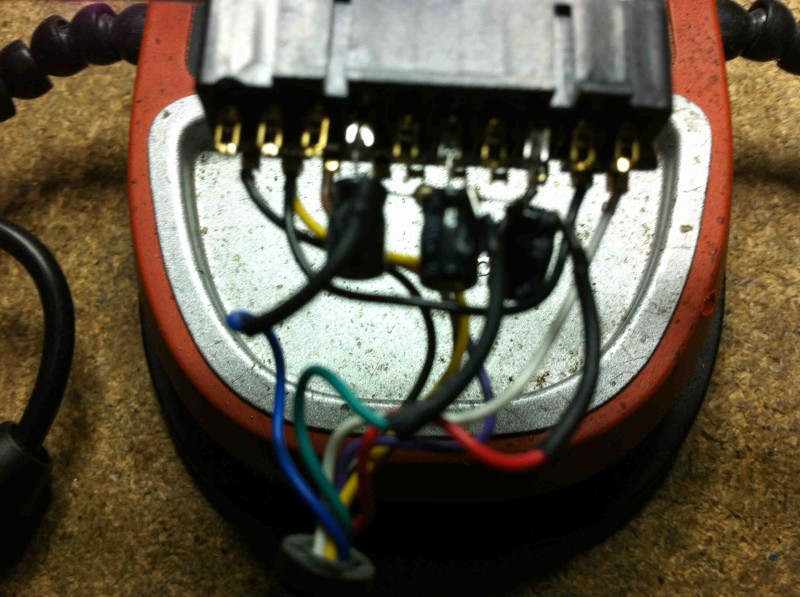

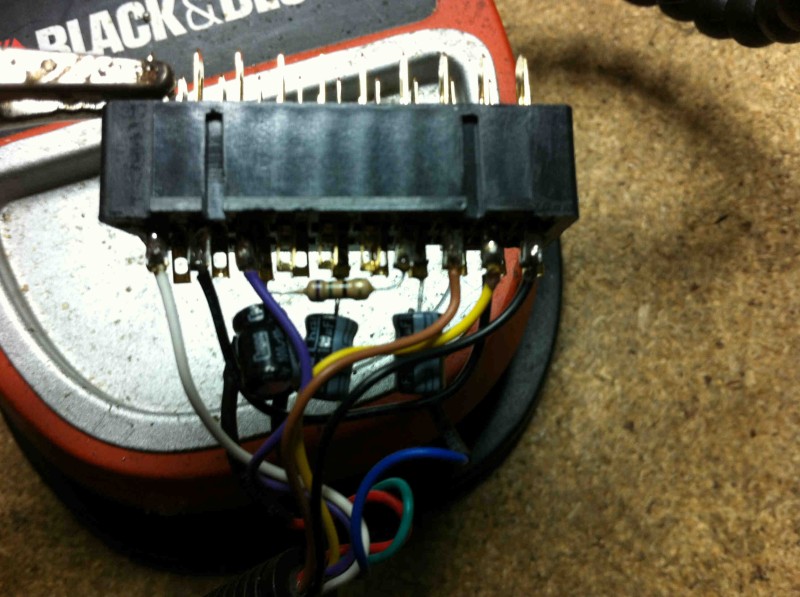

Here are the pictures

http://imagizer.imageshack.us/v2/640x480q90/819/e8hf.jpg

http://imagizer.imageshack.us/v2/640x480q90/21/s0yx.jpg

Un saludo



Can you take a picture looking down at the top of the connector?

Its not clear from your picture, but from how I am seeing it - it looks quite wrong.

top down picture would be very helpful to ensure I am not seeing it wrong.



Hi,

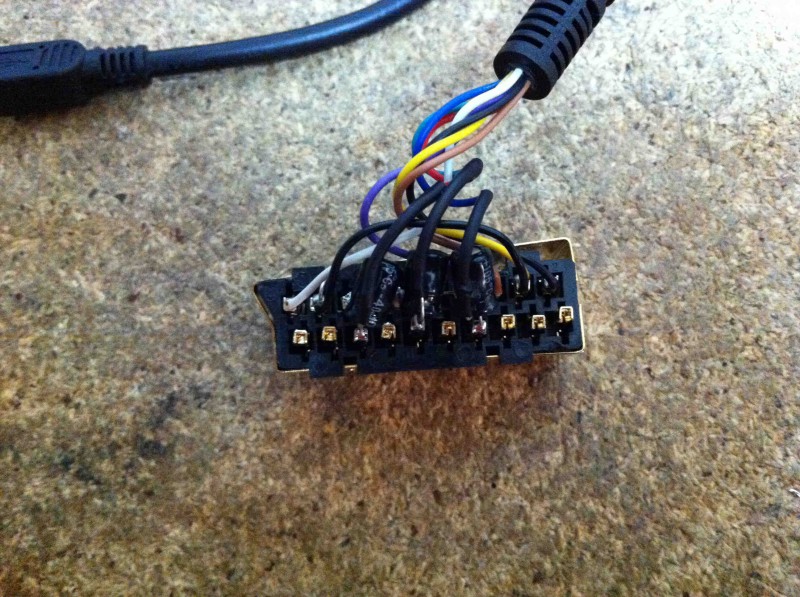

The new pictures



I've checked the pinout and conections and they are correct, only the purple cable is wrong (5v), I've corrected it (this correction is not in the pictures) but nothing change.

Un saludo



I mean down on the top, so the wires are sticking up towards the camera.

But 5v being wrong will certainly cause issues, as you wont be getting the switching voltage to put the TV in RGB mode.



Hi,

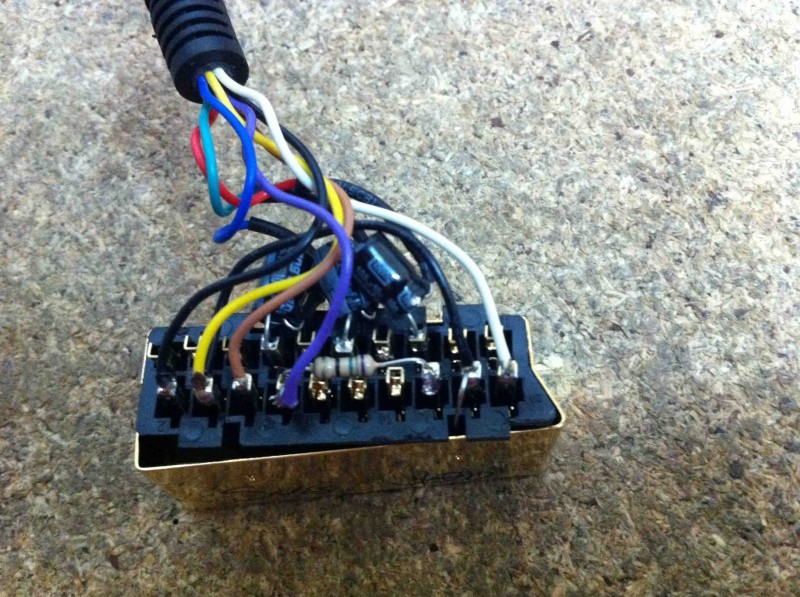

I hope these help you. The 5v cable is now ok in the picture.



Un saludo
