Hi! I have tried to mod my 14N5U to Accept RGB in. I have added all the missing components on the Q board. As best i could. I have added the switch and the cap to the main A board. j101 j102 and j103 are all none existante as it has input A and B from the start I waited an eternity to get the RCA jacks. Now when I assembled it all, i cant get a picture. composite showes something on A and B but mostly black and sound. RGB just buzzes when i switch on a console. No sound and no picture. If i remove the new RGB connector nothing happens. If i remove input B nothing happens. (connector inside) if i remove A the TV wont play sounds (5v is on input A so it shouldnt work) So I need help. Have I missed something on the mainboard or are the new transistors on the Q bord messing things up? If someone have an Idea I will give all the info I can. And if I succeed I will do a full writup on how to mod the 14N6U
Hi there, if you'd like people to help we need a little more info to go off of: 1. What was the operation of your CRT before you did this mod? What inputs does it natively accept? 2. What guide or instructions did you follow to do this mod? 3. Pictures and video are worth more than a thousand words. if you can upload some, it would really help. Those three things would go a long way to getting a reply and some serious investigation into a repair
O, sorry, i fixed it. Picture is perfect. Will do a full wrightup in the near future with pictures and component lists. Thanks!
Here is the component list, i cant seem to figure out how to insert images right now, might do it later if requested. Q Board Diodes: d1314: 8-719-991-33 DIODE 1SS133T-77 d1315: 8-719-991-33 DIODE 1SS133T-77 d1316: 8-719-991-33 DIODE 1SS133T-77 d1317: 8-719-991-33 DIODE 1SS133T-77 d1318: 8-719-991-33 DIODE 1SS133T-77 d1319: 8-719-991-33 DIODE 1SS133T-77 d1320: 8-719-991-33 DIODE 1SS133T-77 d1321: 8-719-991-33 DIODE 1SS133T-77 zd1322: 8-719-923-74 DIODE MTZJ-T-77-11A D1324 8-719-991-33 DIODE 1SS133T-77 D1325 8-719-991-33 DIODE 1SS133T-77 D1326 8-719-991-33 DIODE 1SS133T-77 D1327 8-719-991-33 DIODE 1SS133T-77 D1328 8-719-991-33 DIODE 1SS133T-77 D1329 8-719-991-33 DIODE 1SS133T-77 D1330 8-719-991-33 DIODE 1SS133T-77 D1331 8-719-991-33 DIODE 1SS133T-77 d1332: 8-719-991-33 DIODE 1SS133T-77 d1333: 8-719-991-33 DIODE 1SS133T-77 all diodes replaced with 1N4148 except the zener, witch was a vichy common 11v zener Q-board Capacitors c1317: ELECT 10µF 20% 25V c1319: ELECT 10µF 20% 25V c1320: ELECT 10µF 20% 25V c1322: ELECT 10µF 20% 25V c1325: ELECT 10µF 20% 25V C1333 1-163-121-00 CERAMIC CHIP 150PF 5% 50V C1334 1-163-121-00 CERAMIC CHIP 150PF 5% 50V Q-Board Transistors: q1308 8-729-119-78 TRANSISTOR 2SC2785-HFE q1309 8-729-119-78 TRANSISTOR 2SC2785-HFE q1310 8-729-119-78 TRANSISTOR 2SC2785-HFE q1311 8-729-119-76 TRANSISTOR 2SA1175-HFE q1312 8-729-119-78 TRANSISTOR 2SC2785-HFE Q1313 8-729-119-78 TRANSISTOR 2SC2785-HFE Q1314 8-729-119-76 TRANSISTOR 2SA1175-HFE 2SC2785-HFE replaced with 2N3416 TO92 NSC 2SA1175-HFE replaced with 1 peice if vintage 2SA1175 Q-board Resistors, through hole r1339 1-214-702-00 METAL 75 1% 1/4W r1344 1-214-702-00 METAL 75 1% 1/4W r1346 1-214-702-00 METAL 75 1% 1/4W r1356 1-214-702-00 METAL 75 1% 1/4W R1360 1-214-702-00 METAL 75 1% 1/4W R1363 1-214-702-00 METAL 75 1% 1/4W R1365 1-214-702-00 METAL 75 1% 1/4W Q board Resistors, SMD r1347 1-216-065-00 RES,CHIP 4.7K 5% 1/10W r1348 1-216-119-00 RES,CHIP 820K 5% 1/10W r1349 1-216-107-00 RES,CHIP 270K 5% 1/10W r1350 1-216-097-00 RES,CHIP 100K 5% 1/10W r1351 1-216-095-00 RES,CHIP 82K 5% 1/10W r1341 1-216-073-00 RES,CHIP 10K 5% 1/10W r1345 1-216-009-00 RES,CHIP 22 5% 1/10W r1340 1-216-049-91 RES,CHIP 1K 5% 1/10W r1342 1-216-073-00 RES,CHIP 10K 5% 1/10W r1336 1-216-073-00 RES,CHIP 10K 5% 1/10W r1343 1-216-009-00 RES,CHIP 22 5% 1/10W r1335 1-216-049-91 RES,CHIP 1K 5% 1/10W r1337 1-216-073-00 RES,CHIP 10K 5% 1/10W r1331 1 1-216-049-91 RES,CHIP 1K 5% 1/10W r1333 1-216-073-00 RES,CHIP 10K 5% 1/10W r1338 1-216-009-00 RES,CHIP 22 5% 1/10W r1332 1-216-073-00 RES,CHIP 10K 5% 1/10W r1376 1-216-073-00 RES,CHIP 10K 5% 1/10W r1378 1-216-009-00 RES,CHIP 22 5% 1/10W r1355 1-216-049-91 RES,CHIP 1K 5% 1/10W r1352 1-216-059-00 RES,CHIP 2.7K 5% 1/10W Mainboard (A board) c006 ---- 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V C313 1-163-023-00 CERAMIC CHIP 0.015µF 10% 50V C314 1-163-023-00 CERAMIC CHIP 0.015µF 10% 50V C315 1-163-023-00 CERAMIC CHIP 0.015µF 10% 50V I might have missed one or 2 components or listed something thats unnesseccery, but hey thats better than to not list it. This mod assumes that your 14N5X already have the line A and B inputs! /Nichlas

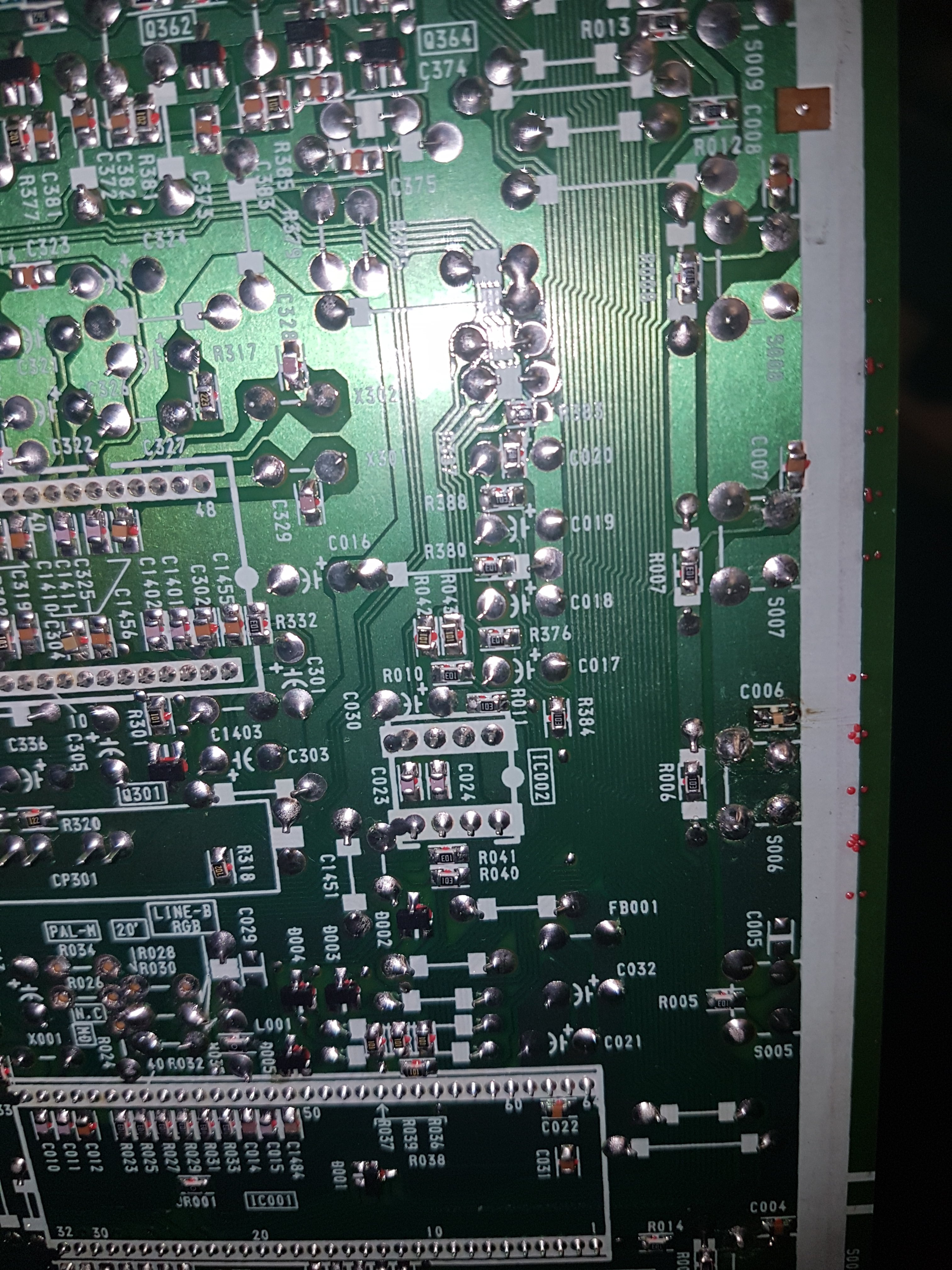

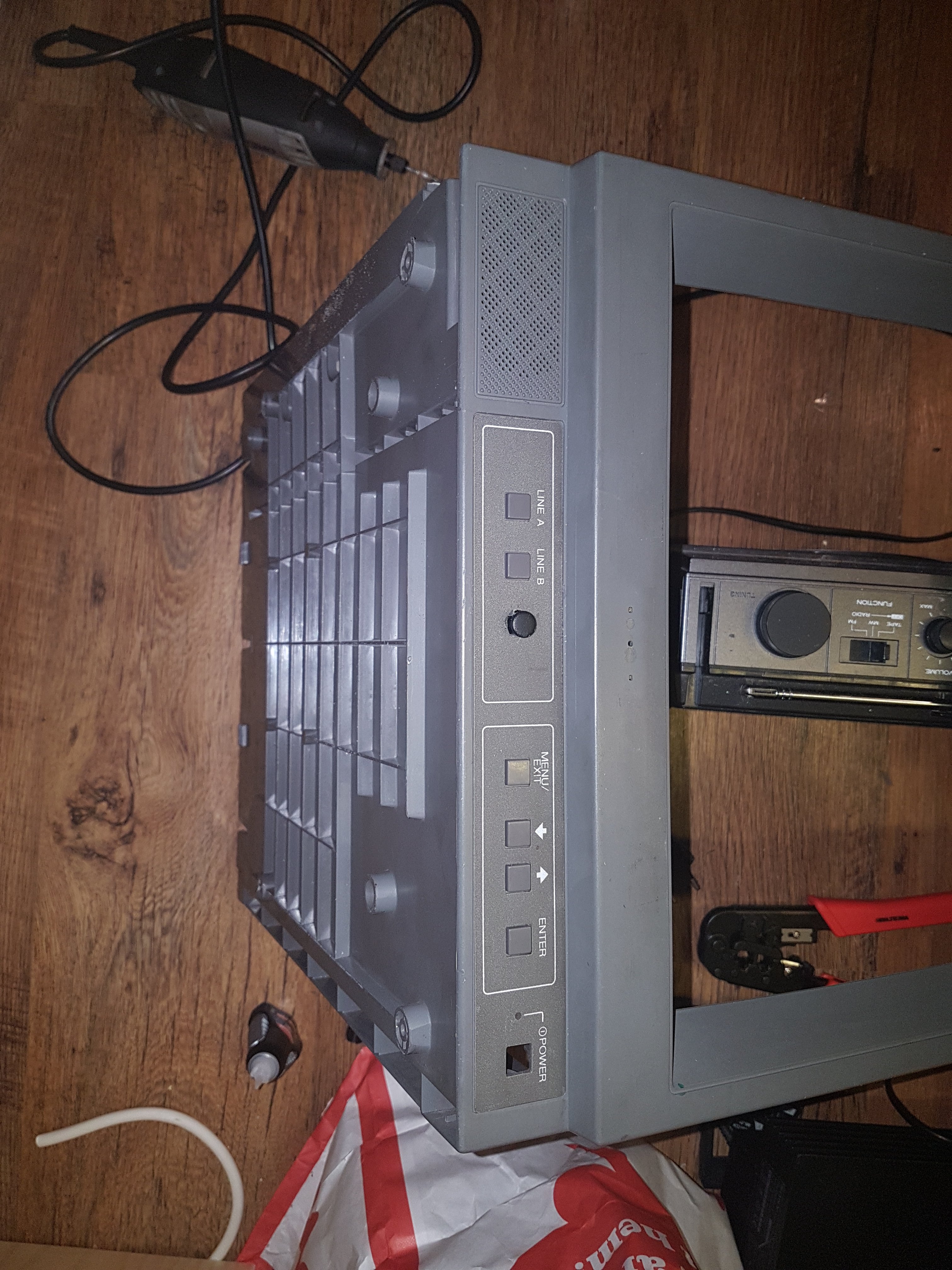

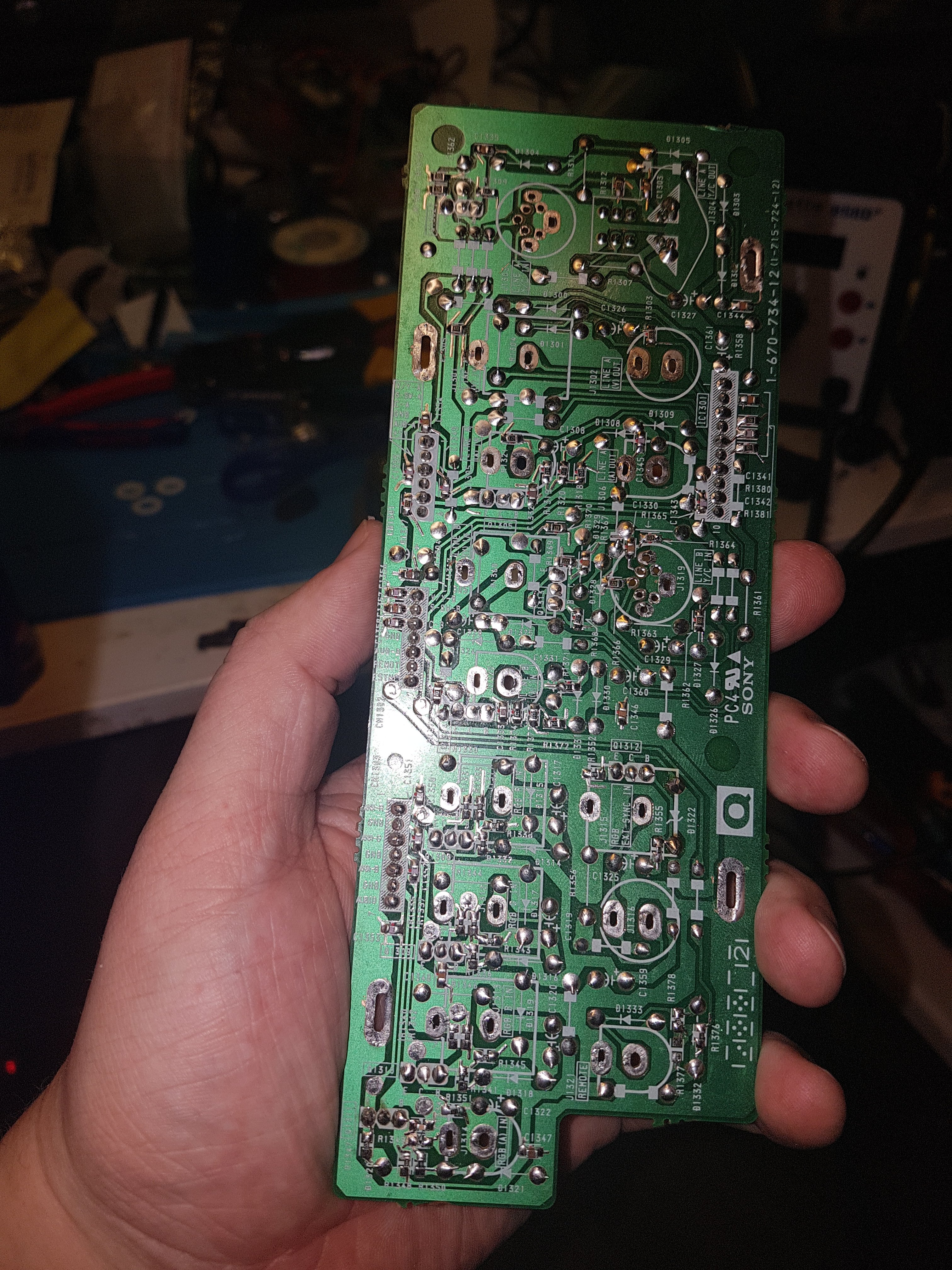

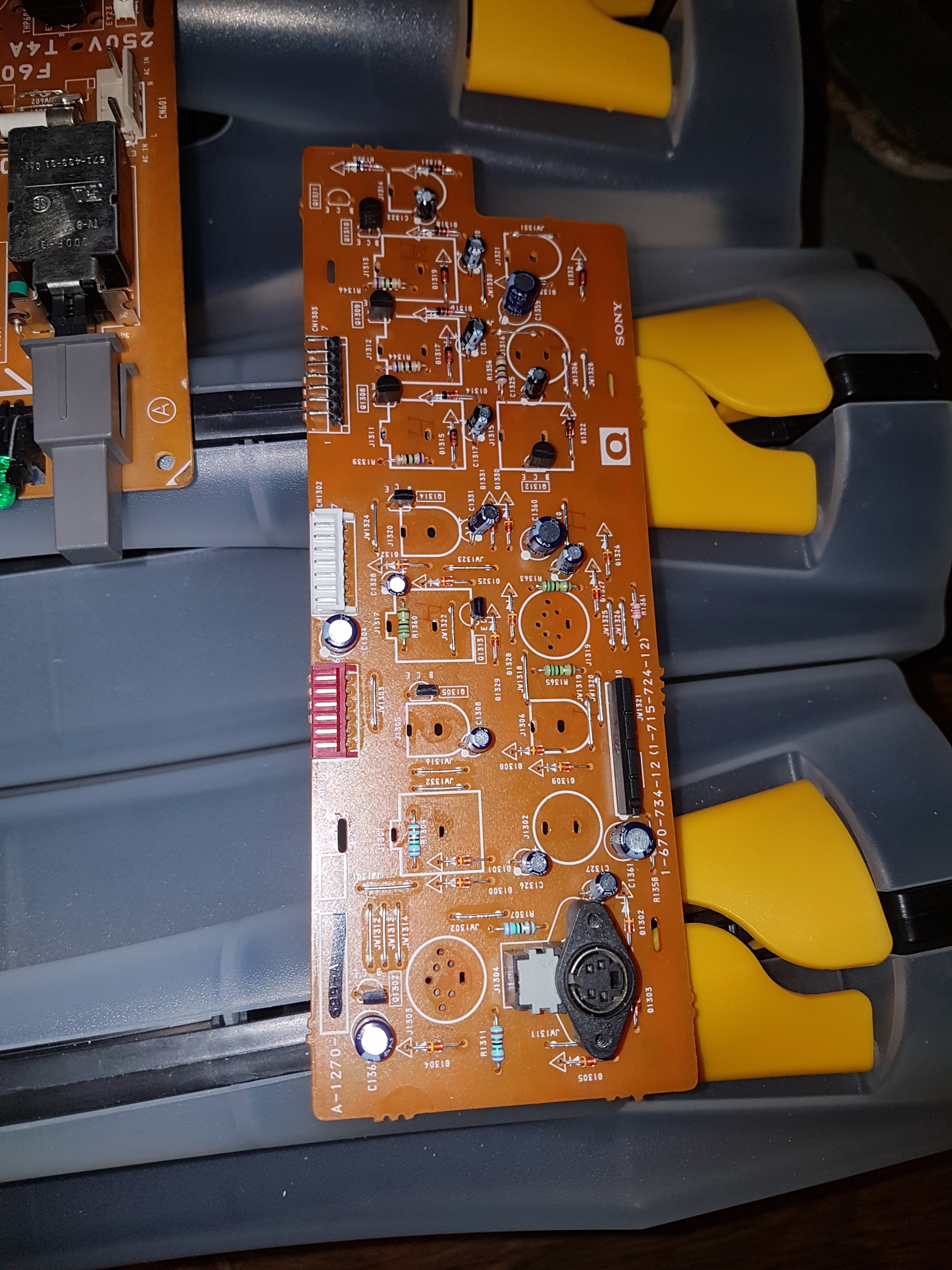

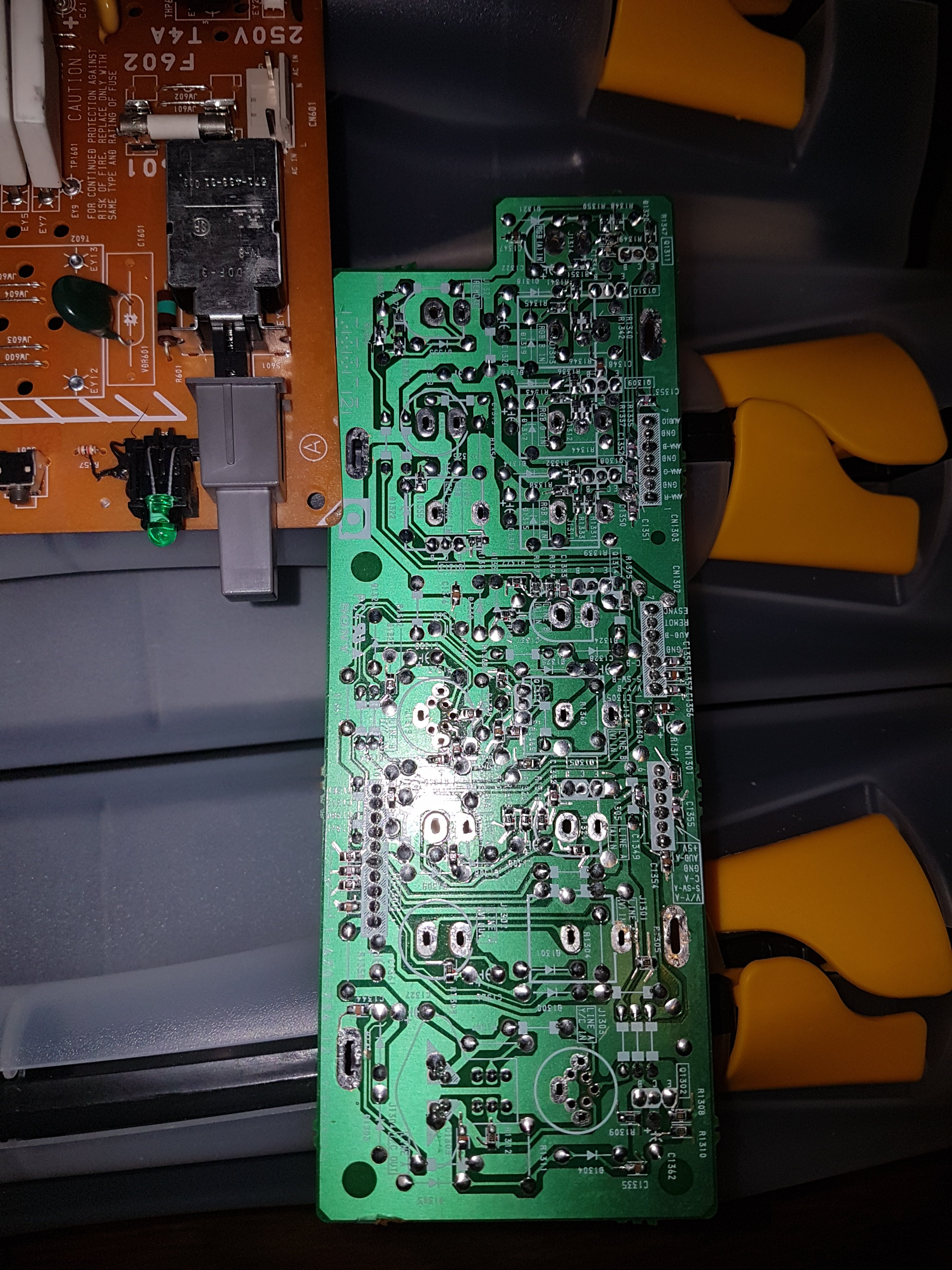

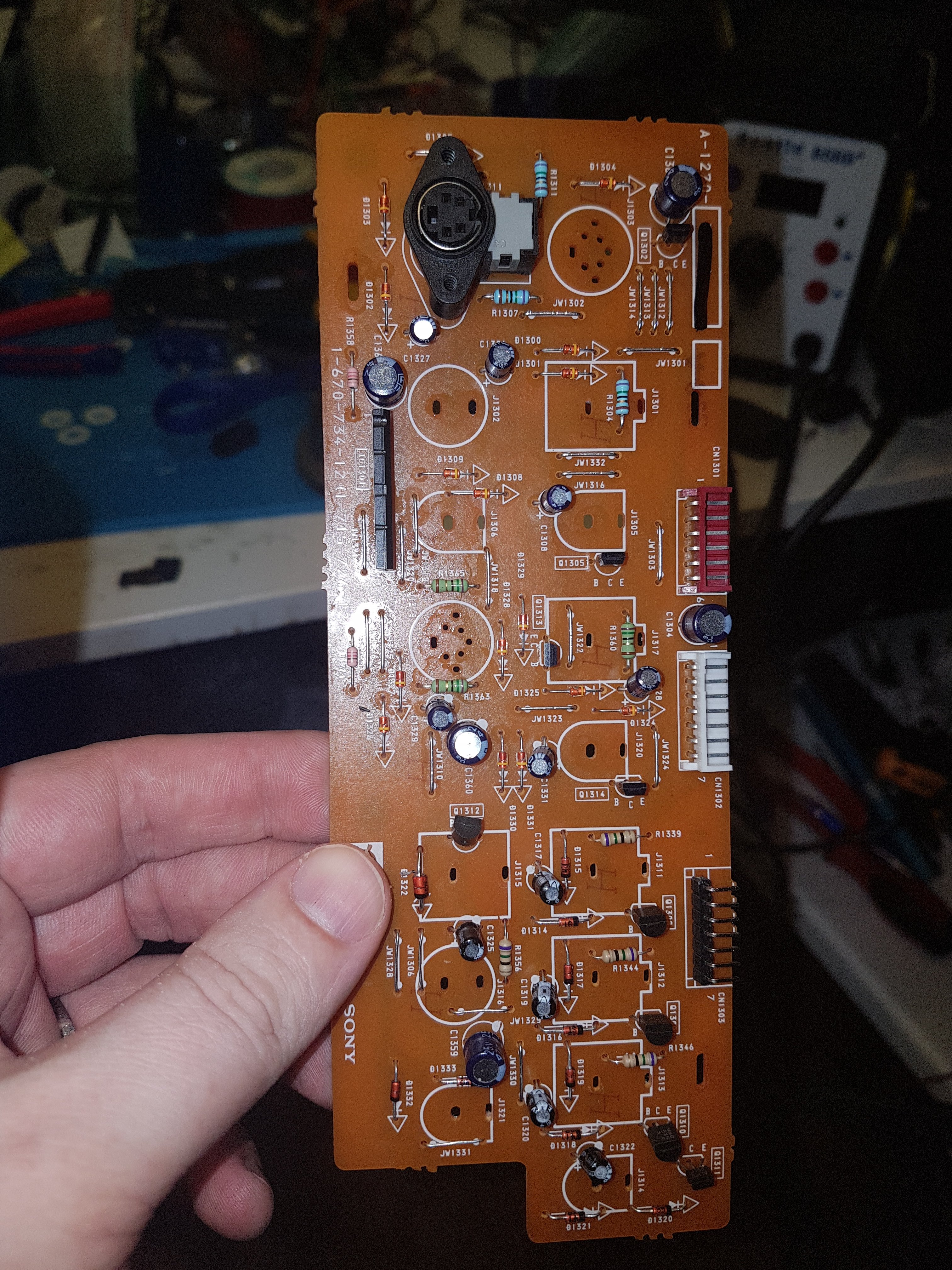

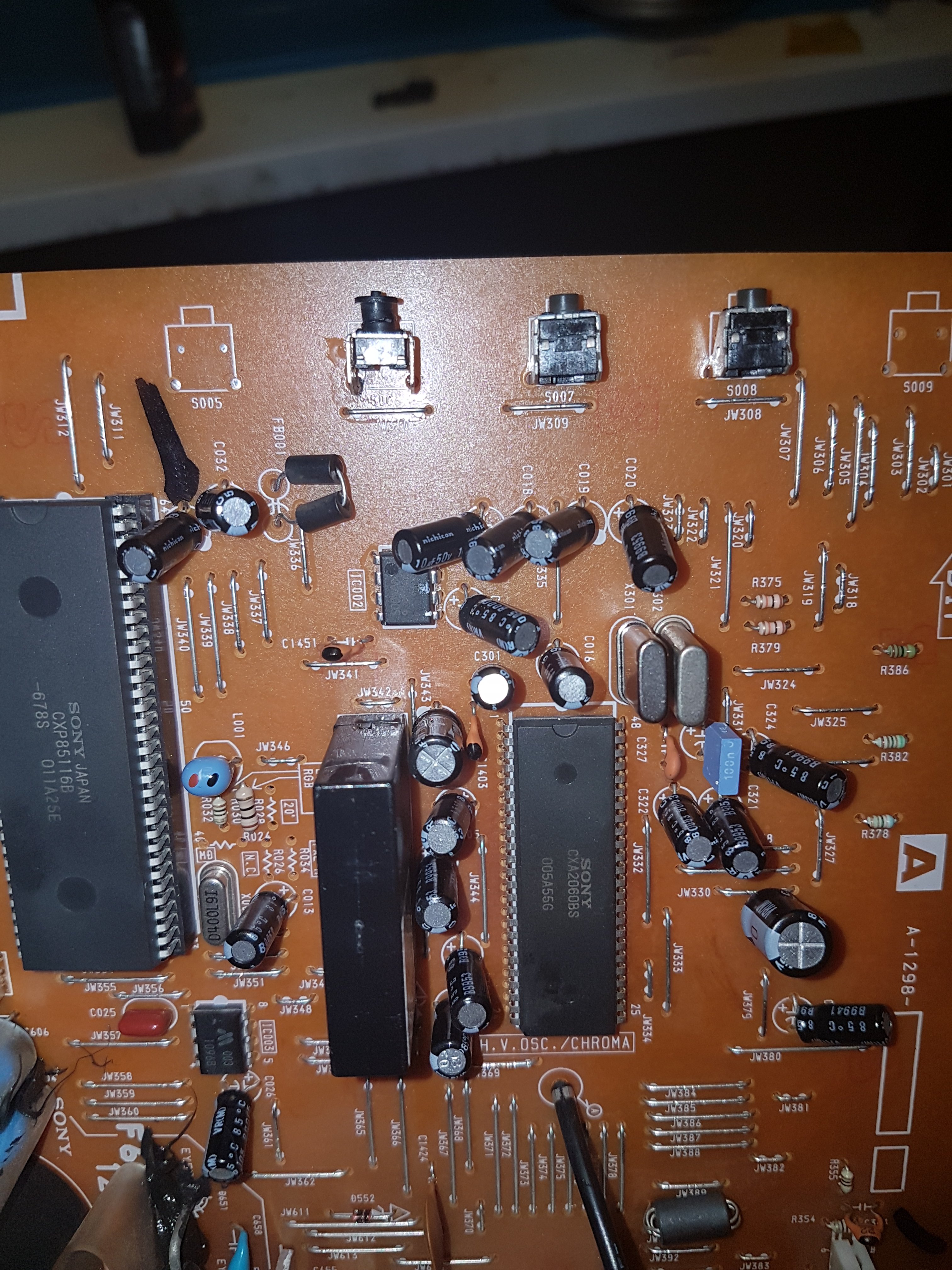

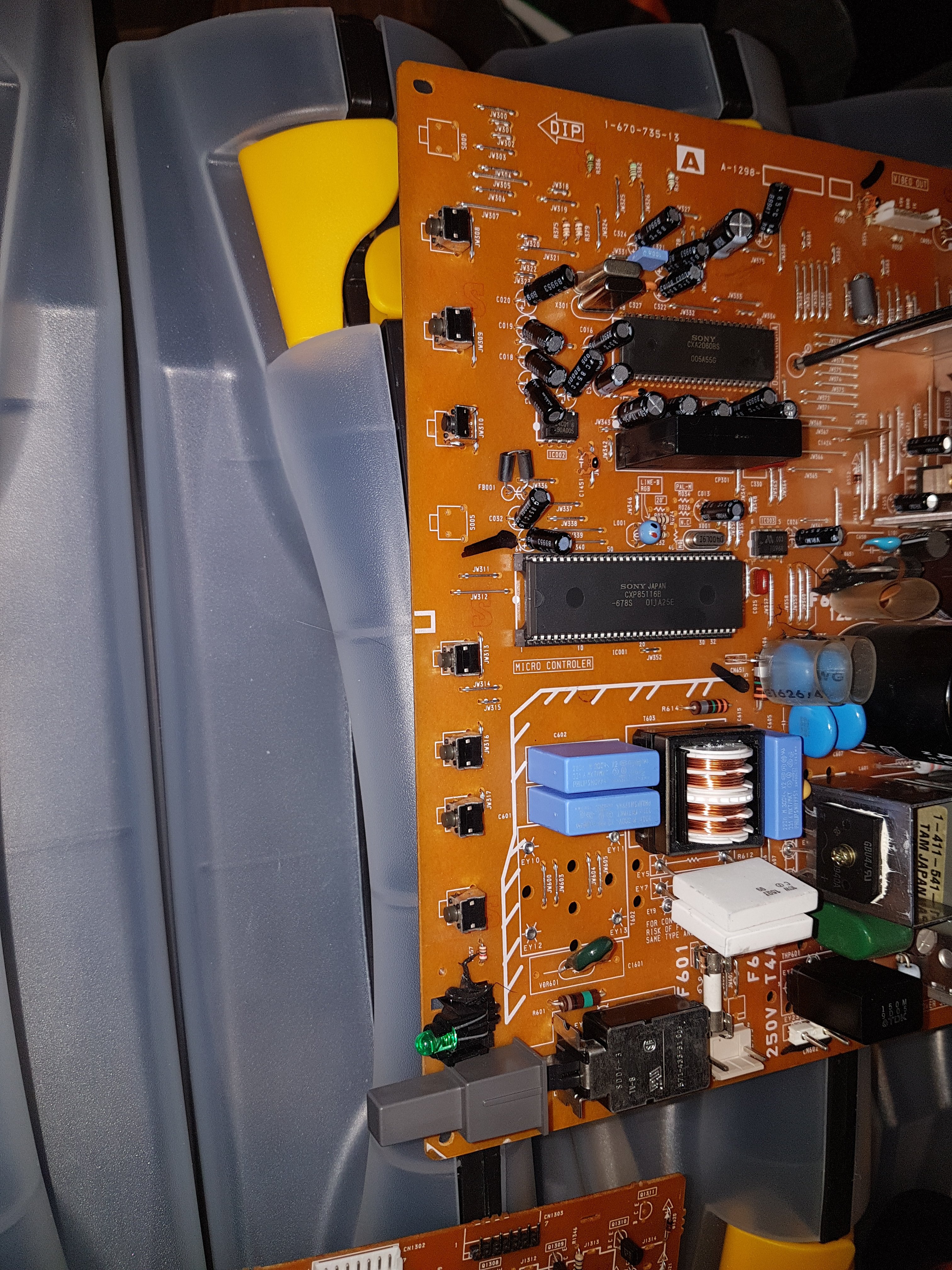

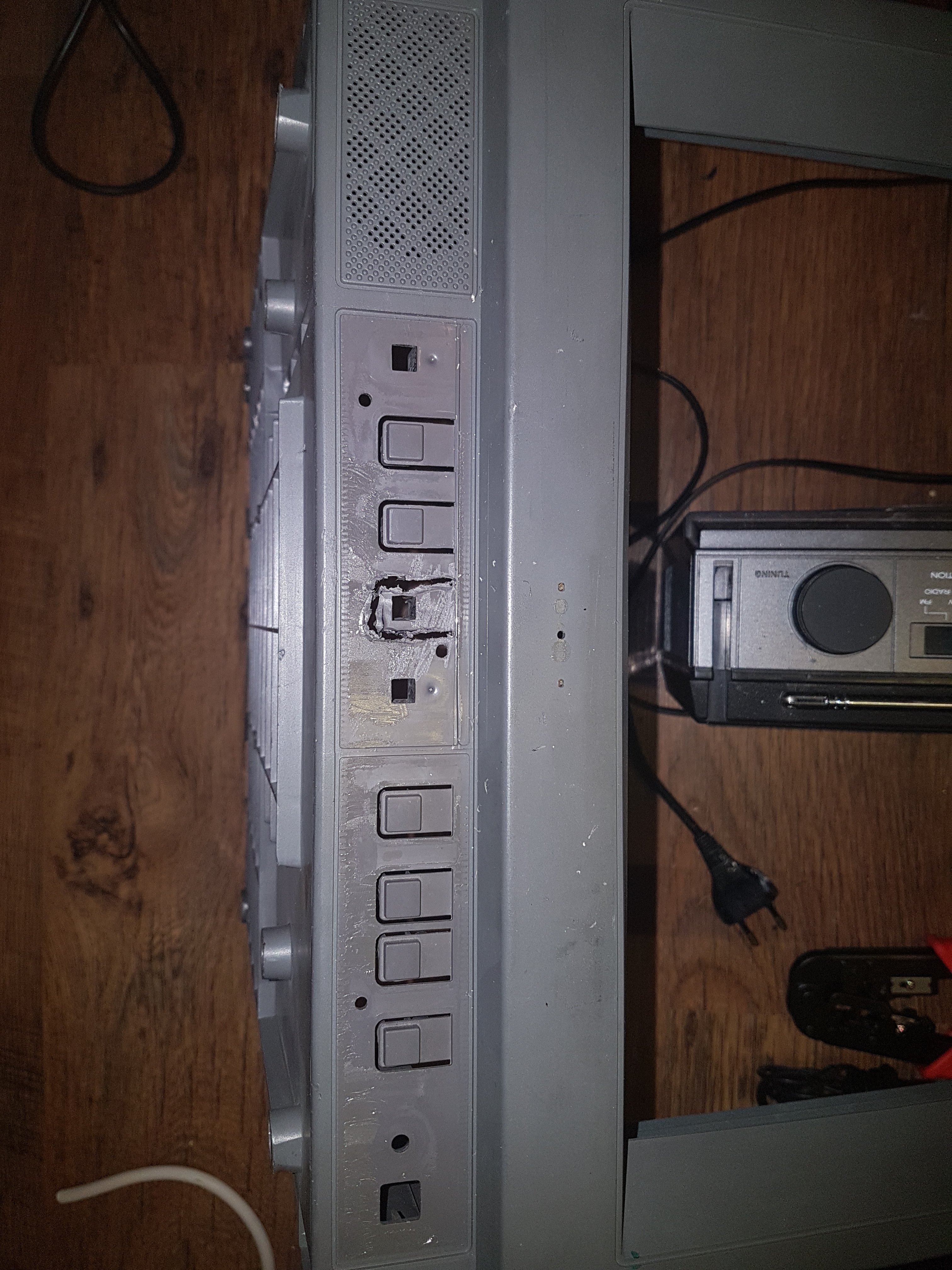

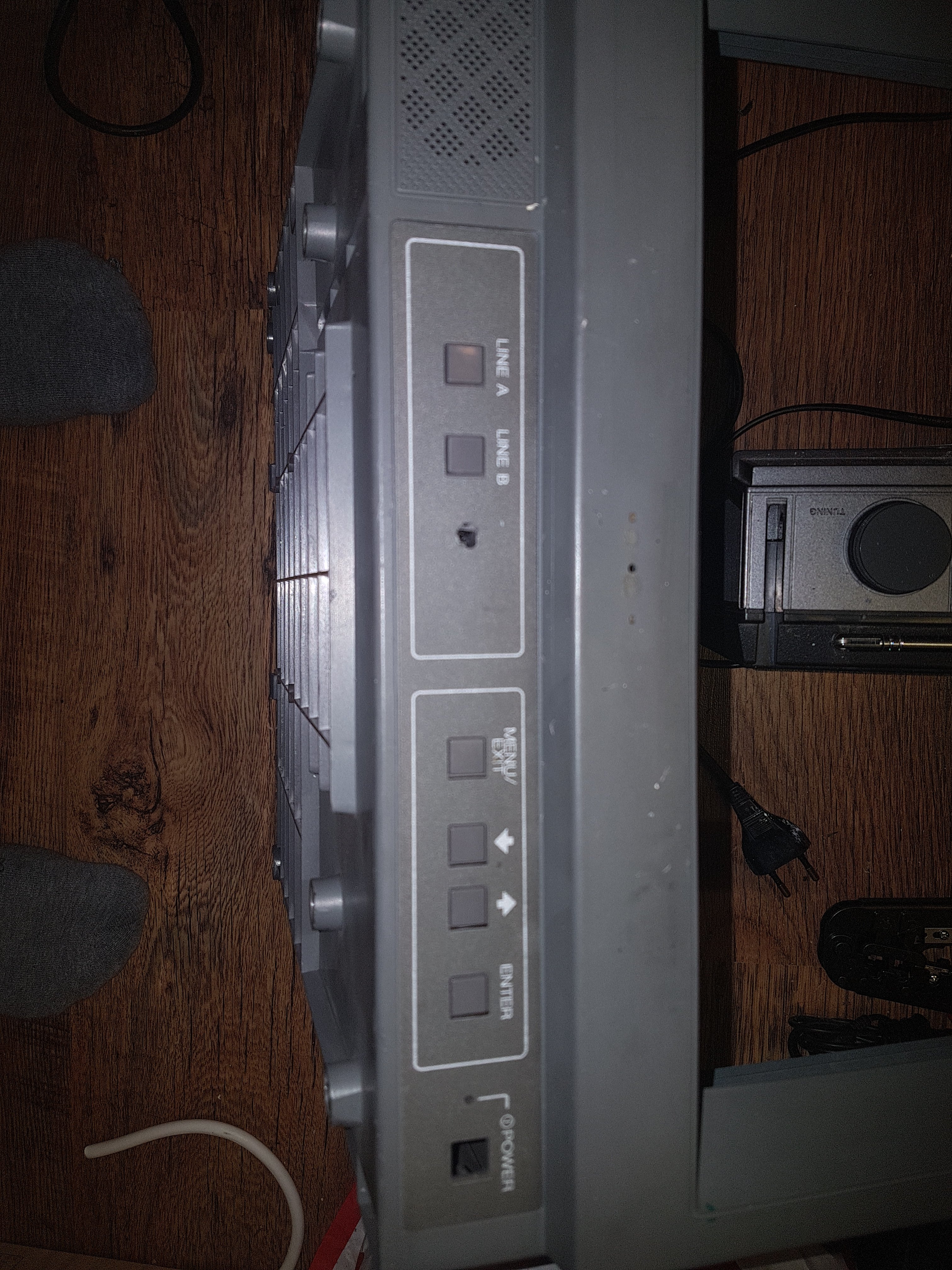

Pictures... I forgott that i added a tactile switch in the front. Had to cut out a hole and olso cut around the flexible plastic in thr front to make it usable.. think thats it.
Great stuff, thanks for the write up! I'm going to attempt this soon on a 20" I'm assuming all components will be the same to your 14" but will have a check
