Never considered that but no, I never get a scrambled screen on the AR cart, always perfect on that screen.
Thanks, I'll fire it up shortly and test! Apparently, consolegoods.co.uk have different SCART connectors in stock as well, not sure whether they'll help, I showed him the picture of mine and apparently the pin configuration is different on his. Ether that or it just has more pins... I know that doesn't necessarily mean they're wired different though. TEST RESULTS: Yes it de-syncs on res change. 320x224 NI SDTV - Works Works on all following modes then craps out on: 352x224 NI SDTV - Skewed picture Craps out on all following video modes until it loops back round to the first video mode I listed.
Maybe try a capacitor across the composite line. Bit of a shot in the dark, but worth giving it a try. See thread >>here<<
i bourght the chip from http://www.segastyle.com/store/index.php?route=product/product&product_id=54 years ago before saturn chips when sky high prices.:thumbsup:
Hi mate, I'm not currently equipped to solder at the moment, this is the cable I have at the moment though... I'm requesting purchase of a SCART lead from consolegoods since he says his are different to mine (I emailed him the pic from the first post). Though thanks for the input as it may be valuable in future. @ Druid - Test results are above mate, thanks!

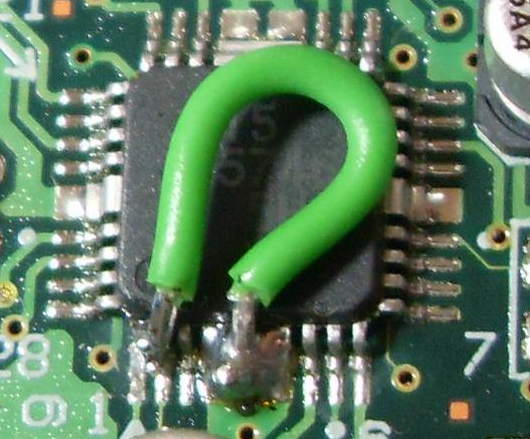

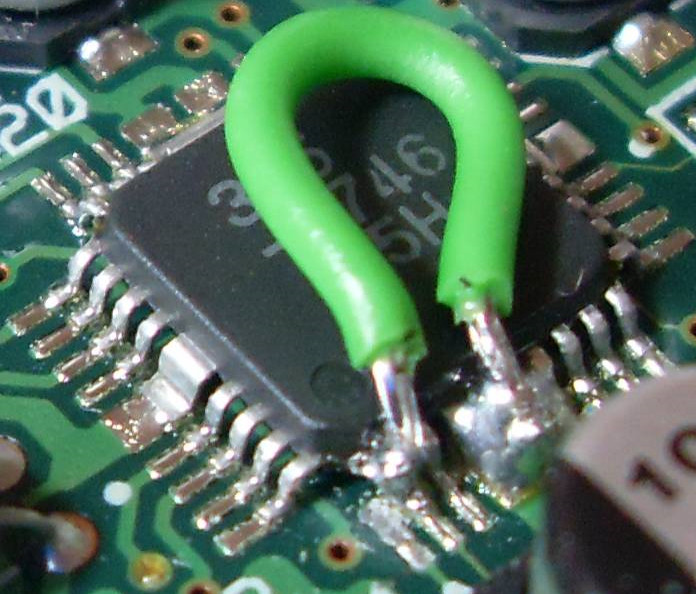

Sounds like you're onto something here, I'll have to disassemble again then and inspect that IC, I'll take some hi res of that chip and give it a good inspection! The machine ran fine with the controller sub board disconnected, obviously I couldn't control or reset the console but it ran fine, region change/50 & 60hz mode change. First pic of that chip: 8MP shot -> http://imgur.com/Vk9Hl EDIT: 2 more shots http://imgur.com/a/LEFPs 2nd EDIT: am I going crazy or are pins 1 and 2 soldered together there? It states on that guide: "For correct working of the 50/60Hz you have to desolder Pin 1 and pull up pin 1 of IC20. Then wire it to GND."

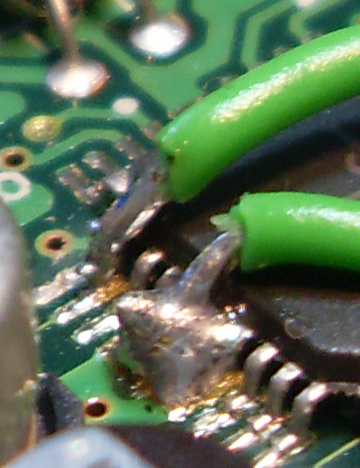

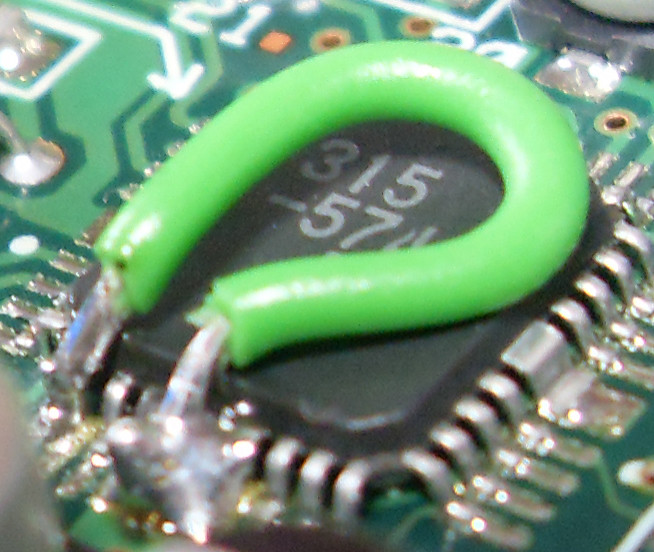

Christ, this is microsurgery! As you can see from the above pictures I can't even see pin 2 as it's covered by the ground wire, so I think poking it with anything won't establish much. In fact, it looks like the connection between pin 2 and the board has been broken as well and lumped together with pin 1 to GND. EDIT: yeah, I can't see a connection between pin 2 and the board... Confirmed I think, look at this: Pin 1 & 2 have been lifted and soldered to GND. You reckon that's what's causing it then?
Some GOOD solder work there like .Guess they've never heard of solder flux.:lol: There's one thing i don't understand about the mod in your saturn and the original german tut.Why leave the pic under the shielding,when there's plenty of space on top of the shielding ,which would let you still have access to the pic if you ever wanted to doing any ICSP .
You reckon a de-solder is needed here, re-establish pin 2 to the board then resolder pin 1 to GND? Of course I'll have to purchase a fine tip soldering set + magnifier (any recommendations?), as I have all the time needed to work on it at the moment. Oh and I never thanked you for linking to the SCART video, very informative. Of course when I did it I yanked the wire out of the back of the pin like a tit, then stuffed it back in. Mind you it worked again... :lol: You'd have to ask Raylyd - though you'll have a job as he's now banned from the forums I think (according to a recent announcement). He performed the mod himself. I'm not even sure buying another SCART will fix this now.

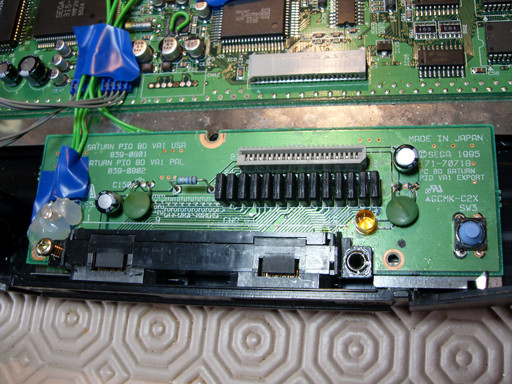

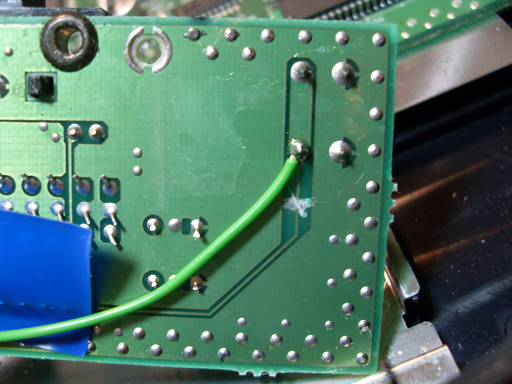

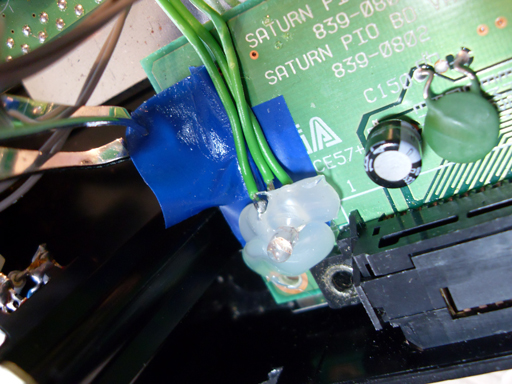

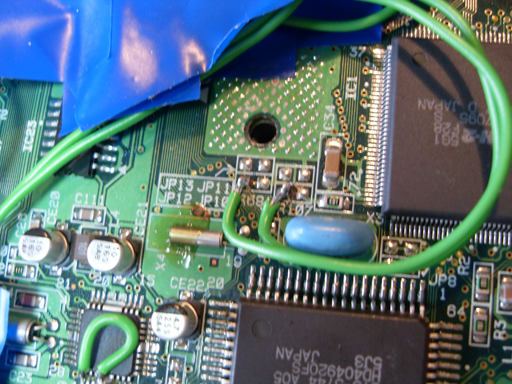

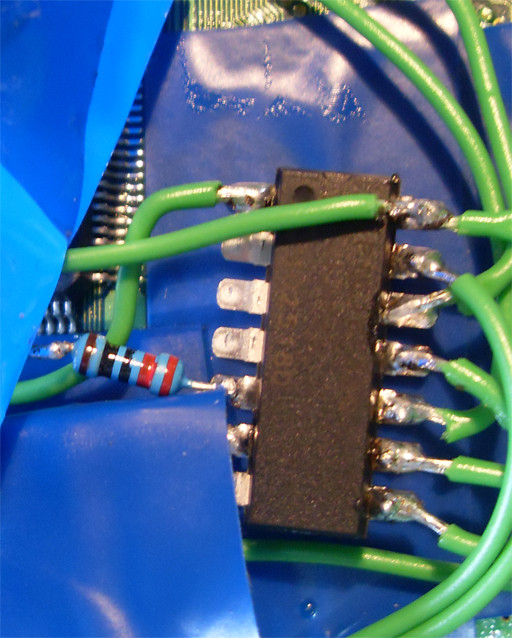

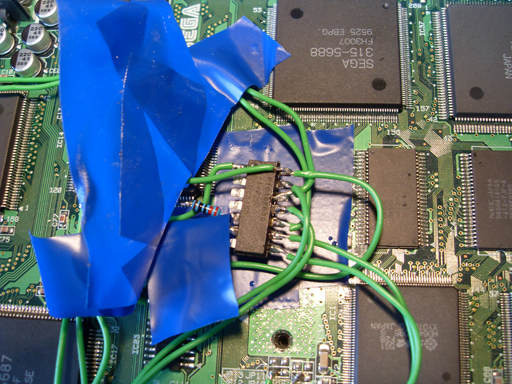

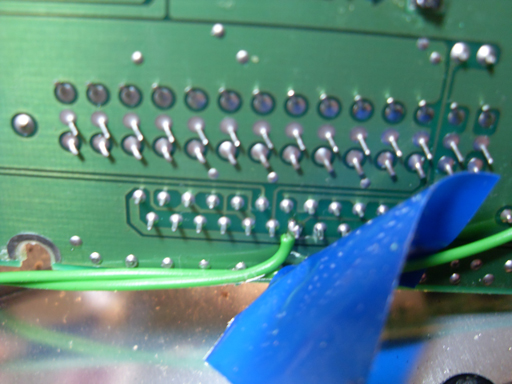

I'll need a little time on that one (supposed to be going out shortly, possibly for the evening), also do you mean I should remove the electrical tape completely from the mod and show where all the wires connect to the PIC? I can do that and take some snaps also showing the controller board. Will update ASAP ------------------------------EDIT------------------------------------------ Shots of the PIO Board: Underside PIO board, showing where the two wires connect: Image showing the modchip, I'm unable to remove all the tape due to the fact I have none myself to replace it. I'll be stocking up on supplies soon though if necessery! Closer, showing the soldering: (I've seen the other resistor and the soldering looks clean. Showing where the bottom right 2 pins are soldered to from the images above: The 2 points on the underside look like clean solders, they're too awkward to take snaps of at this point. I'm going down the 'Try another lead' method at this point before I think of purchasing a soldering kit and spend 18+ hours trying not to ruin the console. The last time I picked up a soldering iron a fire alarm went off. As for the above tests: start the console with the sub board disconnected, will the game boot, if it does, will it roll the picture? Game boots, picture rolls start the console with everything connected, then disconnect the sub board during the splash animation. Will the picture roll, or is it perfect? Will it "jump" from 60 to 50 hz as you disconnect the sub board? (50/60 switch is done by the same IC, right?) Not tested yet - results to follow start the console with everything connected, wait till the screen rolling starts, then disconnect the sub board: will it fix the picture? Not tested yet - results to follow start the console and have the sub board disconnected in any which way that gives you good picture. Then reconnect it. Will the picture go crazy? Unable to test without de-soldering the mod chip from the PIO board all together as I've had the cable out and the only other thing connected is the mod chip via the solder points. I may wait 'till tomorrow to test when the new SCART arrives as I've ordered it now. Fingers crossed it works off the bat and that was the problem from the beginning, though I don't have high hopes for it working with the new cable to be honest. :crying::drink:
Stable in the BIOS yeah, not game though. The chip has 2 lines connected to the underside of the mainboard, 3 to the power on LED, 2 to the underside of the PIO board (for region & hz switch) and two wired into the mainboard just below where the mod chip is sitting (see the last pic in my last post) - all solder work looks clean for the entire job, except the small IC. On there after having another look, it seems that the connection on pin 2 isn't broken, what I thought was the board underneath showing where pin 2 had been lifted looks in fact like oxidation of the solder. Pin 2 however is definitely soldered to GND along with pin 1. Another wierd thing happened today where the console will now only output composite (B&W scrambled in game) to my TV, but I put that down to the butcher job I did on the cables coming out of the back of the SCART connector. Though no matter how much I secure the connections to the pins at the back it's still composite. I've got a new one arriving from consolegoods.co.uk should be tomorrow as it's 1st class recorded. This is apparently different to my current SCART cable, which I suspect could be a US/JP SCART. This may explain things, though we'll find out tomorrow. Otherwise it's buy a soldering kit time at the weekend, and a grueling surgical repair job on the small IC trying to seperate pin 1 & 2 while maintaining pin 2's connection to the board and grounding pin 1 without crossing the two. The thing is fucking tiny, so I'll need a magnifier, a daylight lamp (which I have) and A LOT of time. Not looking forward to it if that's the case. ------------------------------EDIT------------------------------ I also found that IC on the schematics, not sure exactly what role pin 2 plays here though!

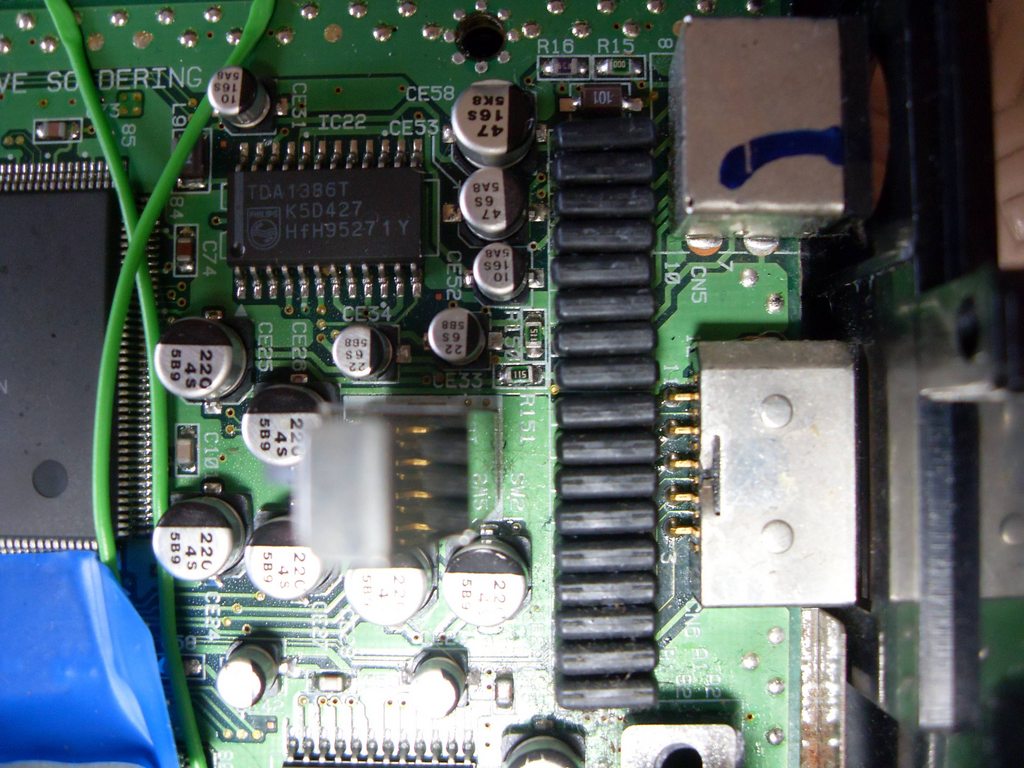

*sigh* No sign of the cable today, hopefully it will arrive tomorrow then. What so I could have potentially knackered one of the diodes here: http://i.imgur.com/0BClIh.jpg What do I use to replace them if needs be? Though hopefully the new cable works as it says in the description it functions on all region Saturns.
