Triforce scans boards

Triforce is exactly gamecube board + others board modules.
The Guru dumping my Bios in this year i think

http://www.monsterup.com/image.php?url=upload/1205093720.jpg


Triforce Japan
Main Boot Ver.2.03
Main Firm Ver.0.36
Main Fpga Ver.7.09
Net Firm Ver.11.01

Top First Modul Recto.jpg
http://www.monsterup.com/image.php?url=upload/1205097030.jpg

Top First Modul Verso.jpg
http://www.monsterup.com/image.php?url=upload/1205097176.jpg

Top 2nd Modul Recto.jpg
http://www.monsterup.com/image.php?url=upload/1205097495.jpg

Top 2nd Modul Verso.jpg
http://www.monsterup.com/image.php?url=upload/1205097795.jpg

NGC Modul Recto.jpg
http://www.monsterup.com/image.php?url=upload/1205097945.jpg
NGC Modul Verso.jpg
http://www.monsterup.com/image.php?url=upload/1205098098.jpg

Down Modul Recto.jpg
http://www.monsterup.com/image.php?url=upload/1205098318.jpg

Down Modul Verso.jpg
http://www.monsterup.com/image.php?url=upload/1205098705.jpg

Conector Side Modul Recto.jpg
http://www.monsterup.com/image.php?url=upload/1205098781.jpg

Conector Side Modul Verso.jpg
http://www.monsterup.com/image.php?url=upload/1205098977.jpg

Pic Key Chip Suport Modul Recto.jpg
http://www.monsterup.com/image.php?url=upload/1205099033.jpg

Pic Key Chip Suport Modul Verso.jpg
http://www.monsterup.com/image.php?url=upload/1205099217.jpg

RAM Recto.jpg
http://www.monsterup.com/image.php?url=upload/1205099339.jpg

RAM Verso.jpg
http://www.monsterup.com/image.php?url=upload/1205099453.jpg

http://www.monsterup.com/image.php?url=upload/1205099516.jpg

PICTURES PACK:
MEGAUPLOAD - The leading online storage and file delivery service

I have dumped this GD-Rom on *.gdi
Avaron No Kagi (Mein) (J) [!] [GDT-0005A].rar
Avaron No Kagi (Mein) (J) [!] [GDT-0005C].rar
Avaron No Kagi (Mein) (J) [!] [GDT-0005F].rar
Avaron No Kagi (Mein) (J) [!] [GDT-0005G].rar
Avaron No Kagi (Sateraito) (J) [!] [GDT-0006A].rar
Avaron No Kagi (Sateraito) (J) [!] [GDT-0006C].rar
Avaron No Kagi (Sateraito) (J) [!] [GDT-0006F].rar
Boot Update (J) [!] [GDT-0011].rar
Gekitou Puro Yakyuu Mizushima Shinji S0utaazu Vs Puro Yakyuu (J) [!] [GDT-0008C].rar
Virtua Striker 4 (J) [!] [GDT-0013E].rar
Virtua Striker 2002 (J) [!] [GDT-0001].rar

[img=http://img176.imageshack.us/img176/8007/triforcehm6.th.jpg]
Search my dump on a net torrent private!
Google is your friend
I want help real developer emulator! need *.gdi pluging similard to makaron or nuldc!
sorry my english is too bad :'( "i'm french"
i have boards triforce jap and euro
i have dump chihiro too!
I'm dumper of this dumps

PS: Your list is incomplet! missing :
Mario Kart Arcade GP
Mario Kart Arcade 2
F-Zero AC
F-Zero Ax

and all other contry for all !! asia, usa, export, euro, japan

GDT-0006F is on ID REF !
GD : GD-Rom
T : Triforce
0006 : order number
F : Revision version
for country look a TOC of your gdrom for exemple:
Listing of cdrom
CD-ROM INFO
Title THE KEY OF AVALON CLIENT
Media ID 1145
Media Config GD-ROM1/1
Regions J
Peripheral String 0000000
Product Number GDT-0006F
Version V7.001
Release Date 20030924
Manufacturer ID
Track Start Sector End Sector Track Size
track01.bin 150 599 1058400
track02.raw 750 2101 3179904
track03.bin 45150 549299 1185760800
Dump of PIC is impossible ! G+The Guru have a solution but it's most expensive

I Want contact developers of dolphin emulator



Welcome to the boards! Cool pics :thumbsup:

BTW, talking about tons of different stuff in a single topic makes it a bit confusing, you should look though the forums and you'll find topics for almost every topic you commented above ;-)



Hi Bobo, i caught some of your NEOLazer dumps over at U-G. Good work

BTW, there is a way to dump those PIC security IC's, for Naomi 1 and 2 definately because i have developed a method to do it. It probably works for Triforce IC's too.

MrS



Great stuffs.
Bravo BoboPJ64. :clap:



Yes, NeoLAZER is my project, website comming soon!

I have dumped very long list of dump, dump Dreamcast, Chihiro, Triforce, Naomi 1&2, Playdia, Pippin ect...
I have too project for dumping LD-Rom !!!

But missing PCI DATA CARD Professional for it (very expensive!) Don Via Paypal is a solution???
Your contribution is it welcome! If you want it!!!
You have contacted The Guru?
You have dumped PIC?
PIC for Linderberg, naomi , Triforce and Chihiro is 100% Identic !!!
Contact me in private, give me you PIC dumped and methode for dumping or I can shiping PIC for you and you can dump it!



Thanks for sharing!
I'd be interested in how the system looks with all the pcbs connected together.



Wow thats nice pictures and info. It is nice that some still care of GC emu in same ways. Thanks.



You want others pictures?



I´d like to see some other pictures too, since I became more intrested in the Triforce lately. I´d especially love to see some pics of it running (how everything is hooked up etc.)!



For running go to System16!!!
My GD-Rom Drive not work!
I use Dreamcast for dumping , it's too Good for dumping and most easy

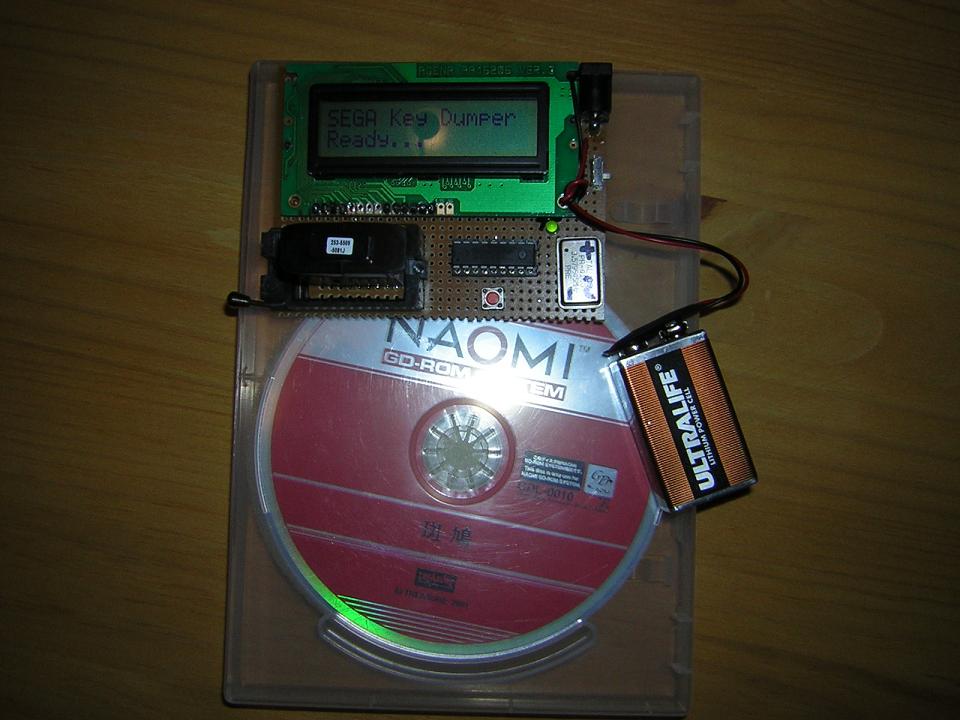

Here is my custom built tool Bobo, it has been tested and succesfully used to dump Naomi1/2 and Chihiro security IC's. Triforce and Lindberg would probably work too.



wow, great shots! Thanks for sharing



@MrSporty- great work. i'd be interested in purchasing such a tool were you willing to assemble another.



Are the Triforce boards easy to run? I know that Mario Kart Arcade ran on it, and I've always been interested in picking up that board, if possible...



DAMN, you guys rock!

Some questions: It has been said that the triforce has 48MB of internal ram. However, the boards show a stock gc board, with just 24MB (MS3M32B-5 is 3Mx32bit, i.e. 12MB, right?). Where are the other 24MB?

Then, it seems as they generall wrap a (complex) DVD emulation board around a gamecube.

Have cartridges already be dumped and decrypted? If not: Legal stuff aside, couldn't we "just" intercept the data at the DI, then replay? (for example by using a modded gamecube drive with the data burned to DVD, or custom hardware like the gamecube harddisk interface)

For "intercepting" the data, couldn't one just (bios-)mod the cube (with a qoob or viper, for example), then run a gamecube disc ripper? This would circumvent all layers of security. Maybe some special "unlocking" mechanism is present (like in the NPDP-Consoles), so a bios dump of the gamecube part might be required. This would be also possible with a modchip.

Not that I would want to promote anything like this (I know this is a sensitive topic), but if a triforce really has 48MB of ram, one could maybe use a Wii, in some hybrid wii/gc-mode to have memory-mapped access to the second 24MB of ram by abusing the GDDR3-RAM.



Looks like you got tmbinc quite excited

All of those ideas sound interesting (though some implausible). Hopefully those folks with Triforce setups would be willing to look seriously into this. Seems like you'd have tmbinc's guidance at any rate



I want to play Mario Kart GP on my Wii!!!, lol still would be nice to play those game with retail system



Sorry for being such a noob when it comes to arcade, but: If I would buy a Triforce (I've seen them for sale for quite less money, like $500 or so), would that thing boot, or is there something missing?

If yes, I'm tempted to buy one, and try that "DI dumping" method. (But I'm also a terrible noob when it comes to dealing with japanese auctions. Could anybody please guide me a bit?)



You can use deputy service like http://shoppingmalljapan.com/ or rinkya to bid on yahoo japan auctions and also buy from online store. But for something in 500$ range I think to commision is going to be a little too high.

You should try to find an assembler member from japan to buy it for you. Just make a post in the marcketplace and I'm sure someone will help you for cheap since you have an interesting project.
