Unknown Sega PCI card

Discussion in 'Sega Dreamcast Development and Research' started by T_chan, Mar 29, 2009.

Watch Thread
Page 2 of 2
  1. l_oliveira

    l_oliveira Officer at Arms

    Joined:
    Nov 24, 2007
    Messages:
    3,879
    Likes Received:
    245
    Put it on a more recent PC (with Windows XP PRO) and then get the device PCI ID written down to a piece of paper. Only XP PRO allows for viewing device ID. I am not sure if Vista allows that...

    That should at least help us with figuring out what the device is supposed to do...

    l_oliveira, Apr 1, 2009 Report
    #21 + Quote Reply
  2. T_chan

    T_chan Gutsy Member

    Joined:
    Apr 13, 2008
    Messages:
    464
    Likes Received:
    64
    Last time I inserted it in a WinXP pro pc, the system didn't even see there was a card...

    Here's what the prog "Advanced PCI Info" gives on Win98jp:

    Installed cards:
    [GALLERY=media, 2243]P1000034 by T_chan posted Aug 10, 2017 at 9:40 AM[/GALLERY]
    -> vendor = Altera

    [GALLERY=media, 2244]P1000036 by T_chan posted Aug 10, 2017 at 9:41 AM[/GALLERY]
    -> not much extra info....

    Does somebody here have high resolution pictures of the boards of the Set 2 & 3 katana dev kits ?

    I've found some pictures of the Arc1a (Set 2), but none that are clear enough to really see what's on the board...
    I din't find anything on Set 3 though... has anybody seen that one ?

    Last edited: Aug 10, 2017
    T_chan, Apr 1, 2009 Report
    #22 + Quote Reply
  3. iamaduck

    iamaduck Active Member

    Joined:
    Mar 31, 2009
    Messages:
    28
    Likes Received:
    0

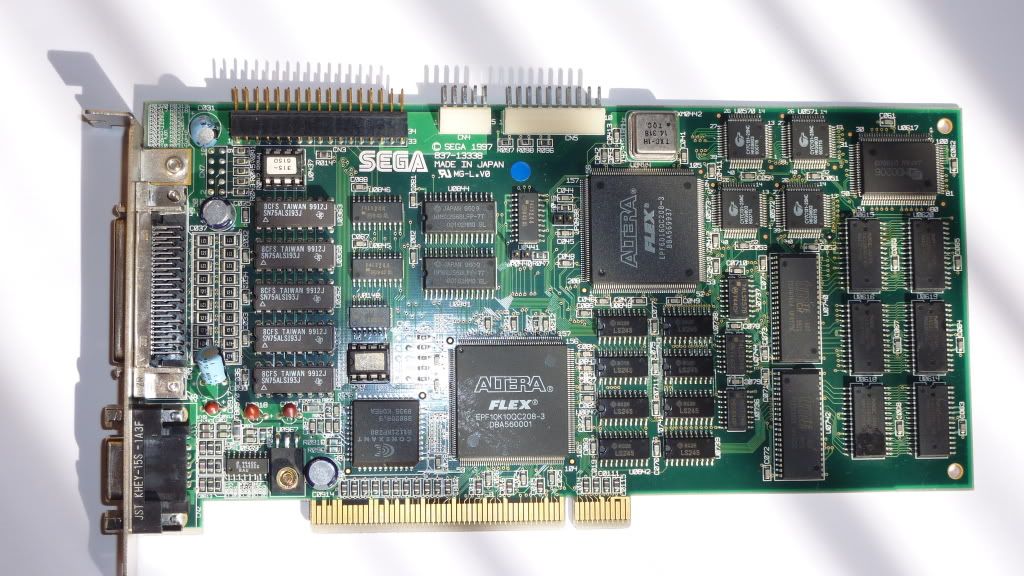

    It almost looks like a video capture card with SCSI interface.

    What's the part number of the Fuji chip near the RAM?

    iamaduck, Apr 6, 2009 Report
    #23 + Quote Reply
  4. T_chan

    T_chan Gutsy Member

    Joined:
    Apr 13, 2008
    Messages:
    464
    Likes Received:
    64
    Fuji MD0206
    079803

    I haven't find info on this chip yet...

    Last edited: Apr 7, 2009
    T_chan, Apr 7, 2009 Report
    #24 + Quote Reply
  5. alecjahn

    alecjahn Site Soldier

    Joined:
    Apr 23, 2008
    Messages:
    2,825
    Likes Received:
    9
    I'm feeling the Katana-vibe, but it seems odd that something of that era would be unknown to people around here.

    The few Katana boards I've seen were also marked 1997.

    Quick question (perhaps partially off-topic), how was Naomi dev done, still on the Katana?

    Last edited: Apr 7, 2009
    alecjahn, Apr 7, 2009 Report
    #25 + Quote Reply
